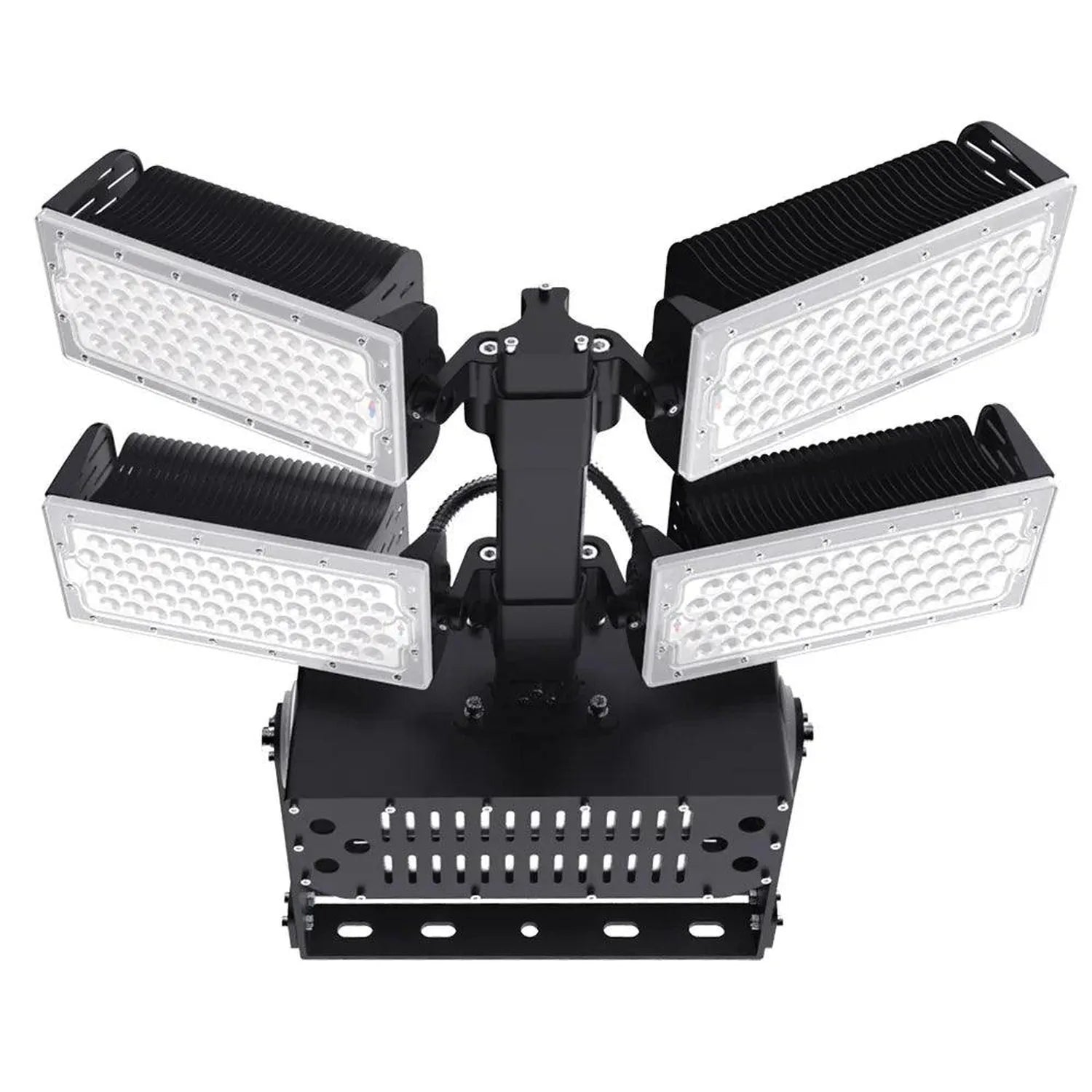

Four-panel LED flood light fixture with adjustable arms and black mounting bracket, front view product shot.

Athled LED Sports Flood Light 480W 84,000lm IP66 | Ledison

Natural White 4000K
£932.35
Skip to product information
Four-panel LED flood light fixture with adjustable arms and black mounting bracket, front view product shot.

Athled LED Sports Flood Light 480W 84,000lm IP66 | Ledison

Vendor
Ledison
SKU
103056
Availability
In stock
Weight
16.0 kg

£932.35inc VAT £776.96exc VAT

Delivery from £8.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Athled 480W sports flood light from Ledison puts out 84,000 lumens at 175 lm/W. It is built for football pitches, tennis courts and sports grounds, and it is just as suited to big outdoor spaces such as yards, car parks and warehouses. Choose natural white or cool white.

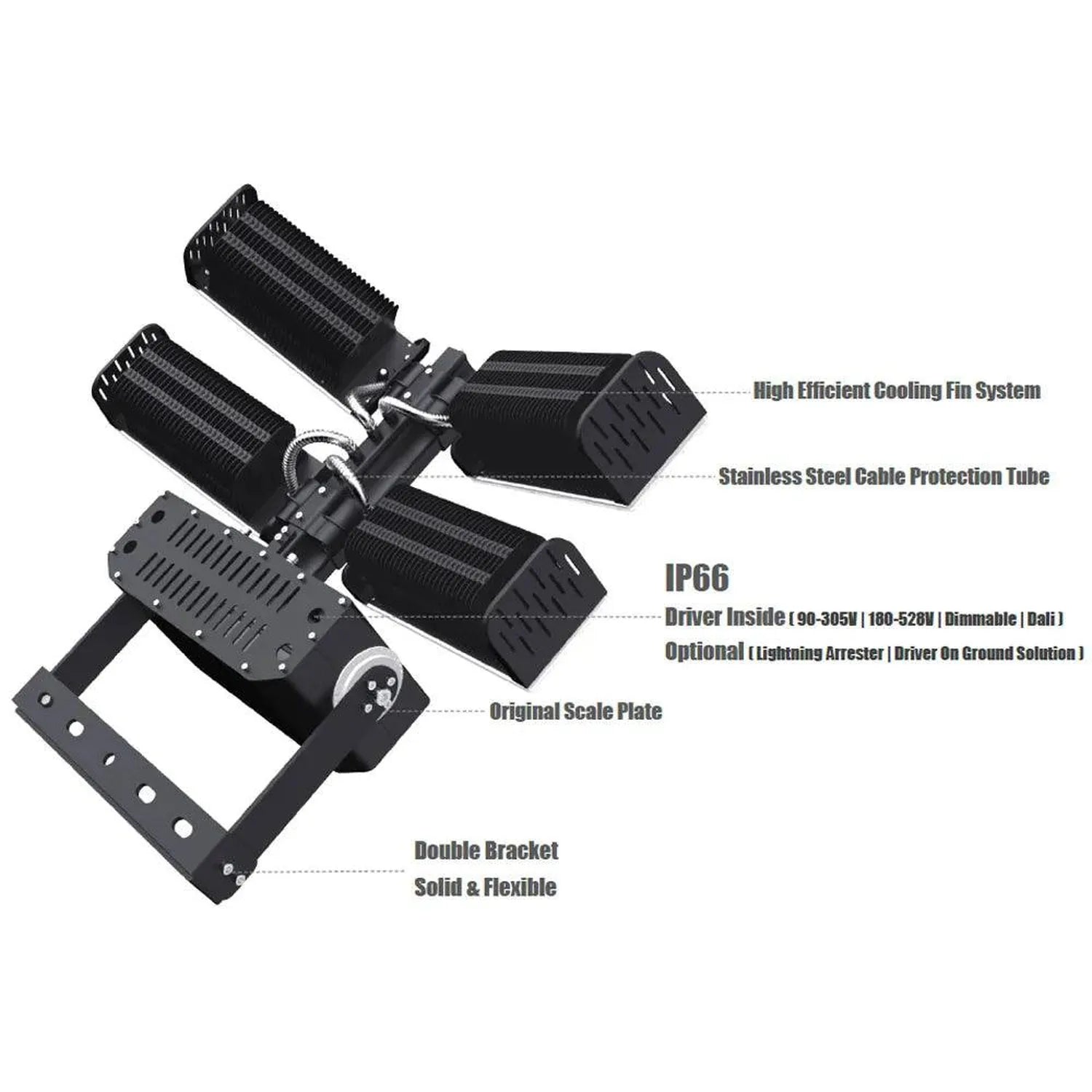

Sports flood light features

  • Output: 480W, 84,000 lumens, 175 lm/W

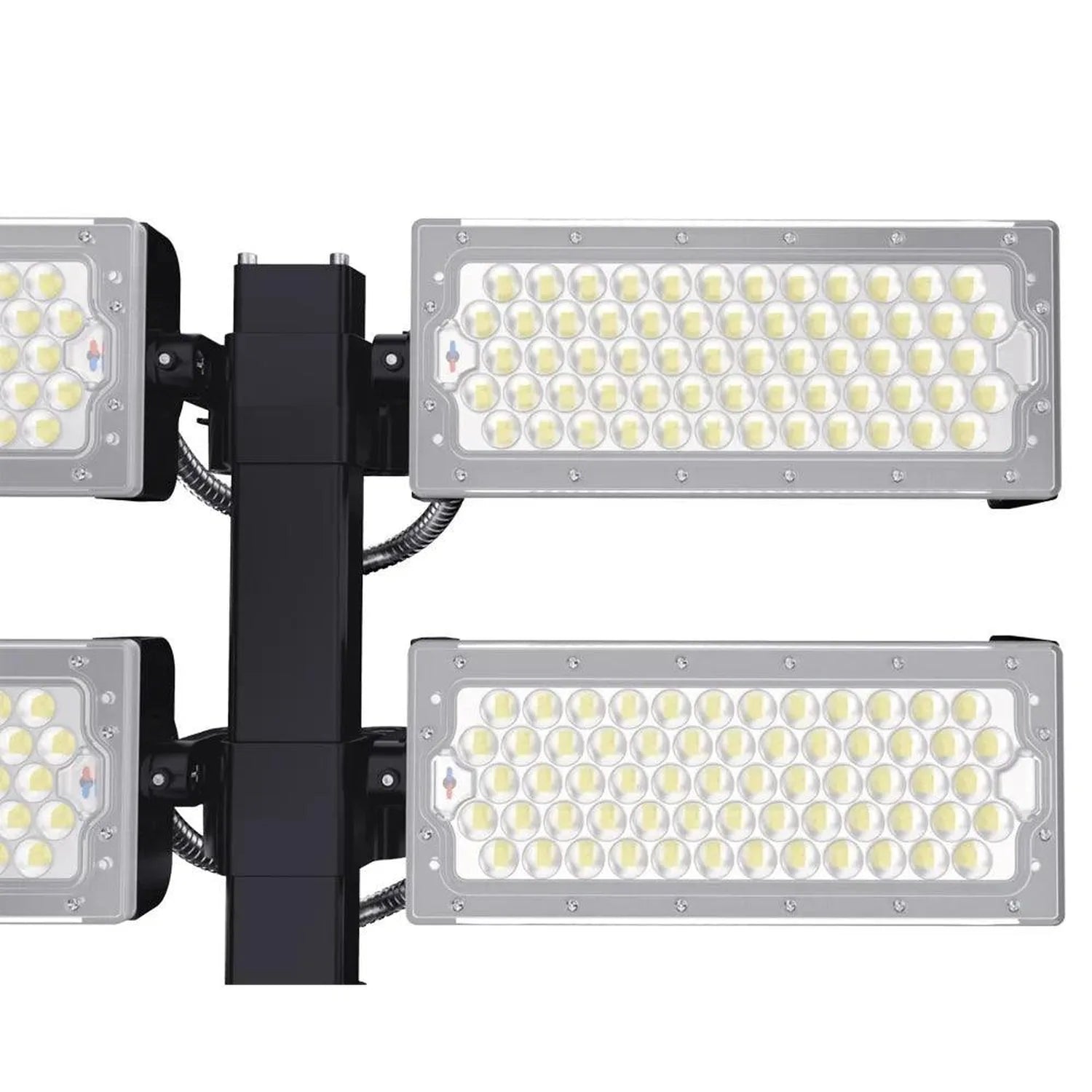

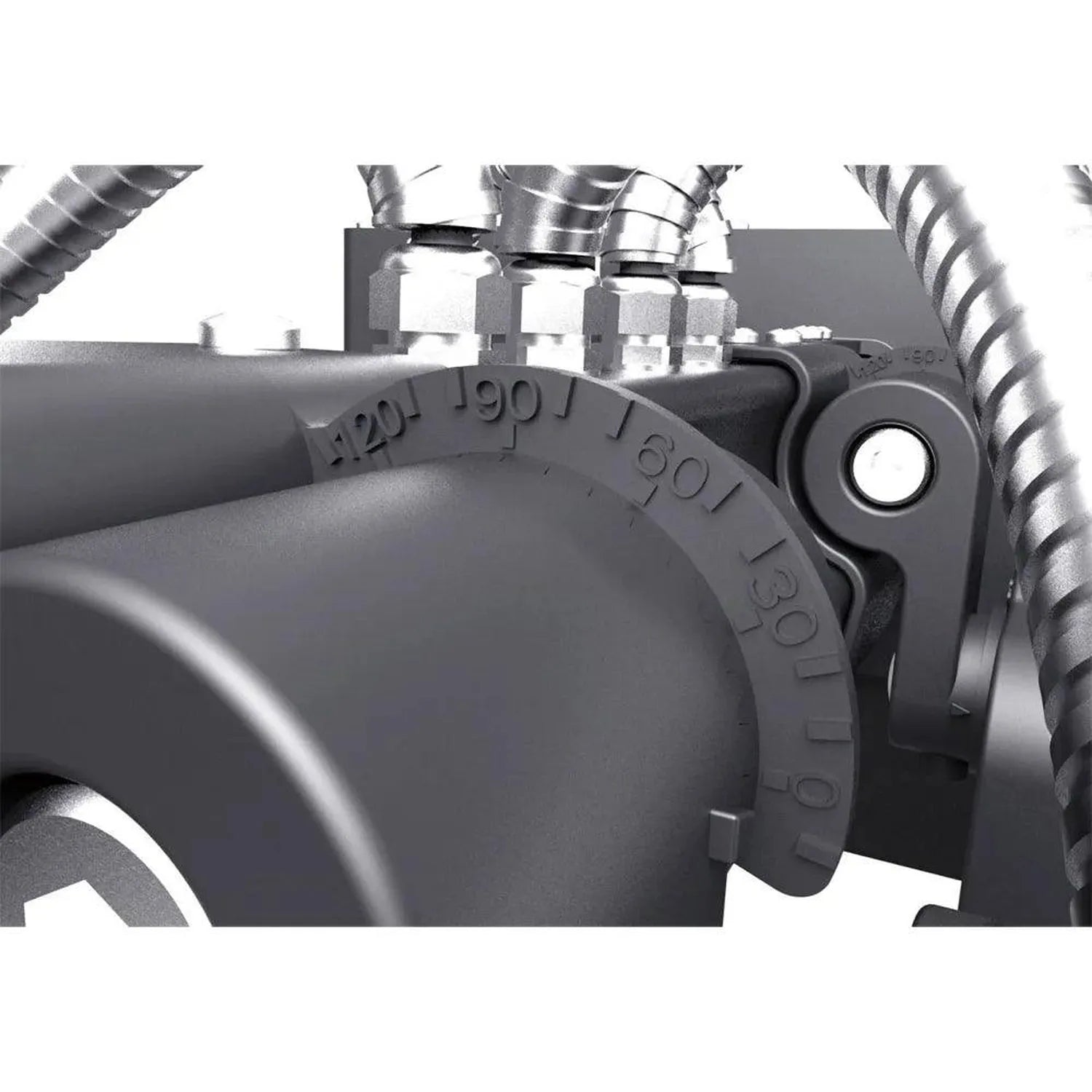

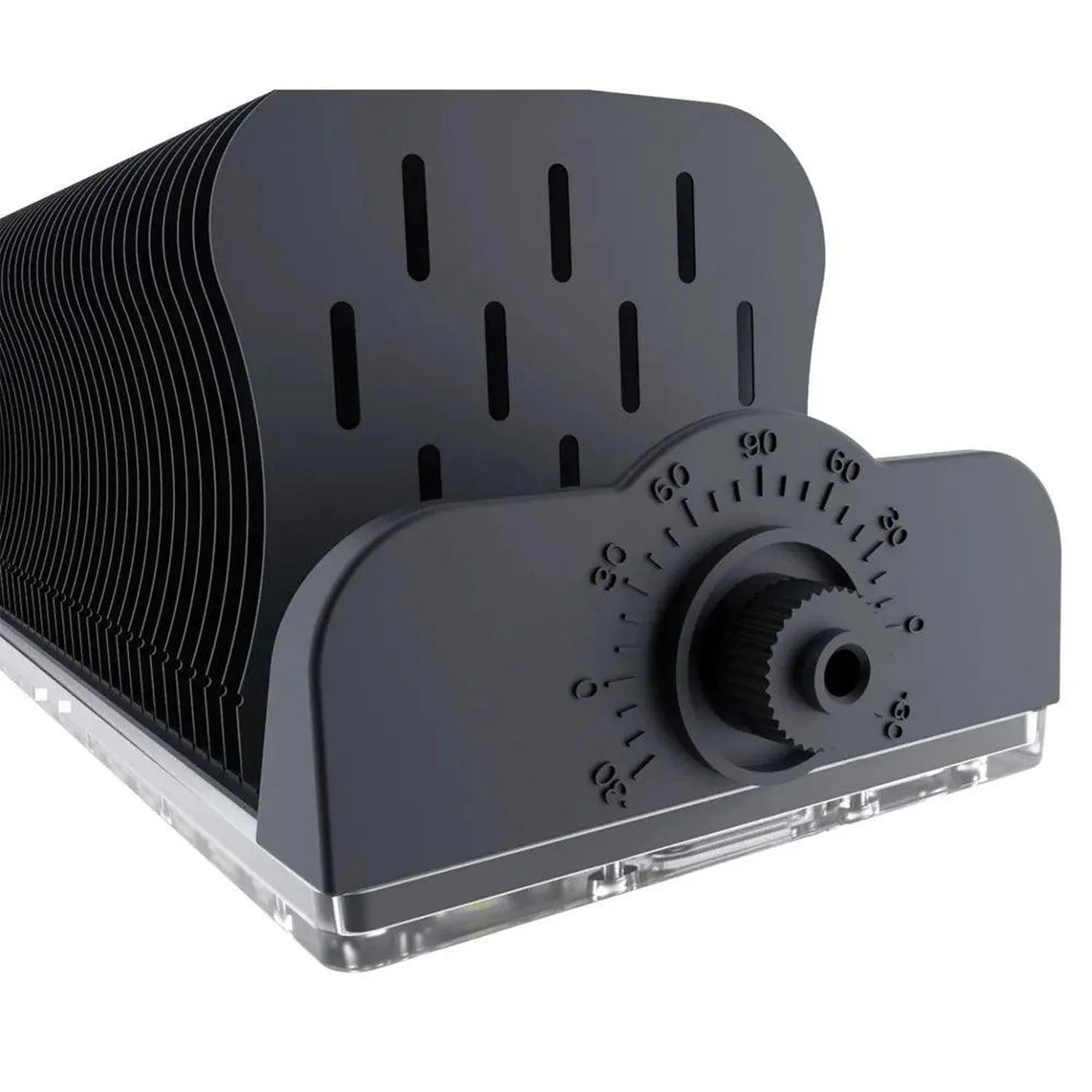

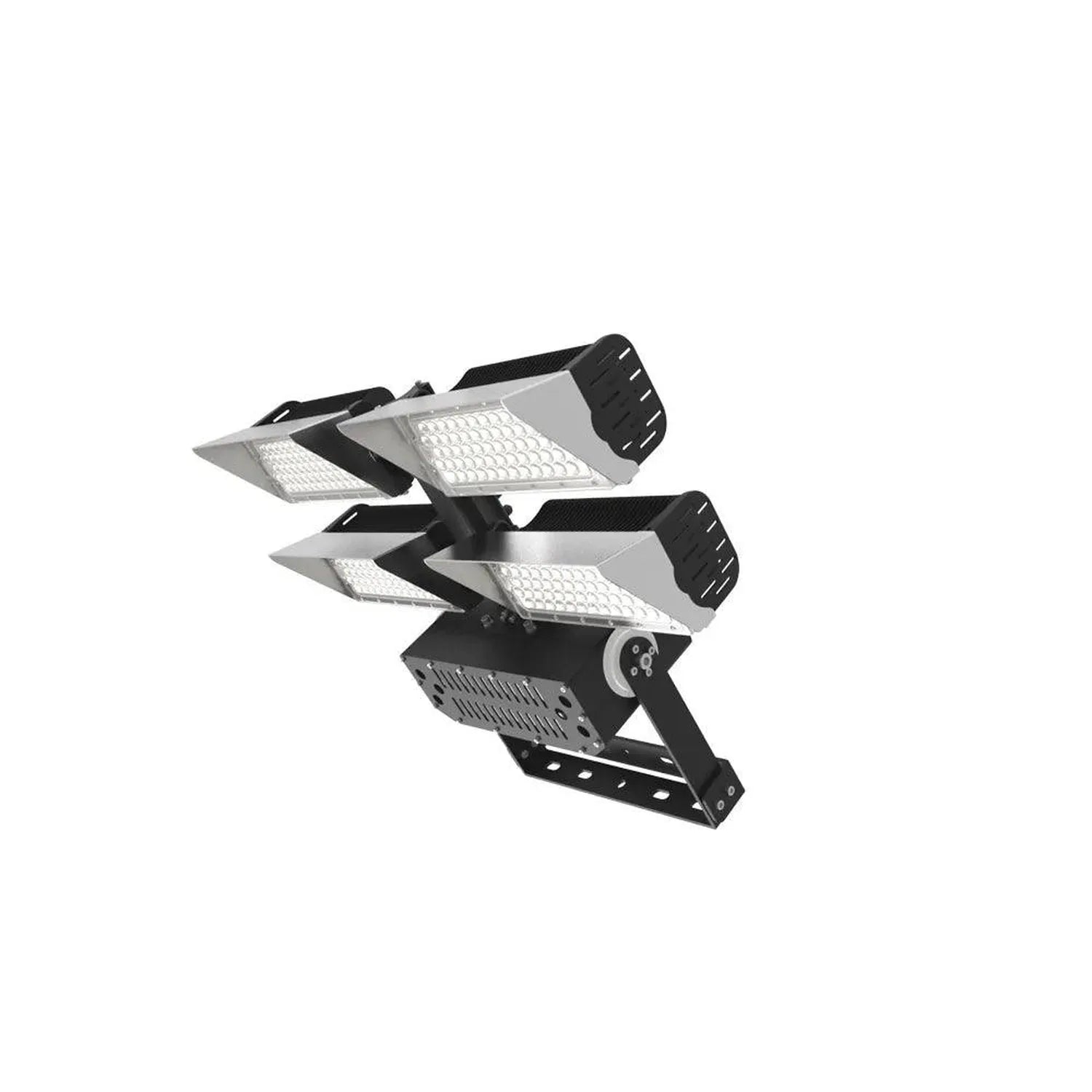

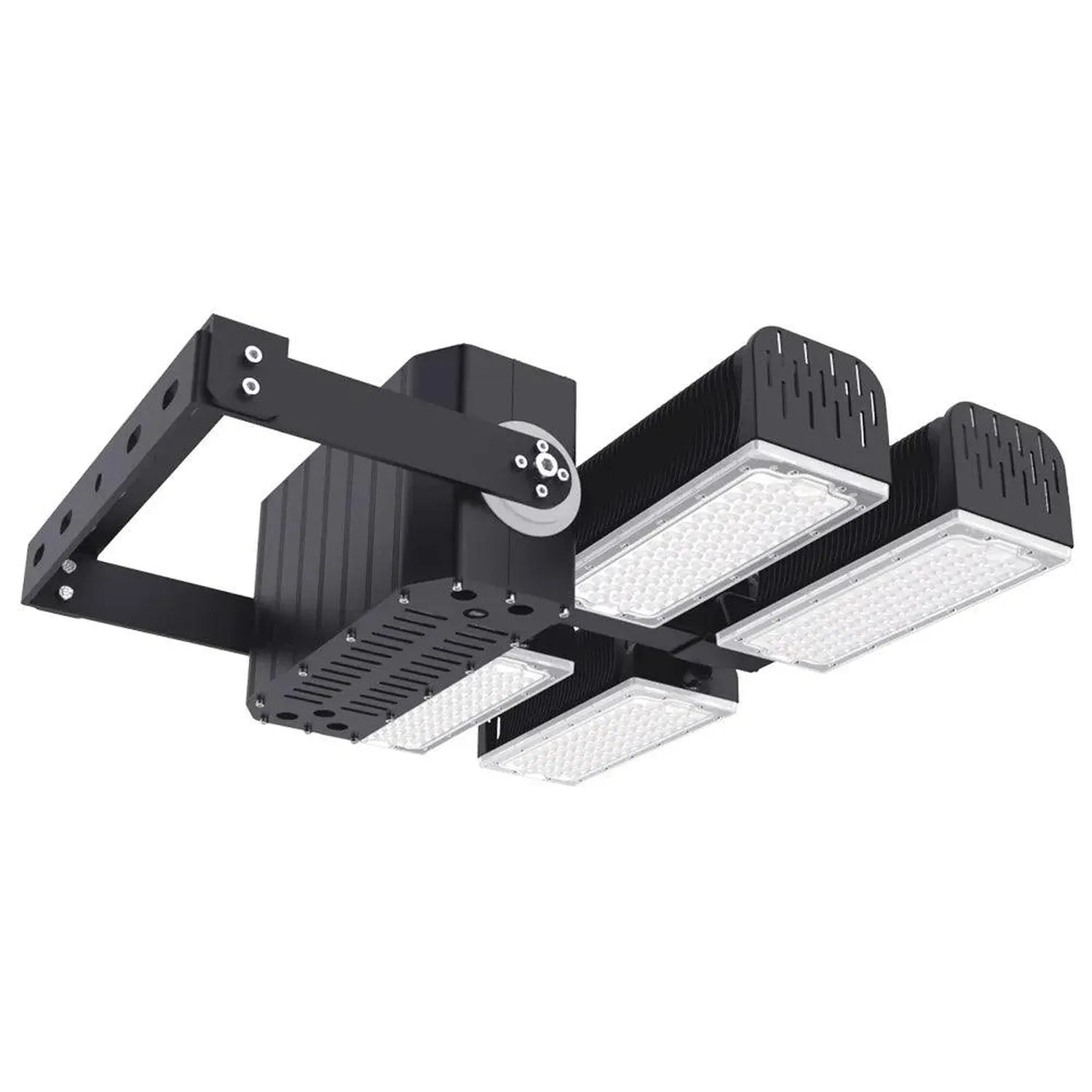

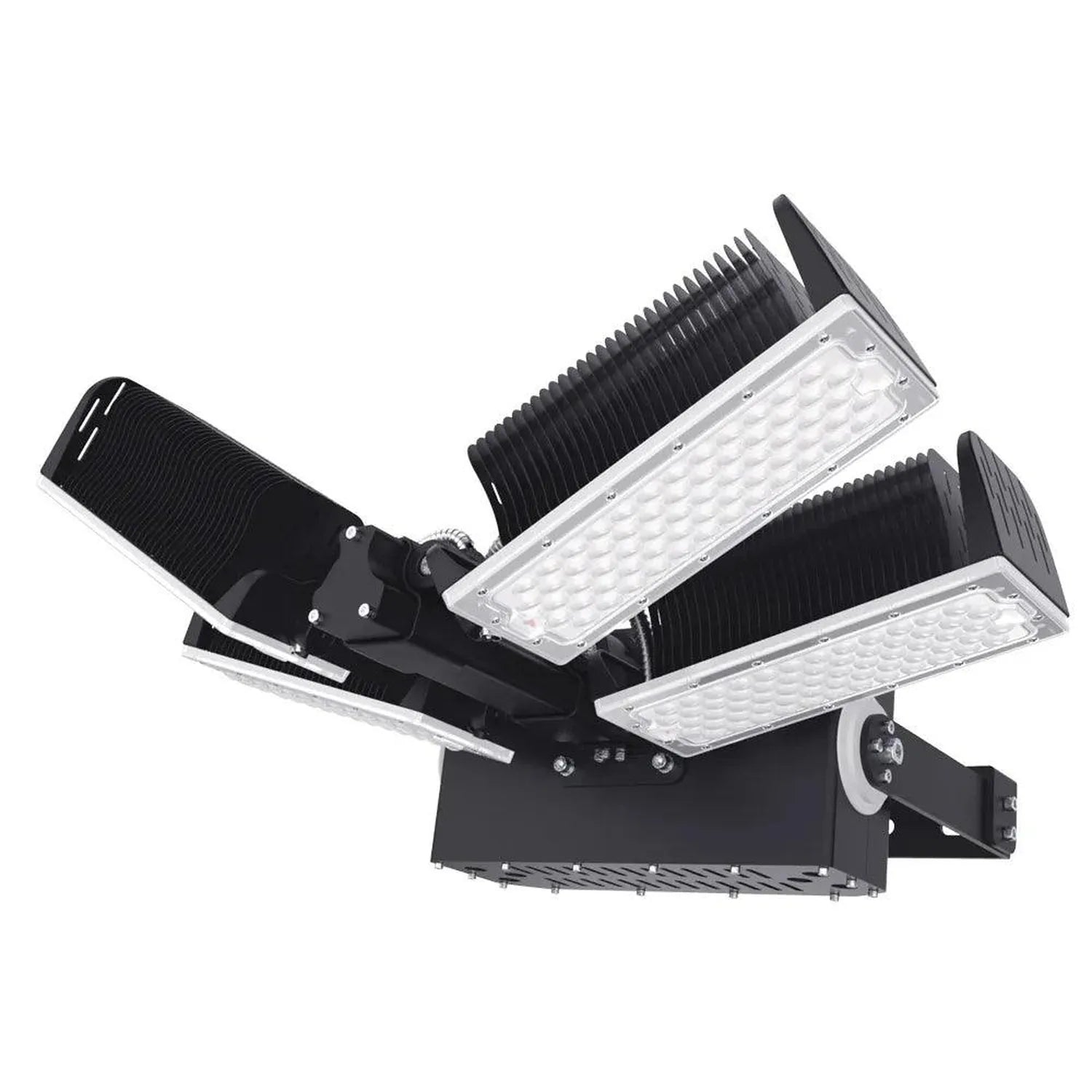

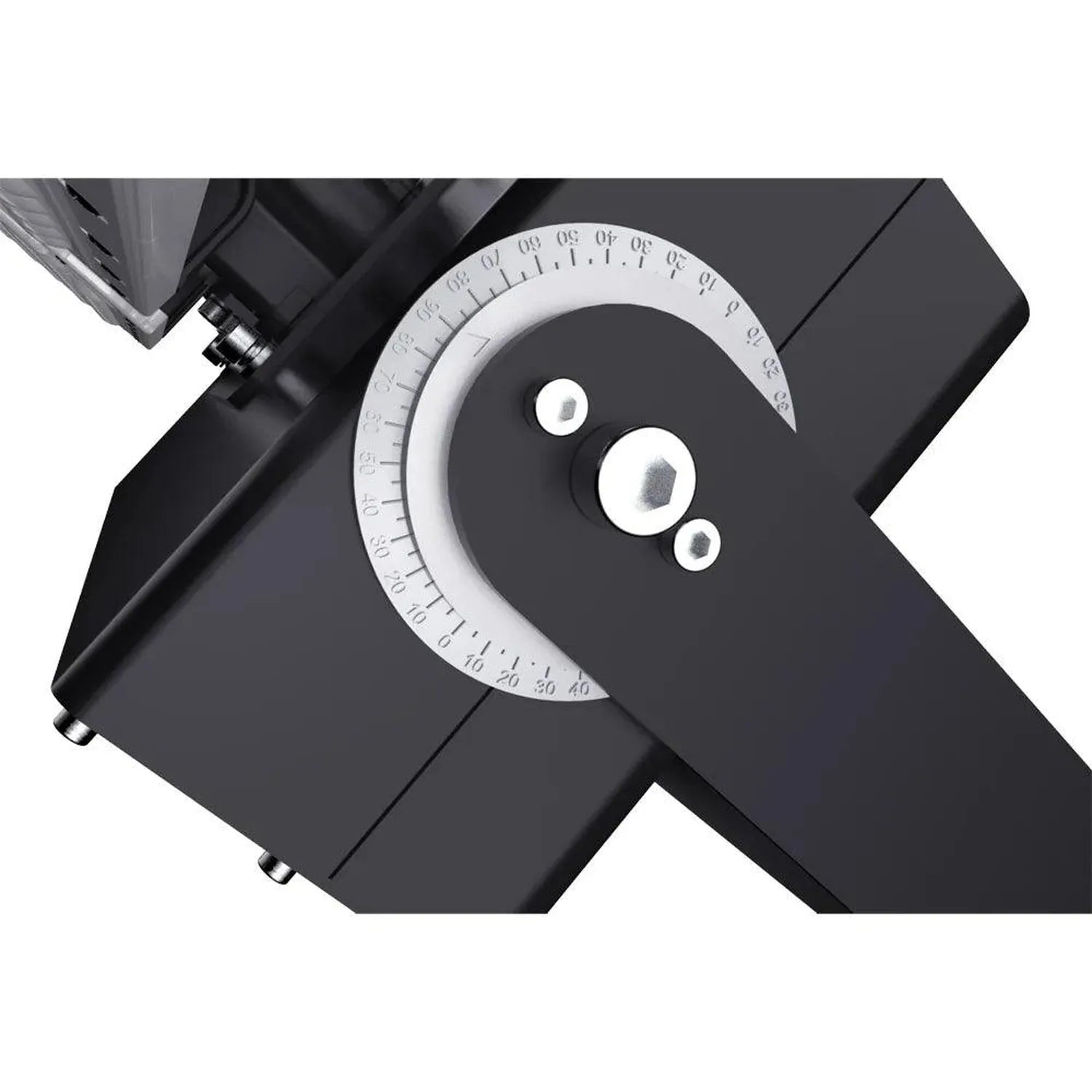

  • Aiming: every LED module angles independently for accurate aiming

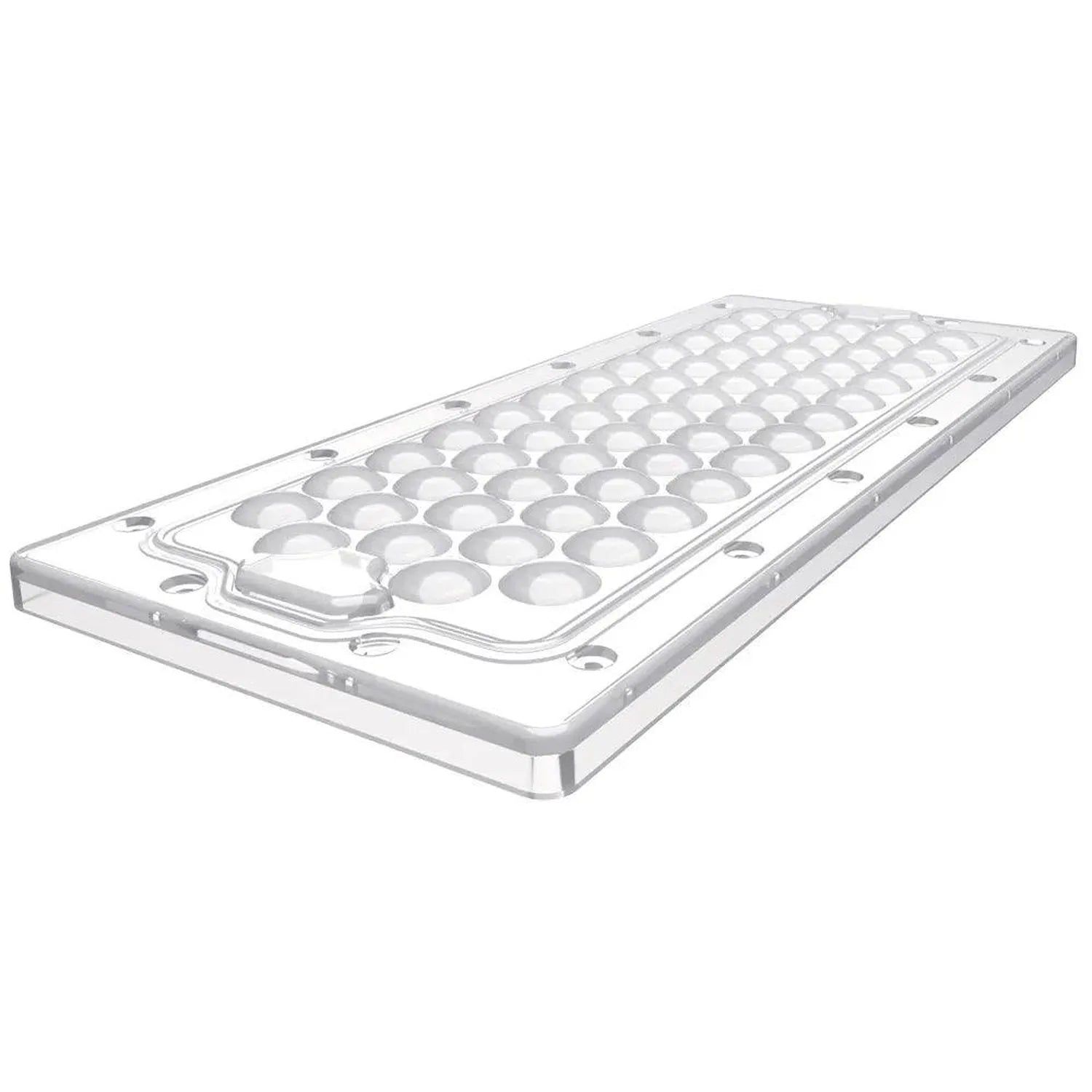

  • Optics: replaceable optical lenses, with beam angles of 10° / 30° / 60° / 90° / 120°

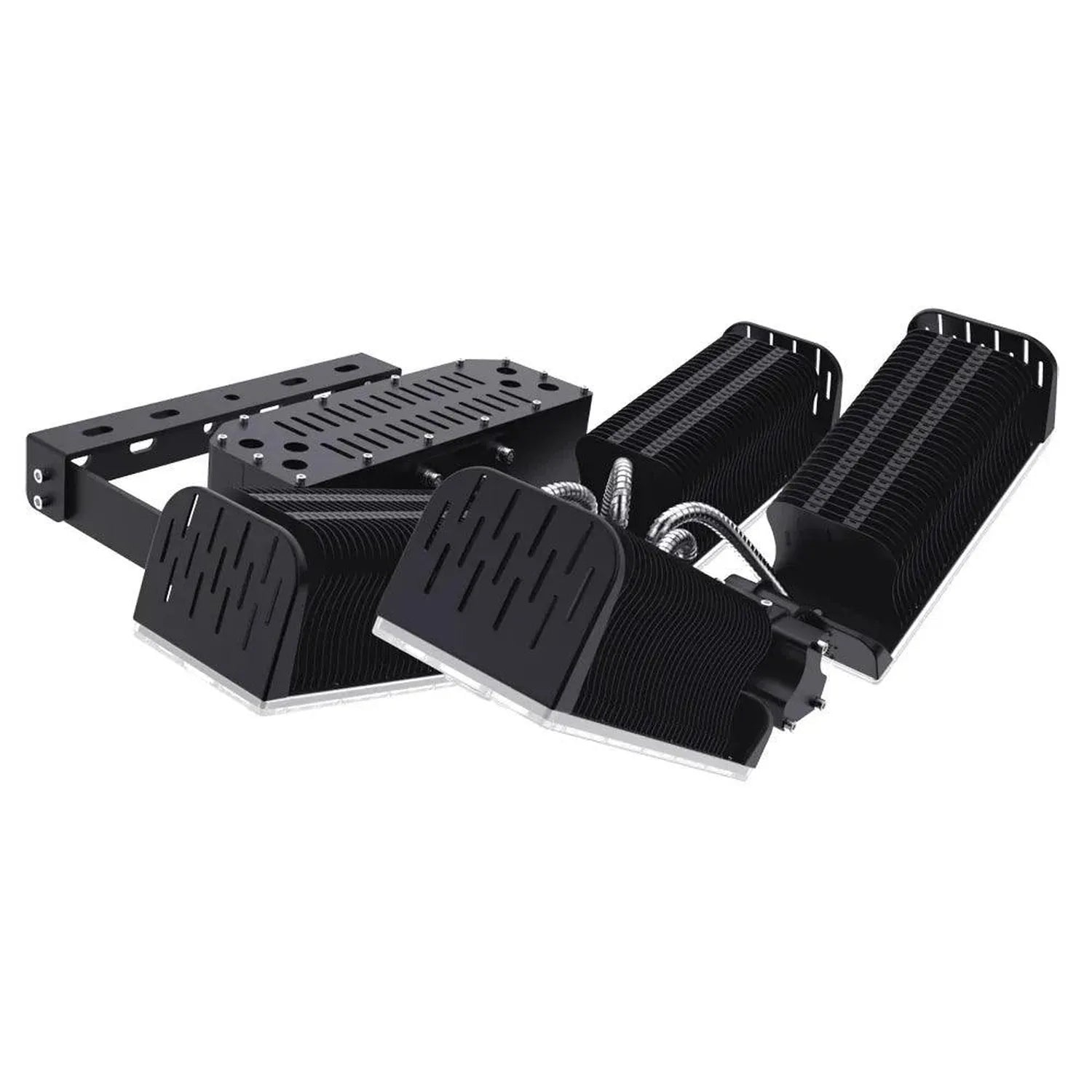

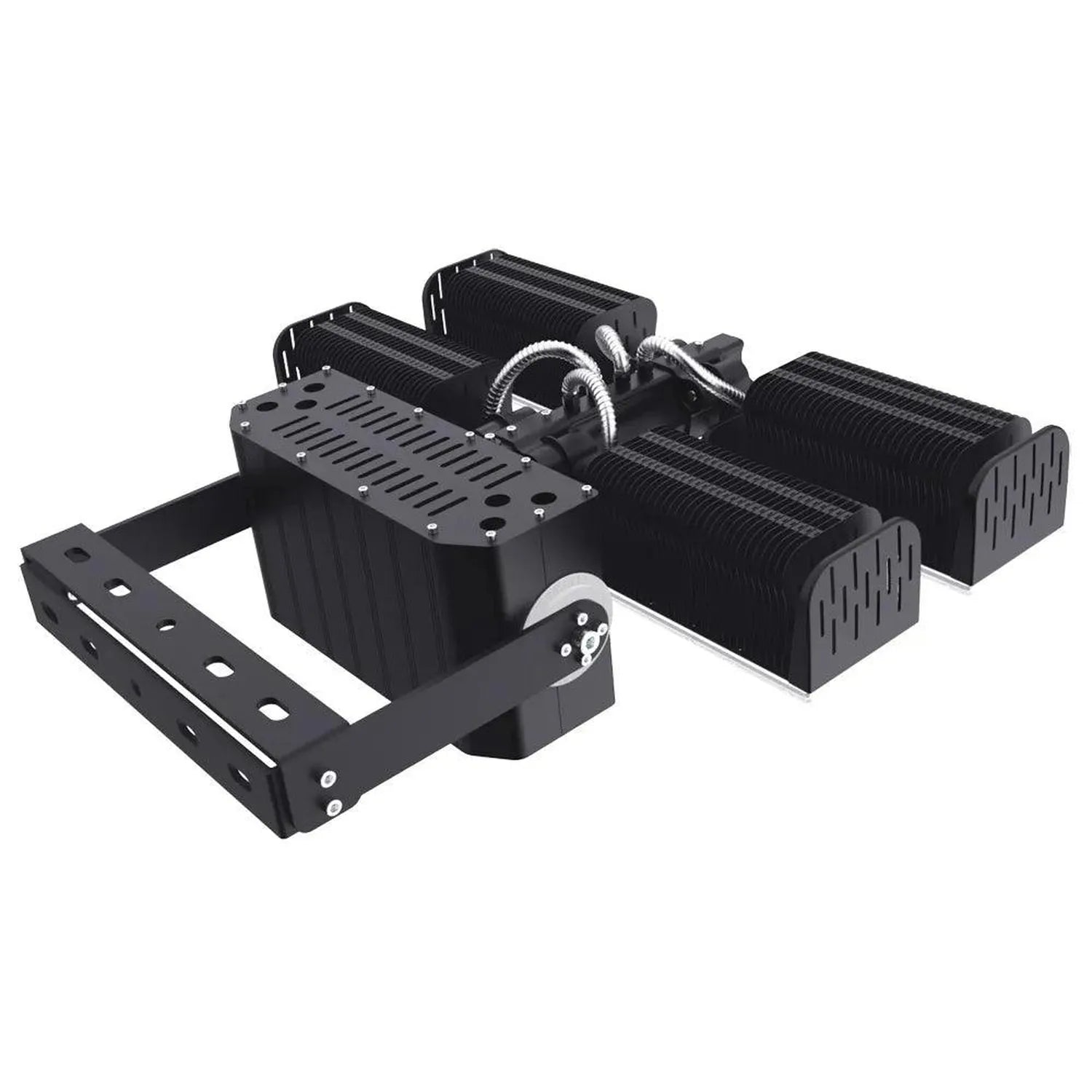

  • Protection: IP66 rated, with an aluminium cooling fin heat sink
  • Input: 100-240VAC / 277VAC, 50/60Hz, power factor >0.95
  • Service life: 50,000 Hours

Where it fits

Sports venues are the main use. Football pitches, tennis courts and wider sports grounds all benefit from modules that can be pointed exactly where the light is needed, rather than relying on one fixed beam across the whole fitting.

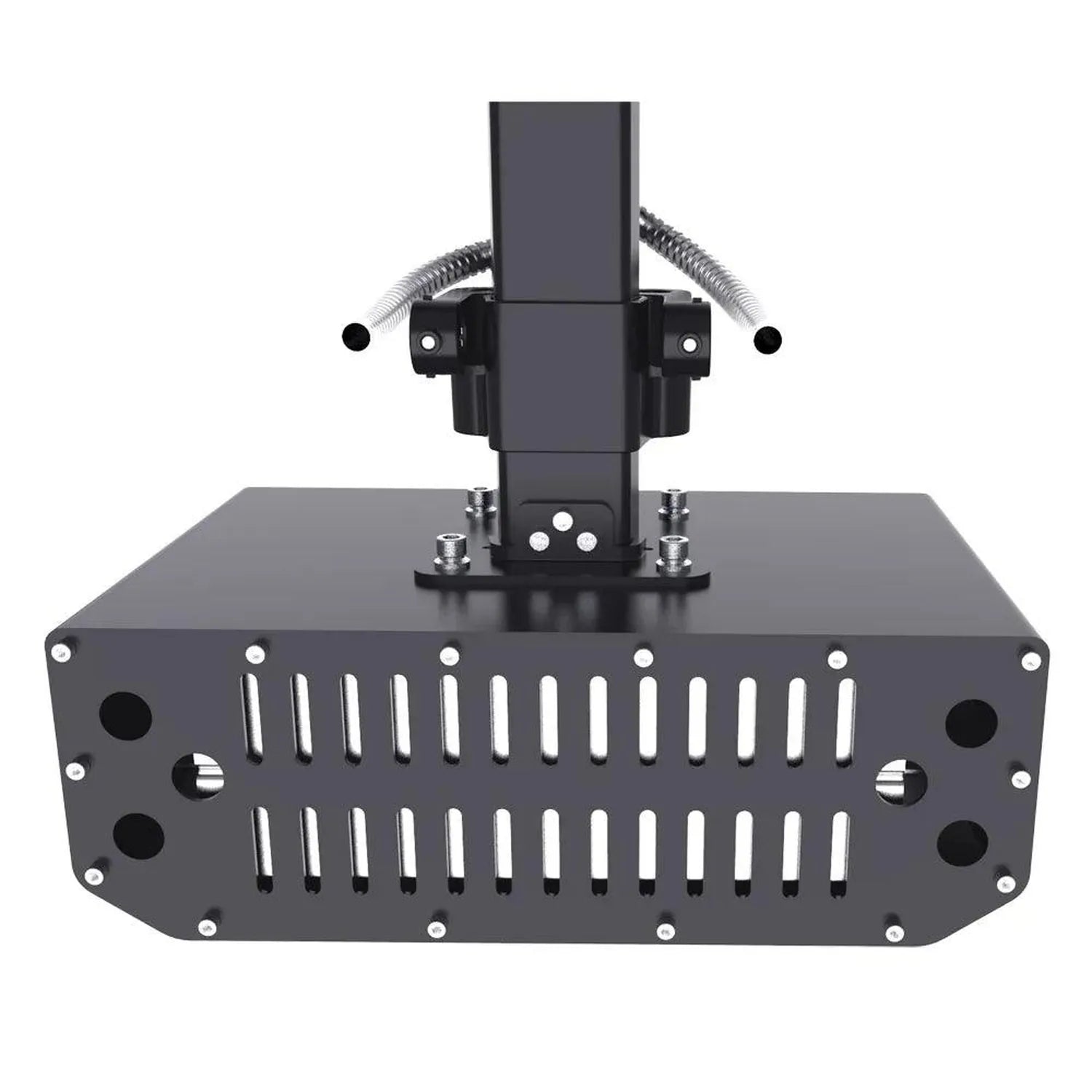

Away from sport, the same fitting covers warehouses, factories and logistics centres, along with car parks, yards and security lighting. Fix it to a pole or a wall.

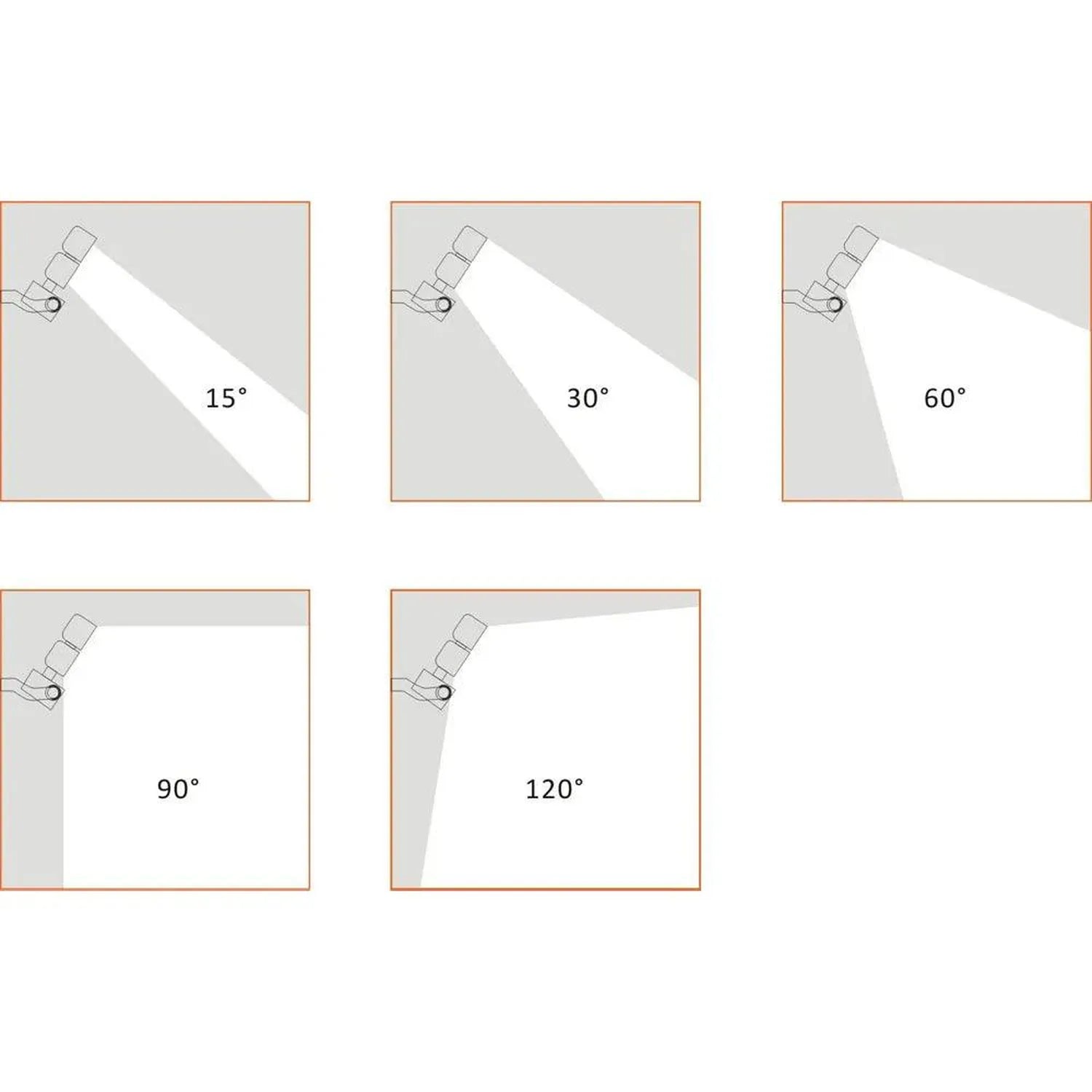

Beam angle and colour options

Units ship with 30° beam modules unless another angle is requested. Because the lenses can be replaced, the spread can be changed later if the site layout changes. Colour temperature sits within a 2700K - 6500K range, CRI is Ra >70 / >80, and the fitting runs from -40°C to +60°C.

Size and weight

The housing measures 536 × 165 × 579 mm. Weight is 12kg ±5%, so plan the mounting pole or wall bracket with that in mind.

Technical Specifications 20 rows Show
Product typeLED Flood Light
ModelCO-T500-480W
Power480W
Luminous flux84,000 Lumens ±5%
Luminous efficacy175 lm/W
CRIRa >70 / >80
Colour temperatureNatural white: 4000K, Cool white: 6000K
Input voltage100-240VAC / 277VAC
Frequency50/60Hz
Power factor>0.95
Beam angles10° / 30° / 60° / 90° / 120°
IP ratingIP66
Heat sinkAluminium Cooling Fin
Operating temperature-40°C to +60°C
Dimensions536 × 165 × 579 mm
Weight12kg ±5%
OpticsReplaceable optical lens system
ModulesAdjustable LED modules for precise aiming

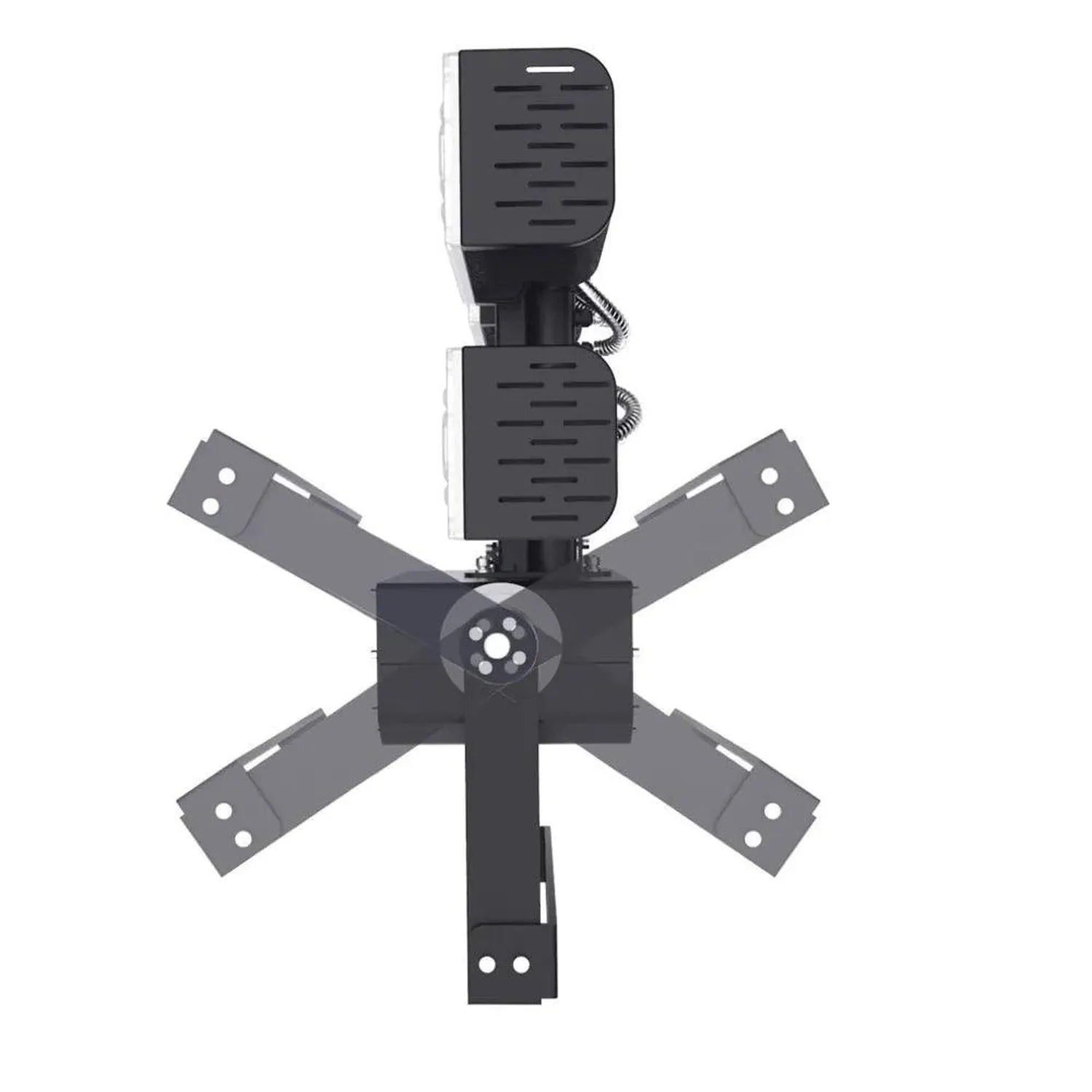

InstallationPole Mount or Wall Mount
Service life50,000 Hours

Manufacturer datasheet. Figures as published by the manufacturer.
