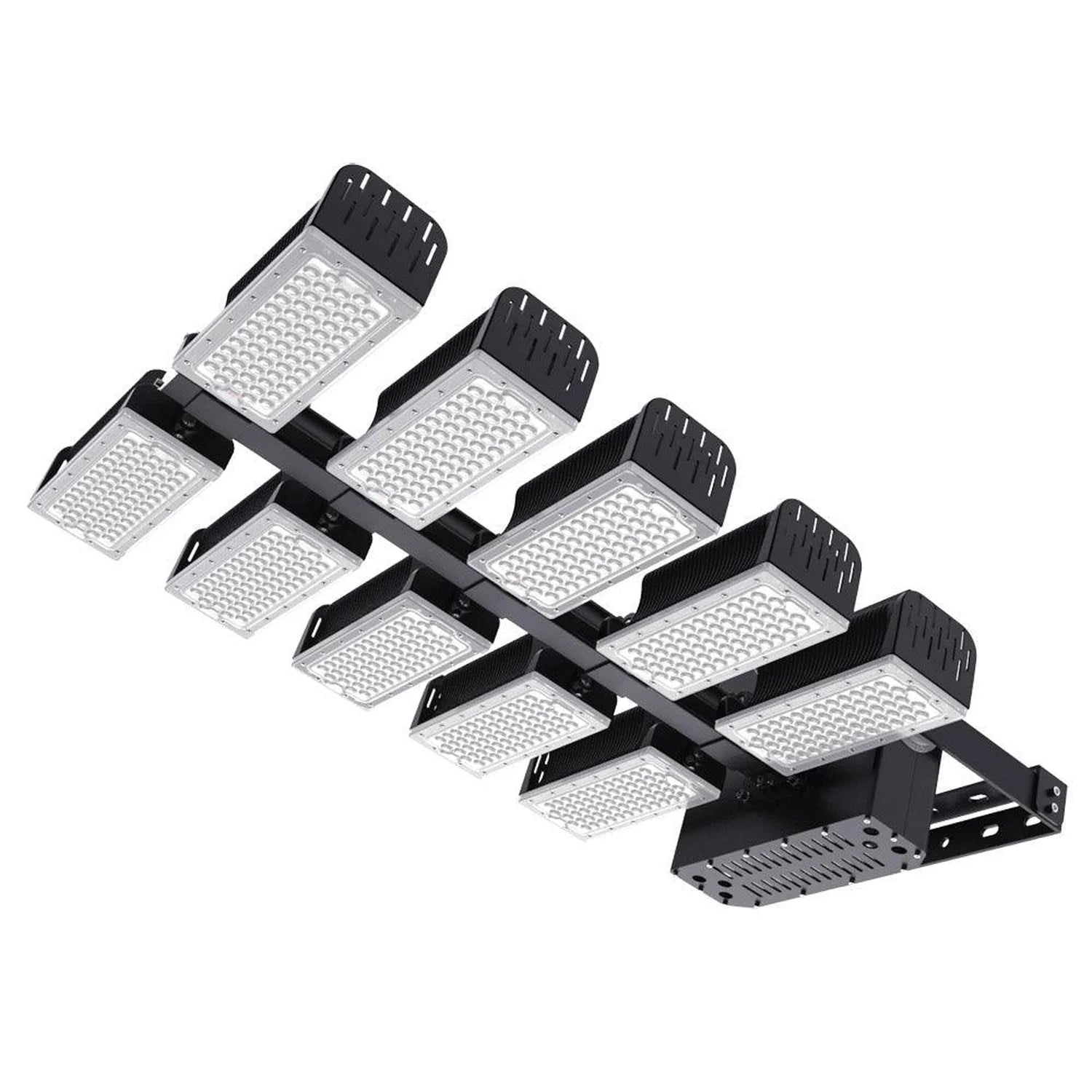

Multiple rectangular LED flood lights with black heat sinks mounted on shared black bracket frame, product shot on white back

1200W LED Flood Light IP66 210,000lm for Stadiums | Athled

Natural White 4000K
£1,757.69
Skip to product information
Multiple rectangular LED flood lights with black heat sinks mounted on shared black bracket frame, product shot on white back

1200W LED Flood Light IP66 210,000lm for Stadiums | Athled

Vendor
Ledison
SKU
103060
Availability
In stock
Weight
32.0 kg

£1,757.69inc VAT £1,464.74exc VAT

Delivery from £35.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Athled 1200W LED flood light puts out 210,000 lumens for football pitches, tennis courts and sports grounds. It also works over large outdoor spaces like car parks and yards, and inside warehouses. Choose natural white or cool white.

1200W LED flood light key features

  • Output: 1200W, 210,000 lumens
  • Efficacy: 175 lm/W ±5% with 60°, 90° and 120° optics, 165 lm/W ±5% with the 30° optic and 120 lm/W ±5% with the 10° optic
  • Ingress protection: IP66
  • Light quality: colour temperature range 2700K - 6500K, CRI Ra >70
  • Electrical: 100-240VAC / 277VAC input, 50/60Hz, power factor >0.95
  • Operating temperature: -40°C to +60°C

Aiming the light

Each LED module rotates up to 360° and tilts through 140°. The modules are carried on an arc bracket that turns through 250°, with an angle scale marked on it so the beam can be set accurately rather than by eye. The optical lenses are replaceable.

Where it is used

Football pitches, sports grounds and tennis courts are the main fit. The same fitting suits warehouses, factories and logistics centres, along with car parks, yards and security lighting.

Installation and build

Fit it to a pole or a wall. Heat is handled by an aluminium cooling fin heat sink. The housing measures 1001 × 277 × 579mm and weighs 24.2kg ±5%, so plan the mounting point around that load. The model is CO-T500-1200W, built on the T500 Ultra Flood Light platform, and it carries a 5 years warranty.

Technical Specifications 24 rows Show
Product typeLED Flood Light
ModelCO-T500-1200W
PlatformT500 Ultra Flood Light
Power1200W
Luminous flux210,000 Lumens
Luminous efficacy175 lm/W ±5% with 60° / 90° / 120° optics
CRIRa >70
Colour temperatureNatural white: 4000K, Cool white: 6000K
Input voltage100-240VAC / 277VAC
Frequency50/60Hz
Power factor>0.95
IP ratingIP66
Heat sinkAluminium Cooling Fin
Operating temperature-40°C to +60°C

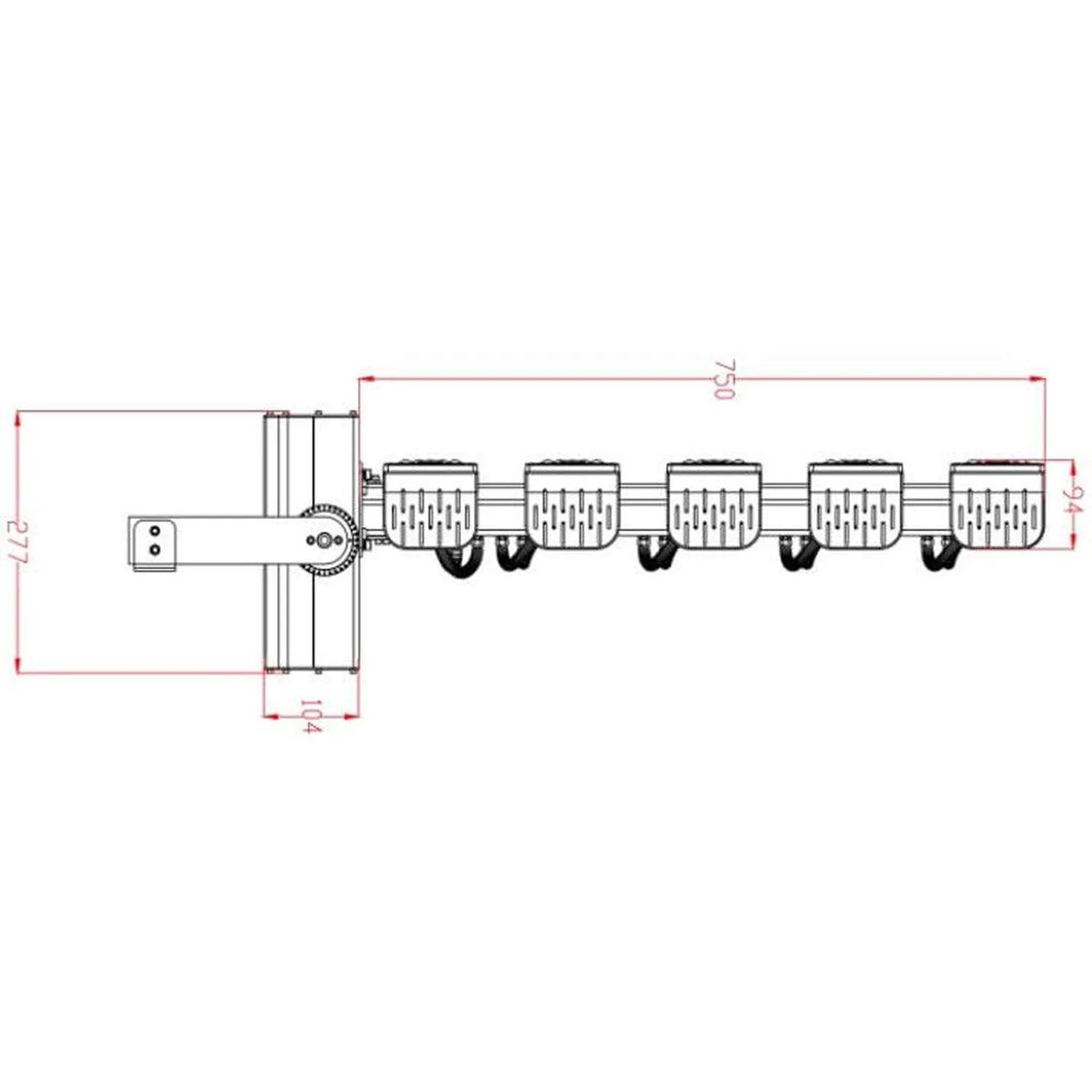

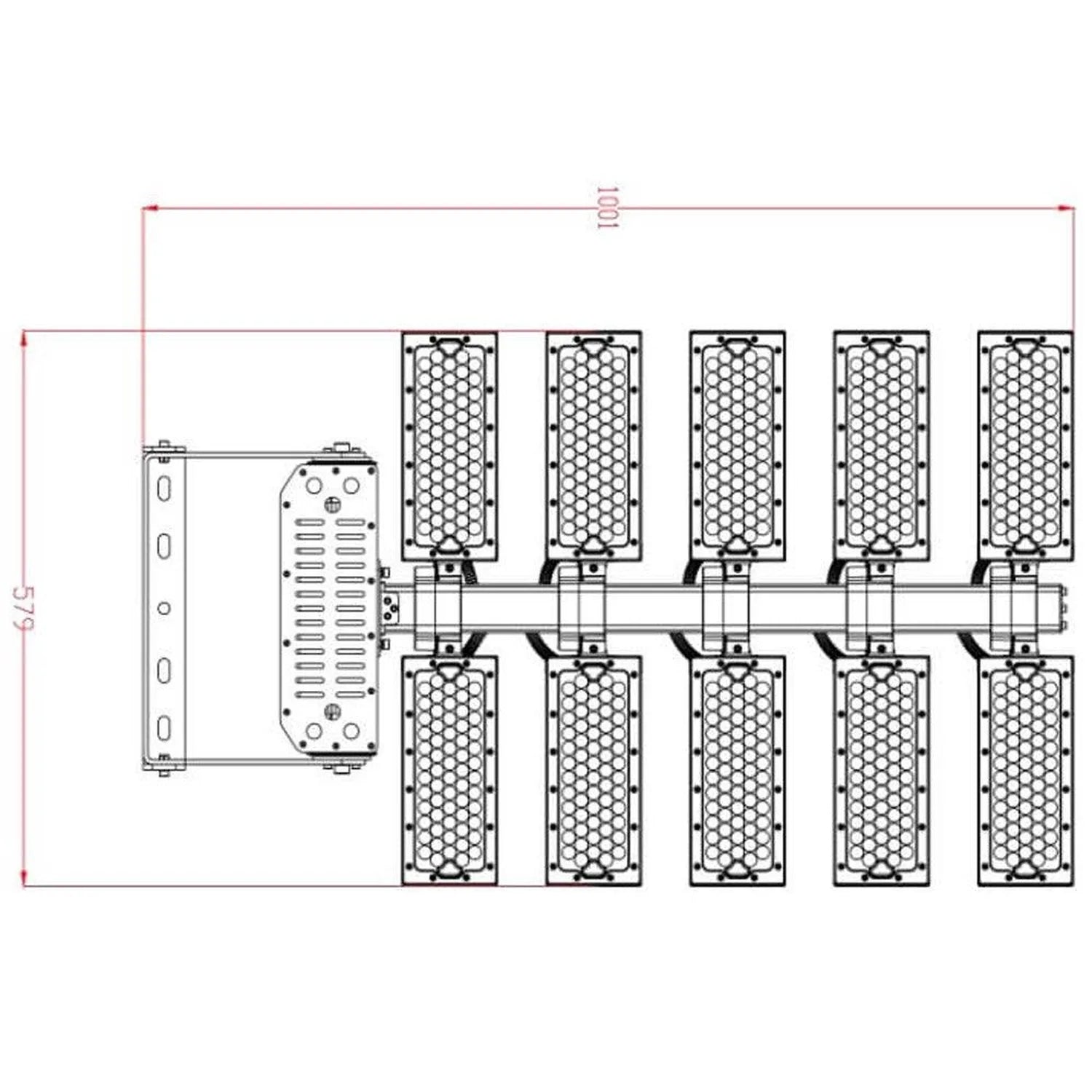

Dimensions1001 × 277 × 579mm
Weight24.2kg ±5%
30° optic efficiency165 lm/W ±5%
10° optic efficiency120 lm/W ±5%
Module rotation360° Rotatable
Module tilt140° Adjustable
Bracket rotation250° Rotatable
OpticsReplaceable optical lens system
InstallationPole Mounting / Wall Installation
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
