LED Stadium Flood Light 1440W 252,000lm IP66 | Athled
- Vendor
- Ledison
- SKU
- 103062
- Availability
- In stock
- Weight
- 36.0 kg
£2,111.54inc VAT £1,759.62exc VAT
Delivery from £35.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs
Product Description

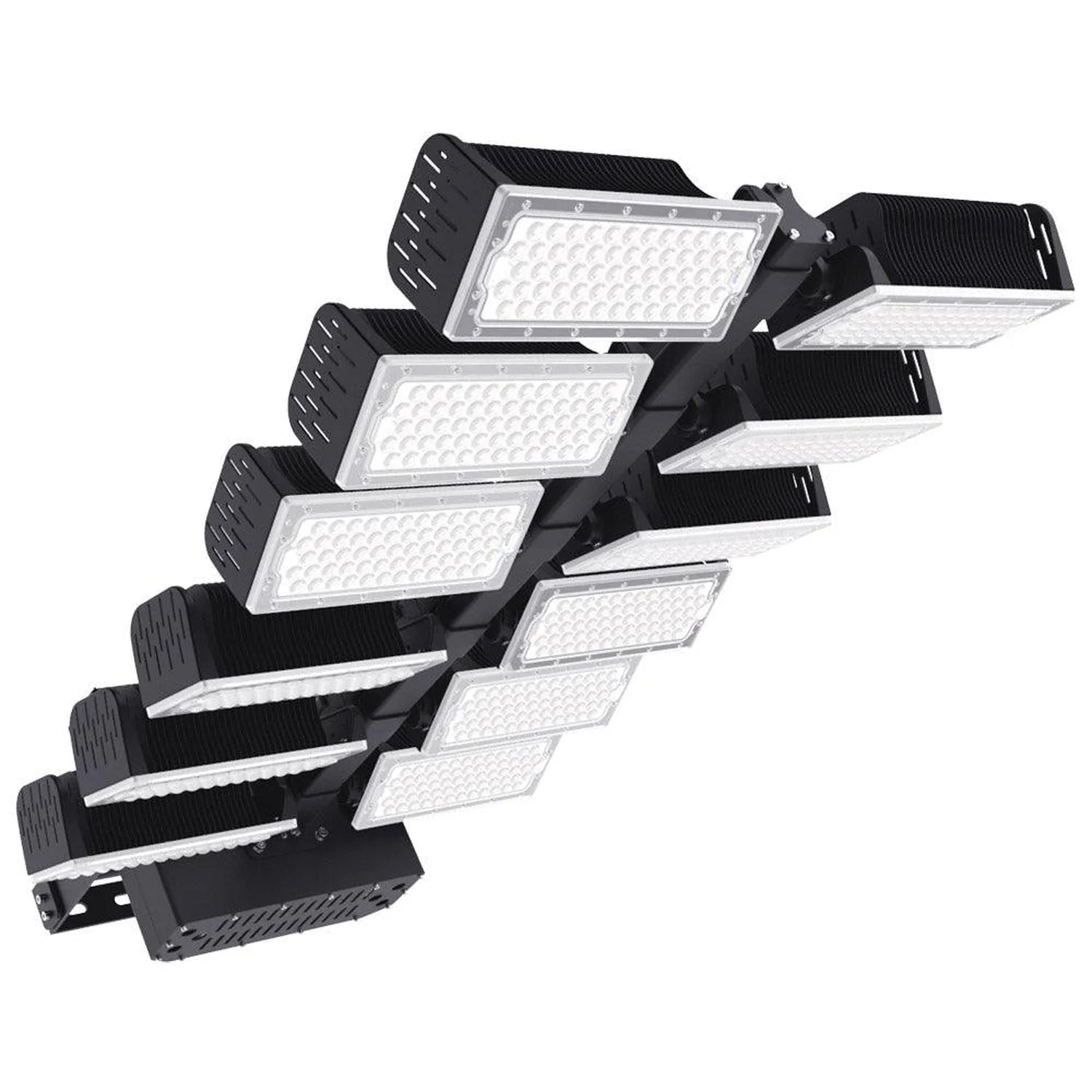

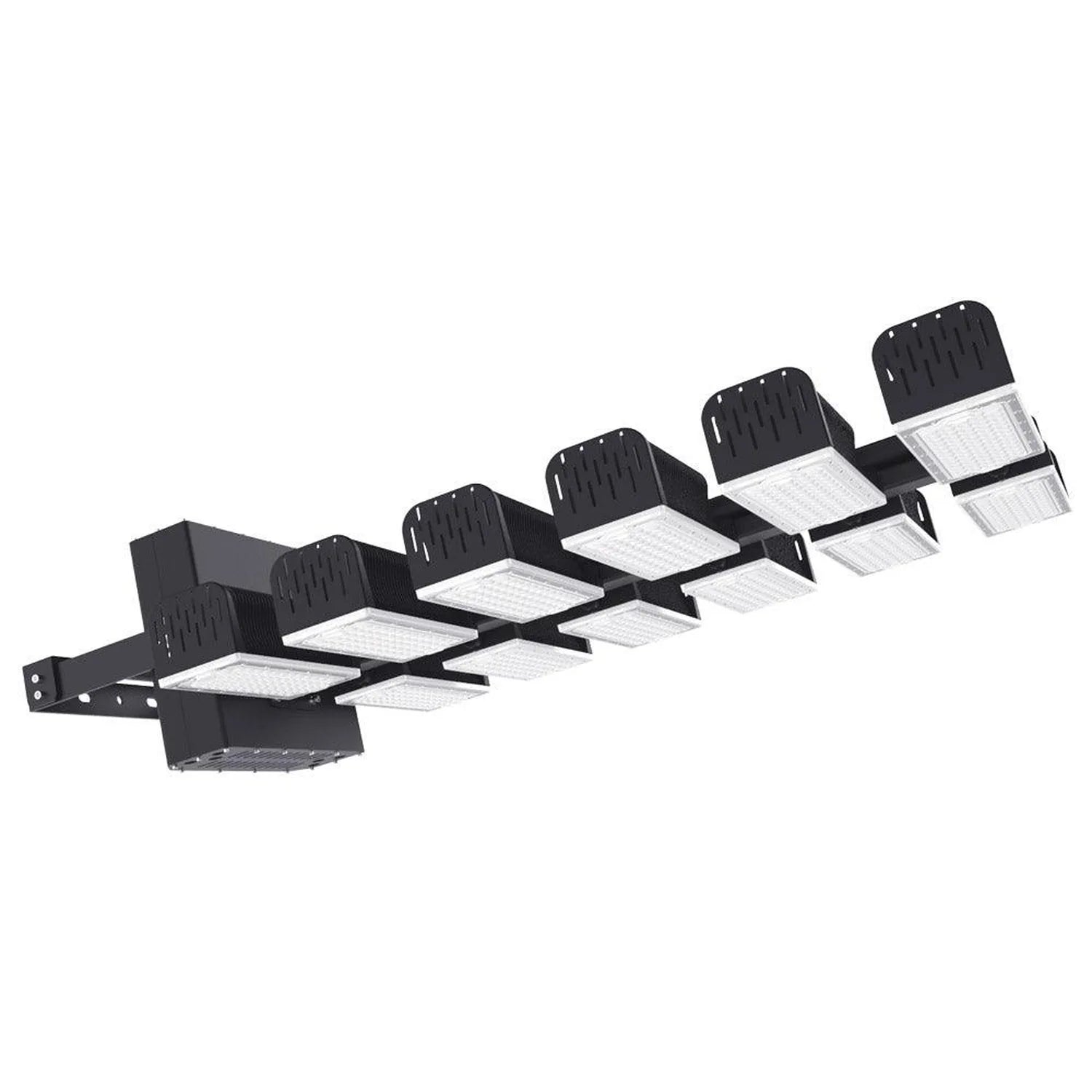

This 1440W LED stadium flood light puts out 252,000 lumens, enough to cover football pitches, tennis courts and wider sports grounds. It also works over large outdoor and industrial spaces such as yards, car parks and warehouses. You can order it in natural white or cool white.
Stadium flood light features
- Output: 1440W, 252,000 lumens
- Efficacy: 175 lm/W ±5% with 60° / 90° / 120° optics, 165 lm/W ±5% with the 30° optic, 120 lm/W ±5% with the 10° optic
- Protection: IP66
- Input: 100-240VAC / 277VAC, 50/60Hz, power factor >0.95
- Colour: CRI Ra >70, colour temperature range 2700K - 6500K
- Operating temperature: -40°C to +60°C
Aiming and optics
Each LED module rotates up to 360° and tilts through 140°. The modules sit on an arc bracket that turns through 250°, and an angle scale on the bracket lets you set each fitting accurately. That matters on a pitch, where light has to land evenly across the playing surface. The optical lenses are replaceable, so the beam can be changed later if the site needs it.
Mounting

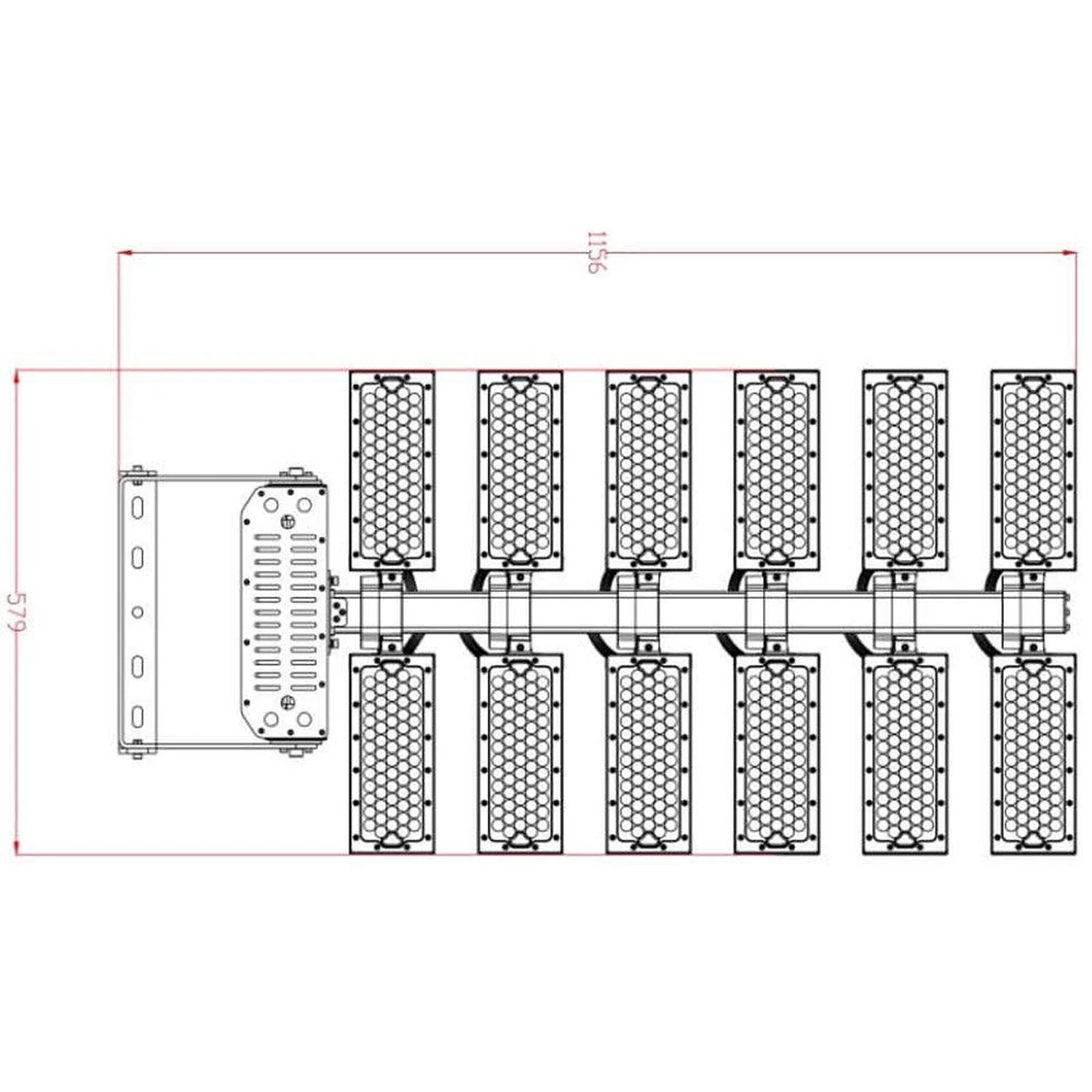

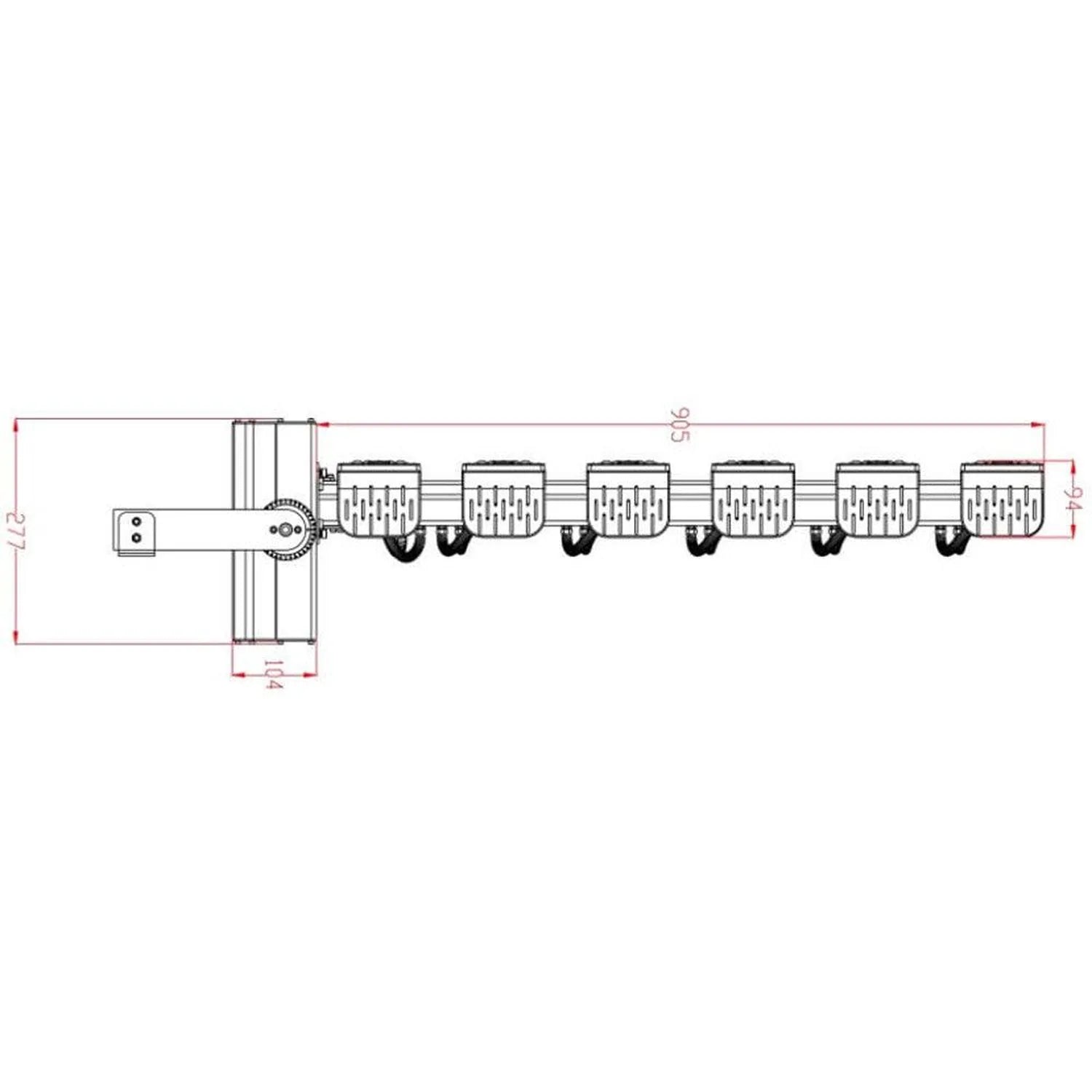

The fitting can go on a pole or on a wall. It measures 1156 × 277 × 579mm and weighs 28.0kg ±5%, so plan the mounting structure around that load. Heat is drawn away by an aluminium cooling fin heat sink.
Where it is used
Football pitches, sports grounds and tennis courts are the main uses. The same fitting suits warehouses, factories and logistics centres, plus car parks, yards and security lighting where a large area has to be lit from a few points.
Warranty
Supplied with a 5 Years warranty.
Technical Specifications 24 rows Show
| Product type | LED Flood Light |
| Model | CO-T500-1440W |
| Platform | T500 Ultra Flood Light |
| Power | 1440W |
| Luminous flux | 252,000 Lumens |
| Luminous efficacy | 175 lm/W ±5% with 60° / 90° / 120° optics |
| CRI | Ra >70 |
| Colour temperature | Natural white: 4000K, Cool white: 6000K |
| Input voltage | 100-240VAC / 277VAC |
| Frequency | 50/60Hz |
| Power factor | >0.95 |
| IP rating | IP66 |
| Heat sink | Aluminium Cooling Fin |
| Operating temperature | -40°C to +60°C |
| Dimensions | 1156 × 277 × 579mm |
| Weight | 28.0kg ±5% |
| 30° optic efficiency | 165 lm/W ±5% |
| 10° optic efficiency | 120 lm/W ±5% |
| Module rotation | 360° Rotatable |
| Module tilt | 140° Adjustable |
| Bracket rotation | 250° Rotatable |
| Optics | Replaceable optical lens system |
| Installation | Pole Mounting / Wall Installation |
| Warranty | 5 Years |
Manufacturer datasheet. Figures as published by the manufacturer.
