LED 2D Emergency Battery Pack 3 Hour Back-up | Hytronik HEM02-2D

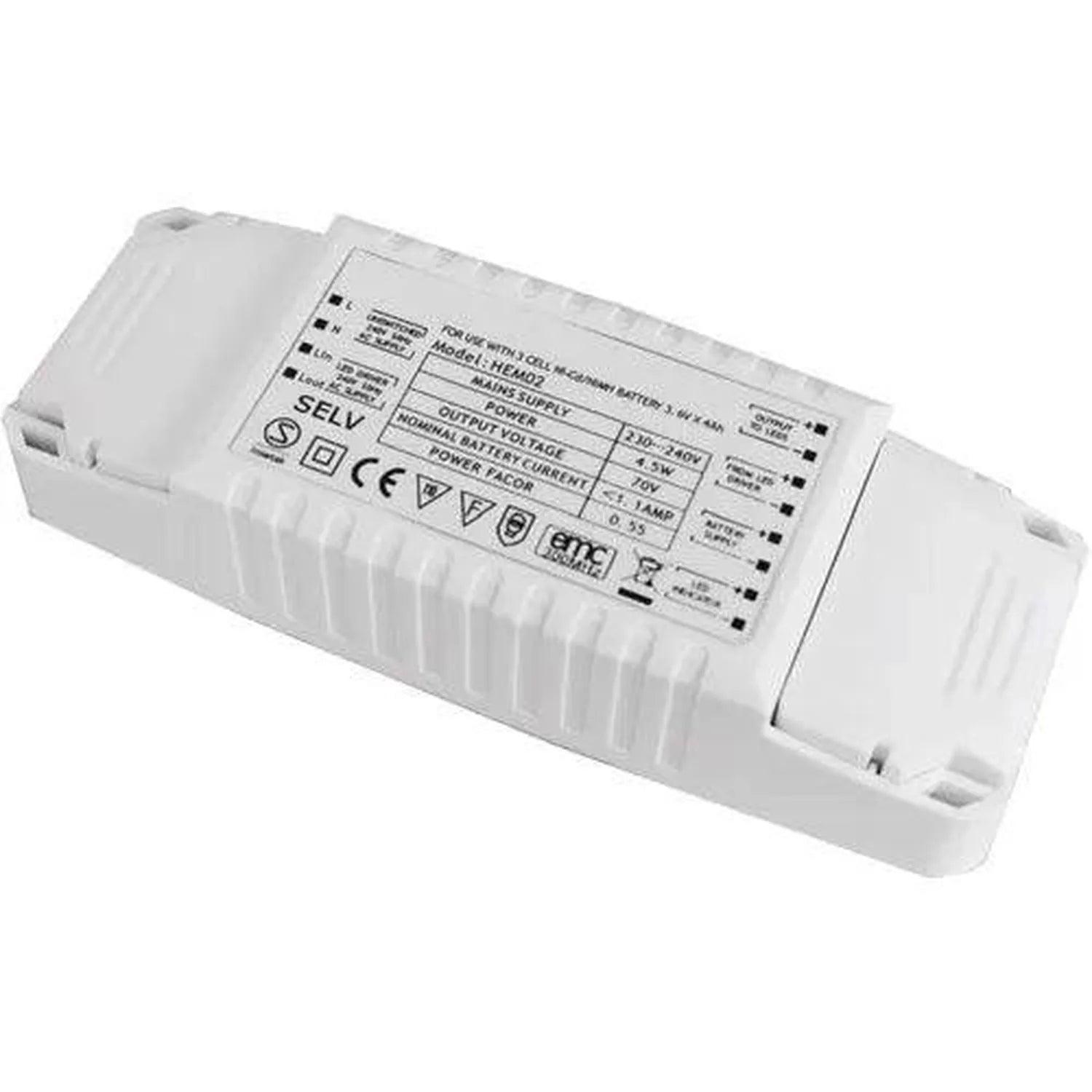

The Hytronik HEM02-2D emergency pack adds 3 hours of maintained or non-maintained emergency function to LED luminaires without any need to modify the existing LED circuit. Fit the emergency driver and battery and most LED fittings will operate as emergency lights.

2D led lamp emergency compatibility

• LED array range, works with LED arrays from 8-60V, dimmed to 30% during emergency operation
• Driver function, automatically adjusts output LED current to match the battery and LED load for maximum illumination and battery duration
• LED compatibility, works with Philips Fortimo DLM, SLM and LLM ranges, Bridgelux LS/ES/RS ranges, Citizen 4-41W ranges, GE Infusion, Xicato and others

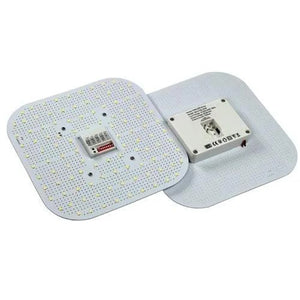

• Ledison compatibility, compatible with Ledison 2D Lamps 12w and 16w standard version, and Ledison 2D Microwave sensor 12w and 16w

Key features

• Constant current power supply
• Maintain and non-maintain mode
• Over current protection for battery
• Over charge protection for battery
• Green LED indication for status of the kit
• Reverse polarity protection

What's in the box

• Emergency driver
• 3.6V battery, high-temperature NiMH cells
• Green LED indicator
• Test button

Applications

Fit this pack alongside an existing LED luminaire to provide emergency lighting cover without replacing the fitting itself. It suits commercial and industrial spaces where a maintained or non-maintained emergency function is required from standard LED arrays.
