Product Description

This 12W LED 2D lamp from Ledison goes into an existing round or square 4-pin fitting (GR8 or GR10q) in place of a fluorescent 2D lamp, and it replaces a 28W 2D CFL. The driver is built in. It runs straight from the mains at 65-265V AC, so no ballast or starter is needed, and it gives 1050lm.

LED 2D lamp key features

  • Output: 12 watts, 1050lm

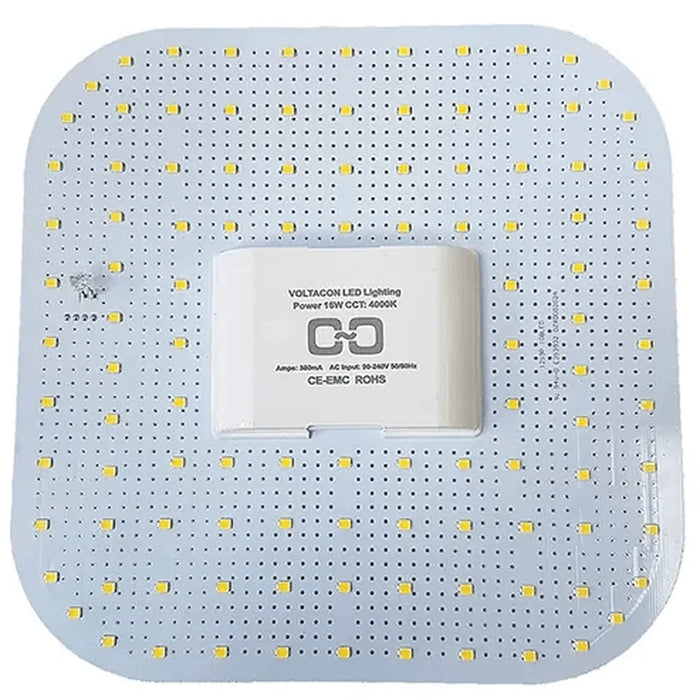

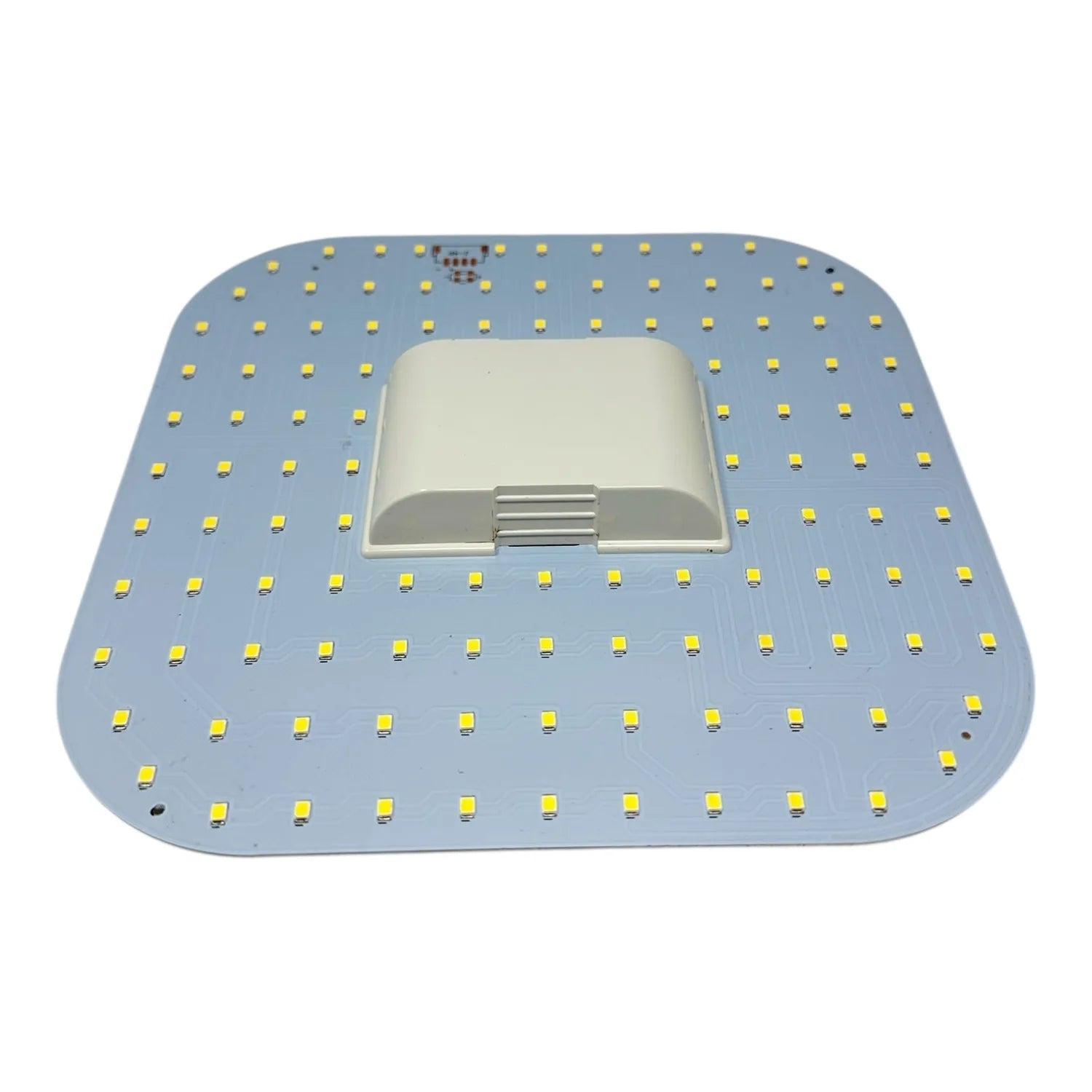

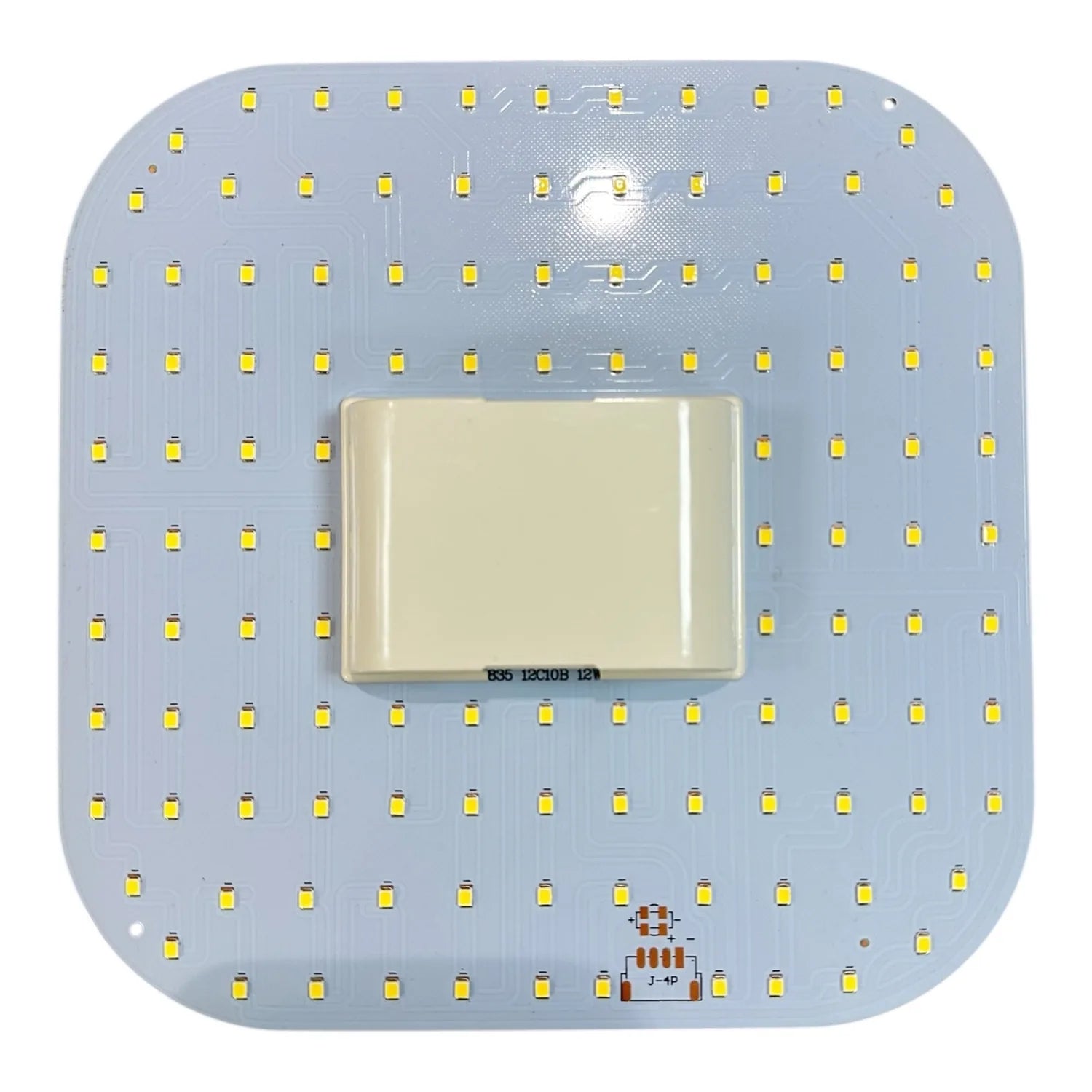

  • LEDs: SMD2835 chips on a perforated circuit board that carries heat away
  • Beam angle: 120 degrees
  • Start-up: instant, with no flicker
  • Switching: standard on/off, not dimmable
  • Lifetime: 50,000 hours, with 80% lumen maintenance after 50,000 hours

Emergency lighting use

The tray carries an emergency socket and a charging indicator LED. These are there for use with the emergency conversion kit, which makes this lamp a fit for emergency lighting fittings.

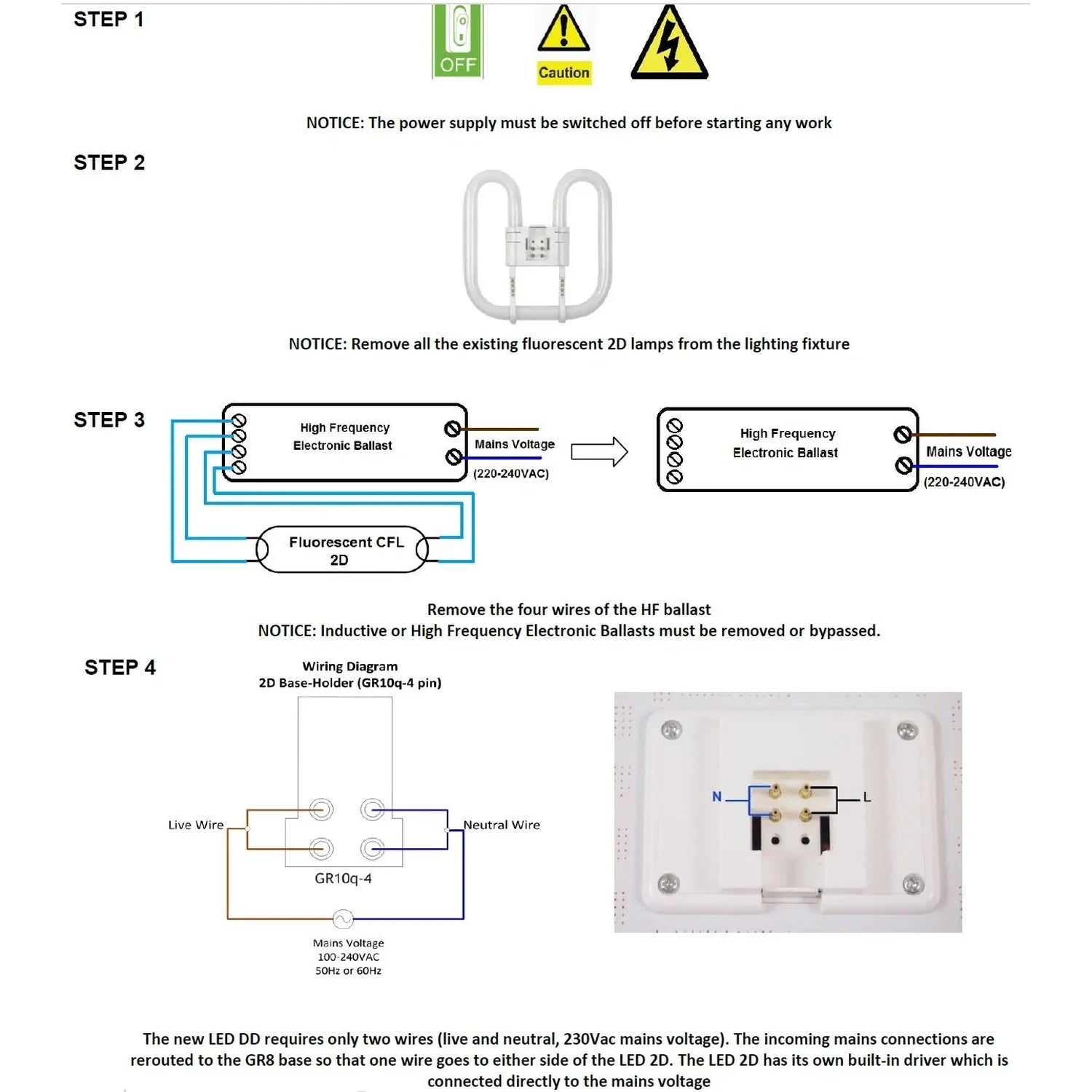

Fitting and wiring

A qualified electrician must carry out the installation. Remove or bypass the existing ballast and starter before fitting, because connecting them will damage the lamp. Only live and neutral are needed, rerouted to the GR8 base.

Where it can go

Indoor, dry locations only. Fitted outdoors, it needs an IP65 or higher fitting around it.

Applications

Corridors and stairwells are typical. So are offices, schools, hospitals and residential communal areas, anywhere a stock of 4-pin 2D fittings is due a CFL to LED conversion without replacing the fittings themselves.

Technical Specifications 25 rows Show
Product typeLED 2D Light Gear Tray
Fitting2D/4pin

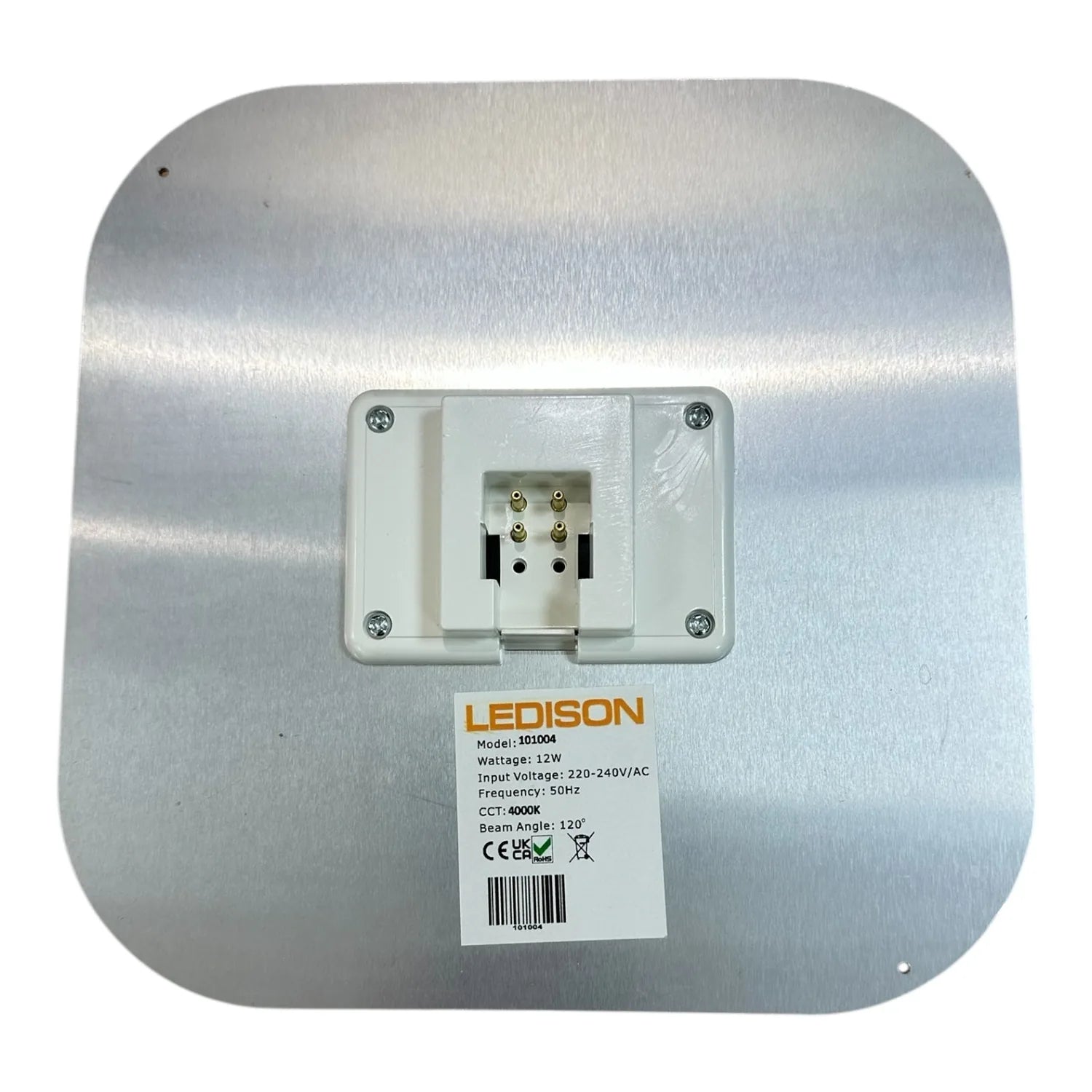

Base typeGR8 / GR10q 4-Pin
Luminous flux1050lm
Wattage (rated)12 Watt
Colour rendering index>80
Typical efficiency85lm/W
Voltage65-265V AC, 50/60Hz
Line frequency50/60Hz
Beam angle120deg.
Average lifetime50,000 hours
Lumen maintenance80% After 50,000 Hours
Current80mA
Power factor0.95
LED technologySMD2835 LED Chips
Emergency functionEmergency Socket and LED Charging Indicator
DimmableNO
Useindoor use, dry environment
Outdoor usewaterproof IP65 or higher fittings are required
Ballast and starterDOES NOT require ballast or starter
Ambient humidity10-70% RH
Start-upInstant Start
OperationStandard On/Off
Operating temperature-20 OC to 45 OC
CertificationTUV, ROHS Compliant, CE, UL

Manufacturer datasheet. Figures as published by the manufacturer.
