12W 2D LED Lamp 4-Pin Microwave Sensor Photocell 1050lm | Ledison
- Vendor
- Ledison
- SKU
- 101010
- Availability
- Sold out
- Weight
- 0.313 kg
£30.44inc VAT £25.37exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

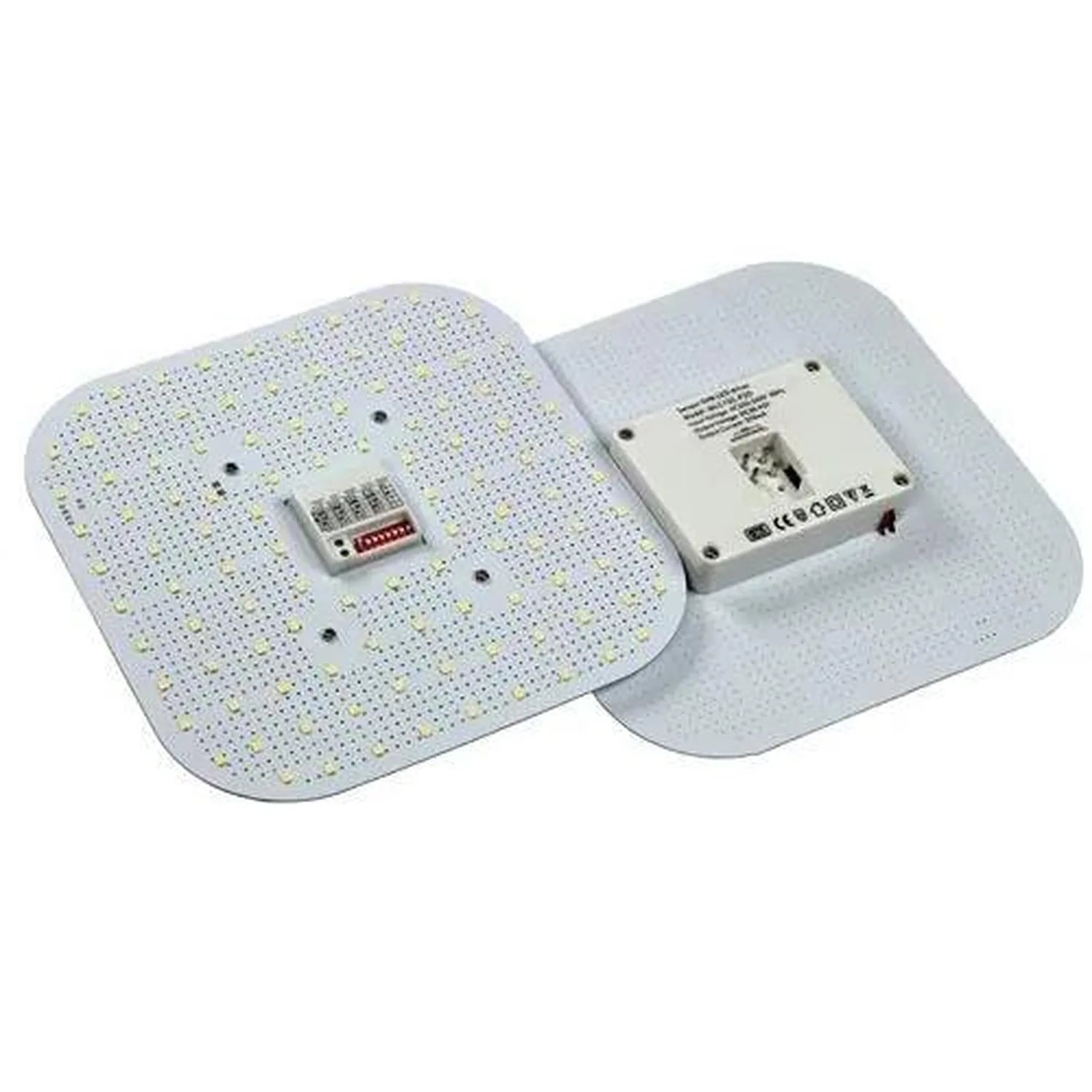

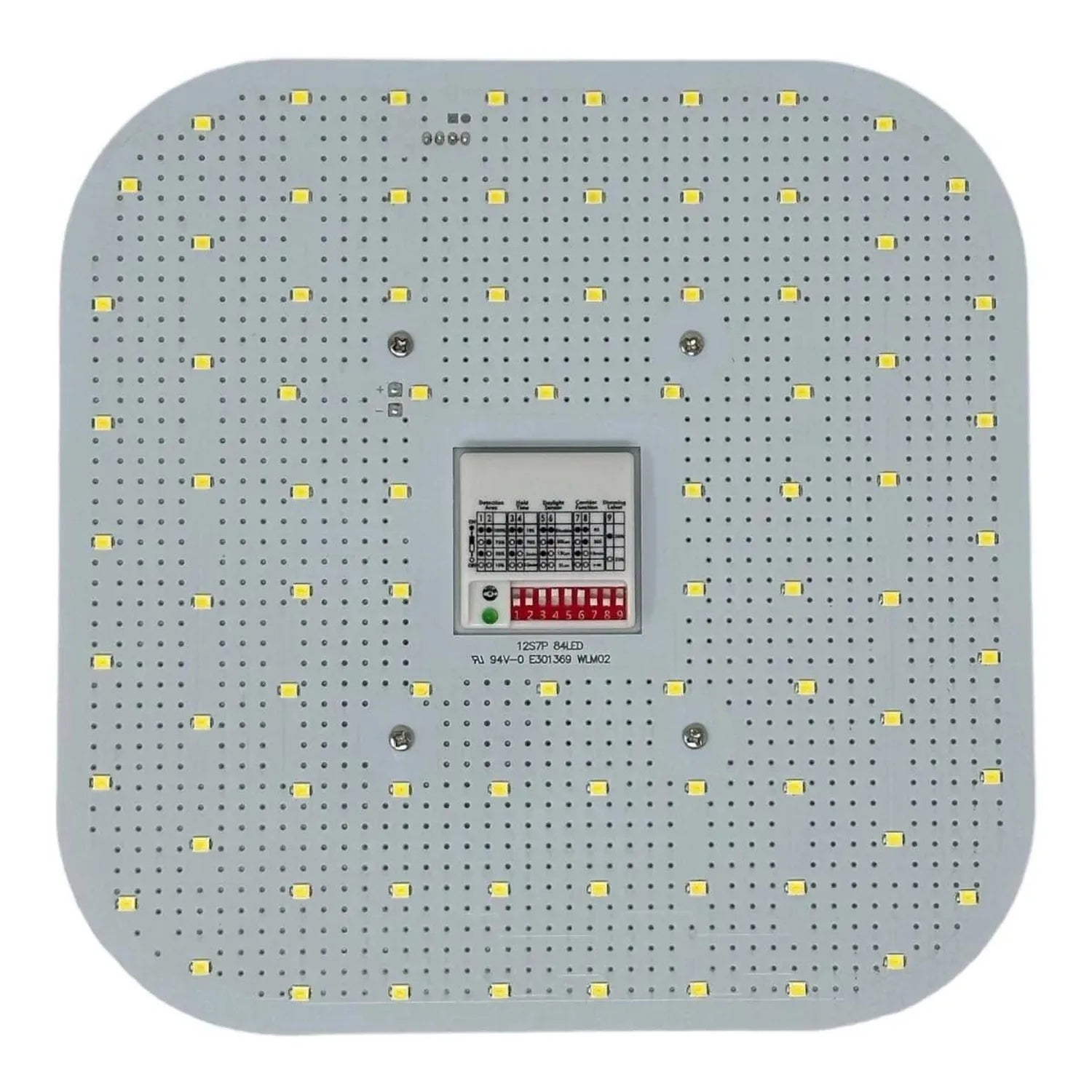

This 12W 2D LED lamp has a microwave motion sensor and a daylight photocell built into its housing. It takes the place of a 28W fluorescent 2D lamp in a 4-pin fitting, wires straight to the mains and produces 1050lm.
2D LED lamp with built-in sensor control

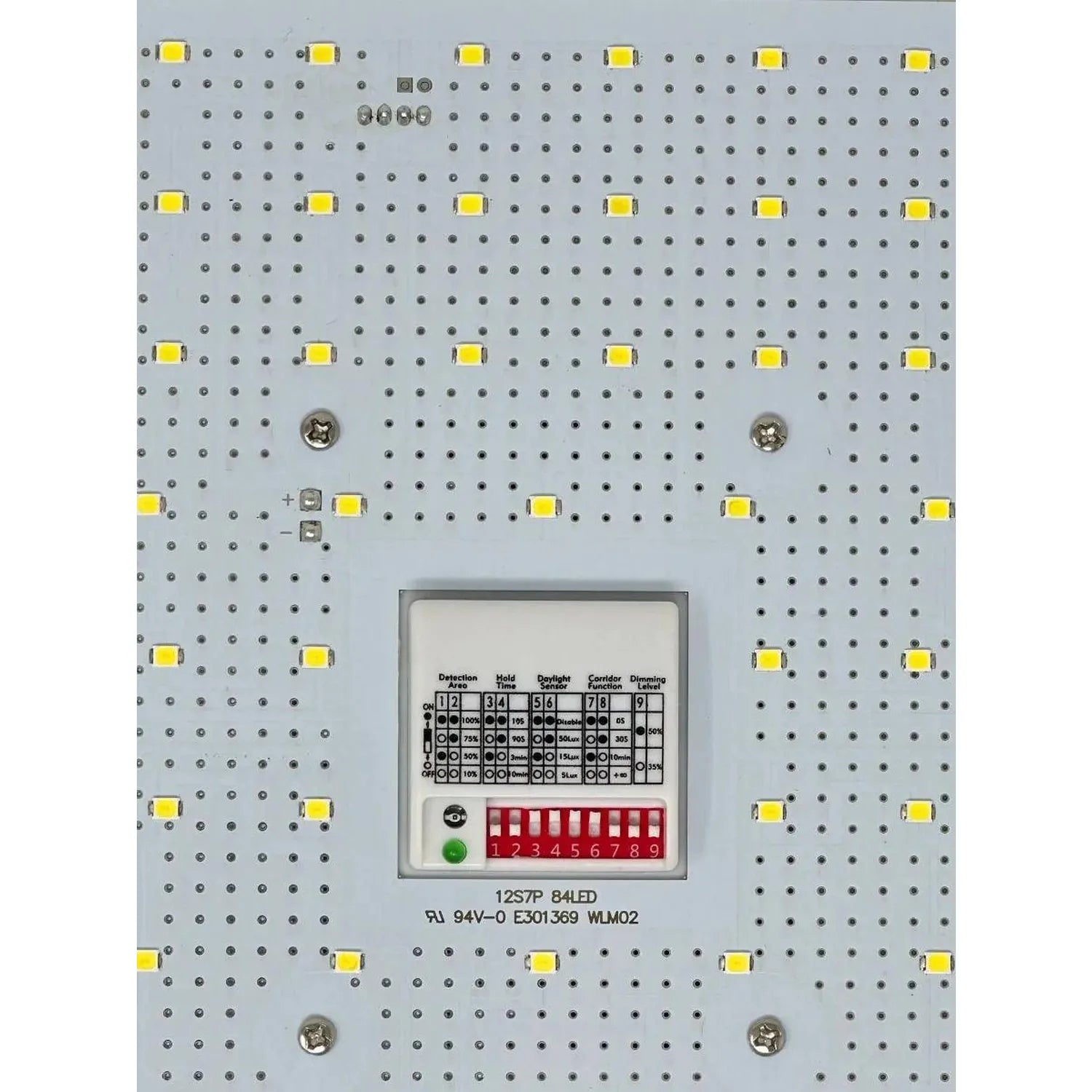

Movement switches the lamp on. When no further movement is detected, it switches off again. You can run it in one of three modes (on/off, 2-step dimming or 3-step dimming), and the dim level is set on the sensor itself. Daylight level, detection distance and turn-on time can all be adjusted.
Key features
- Output: 12 watts, 1050lm
- Sensor modes: on/off, 2-step and 3-step dimming
- Daylight sensor: built in, with adjustable daylight level
- Emergency socket: built in
- Beam angle: 120 degrees
- Lifetime: 50,000 hours, with 80% lumen maintenance after 50,000h
Fitting and installation

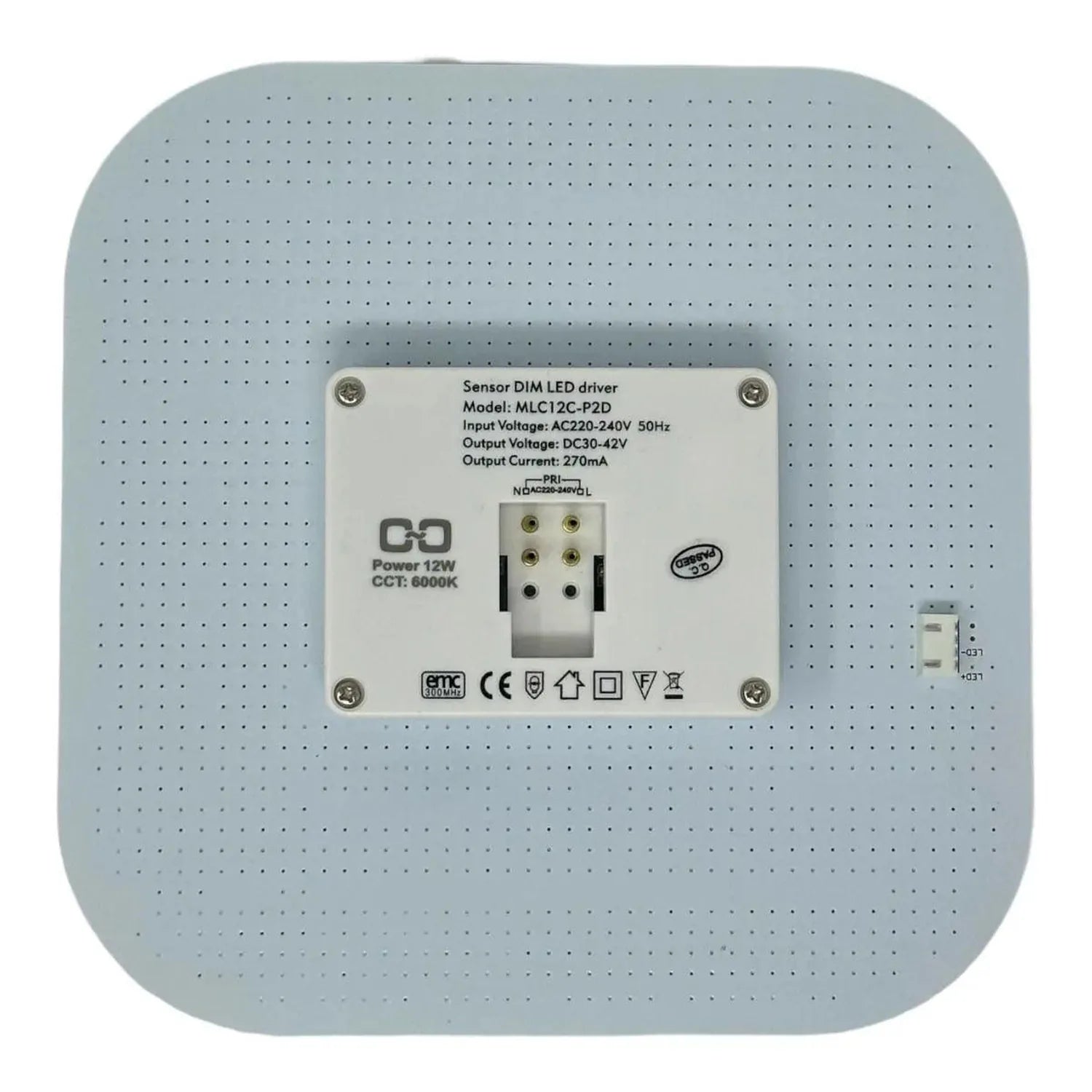

The lamp suits a 4-pin 2D fitting and connects directly to the mains, with a supply voltage of 100-265Volt. It measures 17cm x 3.0 x 17cm.
Colour temperature
Two versions are offered. Natural white covers 4000-5000K. Cool white sits at 5500-6400K.
Warranty and certification
A 5-year warranty applies. The lamp is listed with TUV, ROHS Compliant, CE and UL certification, and has a colour rendering index of >80.
Technical Specifications 17 rows Show
| Fitting | 2D/4pin |
| Luminous flux | 1050lm |
| Wattage (rated) | 12 Watt |
| Colour rendering index | >80 |
| Voltage | 100-265Volt |
| Typical efficiency | 85lm/W |
| Line frequency | 50/60Hz |
| Beam angle | 120deg. |
| Average lifetime | 50,000 hours |
| Current | 80mA |
| Power factor | 0.95 |
| Dimensions | 17cm x 3.0 x 17cm |
| Colour temperature | Natural white: 4000K, Cool white: 5500-6400K |
| Sensor | Microwave motion sensor and daylight photocell |
| Operating temperature | -20 OC to 45 OC |
| Certification | TUV, ROHS Compliant, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
Datasheets & documents
