All LED 2D Lamps (GR10Q 4pin)

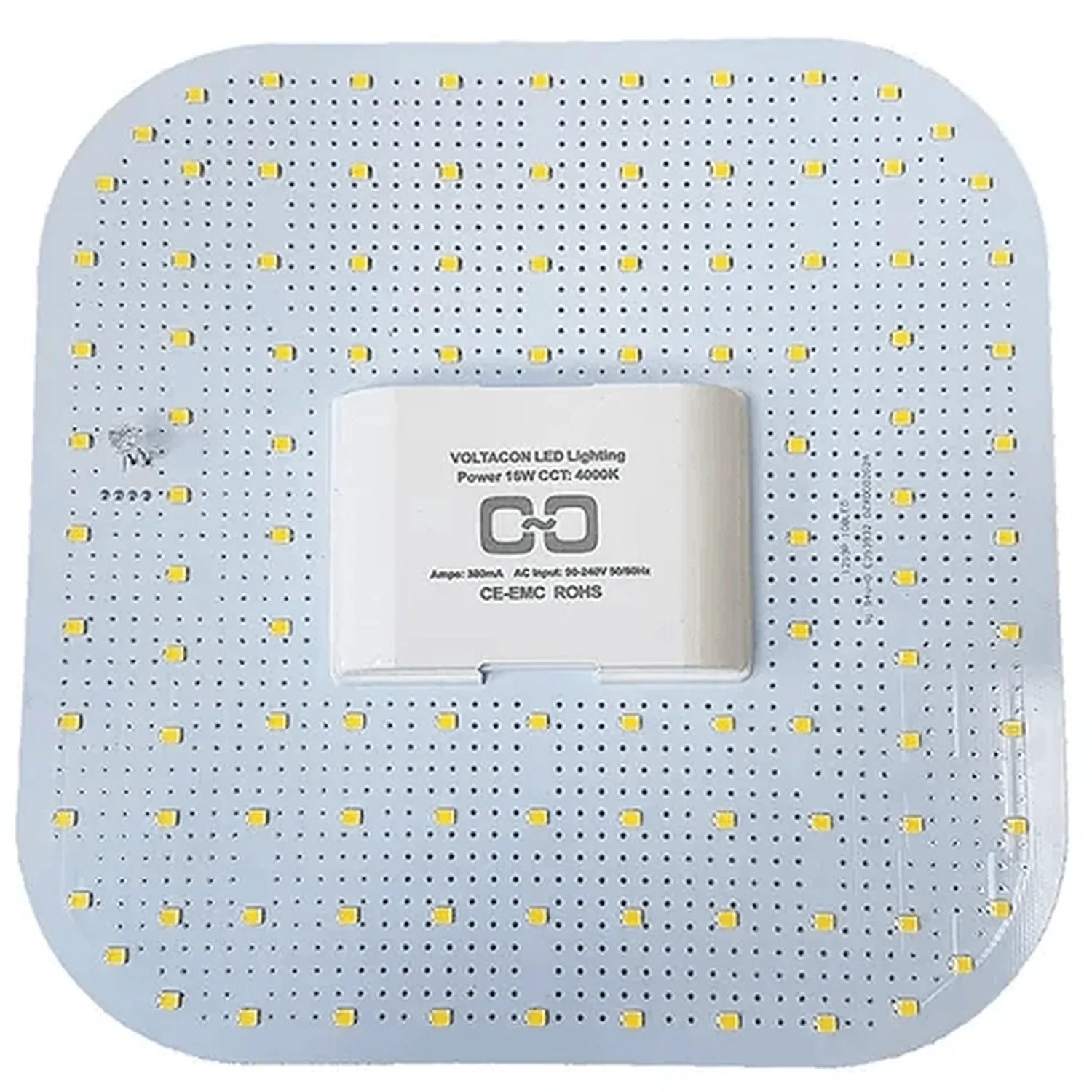

Square LED panel with yellow-white diodes and central driver module, top-down product view.

2D LED Lamp 16W GR10q 4-Pin 4000K 1510lm Replaces 36W CFL | Ledison

Sale price  £17.84 Regular price £23.09
Skip to product information
Square LED panel with yellow-white diodes and central driver module, top-down product view.

2D LED Lamp 16W GR10q 4-Pin 4000K 1510lm Replaces 36W CFL | Ledison

Vendor
Ledison
SKU
101007
Availability
Sold out
Weight
0.313 kg

Was£23.09£19.24Save £5.25Save £4.37

£17.84inc VAT £14.87exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 16W 2D LED lamp replaces an old 36W 4-pin fluorescent 2D lamp and gives 1510lm of natural white 4000K light. It fits most round and square fittings. Because it runs straight from the mains (65-265V AC), there is no ballast or starter to keep in the circuit.

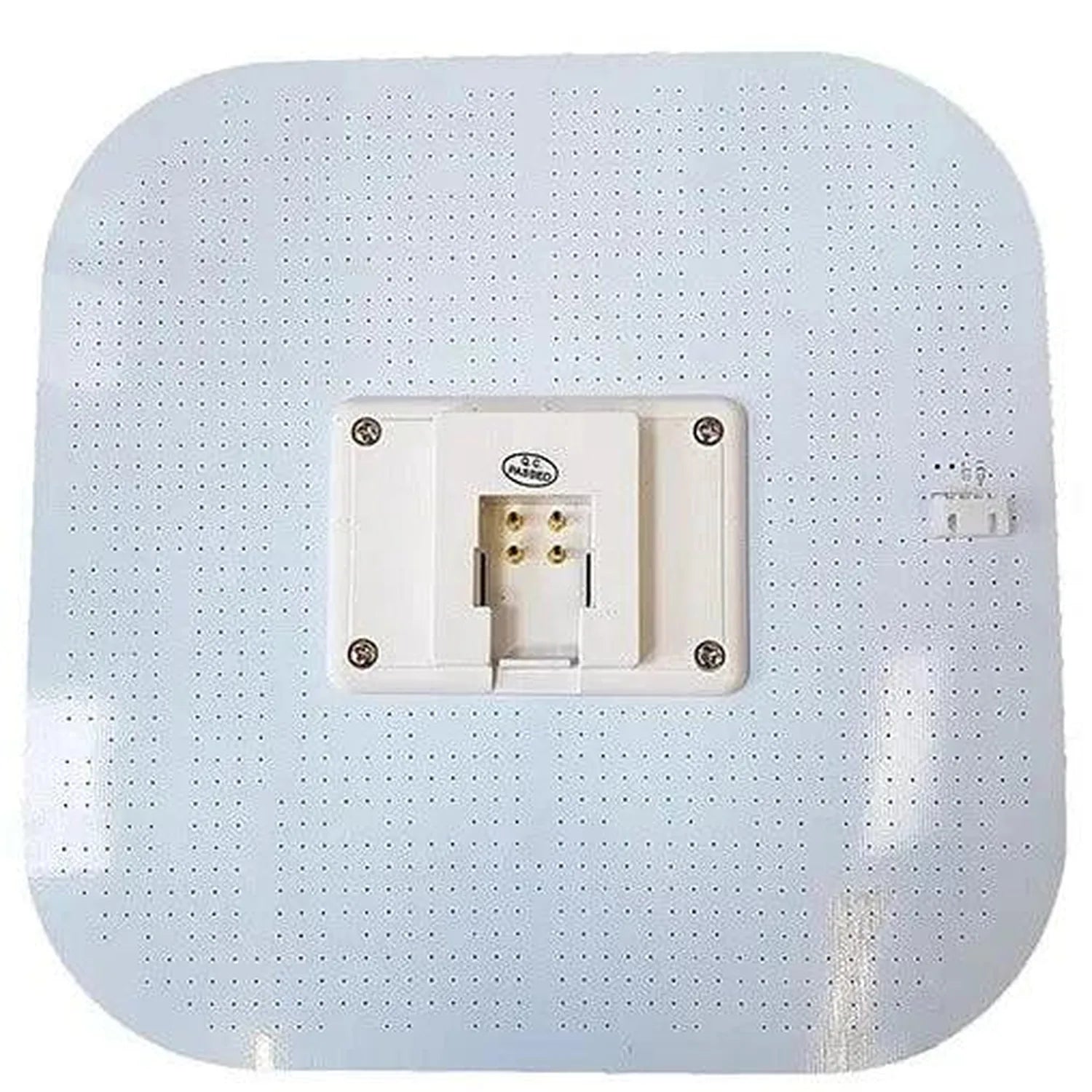

A perforated circuit board draws heat away from the LEDs. There is also a built-in socket that takes an emergency pack.

2D LED lamp at a glance

  • Power and output: 16W, 1510lm
  • Colour: natural white 4000K
  • Base: GR8/10-Q 4-pin
  • Beam angle: 120 degrees
  • Lifetime: 50,000 hours, with 80% lumen maintenance after 50,000 hours
  • Warranty: 5 years

Where it fits

Use it to upgrade existing round or square 2D fittings that currently hold a 36W CFL. It is rated for indoor use in dry places only. Fitting it outdoors? Then the luminaire must be IP65 or higher.

Start-up is instant with no flicker. The lamp is not dimmable. Certification covers TUV, ROHS Compliant, CE and UL.

Installation notes

The lamp must be fitted by a qualified electrician, and the existing control gear has to come out of the circuit first.

  • Remove or bypass the existing ballast and starter, as connecting them will damage the lamp
  • Only live and neutral are needed, rerouted to the GR8 base
  • Indoor and dry locations only, unless housed in an IP65 or higher fitting

Emergency lighting

The built-in LED and socket are compatible with an emergency pack, so the lamp can be used where emergency lighting is part of the installation.

Technical Specifications 25 rows Show
Fitting2D/4pin
BaseGR8/10-Q with 4 pin setup
Replaces36W CFL
Wattage (rated)16 Watt
Luminous flux1510lm (natural white)
Colour temperatureNatural White - 4000K
Colour rendering index>80
Typical efficiency85lm/W
Voltage65-265V AC, 50/60Hz
Line frequency50/60Hz
Beam angle120deg.
Average lifetime50,000 hours
Lumen maintenance80% lumen maintenance after 50,000 hours
Current80mA
Power factor0.95
DimmableNO
Useindoor use, dry environment
Outdoor usewaterproof IP65 or higher fittings are required
Ballast and starterDOES NOT require ballast or starter
Ambient humidity10-70% RH
EmergencyBuilt-in LED and socket compatible with Emergency pack
Start-upInstant start-up
Operating temperature-20 OC to 45 OC
CertificationTUV, ROHS Compliant, CE, UL
Warranty5 years

Manufacturer datasheet. Figures as published by the manufacturer.
