JA Solar 465W N-Type Monocrystalline Panel 6-Pack | JAM54D41-465/LR

Six JA Solar JAM54D41-465/LR panels, full black N-Type monocrystalline modules with dual glass construction, giving a total pack output of 2.79kW. Each panel is rated 465W at 23.3% efficiency, fitted with Stäubli MC4-EVO2 connectors and 1200mm cables.

JA Solar 465W all black solar panel features

• Output, 465W per panel, 2.79kW total for the 6-pack
• Efficiency, 23.3% module efficiency
• Cell technology, N-Type monofacial monocrystalline
• Construction, dual glass, replacing the standard plastic backsheet

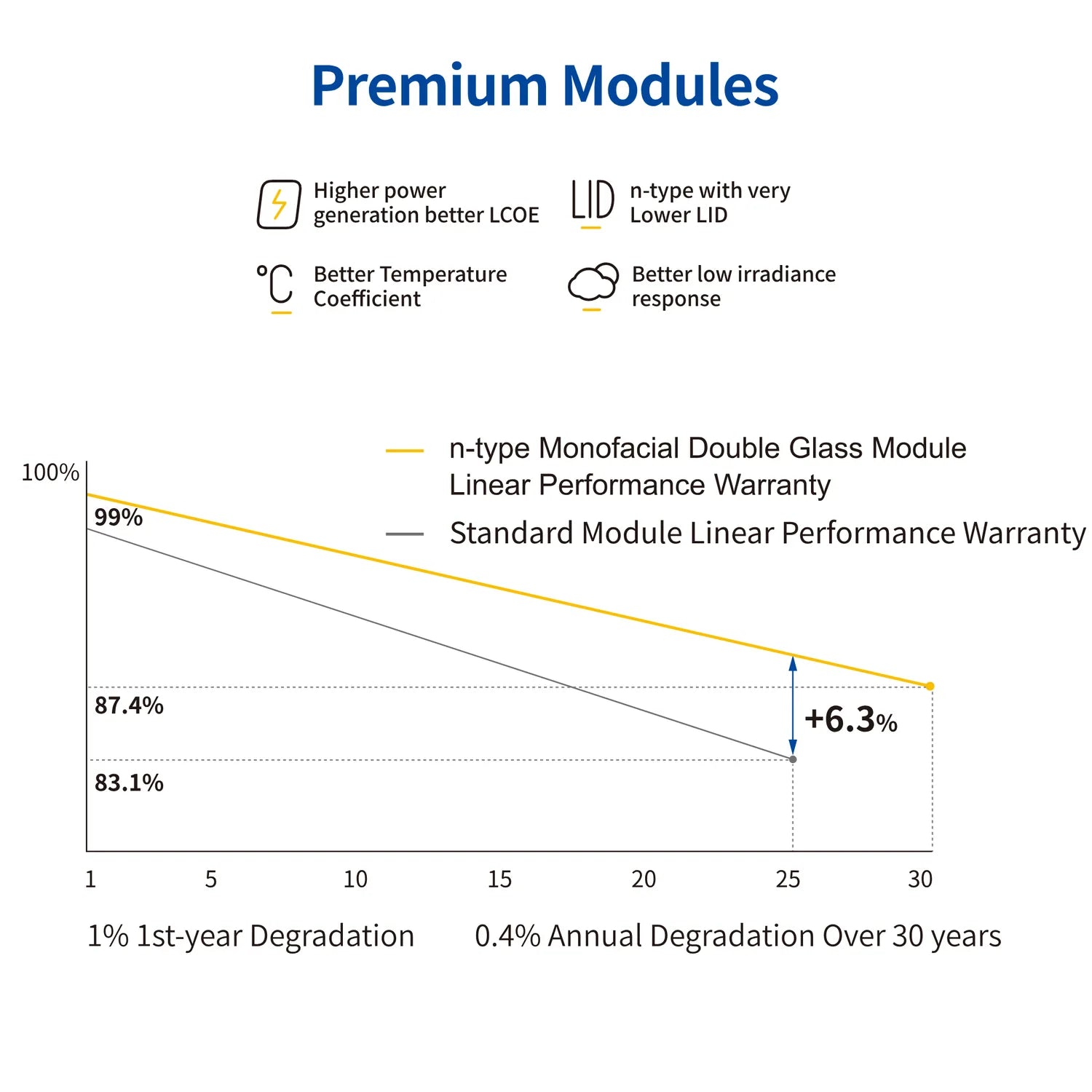

• Degradation, approx. 1% in year one, 0.4% per year thereafter over 30 years
• Connectors, Stäubli MC4-EVO2 with 1200mm positive and negative cables

Design and build

The all-black frame, backsheet and cell finish suits roofs where panel appearance matters. Dual glass construction resists moisture ingress, UV degradation and mechanical stress better than a conventional glass-backsheet panel. Snow load rating is 5400 Pa and wind load rating is 2400 Pa.

Warranty and certification

Each panel carries a 25-year product warranty and a 30-year linear power output warranty. The panels are MCS certified under BABT 8515 R37.

Applications

Suited to residential and commercial rooftop installations, hybrid inverter and battery storage systems, and off-grid solar setups. The full black finish is aimed at projects where visible roof areas need a uniform appearance.

What's in the box

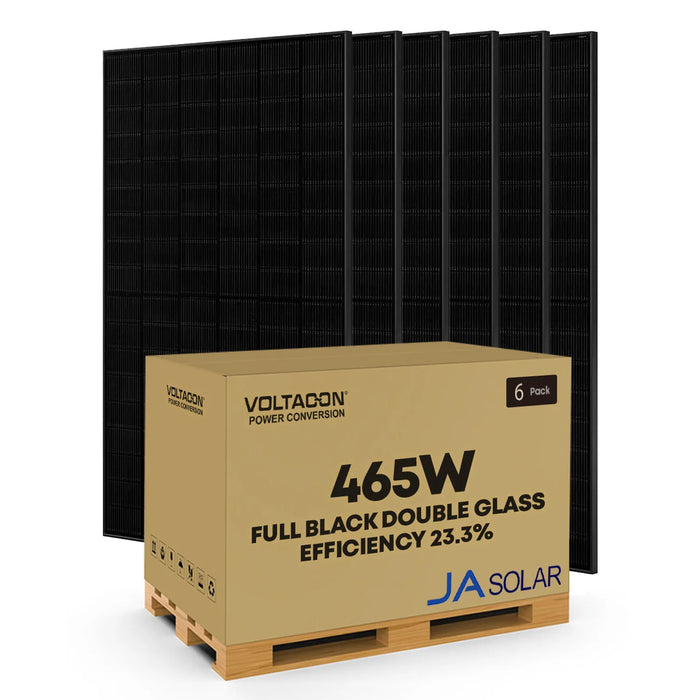

• 6 x JA Solar JAM54D41-465/LR 465W full black dual glass panels
• Factory-fitted Stäubli MC4-EVO2 connectors and 1200mm cables

Installation notes

Installation should be carried out by a qualified MCS-accredited installer. String voltage must be checked against the inverter's maximum input voltage in cold conditions. Maximum series fuse rating is 30A.
