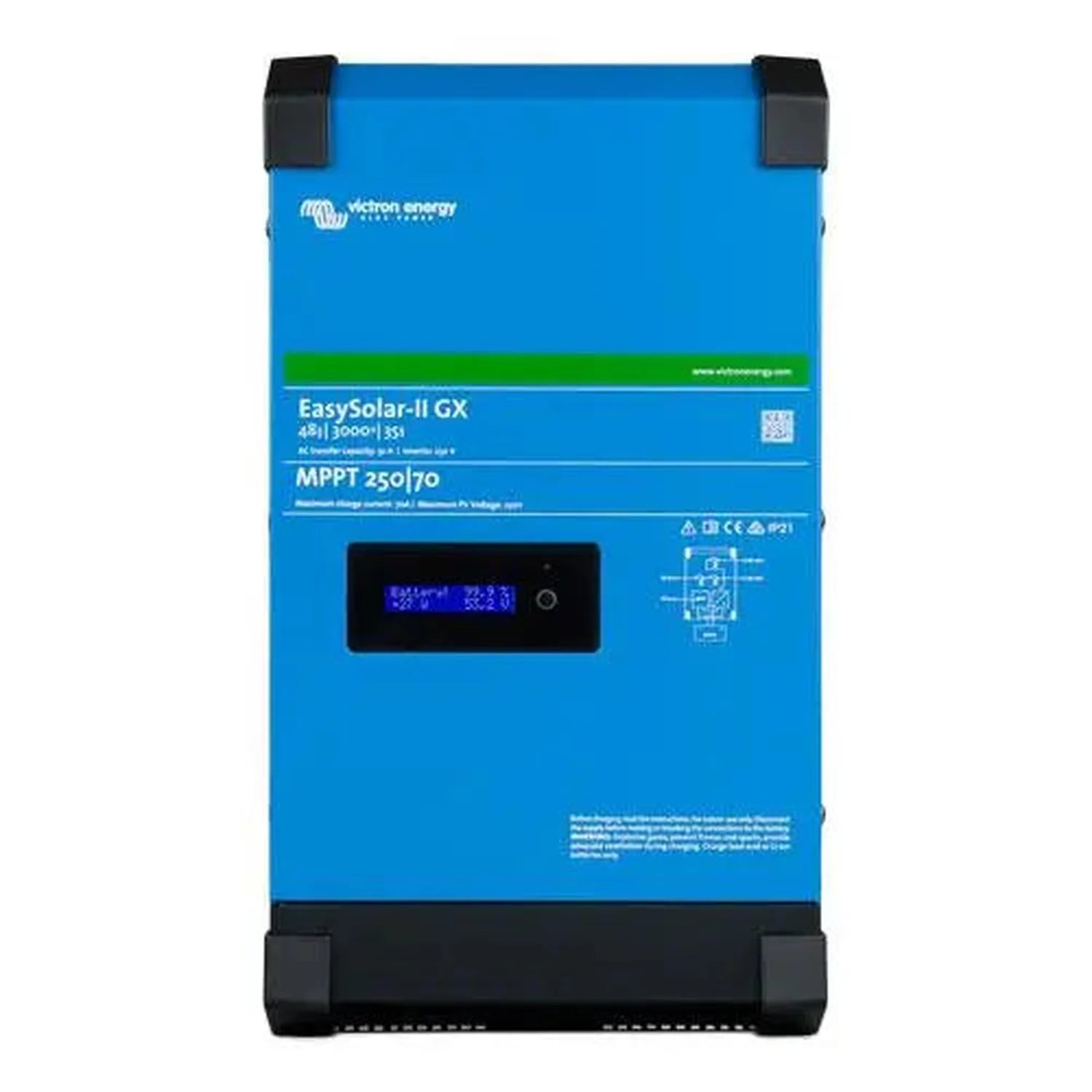

Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX Inverter Charger | PMP482307010
- Vendor
- Victron Energy
- SKU
- PMP482307010
- Availability
- In stock
- Weight
- 31.0 kg
£1,101.40inc VAT £917.83exc VAT
Delivery from £35.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs
Product Description
The Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX is an all-in-one inverter charger that puts a 3000VA inverter, an MPPT solar charge controller and an AC battery charger into one wall-mounted enclosure. Model PMP482307010 also carries a built-in GX device for monitoring, so it suits off-grid systems, home storage and self-consumption setups where panel space is limited.
Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX features
- Inverter output 3000VA / 2400W pure sine wave at 230V AC, from a 48V battery bank.
- Solar charging integrated 250/70 MPPT controller, up to 250V PV open-circuit voltage and 70A charge current.
- AC charging 32A battery charger with an adaptive algorithm for lead-acid and lithium chemistries.
- Monitoring built-in GX device with VRM portal access and DVCC support, no separate Cerbo GX or Color Control unit needed.
- PowerAssist draws extra power from the battery when load demand exceeds a limited shore or generator supply.
- Connectivity VE.Bus, VE.Direct and VE.Can accessory support, configurable through the VictronConnect app or the GX interface.
Technical specifications
| Parameter | Value |
|---|---|
| SKU | PMP482307010 |
| Inverter output power | 3000VA / 2400W |
| Battery voltage | 48V DC |
| AC output voltage | 230V AC |
| AC charger current | 32A |
| MPPT charge controller | 250/70 (250V max PV VOC, 70A max charge current) |
| GX device | Integrated (VRM, DVCC, VE.Bus, VE.Direct, VE.Can) |
| Weight | 28 kg |
| GTIN | 8719076045786 |
Applications
Off-grid homes and rural properties, home storage systems prioritising self-consumption, narrowboats and larger leisure vessels on 48V banks, remote cabins without a grid connection, generator-backed systems where PowerAssist cuts run time, and backup power installations for critical loads.
What's in the box
- EasySolar-II 48/3000/35-32 MPPT 250/70 GX wall-mount unit
Installation notes
This unit runs at 48V DC with high DC currents and connects to 230V AC mains. Installation should be carried out by a qualified electrician experienced with battery-based inverter systems.
