T5 LED Tube Light 120cm 20W 2400lm T6/T5 Hybrid | Ledison

This T5 LED tube light measures 120cm (1163mm pin to pin) and runs on 20W, connecting directly to the mains with no external ballast needed. It uses a built-in driver housed inside an aluminium body, giving 2400lm of output and rotating end caps that lock in place for easier fitting.

Key features of this T5 LED tube light

• Output, 2400lm at 20W, with a typical efficiency of 120lm/W
• Voltage, 100-305VAC, 50/60Hz
• Colour rendering index, greater than 76
• Beam angle, 120 degrees
• Lifespan, up to 50,000 hours, with a 5 year warranty
• Certification, ROHS Compliant, CE, UL

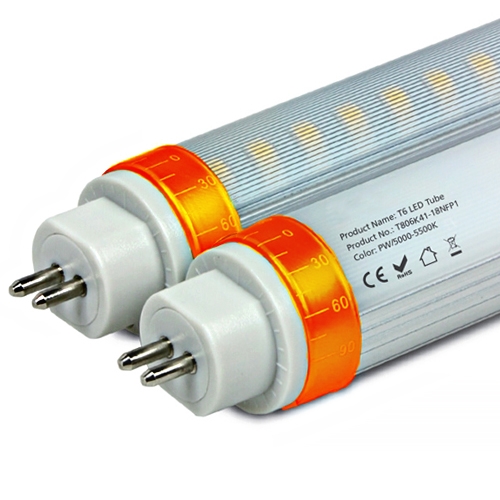

A hybrid T6/T5 design

Although sized to match standard T5 fittings, this tube uses a 22mm T6 body to fit the internal driver safely inside. It is single-ended, so a double-ended fitting will need rewiring before installation. The SMD 2835 chips give even light distribution, and thermal vias in the board carry heat away from the LEDs to support reliable running.

Where it fits

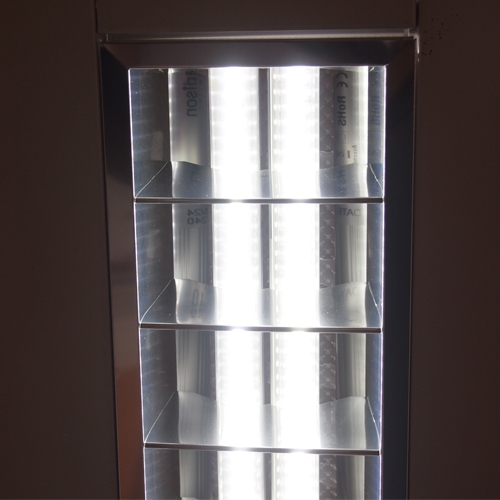

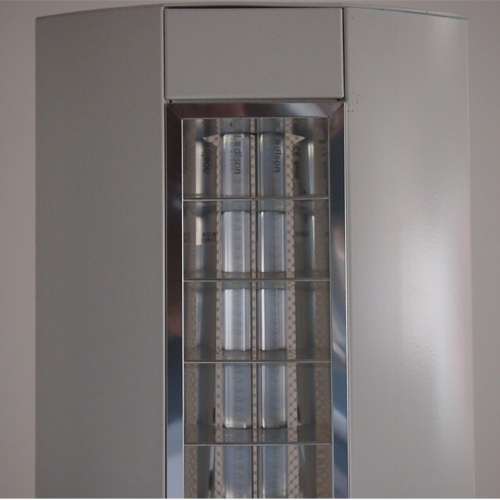

It's a retrofit replacement for existing fluorescent T5 tubes in offices, retail units, workshops and any space using standard 120cm T5 fittings. It runs cool, emits no UV light, and the end caps rotate 180 degrees for flexible positioning during installation.

Colour temperature options

Available in warm white (2700-3200K), natural white (4000-5000K) and cool white (5500-6500K), so you can match it to the existing lighting scheme. This tube is not dimmable.
