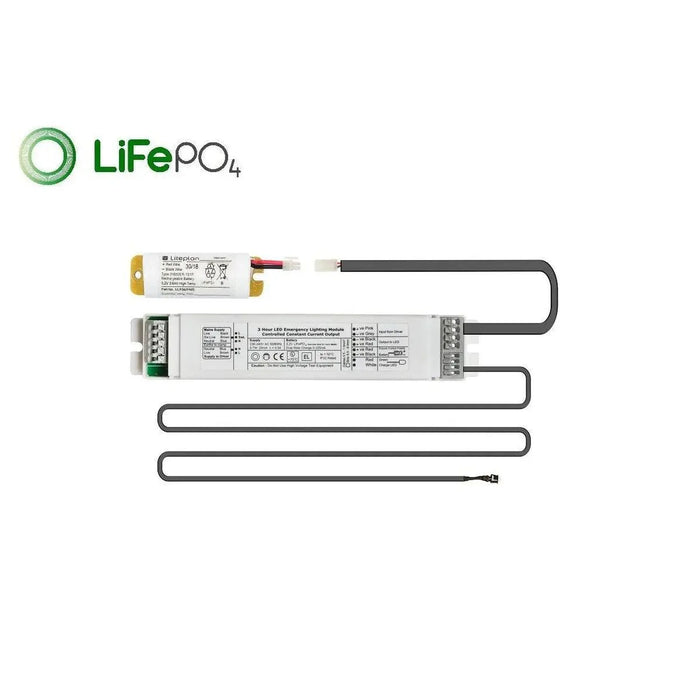

LiFePO4 LED Emergency Conversion Pack components laid out flat: cylindrical battery, driver module, and three black power cor

Emergency Lighting Battery Pack 3 Hour LiFePO4 | Liteplan NLP/1S/80-K

£45.10
Skip to product information
LiFePO4 LED Emergency Conversion Pack components laid out flat: cylindrical battery, driver module, and three black power cor

Emergency Lighting Battery Pack 3 Hour LiFePO4 | Liteplan NLP/1S/80-K

Vendor
Liteplan
SKU
002645
Availability
In stock
Weight
0.15 kg

£45.10inc VAT £37.58exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Liteplan NLP/1S/80-K is a slim emergency conversion pack that fits inside an LED luminaire and gives it 3 hours of emergency operation. In normal use the fitting runs from its own switch. When the mains fails, it switches over to the LiFePO4 battery.

Emergency lighting battery pack features

  • Emergency duration: 3 hours
  • LED load range: 6 - 80 Volts
  • Rated LED current: 385mA - 32mA
  • Battery: long life LiFePO4, three cell
  • Mains supply: 230-240V AC 50/60Hz, with a 24 hour recharge period
  • Protection: deep discharge protection, low power consumption, IP20

How it works

The module adjusts the LED current to suit both the battery and the connected load, so the fitting gives the most light it can across the full battery duration. Liteplan has tested the pack with Ledison T8 and T5 tubes, GU10 spots and GLS LED bulbs.

Installation

The slim body is made for linear fittings where there is little room to spare. It mounts inside the luminaire. The module measures 178 x 30 x 22.5, with fixing centres of 172mm.

Wiring needs two feeds: an unswitched supply to keep the battery charged, and the switched supply for normal operation. Not every lamp is suitable for emergency conversion, so check yours before fitting.

In the box

  • Module
  • Three cell battery
  • Charge LED indicator
  • Strain relief module with fitted cables
Technical Specifications 20 rows Show
BrandLiteplan
ModelNLP/1S/80-K
LED load range6 - 80 Volts
Mains supply voltage230-240V AC 50/60Hz
Emergency duration3 Hours
Recharge period24 Hours
Power rating (charging)2.7W 17mA λ = 0.67
Power rating (standby)1.2W 13mA λ = 0.40
Charge current225mA nominal
Rated LED current385mA - 32mA
LED voltage limit80V
Battery current limit1A
Battery3.2V 4.8Ah LiFePO4, three cell battery
Ingress protectionIP20
Module dimensions178 x 30 x 22.5 (f/c 172mm)
Module weight0.085Kg
Case temperature (Tc)Battery 5-55°C, Module 5-70°C
Push wire terminals0.5mm - 1.5 mm
IndicatorGreen charge LED
CertificationTÜV tested and certified

Manufacturer datasheet. Figures as published by the manufacturer.
