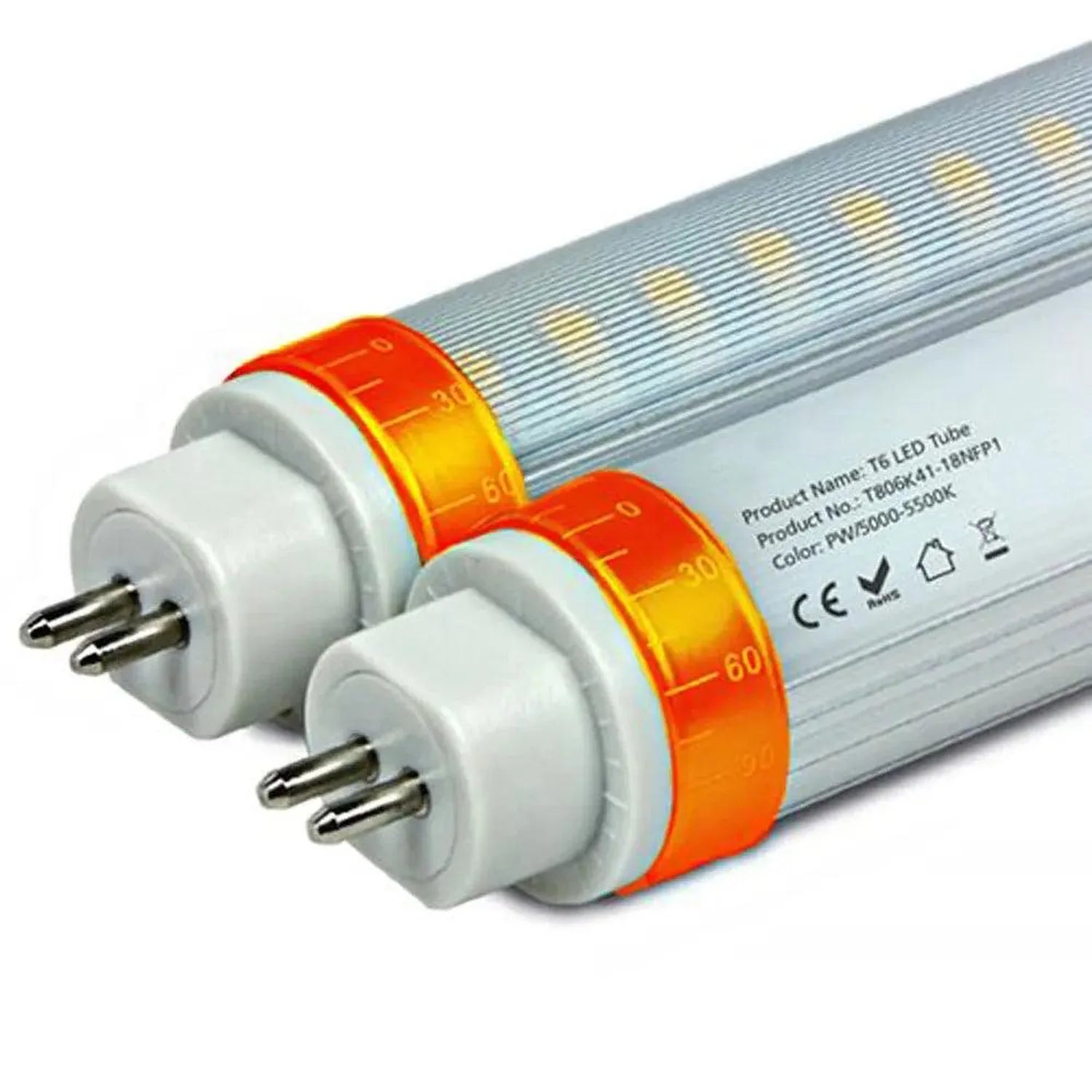

Two T5 LED tube lights with white end caps and orange temperature bands, showing product specifications and CE certification

T5 LED Tube 300mm 6W 720lm Direct Mains Built-in Driver | Ledison

Warm White 3000K
£13.64
Skip to product information
Two T5 LED tube lights with white end caps and orange temperature bands, showing product specifications and CE certification

T5 LED Tube 300mm 6W 720lm Direct Mains Built-in Driver | Ledison

Vendor
Ledison
SKU
110971
Availability
In stock
Weight
0.25 kg

£13.64inc VAT £11.37exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 300mm T5 LED tube (302mm pin to pin) replaces a fluorescent T5 tube and draws 6W for 720 lumens. The isolated driver is built into the tube itself. You wire it straight to the mains, and there is no external driver to find space for.

T5 LED tube 300mm: key features

  • Output: 6W, 720lm
  • Size: 302mm pin to pin, 22mm diameter (T6 body)
  • Beam angle: 120 degrees
  • Colour choice: warm, natural or cool white
  • Lifetime: up to 50,000 hours, backed by a 5-year warranty
  • Safety: passes the 4000V high voltage insulation test and emits no UV light

Fitting and wiring

At 22mm wide, the body matches T6 size so the driver fits safely inside. It still goes into most standard T5 fittings. Both end caps rotate 180 degrees and lock, which makes lining the tube up in the holder much easier once the pins are in.

Power at one end

The tube only needs power at one end. Fittings that feed both ends will need a quick rewire first. It is not dimmable.

Where it suits

Offices, shops, other commercial spaces and homes are all good matches for this tube. It carries an IP20 rating and uses SMD 2835 LED chips inside an aluminium housing. Input voltage is AC100-277V at 50/60Hz, with a power factor of PF>0.95 and a colour rendering index of Ra>80.

Technical Specifications 23 rows Show
Product typeT5 LED tube, direct mains
FittingT5
Length (pin to pin)302mm
Diameter22mm
Wattage (rated)6 Watt
Lumen720lm
Beam angle120deg.
Average lifetime50,000 hours
LED chipsSMD 2835
DimmableNO
IP ratingIP20
Power factorPF>0.95
Colour rendering indexRa>80
VoltageAC100-277V
Colour temperatureWarm white: 3000K, Natural white: 4000K, Cool white: 6000K
Warranty5 years
Line frequency50/60Hz
DriverBuilt-in isolated driver, direct mains
HousingAluminium housing
End capsRotate by 180 degrees and lock
Insulation test4000V high voltage insulation test
Switching cycles>200,000 times
Lumen maintenance>80% @ 6000h

Manufacturer datasheet. Figures as published by the manufacturer.
