Smart Bluetooth LED Panel 40W 600x600 PIR Sensor | Leonardo

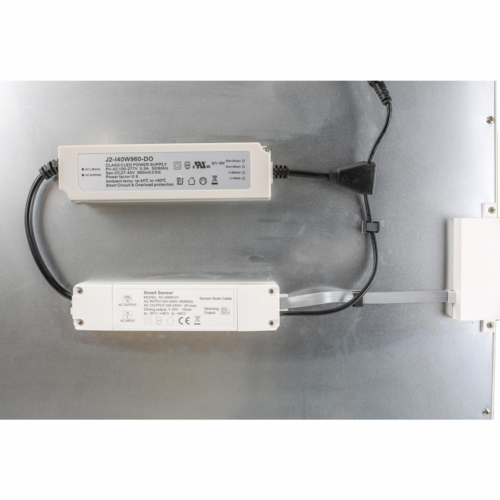

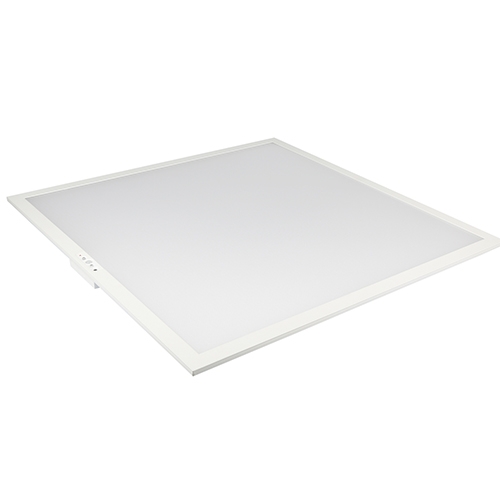

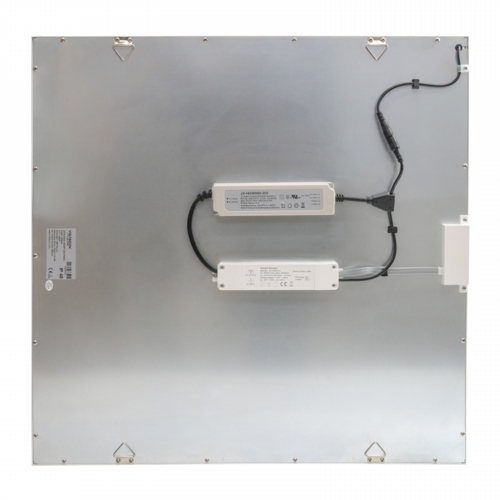

The Smart Bluetooth LED Panel is a 40W fitting built for commercial and office spaces that need smart control alongside standard lighting. It combines an LED panel, built-in driver, and a Bluetooth mesh control module with PIR and daylight sensors in one 595 x 595mm unit.

Key features of this led panel bluetooth system

• Power, 40W, delivering 3300 to 4000lm
• Colour temperature, 2700K to 6500K via signal control
• Beam angle, 90° with CRI ≥80 and UGR <19

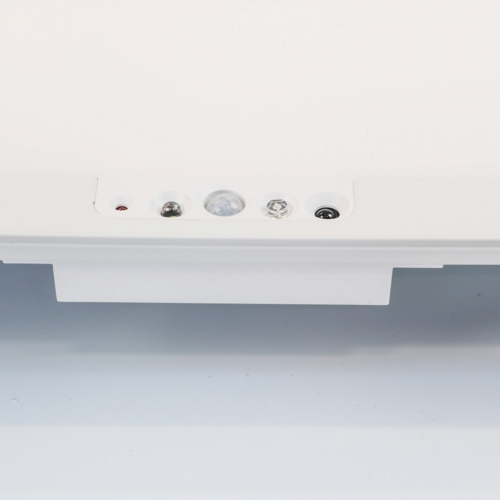

• Sensors, built-in PIR and daylight sensor with adjustable hold time and lux settings
• Control, Tuya app via Bluetooth mesh, with brightness adjustment from 1% to 100%, scheduling and energy monitoring
• Build, IP20, Class II, aluminium frame with PMMA light guide plate, White RAL 9016 finish, 40,000h lifetime

Smart control and sensing

The panel links into a Bluetooth mesh network so several fittings can be managed together from the Tuya app. Users can switch lights remotely, set schedules, build lighting scenes, and check energy use. The PIR sensor switches the panel on when it detects movement and dims after the set hold time once the area is empty. The daylight sensor adjusts output against the surrounding light level, so the panel can dim or switch off when there is enough natural light and increase output as it drops.

Size and installation

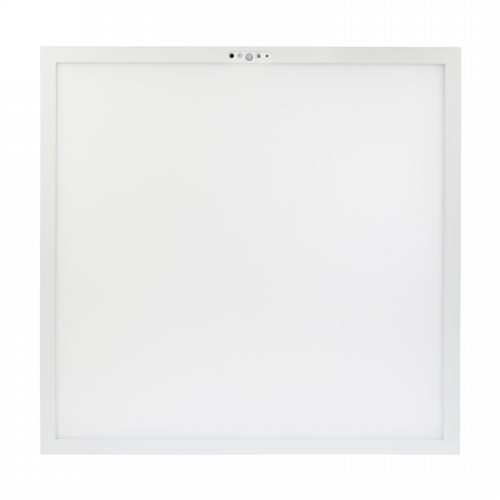

Supplied at 595 x 595mm with an 8.5mm profile, this panel fits standard suspended ceiling grids used in commercial fit-outs. It can be installed recessed, surface-mounted, or suspended, depending on the mounting accessories used on site.

Applications

Suited to offices, meeting rooms, and classrooms, as well as retail environments such as shopping centres and supermarkets. It is also used in hospitals, laboratories, and dust-free workshops where smart lighting control is required alongside general illumination.
