Ledison T8 LED Tube 240cm 35W
Ref: T8-24035-X SE110£44.00
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £42.68 | Save 3% |
12 Items | £41.36 | Save 6% |
24 Items | £40.48 | Save 8% |

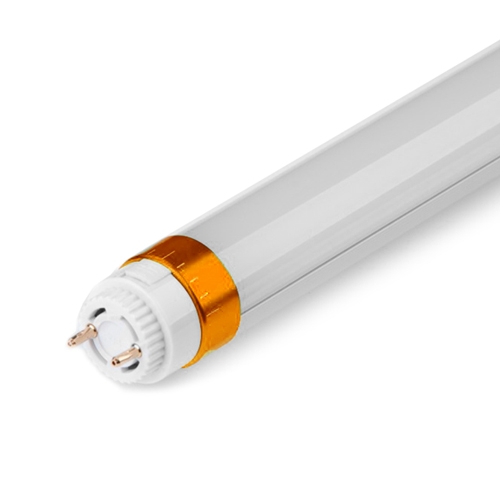

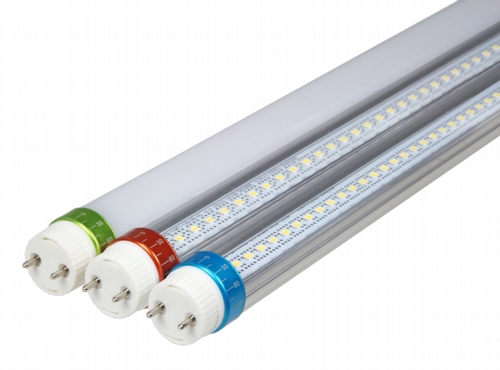

LED T8 8ft/240cm tube, the longest tube in the world
Voltacon manufacturs the longest LED tube in the market with a dual LED drivers. The built in power supplies offer you with a form of redudancy. In the unlikley event that a driver fails, 50% of the LED tube will powered up from the second supply.
This is the only direct retrofit T8 tube for the T12/T10 fluorescent tubes which have now be outphased from the market.
The LEDISON LED Tube is a breakthrough in the lighting industry. We use the most renowned brands of LED chips (Everlight), with high lumens per watt and colour rendering index above 80. The internal power supply is assembled with devices of high reliability and meets all the quality, safety and electrical standards (CE, ROHS, VDE, UL).
The anodised aluminium housing in conjunction with low resistance thermal material decreases the temperature of LEDs which guarantees long life span of the LED Tube, over 50,000 hours.
Performing thousands of hours of stringent tests, it was measured that LEDISON Led tubes maintained 80% of the original luminosity after 50,000 hours of operation. This achievement can meet the standard of Energy Star for LED indoor lights.
LEDISON Led tubes are brighter that conventional fluorescent tubes, emit quality light with excellent colour rendering without flickering.
The T8 LED tube lights are direct replacements and can be installed into conventional fittings without additional wiring.
Installation Instructions
Remove the old starter and replace it with the LED starter provided with the tube light
Install the LED tube and turn on the power.
All our LED Tubes are supplied with user's and installation instructions. The LED starter/fuse is available in the box.
LEDISON T8 tubes comply with EU and British Standards for safety against electric shock
All our tubes come with Frosted covers. Unlike Clear covers, Frosted covers disperse uniform light, making them qualitatively superior to the Clear covers. If for any reason you require Clear covers, please contact us
Product Features
- 60-70% energy saved over conventional fluorescent tube
- Longer lifetime than conventional fluorescent tube (4-5 times longer)
- Typical Brightness loss: Lumen maintenance LM80: 80% after 50,000 hours
- More robust and resistant to cold environments than normal fluorescent tubes
- Quick and easy installation to minimize retrofit costs
- No RF interference, no buzzing noise, no flickering
Specification
Fitting: |
T8 |
Luminous flux: |
4200lm |
Wattage (rated): |
35 Watt |
Color Rendering index: |
>80 |
Voltage: |
100-265Volt |
Typical efficiency: |
95lm/W |
Line frequency: |
50/60Hz |
Beam Angle: |
120deg 140deg |
Average lifetime: |
50,000 hours |
Net Weight per piece |
650gr |
Color Temperature: |
|
Diameter |
26mm |
Warm white: |
3000K |
Lenght pin to pin |
2400mm |
Natural white: |
4000K |
Dimmable |
NO |
Cool white: |
5500K |
Warranty: |
5 years |
Operating Temp: |
-40 OC to 50 OC |
Certification: |
TUV, ROHS, CE, UL |
Number of LED Chips : 564
Cool performance
Dimensions of T8 LED tube
Diameter (identical to fluorescent T8 tubes)
Identical dimensions with compact fluorescent T8 tubes
Tube Length | A | B | C | |
max | min | max | max | |
60cm | 589.8 | 594.5 | 596.9 | 604 |
90cm | 894.6 | 899.3 | 901.7 | 908.8 |
120cm | 1199.4 | 1204.1 | 1206.5 | 1213.6 |
150cm | 1500 | 1504.7 | 1507.1 | 1514.2 |
180cm | 1764 | 1768.7 | 1771.1 | 1778.2 |
240cm | 2388 | 2392.7 | 2395.1 | 2402.2 |
