Ledison T8, 5ft, Extra Bright LED Tube, 30wattLedison T8, 5ft, Extra Bright LED Tube, 30wattT8 Ledison Tube, Cool White

Ledison T8 LED Tube 150cm 30W (1514mm)

Ref: LED-T8-15030

£19.00

Price inc VAT

T8 LED tube, direct replacement for 56W fluorescent, 50.000h lifespan at 3600 lumen.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £18.43 Save 3%
12 Items £17.86 Save 6%
24 Items £17.48 Save 8%
Description
Specification
Downloads
Description

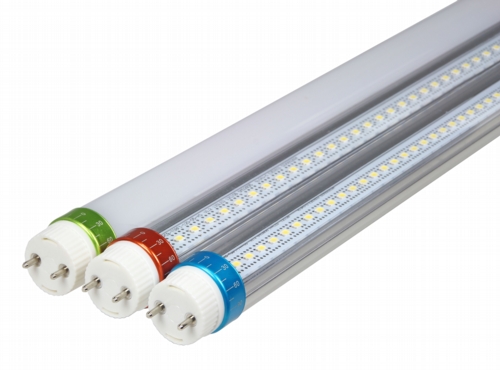

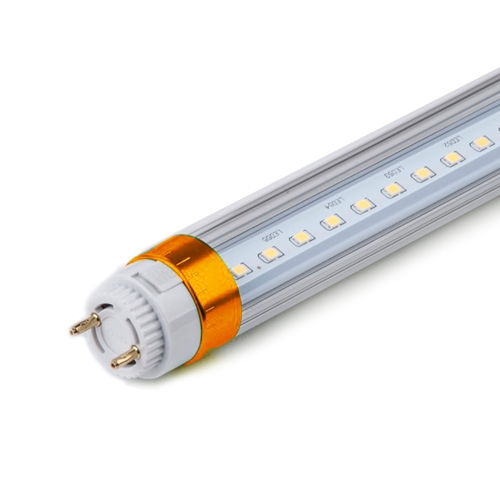

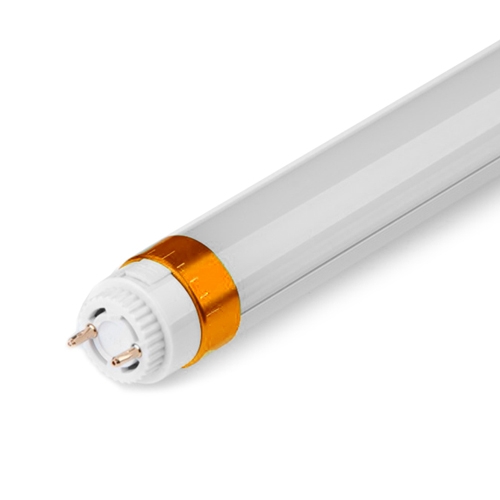

Description of the Extra-Bright 1500mm/5ft T8 LED Tube

A direct retrofi LED Tube with built in LED Driver

The LEDISON LED Tube is a breakthrough in the lighting industry. We use the most renowned brands of LED chips with high lumens per watt and colour rendering index above 80. The internal power supply is assembled with devices of high reliability and meets all the quality, safety and electrical standards. LEDs are mounted on Printed Circuit Board with Thermal vias (multiple conductive holes on board) which carry away the heat from LED chips

The anodised aluminium housing in conjunction with low resistance thermal material decreases the temperature of LEDs which guarantees long life span of the LED Tube, over 50,000 hours.

Performing thousands of hours of stringent tests, it was measured that LEDISON Led tubes maintained 80% of the original luminosity after 50,000 hours of operation.

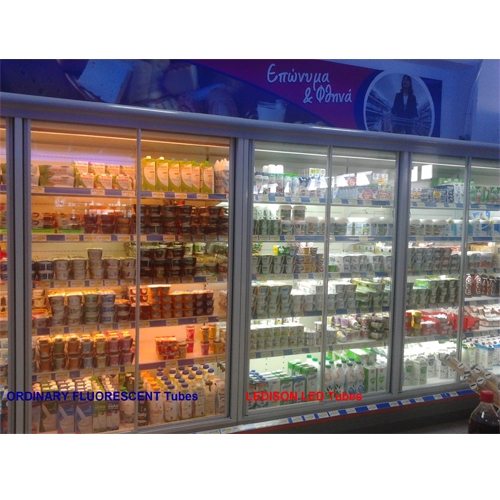

LEDISON Led tubes are brighter that conventional fluorescent tubes, emit quality light with excellent colour rendering without flickering.

All our LED Tubes are supplied with user and installation instructions

LEDISON T8 tubes comply with EU and British Standards for safety against electric shock.

The T8 LED tube lights are direct replacements and can be installed into conventional fittings without additional wiring.

Installation Instructions

Remove the old starter and replace it with the LED starter provided with the tube light
Install the LED tube and turn on the power. If the fluorescent fixture contains an electronic ballast, the LED tube must be connected directly to the mains voltacon. The electronic ballast should be removed or bypassed

All our tubes come with Frosted covers. Unlike Clear covers, Frosted covers disperse uniform light, making them qualitatively superior to the Clear covers. If for any reason you require Clear covers, please contact us

Specification of the Extra-Bright 1500mm/5ft T8 LED Tube

Fitting:

T8

Luminous flux:

3600lm

Wattage (rated):

30 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

120lm/W

Line frequency:

50/60Hz

Beam Angle:

120deg.

Average lifetime:

50,000 hours

Net Weight per piece

380gr

Color Temperature:



Diameter

26mm

Warm white:

3000K

Length pin to pin

1513mm

Natural white:

4000K

Dimmable

NO

Cool white:

5500K

Warranty:

5 years

Operating Temp:

-40 OC to 50 OC

Certification:

TUV, ROHS, CE, UL

Number of LED Chips : 430

Product Features

  • 60-70% energy saved over conventional fluorescent tube
  • Typical Brightness loss: 80% maintains after 50,000 hours
  • More robust and resistant to cold environments than normal fluorescent tubes
  • Quick and easy installation to minimize retrofit costs
  • Up to 50,000 hours lifetime
  • Fire proof lens and aluminium housing
  • Rotating end caps (180deg) for regulating the direction of light beam

All our tubes come with Frosted covers. Unlike Clear covers, Frosted covers disperse uniform light, making them qualitatively superior to the Clear covers. If for any reason you require Clear covers, please contact us. Subject to stock availablity.

Specification



Dimensions of T8 LED tube

/media/s_products/library/led-t8-tube-g13-bipin-dimensions.jpg



Diameter (identical to fluorescent T8 tubes)

/media/s_products/library/diameter-of-t8-led-tube.jpg

Identical dimensions with compact fluorescent T8 tubes

Tube Length     A                    B                            C
max           min  max       max
60cm 589.8 594.5 596.9  604
90cm 894.6 899.3 901.7 908.8
120cm 1199.4 1204.1 1206.5 1213.6
150cm 1500 1504.7 1507.1 1514.2
180cm 1764 1768.7 1771.1 1778.2
240cm 2388 2392.7 2395.1 2402.2
Downloads

Technical Manual

T8 LED tube Instructions Manual

T8 LED tube Instructions Manual

T8 LED Tube Single-End: Instructions Manual

Download

T8/T5 Emergency Conversion Pack

T8/T5 Emergency Conversion Pack

T8/T5 Emergency Pack Wiring Diagram

Download

*
