Replaces56wCFL

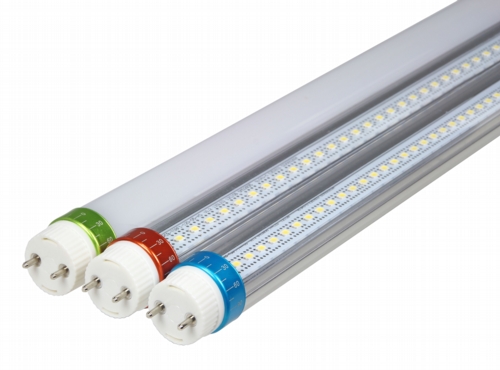

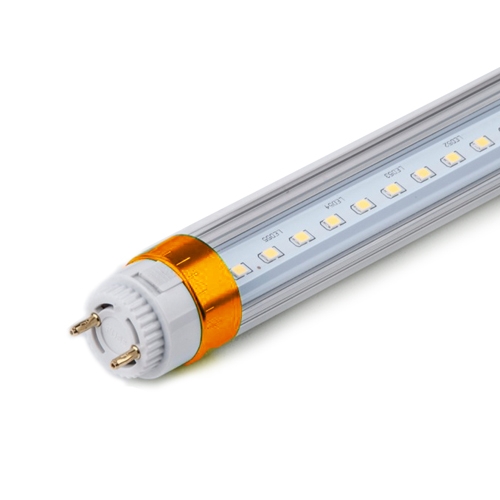

Ledison LED T8, 22W, 2300lmLedison LED T8, 22W, 2300lmLedison T8, 22W,Frosted Cover

Ledison T8 LED Tube 150cm 22W (1514mm)

Ref: LED-T8-15022

£18.50

Price inc VAT

T8 LED tube, direct replacement for 56W fluorescent, 50.000h lifespan at 2640 lumen.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £17.95 Save 3%
12 Items £17.39 Save 6%
24 Items £17.02 Save 8%
Description
Specification
Downloads
Description

LED T8 Tube 150cm 22W. Direct Retrofit with 2600 Lumens

For a high-quality fluorescent tube light using LED technology, the Ledison T8 is a top choice. This 150cm  tube light is designed to provide 50,000 or more hours of illumination. The design of the light keeps the casing cool, allowing the LEDs to function at their most efficient levels. They meet the standards of Energy Star efficiency. The Ledison T8 LED tube lights are direct replacements; they fit easily into conventional fittings without needing new wiring. At just 22w, Ledison T8 lights offer 2600 lumens and colour rendering over 80. They have frosted exteriors to better disperse light, although clear light covers are available; please contact us directly. All lights come with both installation instructions and user information.

Installation Instructions

Remove the old starter and replace it with the LED starter provided with the tube light
Install the LED tube and turn on the power. If the fluorescent fixture contains an electronic ballast, the LED tube must be connected directly to the mains voltacon. The electronic ballast should be removed or bypassed

LEDISON T8 tubes comply with EU and British Standards for safety against electric shock.

Specification

Fitting:

T8

Luminous flux:

2640lm

Wattage (rated):

22 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

120lm/W

Line frequency:

50/60Hz

Beam Angle:

120deg.

Average lifetime:

50,000 hours

Net Weight per piece

380gr

Color Temperature:



Diameter

26mm

Warm white:

3000K

Length pin to pin

1513mm

Natural white:

4000K

Dimmable

NO

Cool white:

5500K

Warranty:

5 years

Operating Temp:

-40 OC to 50 OC

Certification:

TUV, ROHS Compliant, CE, UL

Number of LED Chips: 372

Product Features

  • 60-70% energy saved over conventional fluorescent tube
  • Typical Brightness loss: Lumen maintenance LM80: 80% after 50,000 hours
  • Longer lifetime than the conventional fluorescent tube (10 times longer)
  • Quick and easy installation to minimize retrofit costs
  • No RF interference, No buzzing noise, no flickering
  • LEDs reach a typical efficacy of 105+ lumen
  • Fireproof lens and aluminium housing
  • Rotating end caps (180deg) for regulating the direction of the light beam
Specification



Dimensions of T8 LED tube 150cm 22watt

/media/s_products/library/led-t8-tube-g13-bipin-dimensions.jpg

Diameter (identical to fluorescent T8 tubes)

/media/s_products/library/diameter-of-t8-led-tube.jpg

Identical dimensions with compact fluorescent T8 tubes

Tube Length     A                    B                            C
max           min  max       max
60cm 589.8 594.5 596.9  604
90cm 894.6 899.3 901.7 908.8
120cm 1199.4 1204.1 1206.5 1213.6
150cm 1500 1504.7 1507.1 1514.2
180cm 1764 1768.7 1771.1 1778.2
240cm 2388 2392.7 2395.1 2402.2
Downloads

Technical Manual

T8 LED tube Instructions Manual

T8 LED tube Instructions Manual

T8 LED Tube Single-End: Instructions Manual

Download

*
