LED PANEL RECESSED CEILING LIGHT 40W 600x600

Ref: LDN-PNL606040-BK

£42.50

Price inc VAT

LED Panel Light, With Dimmable Options, Suspended, Recessed Or Surface Mount.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £41.23 Save 3%
12 Items £39.95 Save 6%
24 Items £39.10 Save 8%
Description
Specification
Description

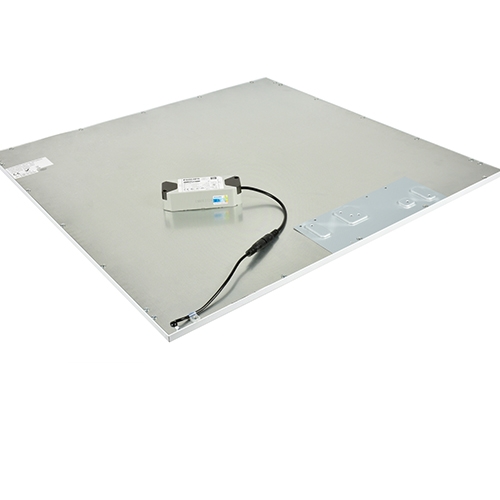

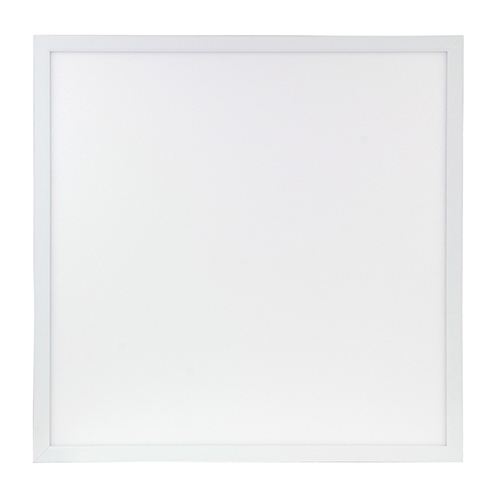

LED PANEL LIGHT 40WATT. PERFECT FIT FOR 600X600MM CEILING TILES.

THE HIGHEST QUALITY OF ELECTRICAL AND MECHANICAL COMPONENT

PRODUCT DESCRIPTION

The VOLTALED edge-lit panel LED light is suitable 600x600mm ceiling tiles, that makes it ideal for commercial applications in need of a white-frame, slim and ultra bright lighting solution, such as offices, factories,supermarkets even schools and universities. Our led chips emit high quality light which is more friendly to the human eyes.

Replaces T8/T5 4x18W Fluorescent Tube.

ONE PRODUCT WITH THREE DIFFERENT MOUNTING ACCESSORIES

The actual dimensions of the LED panel is 595x595mm to match the standard t-bar suspended ceilings with dimensions 600x600mm. If you have a concrete, wooden or plasterboard ceiling, there are still two more mounting options.

a. Surface Mount Alumimium Frame - White Finish

b. Suspension Metallic Ropes. The height is adjustable with maximum suspension length 1.2meters.

MORE SAVINGS FROM CERTIFIED LED DRIVER AND LED CHIPS

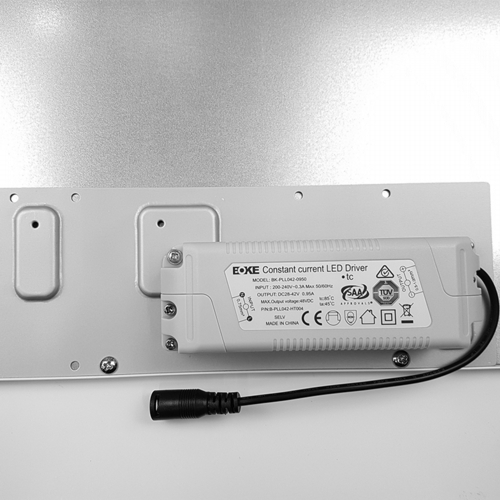

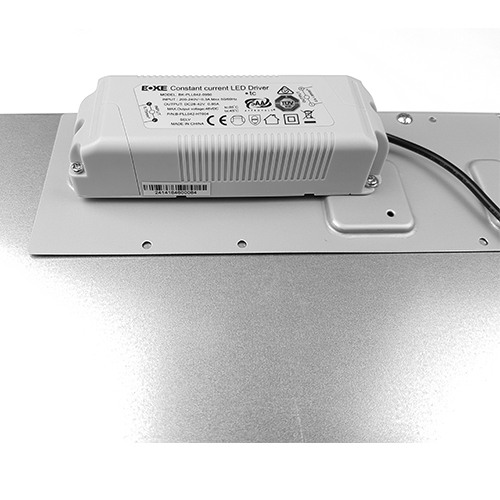

These panels are fed by a TUV, UL certified driver which is connected directly to the mains voltage (100-240VAC). The unit uses standard mains input voltage and consumes 40Watts whilst still producing 4400 lumens with UGR<19 (unified glare rating) and evenly distributed light. This is equivalent to a 200W incandescent or 120w fluorescent. As a result the LED Panel achieves incredibly energy efficient generating saving on both your energy bill and helping you to reduce your carbon footprint.

Our LED Panels are IP40 rated, you can rest assured that the aluminium housing and it’s valuable contents will remain protected from dust and condensation.

Photometric data and UGR reports are available online. Please follow the link here

FIRE RATED DIFFUSER

Voltaled panels use Tpa rated diffusers, which is fire resistant material that meets the building regulation and British Standards for Emergency lighting contruction. The Tpa diffuser will not drip plastic below in the event of a fire.

FACTS FOR OUR PRODUCTS:

  • Pay for itself within 9 months
  • It will last for 25 years
  • It will save you up 70% from your electricity bill
  • It will eliminate the cost of relamping and the maintenance cost.

PRODUCT FEATURES

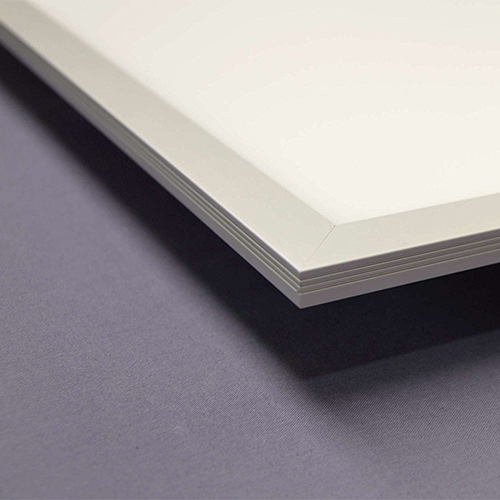

  • Ultra-slim, only 10mm
  • Quality LED chips and high specification LED Philips Xitanium drivers
  • Low glare and even (shadow free) light distribution (UGR<19)
  • Low heat output. High-grade aluminium frame for better heat dissipation
  • Dimmable version is available for 1-10V, AC triac and DALI Dimming
  • An emergency conversion pack for LED panels will add 3-hour autonomy in case of power failure.
Specification

Key Electrical Specifications - Ceiling Panel Light 40Watt

Fitting:

LED Panel

Luminous flux:

4400lm

Wattage (rated):

40 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

110lm/W

Line frequency:

50/60Hz

Beam Angle:

120deg.

Average lifetime:

50,000 hours

Net Weight per piece

3.6kg

Color Temperature:



Thickness

10mm

Warm white:

3000K

Dimensions

595x595mm

Natural white:

4000K

Dimmable

Options: DALI, 1-10V, Triac

Cool white:

5500K

Warranty:

5 years

Operating Temp:

-25 OC to 50 OC

Certification:

TUV, ROHS Compliant, CE, UL



  • Passed IEC 60598-1(2008 )、IEC 60695-2-11 850°C glow wire test
  • TUV CE & ROHS
  • UK Safety Regulations Approved & SELV
  • DN20160427-ULL42-CE-E
  • EN 55015: 2006+A1:2007 + A2:2009
  • EN 61547:2009
  • EN 61000-3-2:200 6+A1:2009 + A2:2009
  • EN 61000-3-3:2013



*
