CoB Down Light
CoB Down LightCoB Down LightCoB Down Light

LED Down Light 15W - Glacial

Ref: DLC06-15

£34.60

Price inc VAT

VOLTAFIT LED downlights - assembled with high lumen chip on board (CoB)

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £33.56 Save 3%
12 Items £32.52 Save 6%
24 Items £31.83 Save 8%
Description
Specification
Description

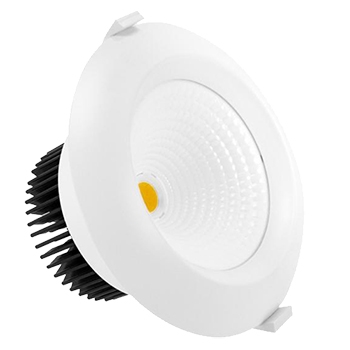

Led Chip on Board Down Light. 15Watt. Recessed Lighting

The VOLTAFIT LED downlights are assembled with high lumen chip on board (CoB) from CITIZEN LED (Japan) with a beam angle of 120°. The efficacy of the luminaire is 111lm/watt giving the best possible lighting experience which is cost effective and environmentally friendly. The downlight comes in two powerful versions of 15w and 35w including the LED driver with 96% efficiency.

The downlight is connected safely directly to the mains voltage 220-240Vac (there is also 110-120Vac version for the American market).

There is no need for any maintenance and once installed it will save you up 80% in electricity cost. The impressive life span of 50,000 hours will eliminate the need to replace your bulbs for the next 15-17 year (average daily usage 8 hours).

Product benefits

  • Quick ceiling integration
  • Excellent energy balance
  • Elegant aluminium housing
  • Dimmable version available
  • Mains connected 220-240VAC
  • Corridors, Foyers, Lobbies, Shops
  • Type of protection: IP54 (room side)
  • Suitable with standard suspended, false ceilings
  • Life span 50,000 hours with LM79 certificate (stay brighter longer)
  • Available in warm white (3000K), natural white (4000K) and cool white (5000K)
  • Ideal Replacement for downlight applications of compact fluorescent lamps such as PLG24

 Dimming option available (1-10V/PWM/Resistor)

  • New DC power plug design simplifies installation

/live/pages/dimensions1down.jpg

Specification

 Electrical Specifications: DLC-6 inch 15W

Type DLC06-15-WW DLC06-15-NW DLC06-15-CW
Energy Used                                                          15W
Rated Life                                                    50,000 Hours
Input Voltage                                                    100-240V AC
(Driver with CUL Certificate Support 277V AC for North America only: non-dimmable)
Power Factor (PF) 0.88 at 120V AC, 0.8 at 240V AC without dimmer
CCT (color) 3000K 4000K 5000K
Luminous Flux 1600 lm 1700 lm 1720 lm
System Efficacy 107 lm/W 113 lm/W 115 lm/W
CRI (Minimum) 80 80 80
Beam Angle 90° (Reflector)
Dimension Ø 175 x 100mm / 6"
IP Rating IP40
Operation Temperature -20°C ~ +40°C

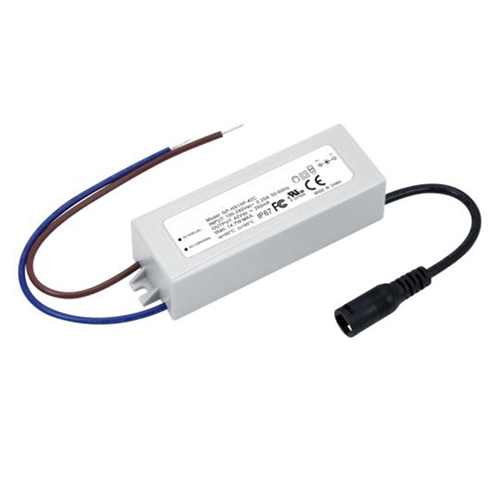

Bundled Driver GP-HS15P-42C
Net Weight 850 g (with driver)
Package 8 Boxes / Carton
