35W LED Downlight Citizen COB 3000K or 4000K Dimmable Option | Glacial
- Vendor
- Ledison
- SKU
- 225348
- Availability
- In stock
- Weight
- 1.4 kg
£54.55inc VAT £45.46exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

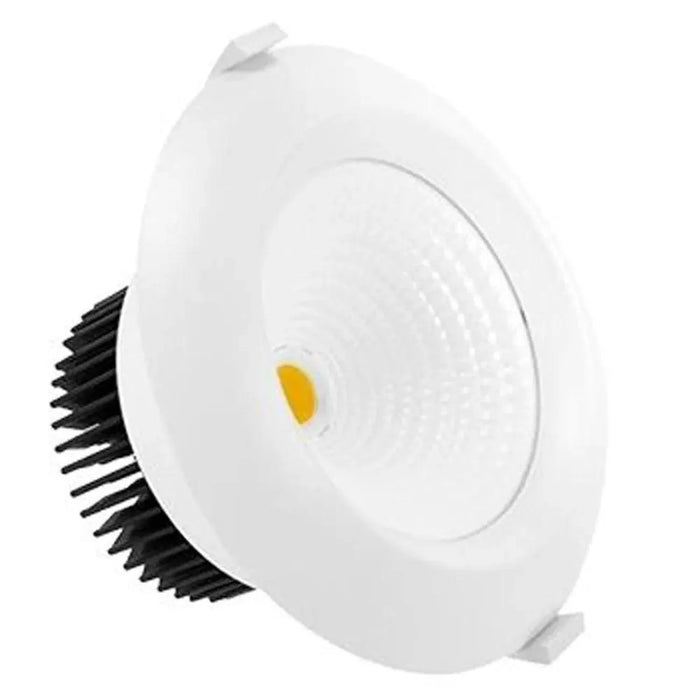

The Glacial is a 35W LED downlight for corridors, foyers, lobbies and shops. Light comes from a chip-on-board (COB) LED made by Citizen, and the fitting is offered in warm white 3000K or natural white 4000K. It takes the place of compact fluorescent downlights such as PLG24.
35W LED downlight key features
- Light output: 3500 lm at 3000K, 3700 lm at 4000K
- Efficacy: 100 lm/W at 3000K, 106 lm/W at 4000K
- Colour rendering: CRI minimum 80
- Rated life: 30,000 hours
- Protection: IP40
- Housing: aluminium, Ø 175 x 100mm, net weight 1050 g with driver
Installation
The housing suits standard suspended and false ceilings and needs a cut-out of 140~150 mm. A driver comes with every fitting. It accepts 100-240V AC, and a DC power plug joins it to the light, so connection is quick. Operating temperature is -20°C ~ +40°C.
Dimmable version
Choose GL-DLC06DA-35 if you need dimming. It ships with the GP-RS35P-42CA (Dimmable) driver and offers 3-in-1 control by 0-10V, PWM or resistor. This is not a triac dimmer, so plan the control wiring to match. The standard version uses the GP-RS35P-42C driver instead.
Where it fits
Corridors, foyers and lobbies are the natural home for this downlight, along with retail shop floors. Swapping out PLG24 compact fluorescent fittings is a common reason to specify it. Two colour temperatures are listed: DLC06-35-WW for warm white and DLC06-35-NW for natural white. Pick warm white for a softer feel in reception areas, or natural white where a crisper light suits the space.
Technical Specifications 21 rows Show
| Type | DLC06-35-WW, DLC06-35-NW |
| Energy used | 35W |
| Input voltage | 100-240V AC |
| Luminous flux | 3000K: 3500 lm, 4000K: 3700 lm |
| System efficacy | 3000K: 100 lm/W, 4000K: 106 lm/W |
| CRI (minimum) | 80 |
| Power factor (PF) | 0.98 at 120V AC, 0.94 at 240V AC without dimmer |
| Rated life | 30,000 Hours |
| Dimension | Ø 175 x 100mm / 6" |
| Operation temperature | -20°C ~ +40°C |
| LED | chip on board (CoB) from CITIZEN LED (Japan) |
| Bundled driver | GP-RS35P-42C |
| Net weight | 1050 g (with driver) |
| Package | 8 Boxes / Carton |
| IP rating | IP40 |
| Fixture hole (cut-out) | 140~150 mm |
| Dimmable version | GL-DLC06DA-35, 3-in-1 dimmable (0-10V/PWM/Resistor) |
| Dimmable version bundled driver | GP-RS35P-42CA (Dimmable) |
| Housing | Aluminium |
| Ceiling type | Standard suspended and false ceilings |
| Replaces | Compact fluorescent downlights such as PLG24 |
Manufacturer datasheet. Figures as published by the manufacturer.
