Full Spectrum Downlight 24V DC CRI 97 3000K | Glacial GL-LMR50
- Vendor
- Ledison
- SKU
- 106100
- Availability
- In stock
- Weight
- 0.15 kg
£18.89inc VAT £15.74exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

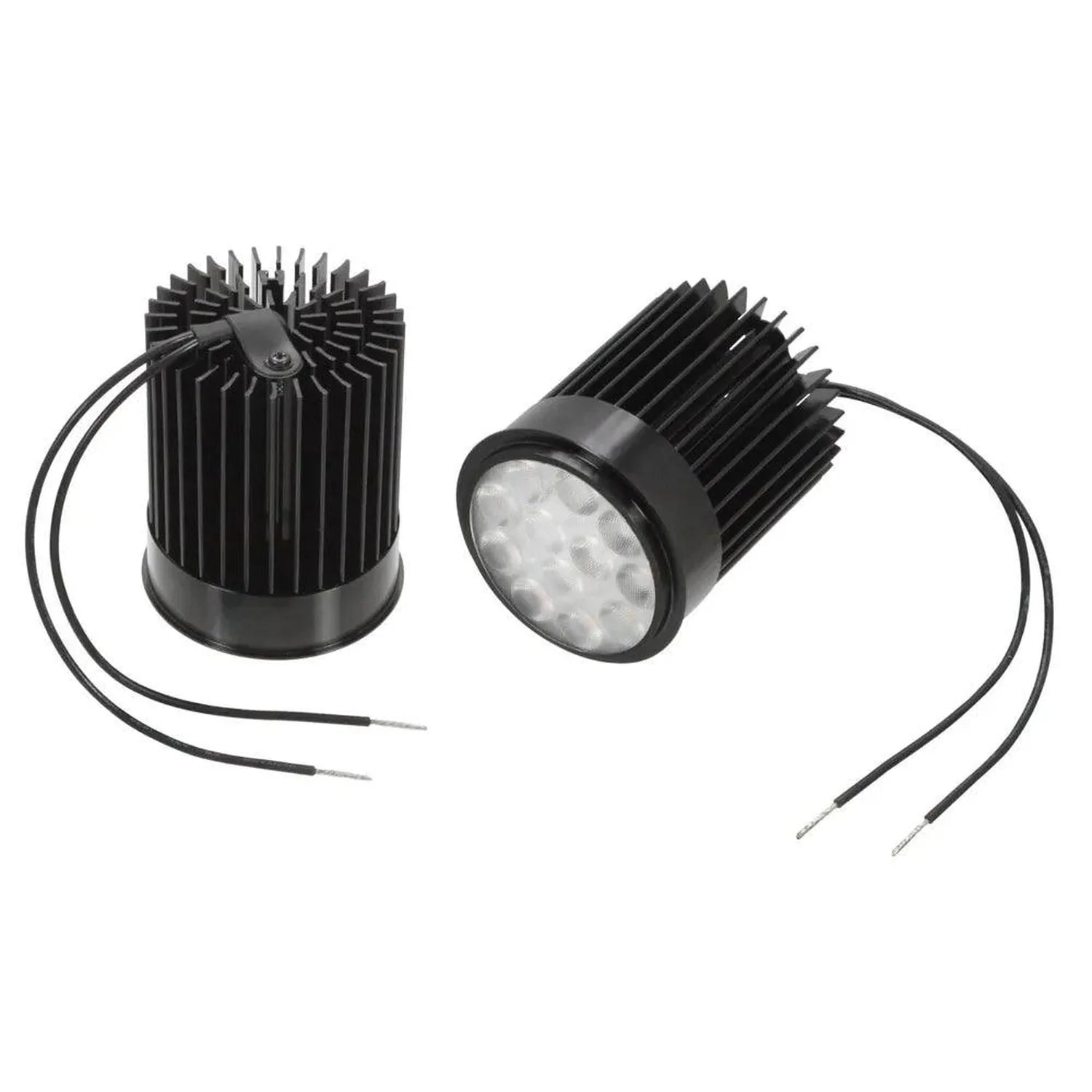

The Glacial GL-LMR50 is a full spectrum downlight whose LEDs copy natural sunlight. It reaches CRI 97, with TM-30-15 Rf and Rg values close to sunlight, so colours look natural and true under it. The light is 3000K warm white and the lamp runs from 24V DC.
Full spectrum downlights for accurate colour

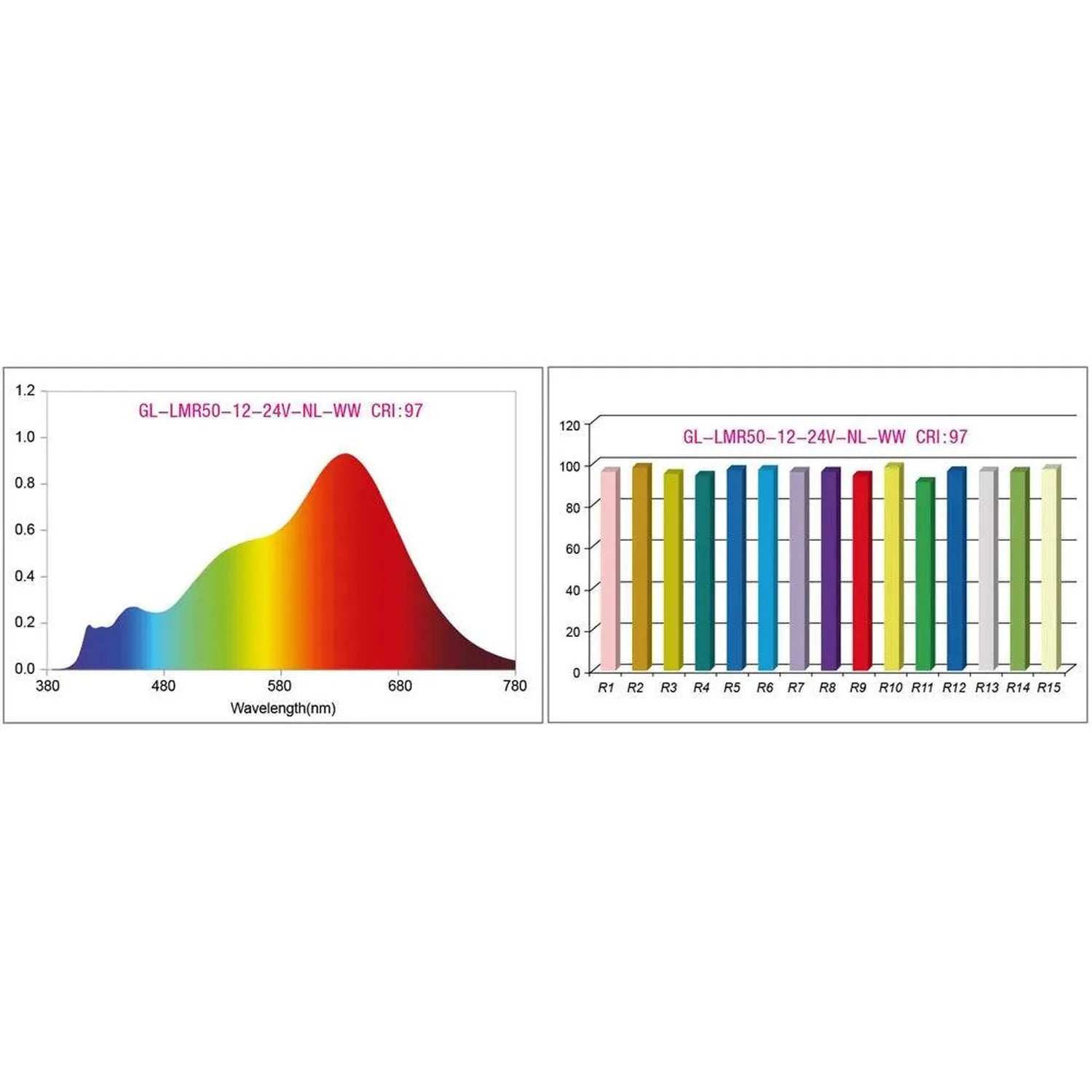

- Colour rendering: CRI 97 and CQS 97, with TM-30-15 Rf 95 and Rg 103.
- Colour temperature: 3000K warm white.
- Output (11W lamp): 640 lm at 58 lm/W.
- Lamp: round, 50 x 60mm, IP20, with a rated life of 30,000 hours.
- Supply: 24V DC constant voltage, DC 24V / +7% , -10%. This is not a 12V product.
- Dimming: PWM / TRIAC / 3-in-1 / DALI with a compatible driver.
Choosing a version

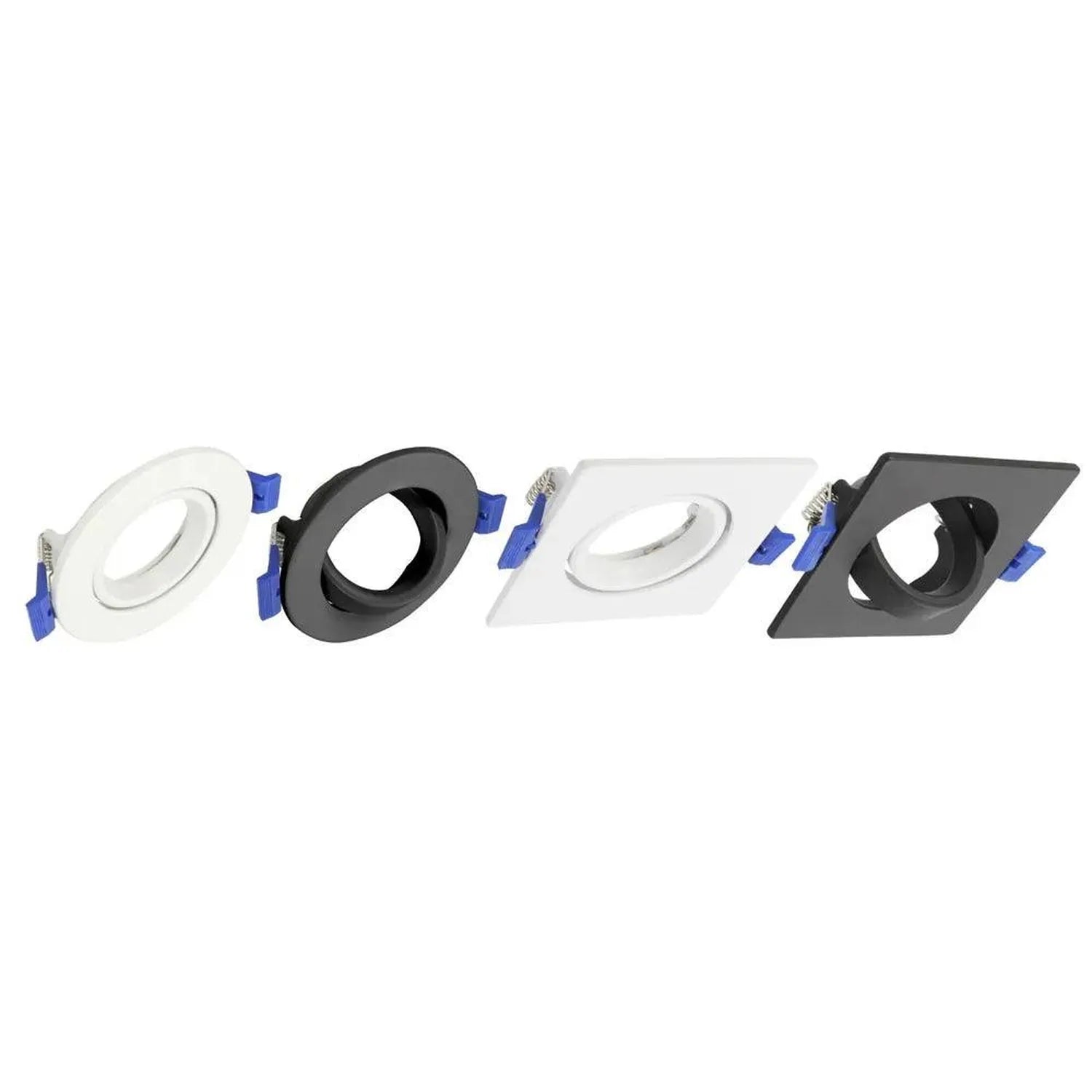

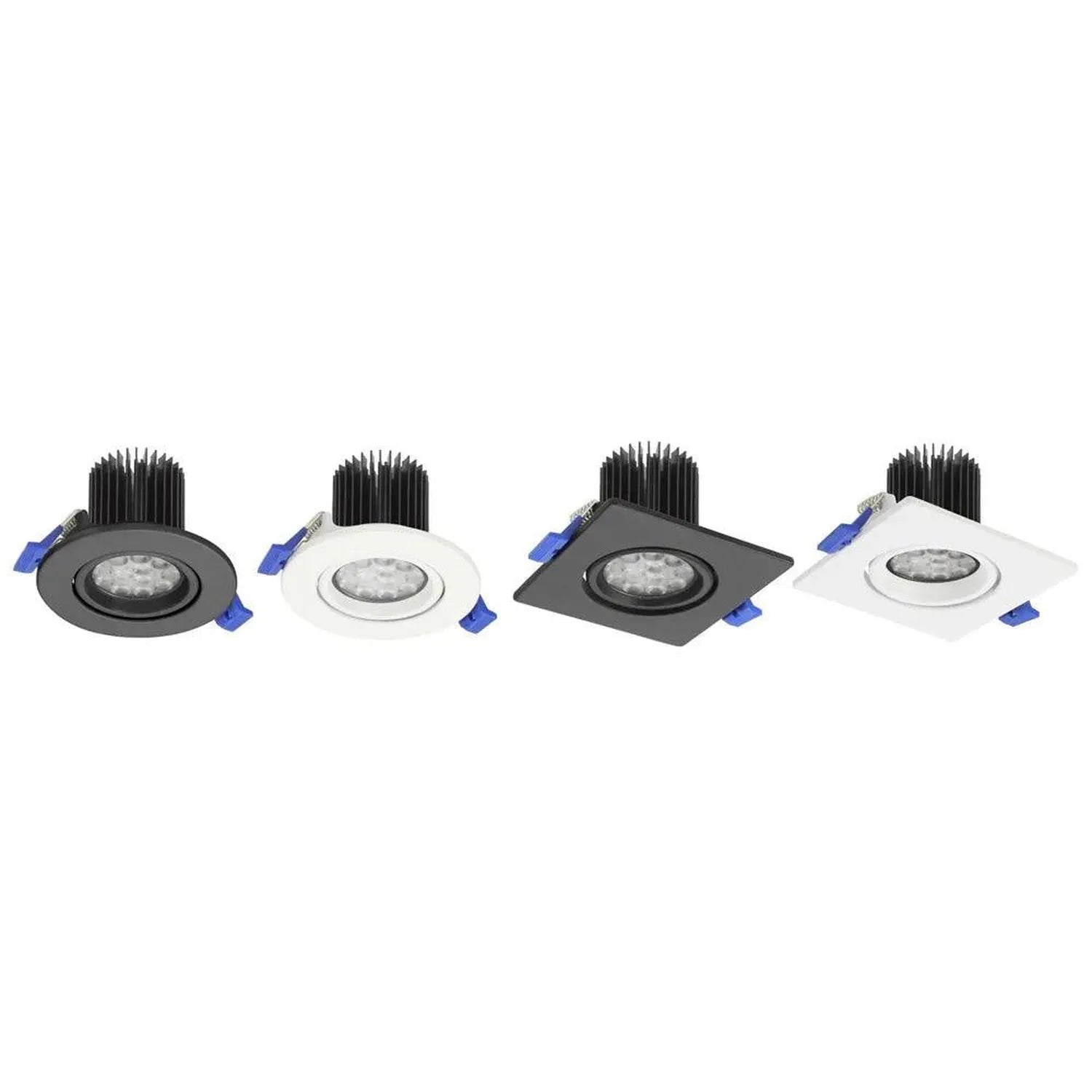

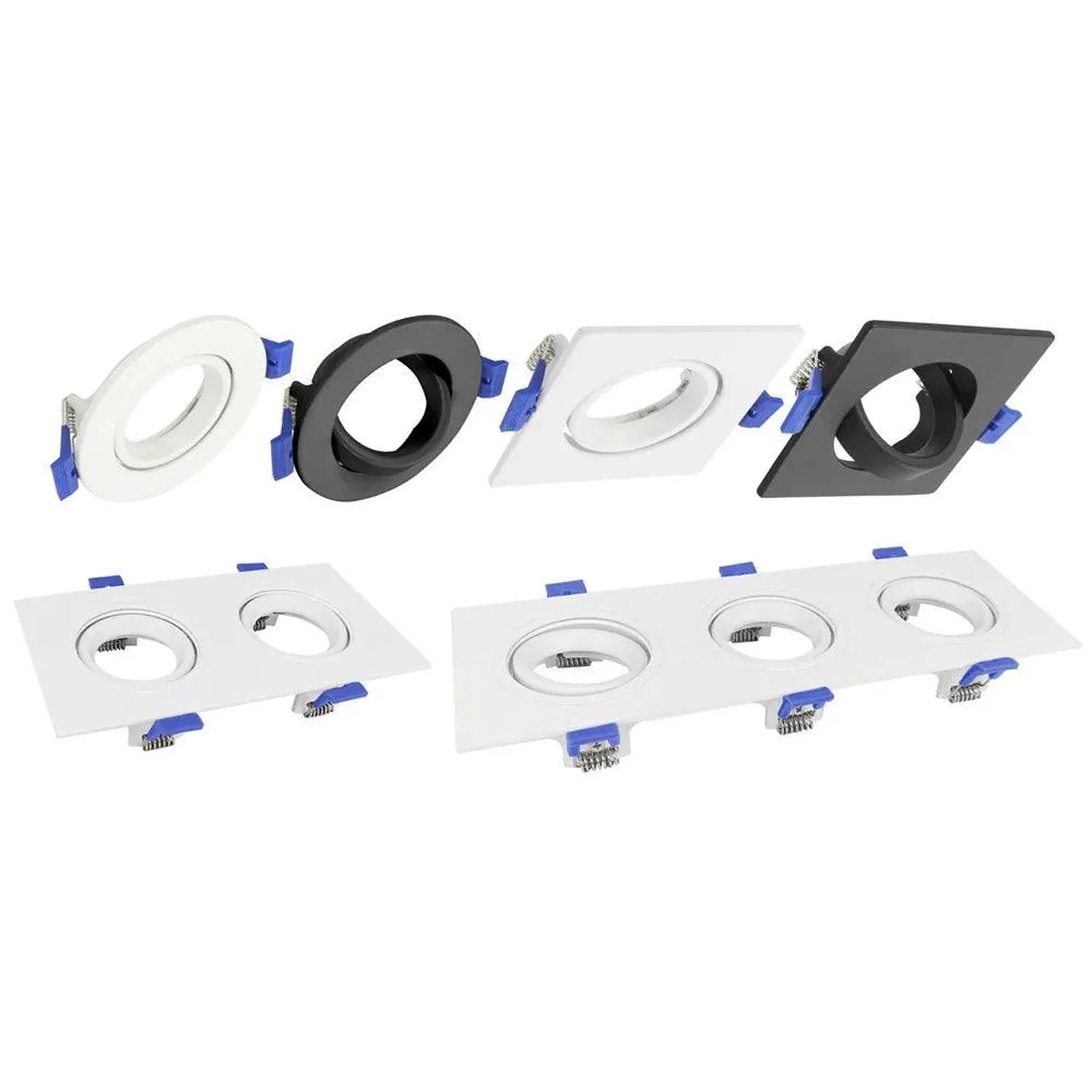

Pick a single, double or triple housing. These hold 1, 2 or 3 lamps, and each lamp is either 5.5W or 11W. The housing comes in black or white.
Cut-out sizes
A single housing needs a 75 mm round hole. The double needs 165 x 75mm and the triple 250 x 75mm.

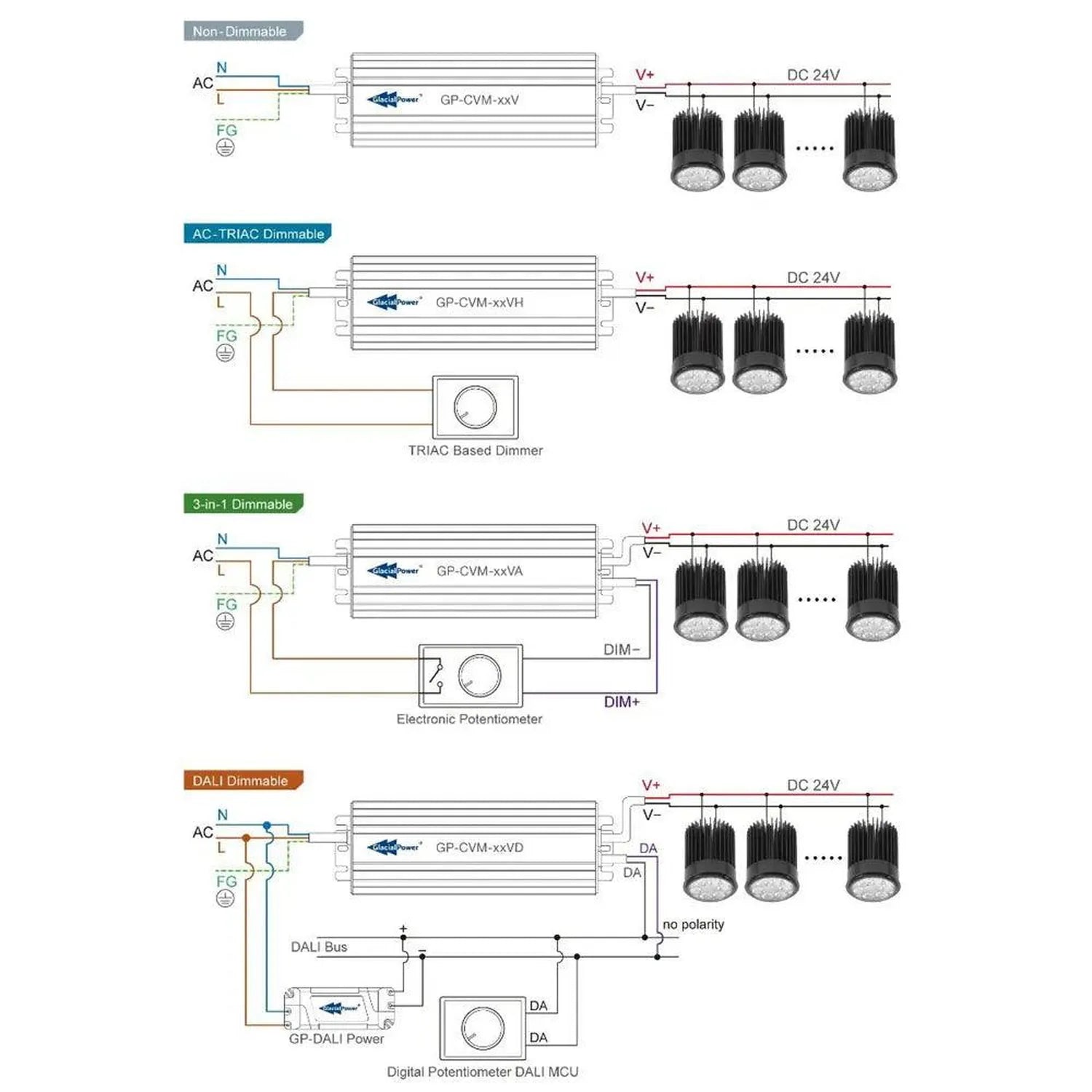

Wiring and drivers
No driver is built into the lamp. You need a separate 24V constant voltage driver, and because the system is constant voltage, several fittings can share one driver wired in parallel. The recommended match is the GlacialPower GP-CVM series, which also handles dimming through PWM constant voltage signals. The lamp is polarity insensitive.
Where it works well
Anywhere colour matters. Shops, galleries, kitchens and homes all benefit, as do retail display lighting, kitchen cabinets, hallways and reception areas. Hotel and hospitality projects are another good fit. With an IP20 rating, it is for indoor installation.
Technical Specifications 26 rows Show
| Model | GL-LMR50-12-24V-NL |
| Product type | LED Downlight |
| Input voltage | DC 24V / +7% , -10% |
| Colour temperature | 3000K Warm White |
| CRI | CRI 97 |
| Luminous flux (11W lamp) | 640 lm |
| System efficacy (11W lamp) | 58 lm/W |
| Colour performance | TM-30-15 Rf and Rg Close to Natural Sunlight |
| Dimming compatibility | PWM / TRIAC / 3-in-1 / DALI |
| Housing options | Single / Double / Triple |
| Housing colours | Black / White |
| Installation design | Parallel Expandable Constant Voltage System |
| Recommended drivers | GlacialPower GP-CVM Series |
| Power per lamp | 11W (GL-LMR50-12) or 5.5W (GL-LMR50-06) |
| Lamp size | Round, 50 x 60mm |
| Cut-out | 75 mm (single housing); double 165 x 75mm, triple 250 x 75mm |
| Driver | Not part of the lamp: needs a separate 24V constant voltage driver |
| IP rating | IP20 |
| Rated life | 30,000 Hours |
| Net weight (11W lamp) | 92 g |
| CQS | 97 |
| TM-30-15 Rf | 95 |
| TM-30-15 Rg | 103 |
| Polarity | Polarity insensitive |
| Operation temperature | -20°C ~ +40°C |
| Package | 25 PCS / Carton |
Manufacturer datasheet. Figures as published by the manufacturer.
