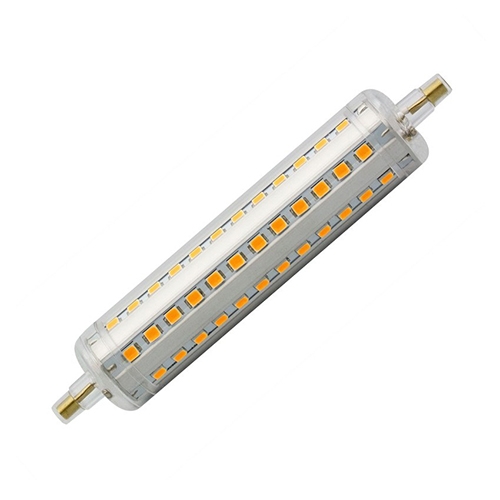

LED R7S linear bulb with warm white LEDs, brass end caps, clear glass tube, product shot on white background.

LED R7S Bulb 10W 118mm 1000lm | Ledison

Warm White
£12.68
Skip to product information
LED R7S linear bulb with warm white LEDs, brass end caps, clear glass tube, product shot on white background.
LED R7S Bulb 10W 118mm 1000lm | Ledison

LED R7S Bulb 10W 118mm 1000lm | Ledison

Vendor
Ledison
SKU
275012
Availability
In stock
Weight
0.1 kg

£12.68inc VAT £10.57exc VAT

Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Ledison LED R7S Bulb 10W is a retrofit for halogen R7S linear lamps used in floodlights, wall lights, uplighters and decorative fittings. It matches the 118mm length of a standard halogen R7S tube, so it drops straight into an existing fitting without any changes.

R7S LED bulb 118mm output and build

The bulb produces 1000lm from 10W, giving an efficiency of 100lm/W. Inside, 72 SMD2835 LED chips sit on a copper printed circuit board for heat dissipation, and a transparent thermal-resistant polycarbonate housing covers the electronics and driver.

Key features

  • Base type, R7S, 118mm length
  • Light output, 1000lm at 10W, 100lm/W efficiency
  • Colour rendering, CRI >80
  • Beam angle, 360°, for even light distribution
  • LED chips, 72 x SMD2835 on a copper PCB
  • Colour temperatures, available in warm white, natural white and cool white

Applications

Suited to floodlights, security fittings, uplighters and other fittings that take a standard R7S linear lamp, in both residential and commercial settings.

Certification and warranty

The bulb carries TUV, ROHS, CE and UL certification and is covered by a 5 year manufacturer warranty.

Technical Specifications 20 rows Show
Fitting:R7S
Luminous flux:1000lm
Wattage (rated):10 Watt
Color Rendering index:>80
Voltage:100-265Volt
Typical efficiency:100lm/W
Line frequency:50/60Hz
Beam Angle:360deg.
Average lifetime:50,000 hours
Net Weight per piece
Color Temperature:
Diameter22mm
Warm white:3000K
Length pin to pin 118mm
Natural white:4000K
DimmableNO
Cool white:5500K
Warranty:5 years
Operating Temp:-20 OC to 40 OC
Certification:TUV, ROHS, CE, UL

Manufacturer datasheet. Figures as published by the manufacturer.

More in R7S LED Bulb

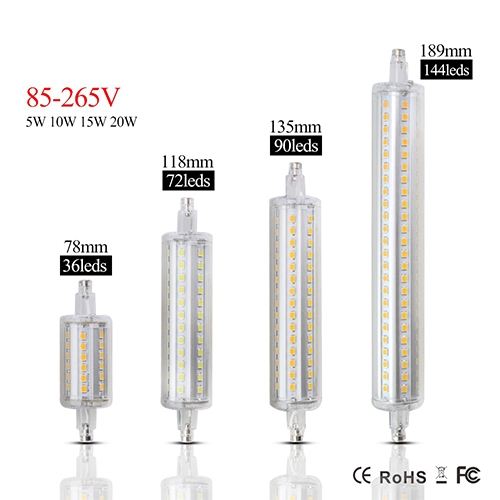

LED R7S linear bulb with warm white diodes, brass end caps, clear cylindrical housing, product shot on white background.LED R7S Bulb 20W 189mm 2000lm Direct Replacement£18.20inc VAT £15.17exc VAT R7S LED bulb with 24 yellow LEDs arranged in 3 rows, aluminum heat sink body, and white plastic end caps.R7S LED Bulb 10W 118mm Cool White Halogen Replacement£7.25inc VAT £6.04exc VAT LED R7S linear bulb with warm white LEDs in aluminum tube housing and brass connector pins.LED R7S Bulb 5W 78mm Non-Dimmable 500lm Direct Replacement£8.60inc VAT £7.17exc VAT LED R7S linear bulb with warm white diodes, brass end caps, clear plastic casing, product shot on white background.LED R7S Bulb 15W 135mm Dimmable 1500lm£12.68inc VAT £10.57exc VAT
