R7S LED Bulb 78mm 5W 500lm 360 Degree Non-Dimmable | Ledison
- Vendor
- Ledison
- SKU
- 275000
- Availability
- In stock
- Weight
- 0.1 kg
£9.19inc VAT £7.66exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

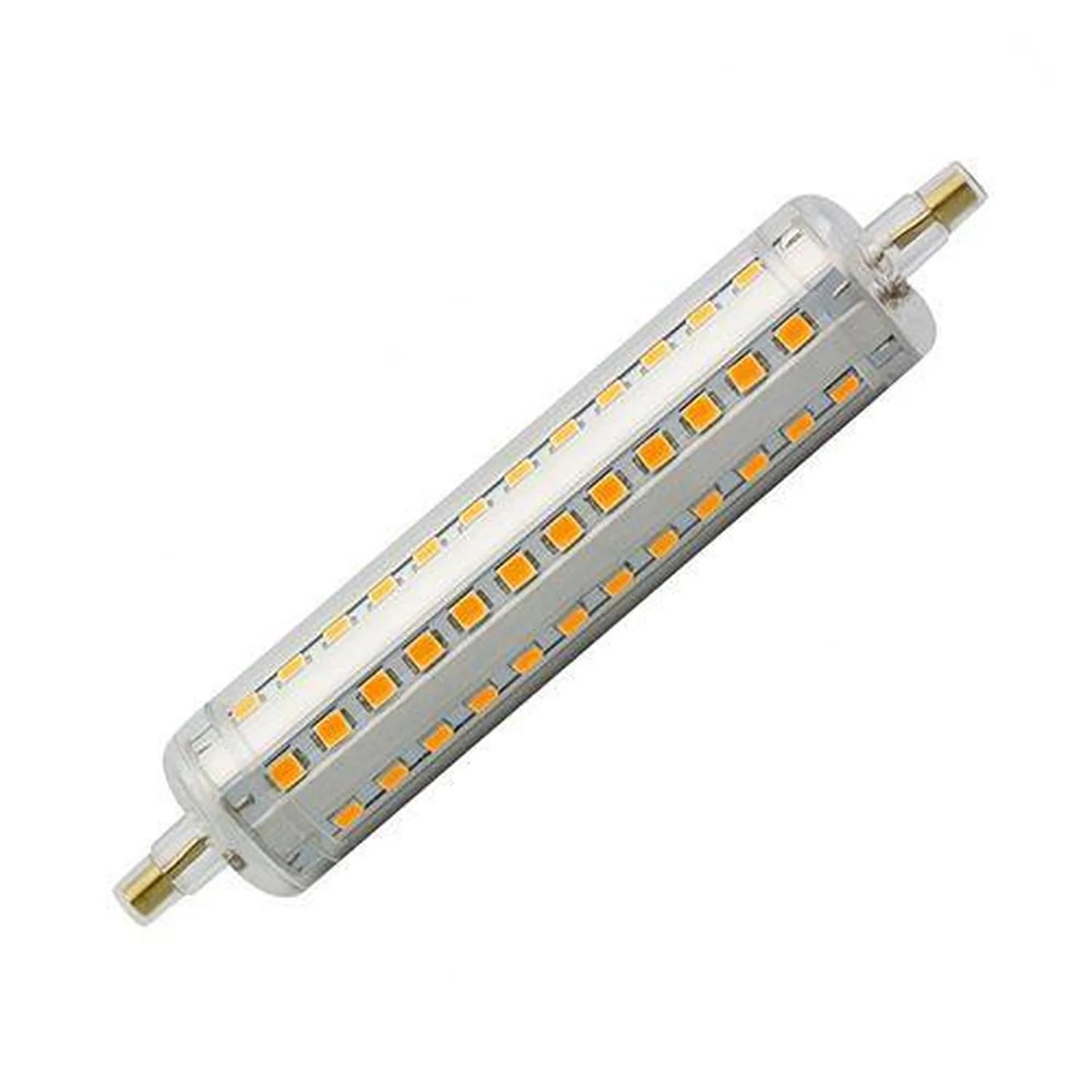

This 5W R7S LED bulb from Ledison is 78mm long, the same length as the R7S halogen linear lamp it replaces. Because the size matches, it drops straight into an existing uplighter, floodlight or wall light with no changes to the fitting. Output is 500lm, and you can choose warm white at 3000K or cool white at 5500K.
R7S LED bulb 78mm: what it offers
- Power and output: 5 watts, 500 lumens, 100lm/W
- Light spread: 360 degree light from a cylindrical body
- LEDs: 36 SMD2835 chips on a copper circuit board for heat transfer
- Colour rendering: CRI >80
- Size: 78mm pin to pin, 22mm diameter
- Lifetime and warranty: average lifetime of 50,000 hours, 5-year warranty
How it is built
The LEDs sit under a clear, heat-resistant polycarbonate cover. Light leaves the lamp all the way round, so it behaves much like the halogen tube it takes over from. The copper board underneath carries heat away from the chips.
It runs on 100-265Volt at 50/60Hz and carries TUV, ROHS, CE and UL certification. One point to check before fitting: this bulb is not dimmable, so it should not go on a dimmer circuit.
Where to use it
Typical homes for this lamp are uplighters and wall lights, floodlights, and architectural or decorative fittings that take a 78mm R7S lamp. For installers working through a property, it is a direct swap: remove the halogen, fit the LED, and the fitting itself stays as it is.
Choosing a colour
Warm white (3000K) suits living spaces and decorative lighting. Cool white (5500K) gives a crisper light for floodlights and working areas.
Technical Specifications 18 rows Show
| Fitting | R7S |
| Wattage (rated) | 5 Watt |
| Luminous flux | 500lm |
| Typical efficiency | 100lm/W |
| Colour rendering index | >80 |
| Colour temperature | Warm white: 3000K, Cool white: 6000K |
| Beam angle | 360deg. |
| LED chips | 36 x SMD2835 LEDs |
| Housing | Thermal Resistant Polycarbonate |
| Length pin to pin | 78mm |
| Diameter | 22mm |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| Dimmable | NO |
| Average lifetime | 50,000 hours |
| Operating temperature | -20 OC to 40 OC |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
Manufacturer datasheet. Figures as published by the manufacturer.
