R7S 135mm LED Bulb 15W 1500lm Dimmable 360 Degree Halogen Replacement | Ledison
- Vendor
- Ledison
- SKU
- 275010
- Availability
- In stock
- Weight
- 0.1 kg
£13.60inc VAT £11.33exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

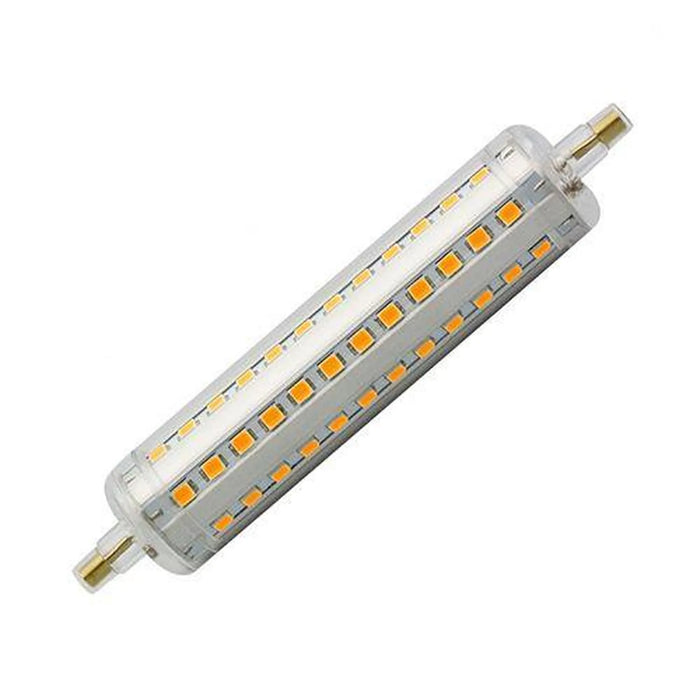

This R7S 135mm LED bulb from Ledison takes the place of an R7S halogen linear lamp in floodlights, wall lights, uplighters and architectural fittings. It draws 15W and gives 1500 lumens. Because it matches the halogen lamp's length, it drops straight into the existing fitting with no changes needed.
Why choose this R7S 135mm LED bulb
Light leaves the cylindrical body in every direction, giving a full 360 degree spread. Under the clear cover sit 144 SMD2835 LEDs. They are mounted on a copper circuit board, chosen for good heat transfer, and the cover itself is a heat-resistant polycarbonate.
- Output: 15 watts, 1500 lumens, 100lm/W
- Light spread: 360 degrees
- Colour options: warm white 3000K or cool white 5500K
- Colour rendering: CRI >80
- Size: 135mm long, 22mm diameter
- Lifetime and warranty: average 50,000 hours, backed by a 5-year warranty
Where it fits
Any fitting built for a 135mm R7S halogen lamp is a candidate. That covers floodlights and security lights outside, plus uplighters and wall lights indoors. Architectural and decorative fittings that use the same lamp are suited too.
Choosing a colour
Warm white at 3000K gives the softer tone people tend to associate with the original halogen lamp. Cool white at 5500K is the crisper option. Pick the one that matches the space.
Electrical and certification
The bulb runs on 100-265Volt at 50/60Hz. It carries TUV, ROHS, CE and UL certification.
Technical Specifications 18 rows Show
| Fitting | R7S |
| Wattage (rated) | 15 Watt |
| Luminous flux | 1500lm |
| Typical efficiency | 100lm/W |
| Colour rendering index | >80 |
| Colour temperature | Warm white: 3000K, Cool white: 6000K |
| Beam angle | 360deg. |
| LED chips | 144 x SMD2835 LEDs |
| Housing | Thermal Resistant Polycarbonate |
| Length pin to pin | 135mm |
| Diameter | 22mm |
| Voltage | 100-265Volt |
| Line frequency | 50/60Hz |
| Average lifetime | 50,000 hours |
| Operating temperature | -20 OC to 40 OC |
| Certification | TUV, ROHS, CE, UL |
| Warranty | 5 years |
| Dimmable | Yes |
Manufacturer datasheet. Figures as published by the manufacturer.
