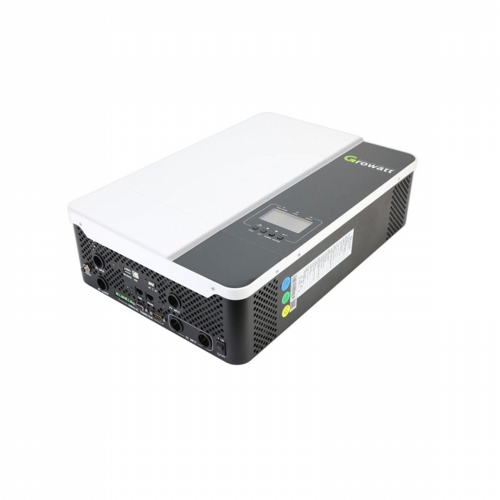

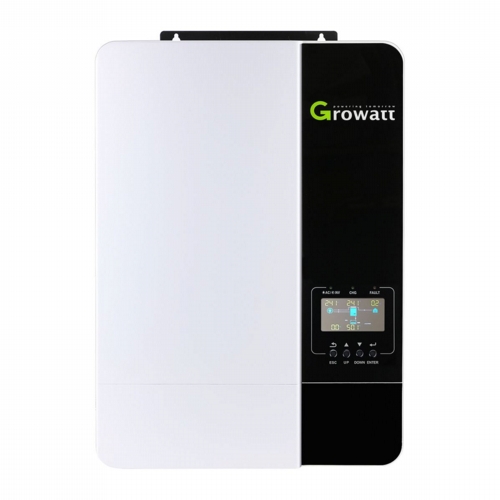

Growatt Off Grid Solar Inverter 5kW MPPT Charger 48V - SPF5000-ES

Ref: SPF5000-ES

£639.00

Price inc VAT

The 5kW features schedule charging with user-defined timer, use low cost electricity to charge your batteries. The inverter is also capable to feed the AC loads from solar, batteries and the grid at the same time.Wi-Fi module is included. Fast Delivery 1-2 days

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £619.83 Save 3%
12 Items £600.66 Save 6%
24 Items £587.88 Save 8%
Description
Specification
Description

SPF5000-ES POWER INVERTER FOR OFF-GRID SYSTEM. 5KW PV INPUT. WI-FI. BATTERY INDEPENDENT

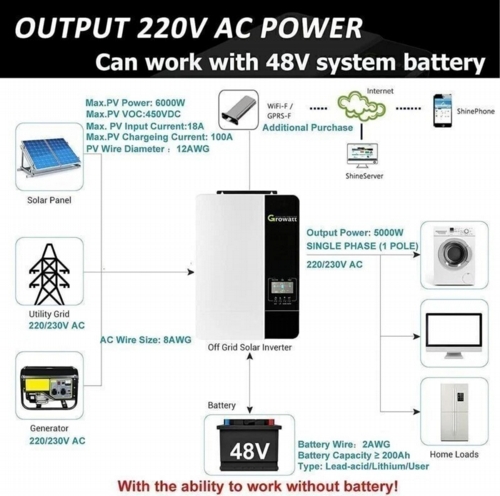

The SPF is an off-grid solar inverter that works with solar panels at high voltage. The operating windows start from 120V and up to 450V. A healthy system should operate between 300-350V to produce enough usable energy or even for running without batteries.  The minimum recommendation is 6 solar panels 300-500W each.

If you do not monitor a product then you can not improve it, that's why we added in the box the WiFi connection to allow the user direct access to their inverter.

A unique feature for the Growatt SPF that is not available on another off-grid inverter, is its capacity to supply the AC loads in parallel with grid + solar when the batteries & solar are not strong enough. The inverter will not go to bypass mode instantly when the energy reserves are low.

PRODUCT FEATURES

  • Integrated MPPTcharger 100A
  • Equalization charging function to prolong battery life
  • Works with or without a battery
  • Maximum PV input voltage up to 450VDC
  • Configurable grid or solar input priority

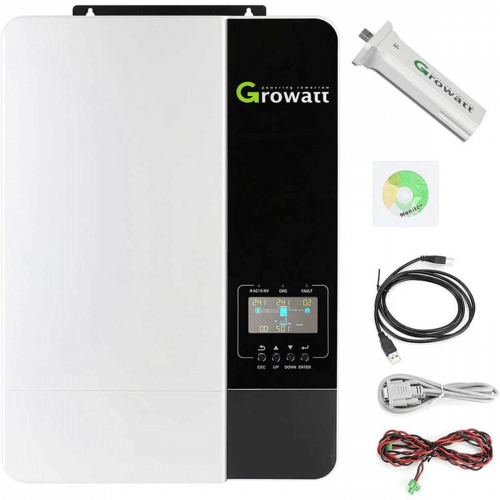

  • Wi-Fi module included

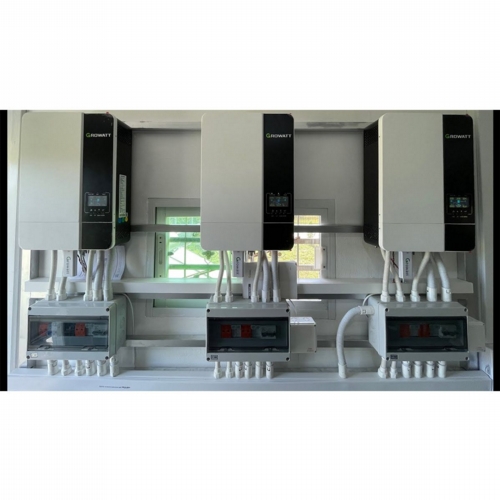

  • Supports parallel operation for capacity up to 30kw (6 inverters)
  • PV and grid power supply the load in parallel
  • Scheduled charging with built-in time.



Specification

Technical Specifications

Model

GROWATT 5KW

Rated Power

5000VA/5000W

INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 55 Hz/60 Hz (Auto sensing)

OUTPUT



AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Overload capacity 5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load
Efficiency (Peak) 93%
Transfer Time 15 ms (For Personal Computers)
20 ms (For Home Appliances)
Waveform Pure sine wave

BATTERY



Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 66VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 5000 W
MPPT Range @ Operating Voltage 120 VDC ~ 430 VDC
Maximum PV Array Open Circuit Voltage 450 VDC
Maximum Solar Charge Current 100 A
Maximum AC Charge Current 100 A
Maximum Charge Current 100A
Solar Charger Type MPPT
PHYSICAL

Communication interface

USB,RS232,RS485,Bluetooth

Dimension, D X W X H (mm) 140 x 295 x 468
Net Weight (kgs) 12KG

OPERATING ENVIRONMENT



Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃
