1500W Off-Grid Solar Inverter 24V MPPT | Conversol
Sale price
£313.95
Regular price £514.50
Skip to product information

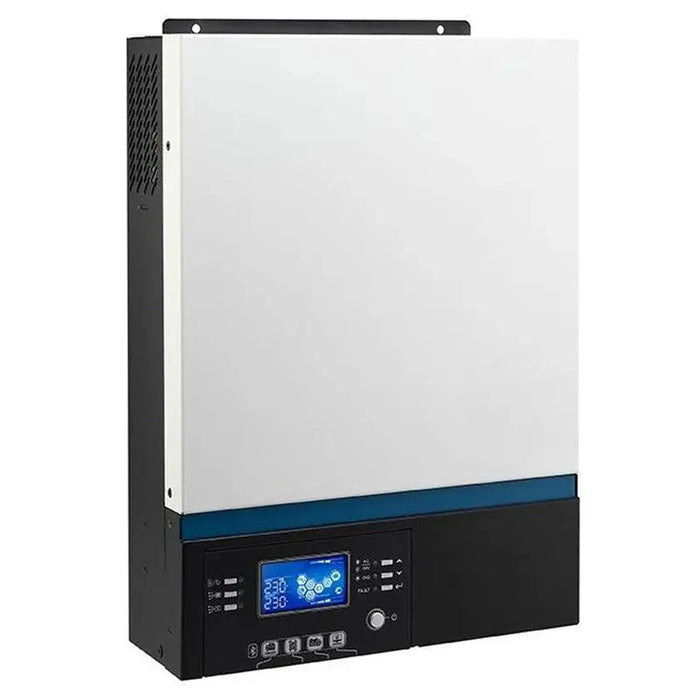

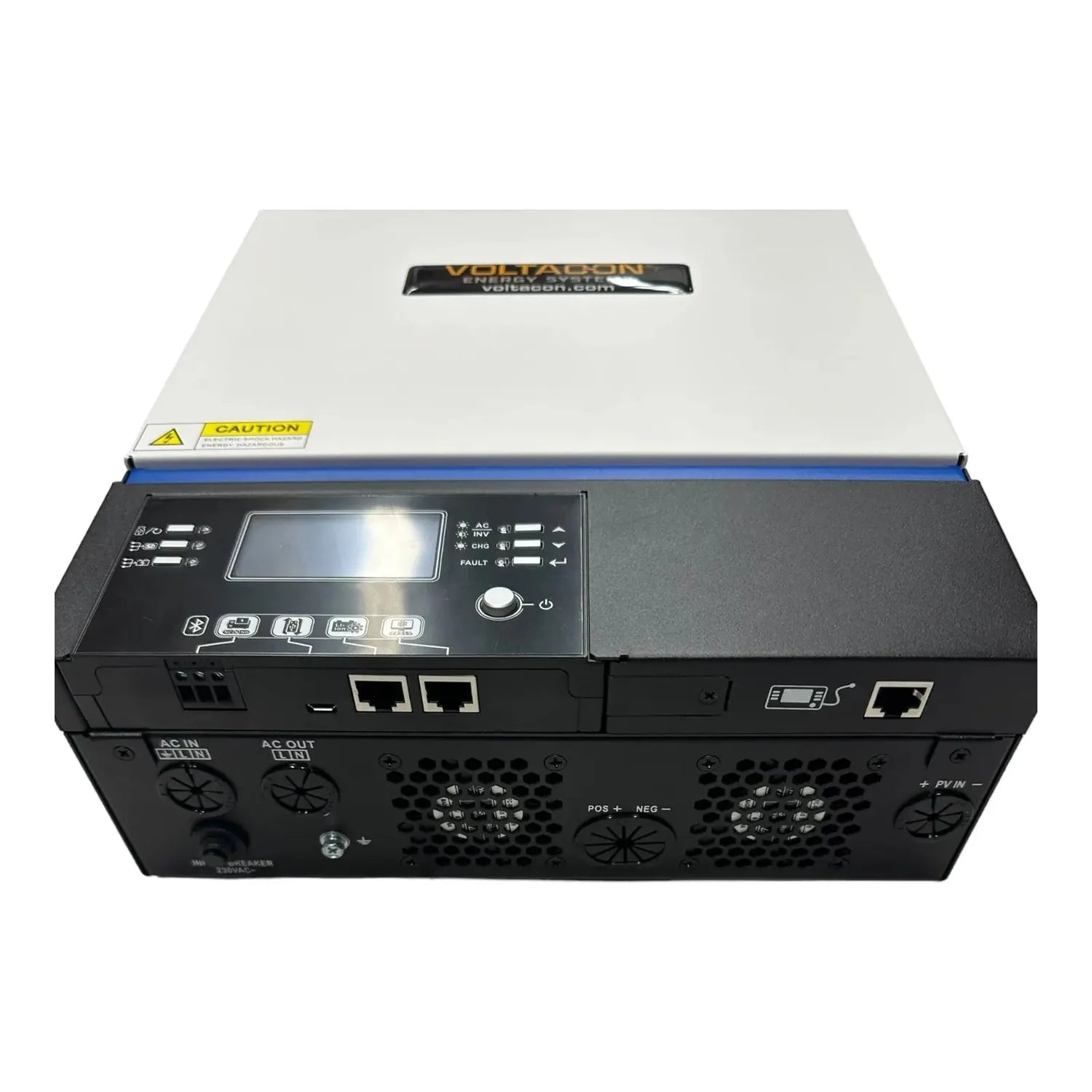

1500W Off-Grid Solar Inverter 24V MPPT | Conversol
- Vendor
- Voltacon
- SKU
- 90914166
- Availability
- In stock
- Weight
- 12.0 kg
Was£514.50£428.75Save £200.55Save £167.12
£313.95inc VAT £261.63exc VAT
Secure checkout
Talk to our sales team
Product Description
The Conversol 1.5kVA is a compact off grid solar inverter with a built-in MPPT charger, built for small autonomous systems running from a 24V battery bank. It outputs 230V pure sine wave power and accepts up to 2000W of solar input, with Bluetooth connectivity for remote monitoring.
Off grid solar inverter features
- Power output, 1500VA/1500W continuous, 3000VA surge capacity
- Battery input, 24V with integrated MPPT solar charger
- Solar input, up to 2000W, MPPT range 120VDC to 380VDC
- Maximum PV open circuit voltage, 400VDC
- Solar charge current, 60A maximum
- Waveform, pure sine wave 230V output
Monitoring and communication
The unit includes Bluetooth monitoring alongside USB, RS232 and RS485 communication, so it can be checked and configured without needing physical access. The MPPT charger's wide 120V to 380VDC range allows it to work with a range of panel configurations and string lengths.
Applications
Suited to small off-grid cabins, holiday homes and lodges, boats and marine power systems, motorhomes and campervans, remote monitoring stations, and backup power for smaller loads. At 8.5kg and 100 x 280 x 390mm it is compact enough for installations where space and weight matter.
What's in the box
- Conversol 1.5kVA off-grid inverter/charger unit
- User manual
Installation notes
Installation should be carried out by a qualified electrician or solar installer. Cable sizing and fusing must suit 24V battery operation, the maximum PV open circuit voltage of 400VDC must not be exceeded, and battery charge settings should match the battery chemistry fitted.
Technical Specifications 31 rows Show
| Model | Conversol 1.5KVA | |
| Power Output | 1500VA/1500W | |
| Input | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (Computers) / 90-280 VAC (Home Appliances) | |
| Frequency Range | 50/60 Hz (Auto sensing) | |
| Output | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 3000VA | |
| Peak Efficiency | 90% - 93% | |
| Transfer Time | 10 ms (Computers) / 20 ms (Home Appliances) | |
| Waveform | Pure sine wave | |
| Battery | ||
| Battery Voltage | 24 VDC | |
| Floating Charge Voltage | 27 VDC | |
| Overcharge Protection | 33 VDC | |
| Solar Charger & AC Charger | ||
| Maximum PV Array Power | 2000W | |
| MPPT Range @ Operating Voltage | 120 VDC ~ 380 VDC | |
| Maximum PV Array Open Circuit Voltage | 400 VDC | |
| Maximum Solar Charge Current | 60A | |
| Maximum AC Charge Current | 40A | |
| Maximum Charge Current | 60A | |
| Maximum Efficiency | 98% | |
| Dimensions & Weight | ||
| Dimension, D X W X H (mm) | 100 x 280 x 390 | |
| Net Weight (kgs) | 8.5 | |
| Operating Environment | ||
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| Humidity | 5% to 95% RH (Non-condensing) | |
Communication: USB/RS232/RS485/Bluetooth/Dry Contact
Manufacturer datasheet. Figures as published by the manufacturer.
Datasheets & documents
