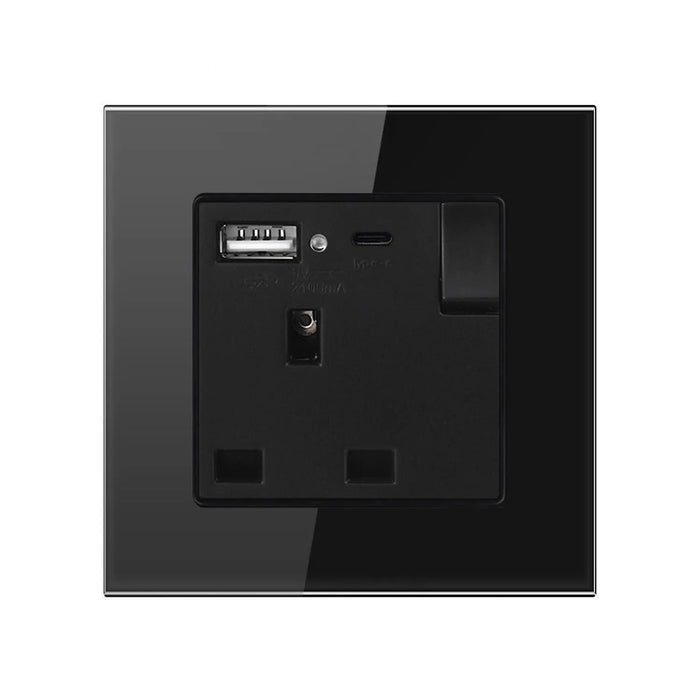

Black tempered glass wall socket with USB ports, shown from front view displaying USB-A and USB-C charging ports, power outle

Black Plug Socket with USB-A and USB-C 13A 1 Gang Switched Glass | Ledison

£10.49
Skip to product information
Black tempered glass wall socket with USB ports, shown from front view displaying USB-A and USB-C charging ports, power outle

Black Plug Socket with USB-A and USB-C 13A 1 Gang Switched Glass | Ledison

Vendor
Ledison
SKU
102244
Availability
In stock
Weight
0.05 kg

£10.49inc VAT £8.74exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This black plug socket with USB pairs a 13A single switched outlet with two charging ports, one USB Type A and one USB Type C. The faceplate is black tempered glass. Phones, tablets and cameras charge directly from the wall, so the plug socket itself stays free for a lamp, a laptop charger or anything else that needs mains power.

Black plug socket with USB: key features

  • USB ports: 1 x USB Type A and 1 x USB Type C
  • USB standards: compatible with USB 2.0 and USB 3.0
  • Port protection: each USB port has its own internal protection against overload and short circuit
  • Safety shutter: opened by the earth pin of the plug
  • Switching contact gap: minimum 3mm
  • Plate size: 86x86mm

Fitting and wiring

Installers get angled, in-line terminals and backed-out captive screws, which keeps terminating the cables quick. Mount it in a 40mm back box. A shallower box will not take it.

Where it suits

A single gang outlet with built-in USB fits the spots where devices get charged every day: beside a bed, on a kitchen worktop, above a desk or in a hallway. The black glass finish works well in rooms with dark fittings or a modern scheme. Because the Type A and Type C ports sit on the same plate as the 13A outlet, older cables and newer USB-C leads can both be used without an adaptor, and the shutter only opens when a plug's earth pin goes in.

Choosing the right back box

If you are swapping out an existing socket, check the depth of the box in the wall first. This fitting requires 40mm.

Technical Specifications 9 rows Show
Type13A 1-Gang Switched Socket
FinishTempered Glass - Black
USB ports1x Type A; 1x Type C
USB compatibilityUSB 2.0 and USB 3.0 compatible
USB protectionEach individual USB port has an internal safety feature to protect against overload or short circuit
ShutterSafety shutter operated by earth pin of plug
Switching contact gapMinimum 3mm
Dimensions86x86mm
Back boxRequires 40mm Back Box

Manufacturer datasheet. Figures as published by the manufacturer.
