Black Plug Socket with USB 13A 2 Gang USB-A and USB-C | Ledison
- Vendor
- Ledison
- SKU
- 102207
- Availability
- In stock
- Weight
- 0.05 kg
£16.75inc VAT £13.96exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

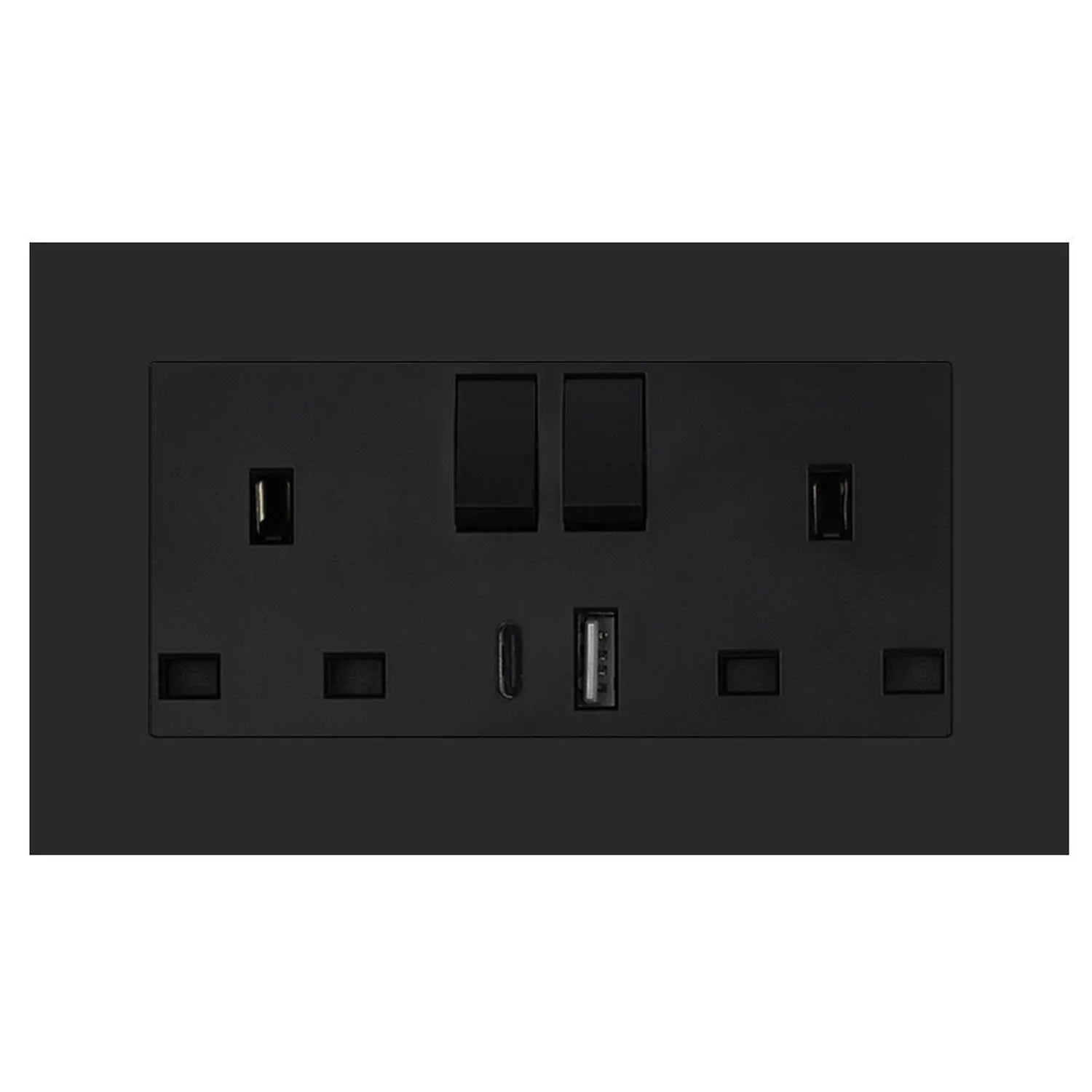

This black plug socket replaces a standard 13A double socket and adds two charging ports, one USB-A and one USB-C, both at 5V. Phones, tablets and other small gadgets charge straight from the wall. No plug-in charger is needed. The faceplate is black with a plastic finish and measures 146x86mm.
Black plug socket with USB: key features
- Rating: 13A, 2 gang, switched.
- USB charging: USB-A port with 5V 2.1A (2100mA) output, plus a USB-C port with 5V output.
- Safety shutter: opened by the earth pin of the plug.
- Switching contact gap: minimum 3mm.
- Earthing: twin earth fitted as standard.
- Design: outboard rockers on a raised slim profile.
Installation
Wiring goes into angled, in-line terminals. The captive screws come backed out, so there is less fiddling at the wall before the conductors go in. The socket needs a 40mm back box.
It suits retrofit work, where an existing double socket is swapped for one with built-in USB charging. Kitchens, bedrooms, home offices and living rooms are the obvious places, anywhere a phone or tablet tends to sit on charge overnight or through the working day.
Before you fit
Check the depth of the existing back box first. If it is shallower than 40mm, it will need replacing before this socket can be fitted. As with any mains accessory, installation should be carried out by a competent person in line with current UK wiring regulations.
Technical Specifications 12 rows Show
| Type | 13A 2-Gang Double UK Socket |
| Finish | Black, Plastic finish |
| USB ports | USB-A and USB-C |
| USB output | USB-A 5V 2.1A (2100mA); USB-C 5V |
| Shutter | Safety shutter operated by earth pin of the plug |
| Switching contact gap | Minimum 3mm |
| Profile | Raised Slim Profile |
| Terminals | Angled In-Line Terminals with Captive Screws |
| Earth | Twin Earth Fitted as Standard |
| Rockers | Outboard Rockers |
| Dimensions | 146x86mm |
| Back box | Requires 40mm Back Box |
Manufacturer datasheet. Figures as published by the manufacturer.
