Black Plug Socket with USB-A and USB-C 13A 2 Gang Glass | Ledison
- Vendor
- Ledison
- SKU
- 102242
- Availability
- In stock
- Weight
- 0.05 kg
£11.54inc VAT £9.62exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

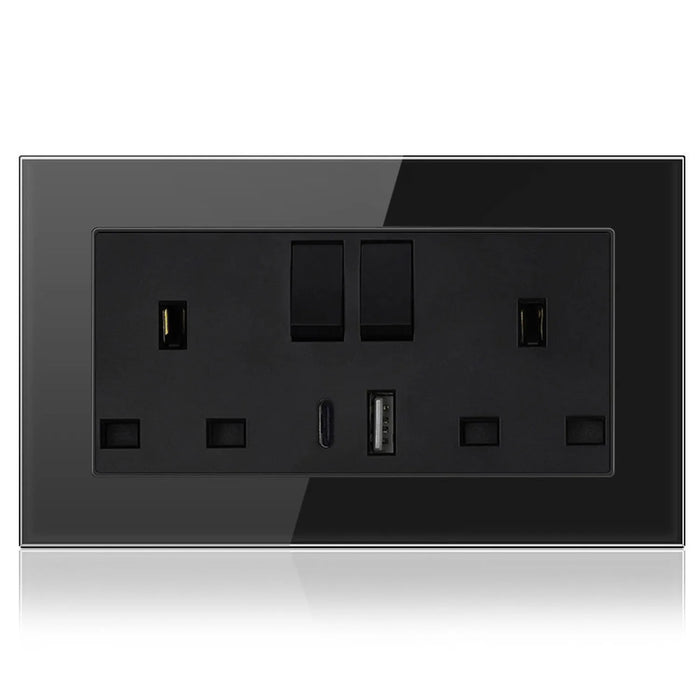

This black plug socket with USB is a 13A switched double socket finished in black tempered glass. It has two plug outlets and two built-in USB charging ports, one Type A and one Type C. Phones, tablets and cameras can charge straight from the wall while both plug sockets stay free for other appliances.
Each USB port has its own overload and short circuit protection.
Black double socket with USB: key features
- Rating: 13A, 2 gang, switched
- USB charging: 1x USB A and 1x USB C
- USB A output: 5V 2.1A (2100mA)
- USB compatibility: works with USB 2.0 and USB 3.0
- Safety shutter: opened by the earth pin of the plug
- Switching: minimum 3mm contact gap, with outboard rockers
- Earthing: twin earth fitted as standard
Design and finish
The faceplate is black tempered glass on a raised slim profile, measuring 146x86mm. Outboard rockers sit at the edges of the plate, so the switches stay clear of the plugs.
Installation
A 40mm back box is needed. Wiring is straightforward.
- Angled, in-line terminals with captive screws
- Captive screws come backed out, ready to take the conductors
- Suited to retrofit jobs
For a room being updated, this means a dated double socket can be swapped for one that charges devices over USB, provided the existing back box is 40mm.
Technical Specifications 13 rows Show
| Type | 13A 2-Gang Switched Socket |
| Finish | Tempered Glass - Black |
| USB ports | 1x USB A and 1x USB C |
| USB output | USB-A 5V 2.1A (2100mA) |
| USB compatibility | USB 2.0 and USB 3.0 compatible |
| Shutter | Safety shutter operated by earth pin of the plug |
| Switching contact gap | Minimum 3mm |
| Profile | Raised Slim Profile |
| Terminals | Angled In-Line Terminals with Captive Screws |
| Earth | Twin Earth Fitted as Standard |
| Rockers | Outboard Rockers |
| Dimensions | 146x86mm |
| Back box | Requires 40mm Back Box |
Manufacturer datasheet. Figures as published by the manufacturer.
