All Three-Phase Hybrid Inverters

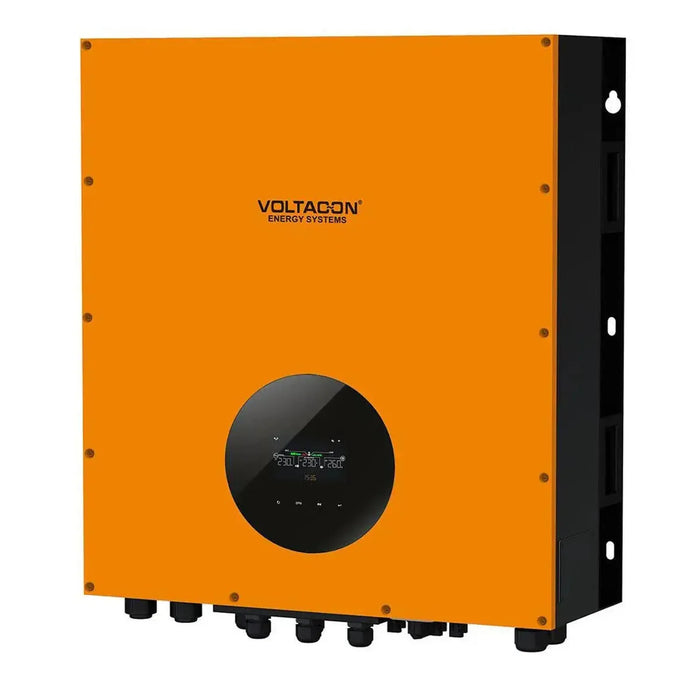

Voltacon Energy Systems orange and black hybrid solar inverter with digital display panel and multiple connection ports at ba

Infini Solar 15kW Three-Phase Hybrid Inverter IP65 48V | Voltacon

£3,622.50
Skip to product information
Voltacon Energy Systems orange and black hybrid solar inverter with digital display panel and multiple connection ports at ba
Infini Solar 15kW Three-Phase Hybrid Inverter IP65 48V | Voltacon

Infini Solar 15kW Three-Phase Hybrid Inverter IP65 48V | Voltacon

Vendor
Voltacon
SKU
002137
Availability
In stock
Weight
75.0 kg

£3,622.50inc VAT £3,018.75exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Infini Solar WP 15kW is a three-phase hybrid solar inverter built for outdoor installation in demanding conditions. It carries an IP65 rating and operates from -25°C to +60°C, with 150% unbalanced load support and parallel operation for up to 6 units.

Key features of this three-phase hybrid inverter

  • Output, 15kW three-phase, supporting on-grid, off-grid and grid-tie with backup
  • Weatherproofing, IP65 waterproof and dustproof housing for direct outdoor mounting
  • Operating range, -25°C to +60°C
  • Unbalanced load support, 150% across three phases
  • Battery input, 48V DC with MPPT solar charger
  • Communications, built-in Wi-Fi, RS485 BMS, Modbus card and energy meter included

Product overview

The WP designation marks this as the outdoor-rated variant of the Infini Solar three-phase hybrid range. The IP65 housing means it can go straight onto an exterior wall, into a dusty industrial building, or an agricultural plant room with no climate control, without a separate weatherproof enclosure.

Its -25°C to +60°C range covers the UK climate and extends into cold storage and industrial settings. The 150% unbalanced load support helps where three-phase loads aren't evenly split, common in commercial and agricultural buildings. One of the two output ports can be configured as a generator input, so the unit can switch automatically between solar, battery, grid and generator sources.

Installation notes

This is a three-phase system and must be designed and fitted by a qualified electrician or solar installer. A G99 application and DNO approval are needed for grid connection. Even with IP65 protection, avoid direct sunlight without shading, as high ambient temperature reduces output. Battery and generator wiring must be carried out by a qualified electrician.

Applications

  • Industrial and agricultural sites needing an outdoor-rated hybrid inverter
  • Commercial buildings with dusty or uncontrolled indoor environments
  • Three-phase systems with unbalanced load requirements
  • Installations combining solar, battery, grid and generator backup
Technical Specifications 32 rows Show
ModelInfiniSolar Three Phase 15KW - Waterproof
Phase configuration3-phase in / 3-phase out
Output power15000 W
Maximum PV input power22500 W
Maximum charging power15000 W
Grid-tie operation
Nominal / maximum DC voltage720 VDC / 1000 VDC
Start-up voltage / initial feeding voltage320 VDC / 350 VDC
MPP voltage range350 VDC ~ 850 VDC
MPP trackers / maximum input current2 / A: 37.65A; B: 18.6A
Grid output (AC)
Nominal output voltage230 VAC (P-N) / 400 VAC (P-P)
Output voltage range184-264.5 VAC Per phase
Nominal output current21.7 A Per phase
Power factor> 0.99
Maximum conversion efficiency (DC/AC)> 96%
Off-grid operation
Nominal output voltage230 VAC (P-N) / 400 VAC (P-P)
Maximum output current21.7 A Per phase
Battery & charger
Nominal DC voltage48 VDC
Maximum charging currentDefault 60A, 5A - 300A (Adjustable)
Charging curve3 Stage
Physical
Dimensions, D x W x H (mm)219 x 650 x 820
Net weight (kg)62
IP ratingIP65
Communication portRS-232/USB and CAN Interface
Operating environment
Operating temperature-25 to +60°C
Relative humidity5% to 95% RH (Non-condensing)
Altitude0 ~ 1000 m*

*Power derating 1% every 100 m when altitude is over 1000m

** Product specifications are subject to change without further notice.

Manufacturer datasheet. Figures as published by the manufacturer.

Datasheets & documents
