Product Description

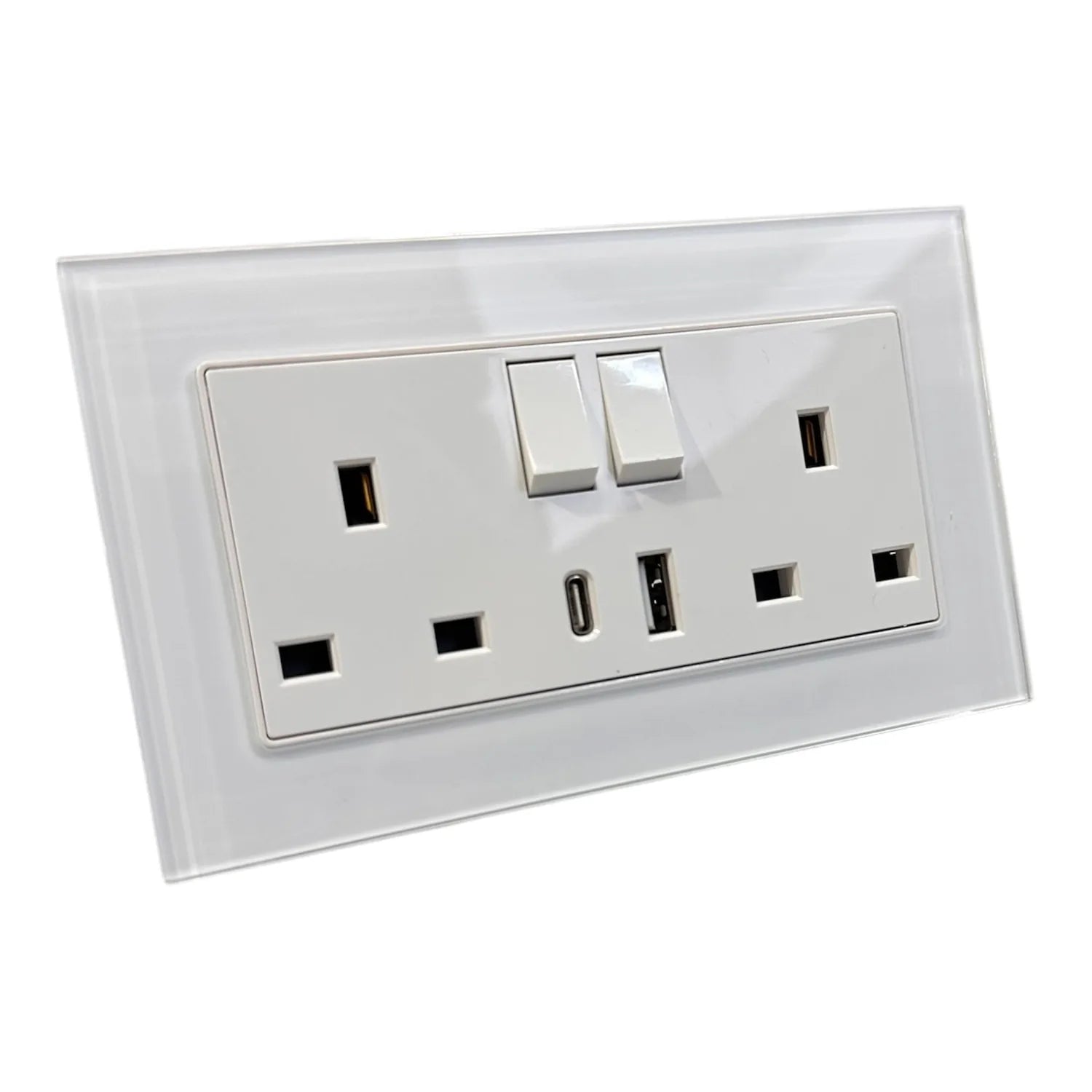

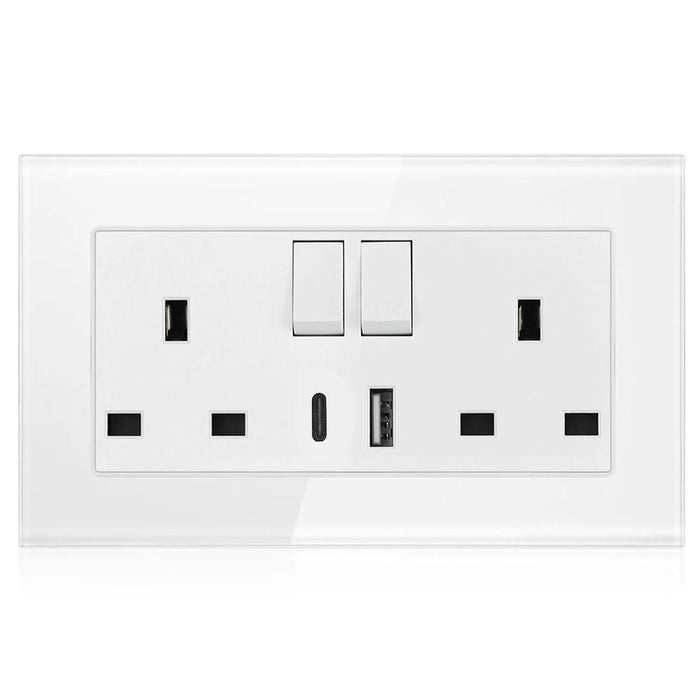

This 13A 2 gang switched double socket has a white tempered glass front and two USB charging ports built in, one Type A and one Type C. Phones, tablets and cameras charge straight from the wall, which leaves both plug sockets free for other appliances. Each USB port carries its own protection against overload and short circuits.
Double socket with USB: key features
- Rating: 13A, 2 gang, switched
- USB ports: 1x USB A and 1x USB C, compatible with USB 2.0 and USB 3.0
- USB A output: 5V 2.1A (2100mA)
- USB protection: overload and short circuit protection on each port
- Safety shutter: opened by the earth pin of the plug
- Switching: minimum 3mm contact gap, with outboard rockers
- Finish: white tempered glass in a raised slim profile, 146x86mm
Fitting and wiring

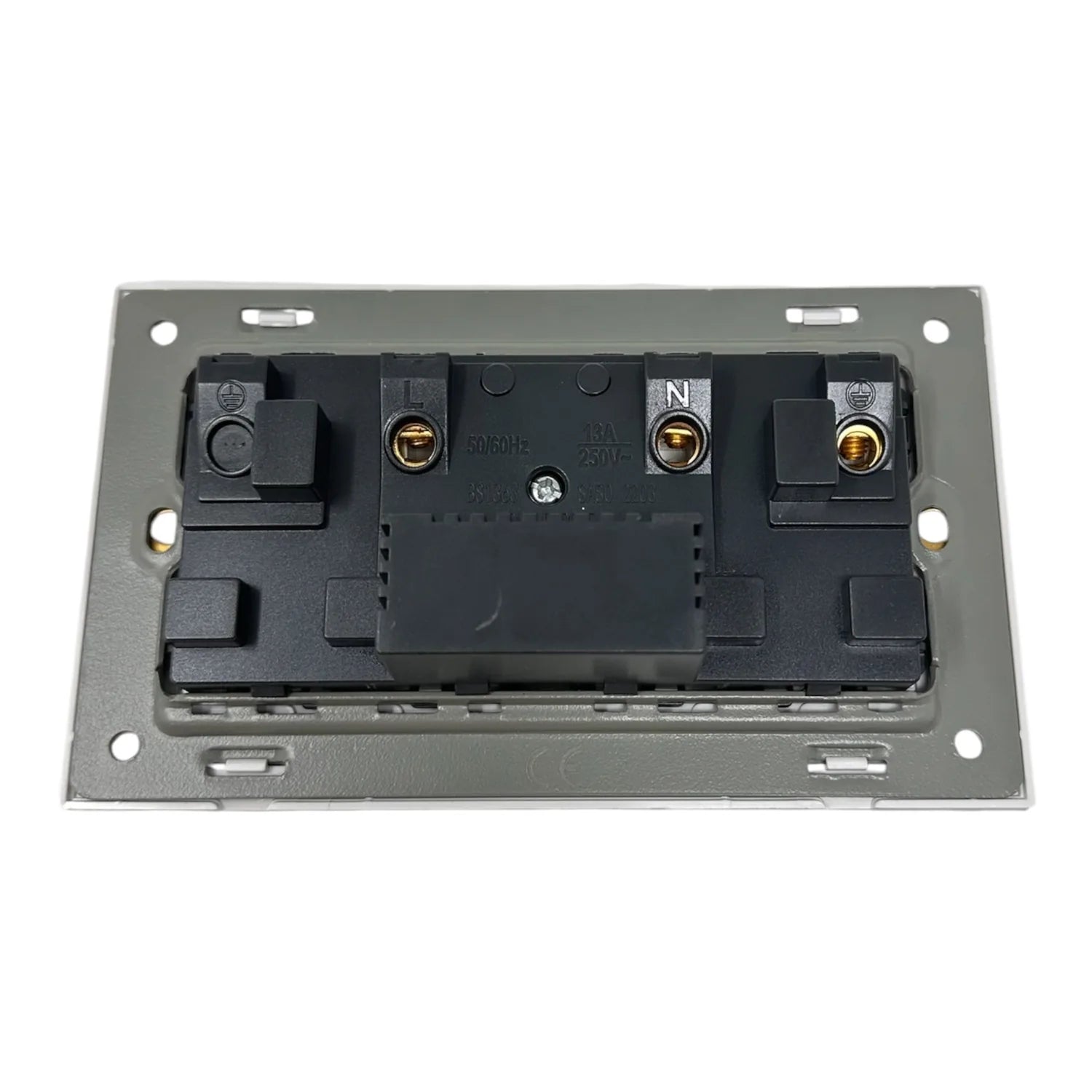

The terminals are angled and in-line, with captive screws that arrive already backed out. That saves time at the wall. Twin earth comes fitted as standard, so there is no separate earth link to add.
Plan for a 40mm back box. Shallower boxes will not take this socket, so check the depth before starting a job. Where the existing box already meets that depth, the socket suits retrofit work, swapping out a plain double socket for one with USB charging in the same position.
Where it suits
A kitchen worktop, a bedside wall or a home office desk are the obvious spots: anywhere devices get charged every day and a plug adaptor would otherwise sit in one of the sockets. The white glass front gives a clean, flat look that sits well in modern interiors. With USB-C on board, current phones and tablets can charge without a separate plug-in adaptor taking up a socket.
Technical Specifications 14 rows Show
| Type | 13A 2-Gang Switched Socket |
| Colour | White |
| Finish | Tempered Glass |
| USB ports | 1x USB A and 1x USB C |
| USB output | USB-A 5V 2.1A (2100mA) |
| USB compatibility | USB 2.0 and USB 3.0 compatible |
| Shutter | Safety shutter operated by earth pin of the plug |
| Switching contact gap | Minimum 3mm |
| Profile | Raised Slim Profile |
| Terminals | Angled In-Line Terminals with Captive Screws |
| Earth | Twin Earth Fitted as Standard |
| Rockers | Outboard Rockers |
| Dimensions | 146x86mm |
| Back box | Requires 40mm Back Box |
Manufacturer datasheet. Figures as published by the manufacturer.
