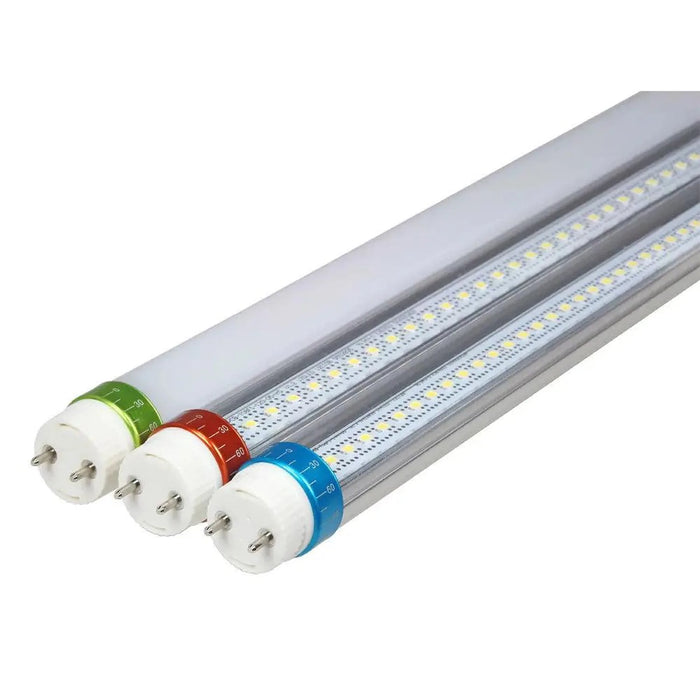

T8 LED Dimmable Tube 180cm (1778mm) 32W | Ledison

The Ledison T8 LED Dimmable Tube 180cm (1778mm) 32W dims smoothly from 10% up to 100% with no flicker, and works with standard mains dimmer switches such as Varilight. An external LED driver is included in the box and handles the dimming control.

Key features

• Fitting, T8
• Length, 180cm (1778mm)
• Wattage, 32W
• Dimming range, 10% to 100%, no flicker
• Driver, external LED driver included in the box

Dimming methods

This t8 led tube dimmable fitting supports several widely used dimming methods. AC Triac dimming (mains dimming with trailing edge dimmer switches) is the simplest, needing only an external driver and no extra wiring: the mains dimmer controls the input voltage to the LED driver directly. It works with Varilight, Lutron and Osram switches.

Meanwell and GLACIAL 3 in 1 dimming covers 1-10V and resistive potentiometer control, using a pair of control cables with positive and negative polarity. DALI control is also supported, using an external driver with multi stage constant current output and DIP switch adjustment for high-precision dimming and lamp diagnostics.

Applications

Suited to retrofitting existing T8 fittings and battens where dimming is wanted alongside standard wall switches or dimmer controls, in offices, retail and domestic settings.

Notes on dimmer compatibility

When ordering, let us know which dimming method you plan to use, AC Triac (leading or trailing edge) or 1-10V signal, so the correct driver setup is supplied.
