T8 LED Dimmable Tube 90cm 909mm 12W 1150lm | Ledison

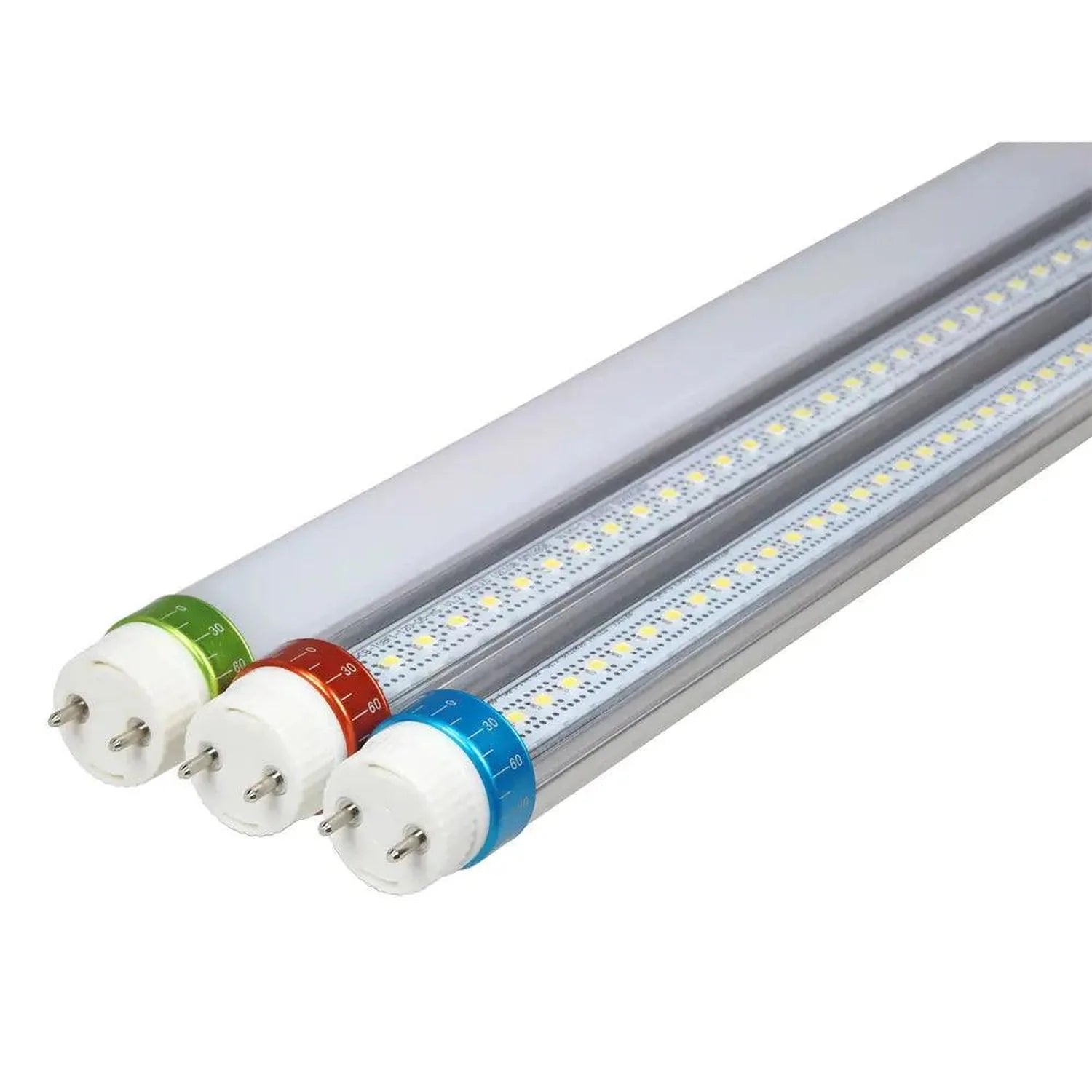

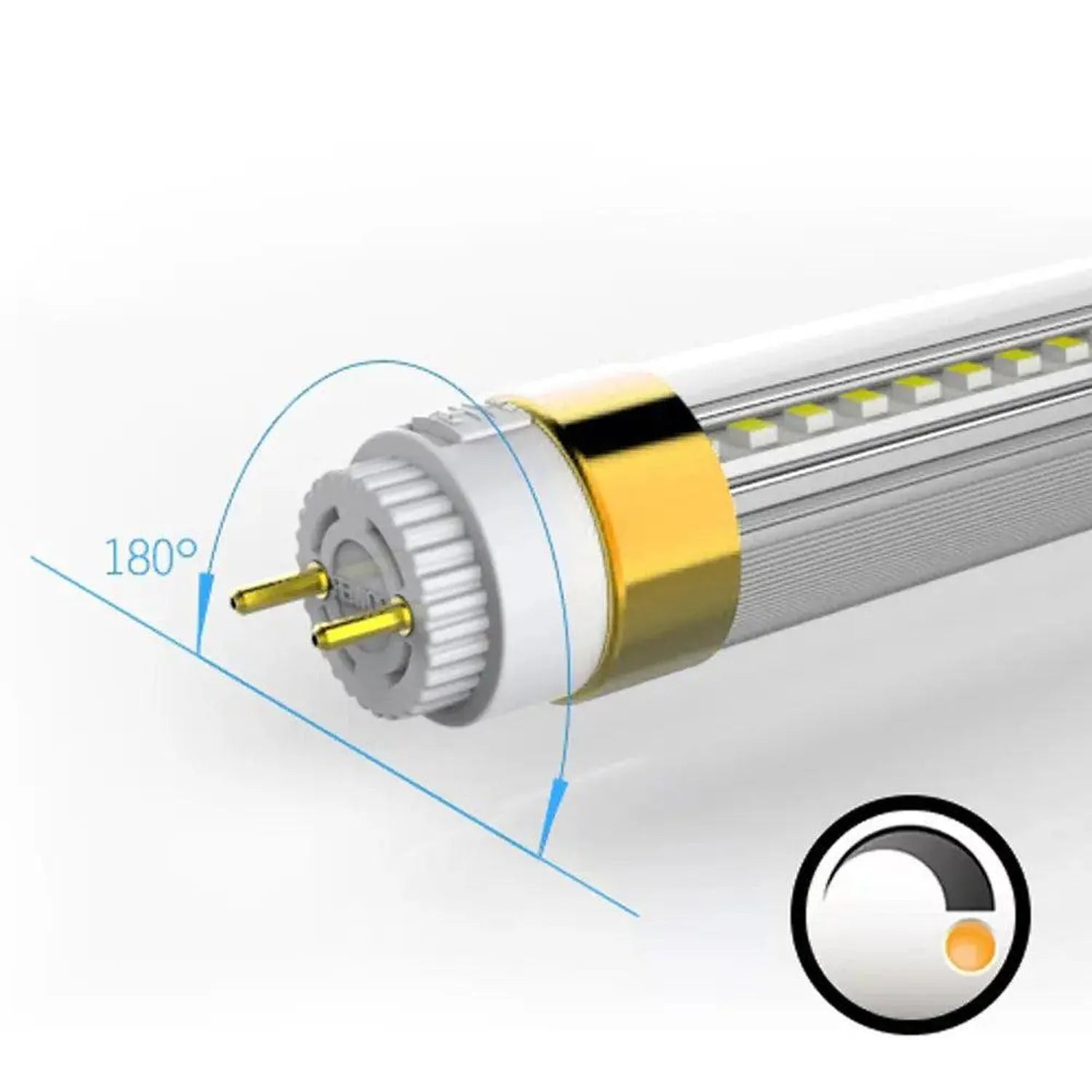

The Ledison T8 LED Dimmable Tube measures 90cm (909mm) and draws 12 Watt, giving a luminous flux of 1150lm. It dims smoothly from 10% up to 100% with no flicker, controlled by an external LED driver supplied in the box.

Key features of this T8 LED tube dimmable design

• Smooth dimming, continuous control from 10% to 100% lighting level without flicker.
• External driver included, compact unit measuring 85 x 54 x 32.5mm.
• 3-in-1 dimming, built-in support for 1-10Vdc, PWM signal or resistance control.
• Active power factor correction, built into the driver.
• Wide compatibility, driver supports current and voltage levels up to 48 Watts.
• Lumen maintenance, LM80 rated, 80% lumen maintained after 50,000 hours.

Dimmer compatibility

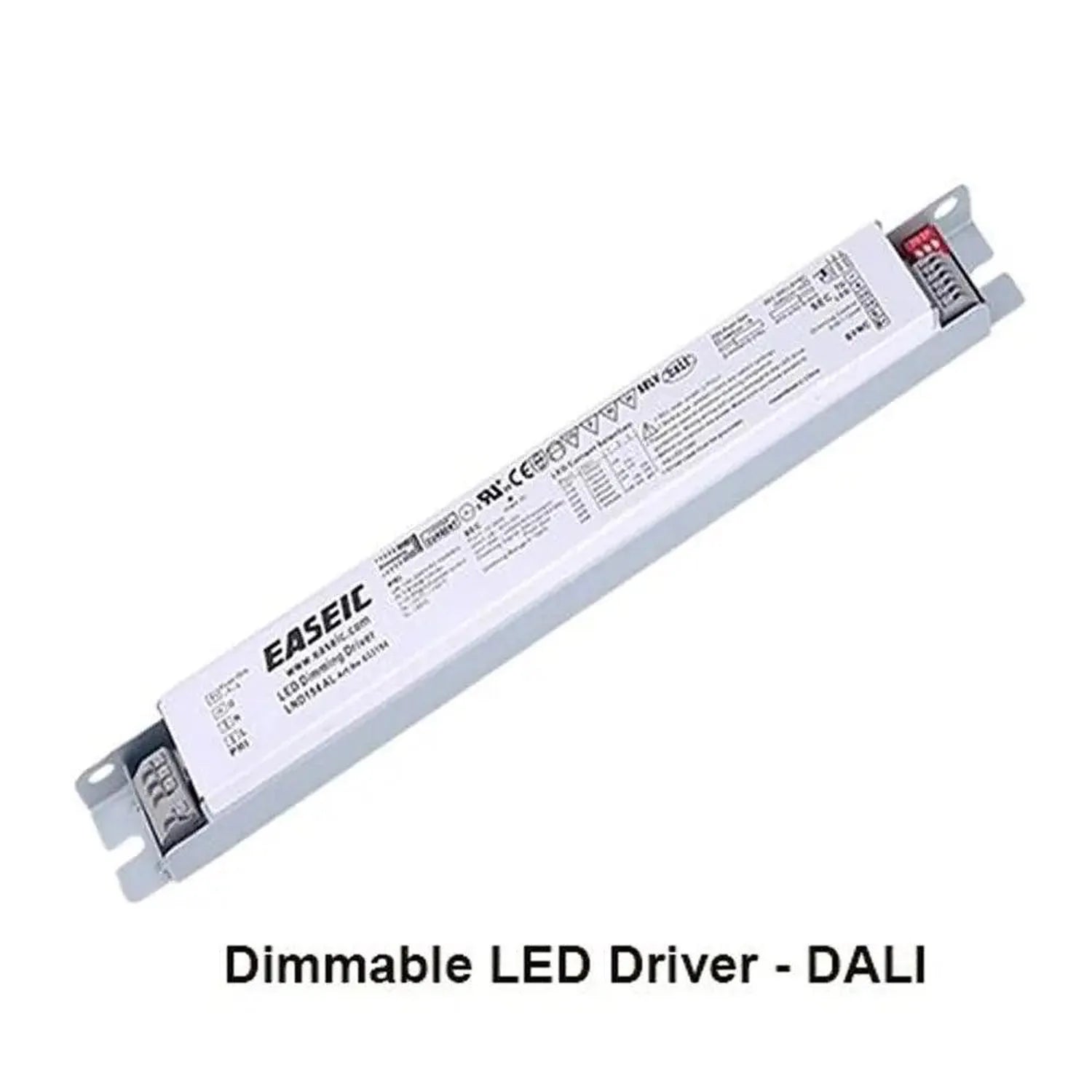

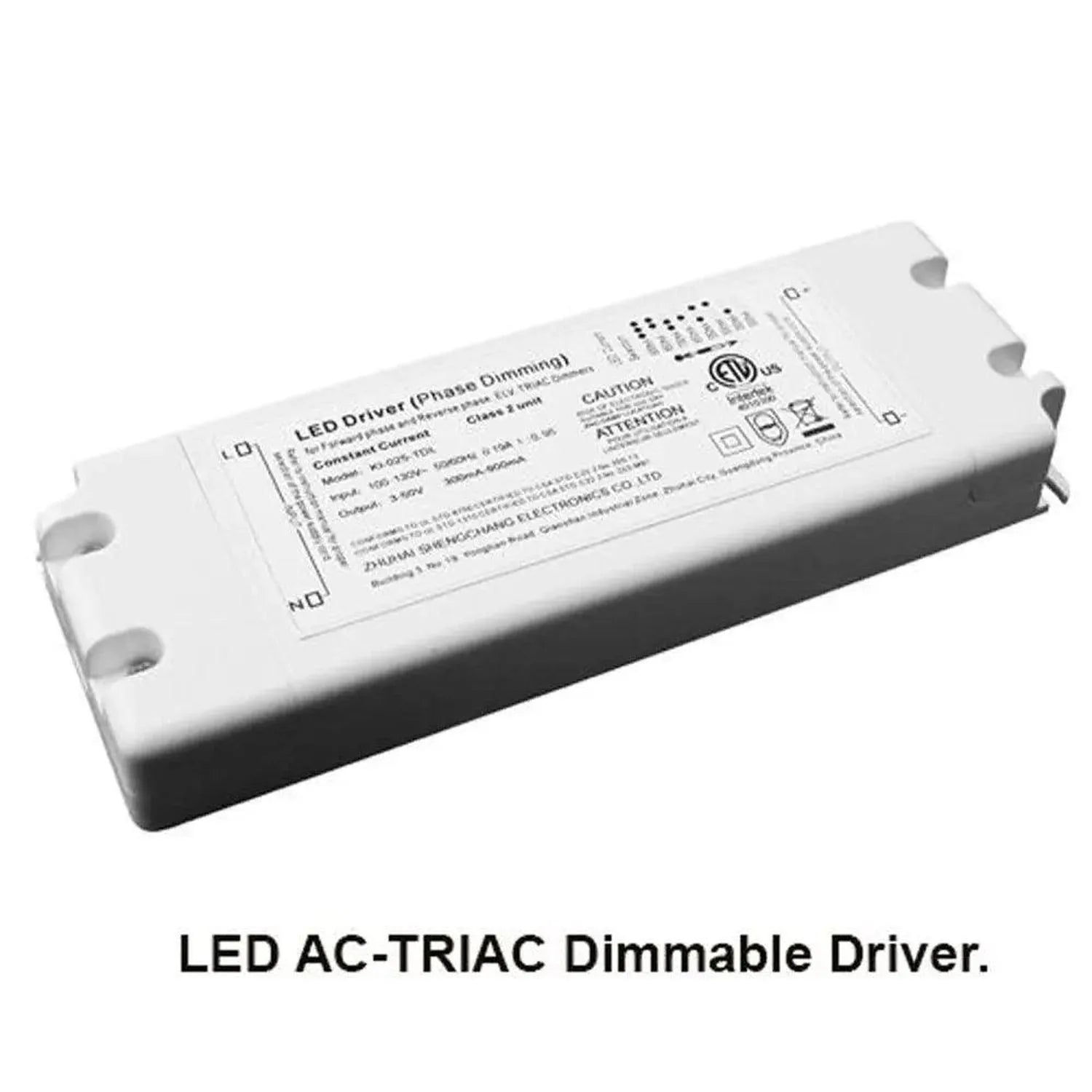

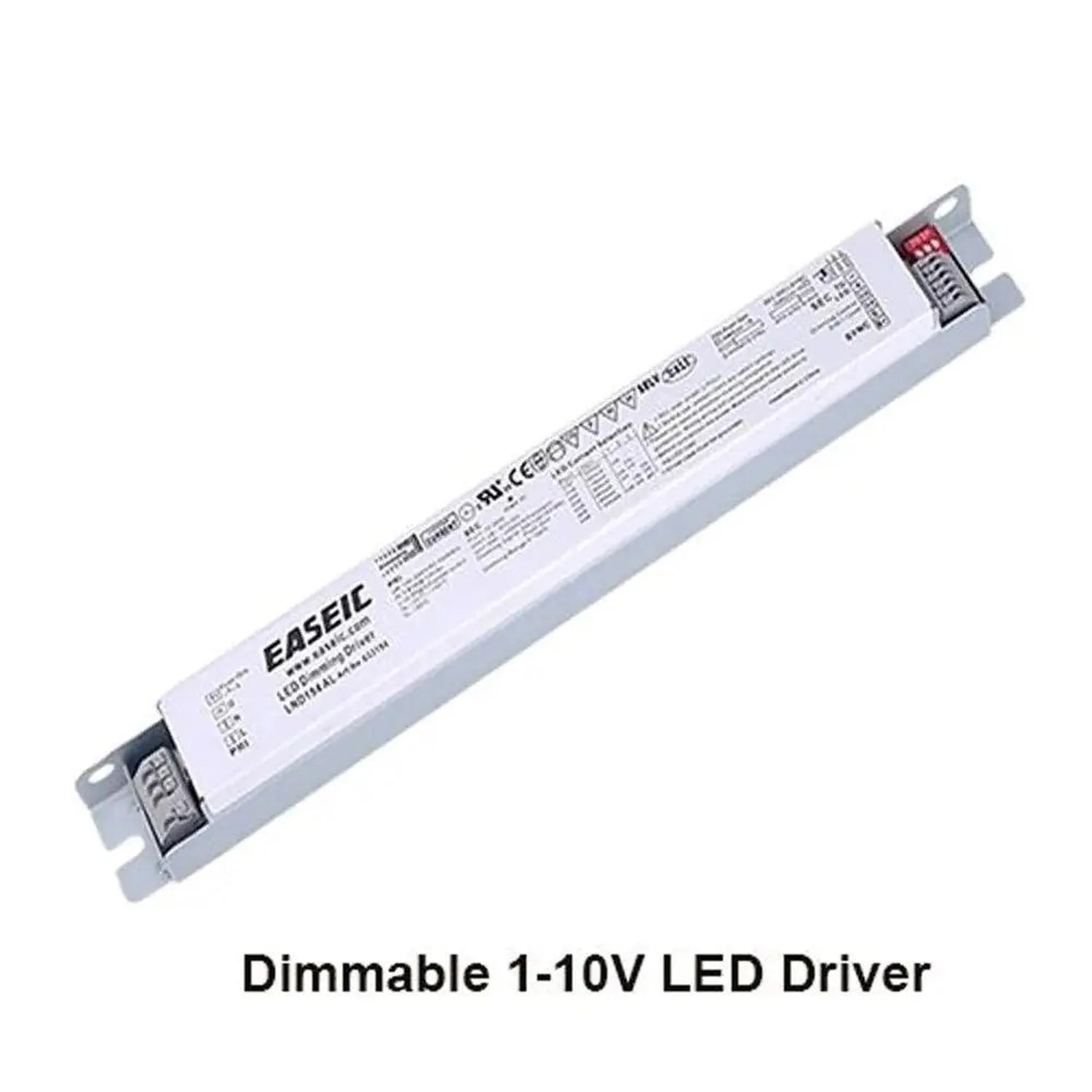

The tube works with AC Triac mains dimmers using trailing edge switching, needing no extra wiring beyond the driver connection. Tested compatible switches include Varilight, Lutron and Osram. It also supports 1-10V and resistive potentiometer control, and DALI control is available through compatible external drivers.

Before you order

Let us know by email which dimming method you plan to use, AC Triac or 1-10V, so the correct driver variant is supplied.

Applications

Suited to retrofitting existing T8 fittings in offices, retail units and homes where dimmable lighting control is wanted from standard wall switches rather than a full DALI installation. The source notes dimmable tubes can save up to 90% over non-dimmable equivalents when run at reduced output.

What's in the box

• Ledison T8 LED dimmable tube, 90cm (909mm), 12W
• External dimmable LED driver
