T5 LED Dimmable Tube 150cm 1463mm 25W 3000lm | Ledison

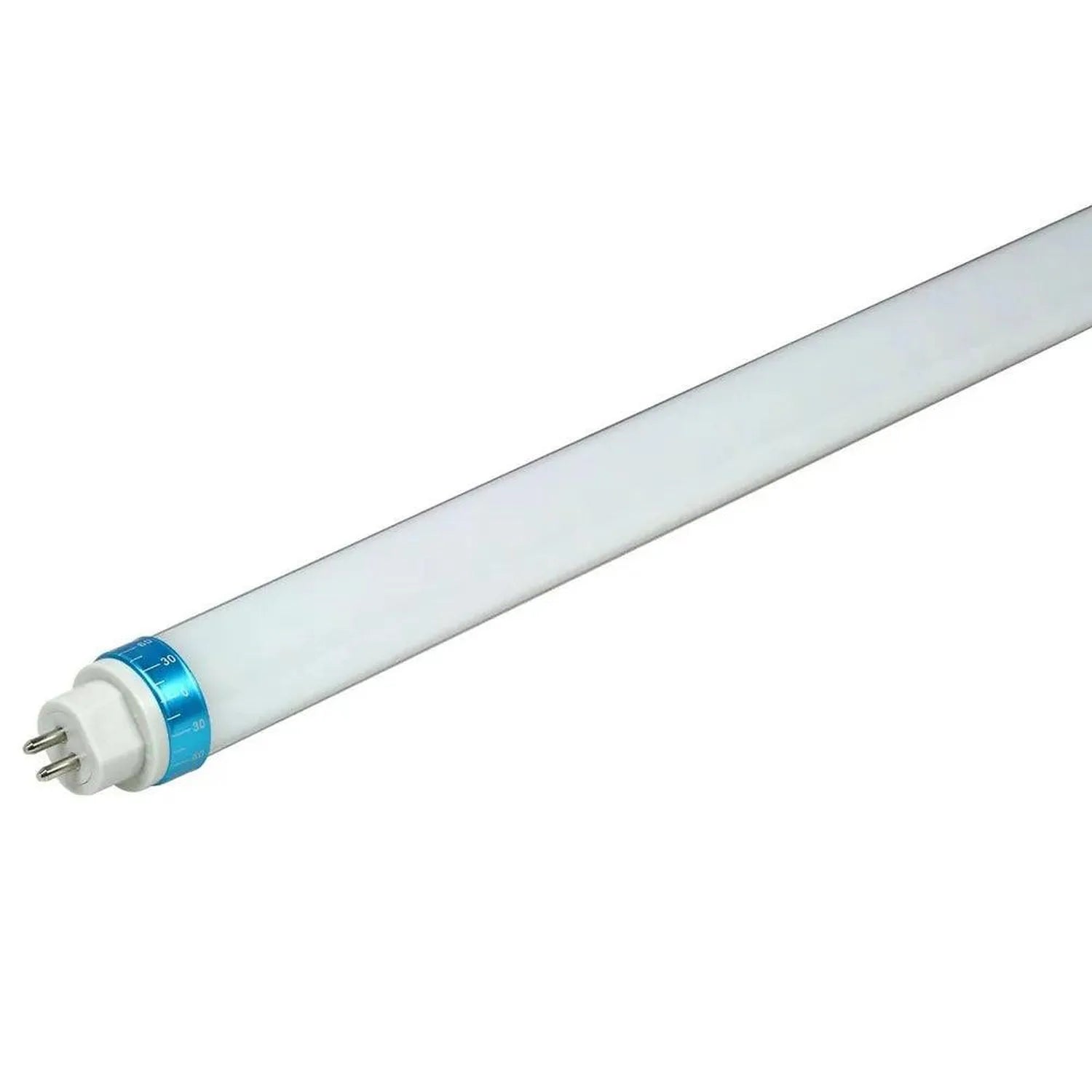

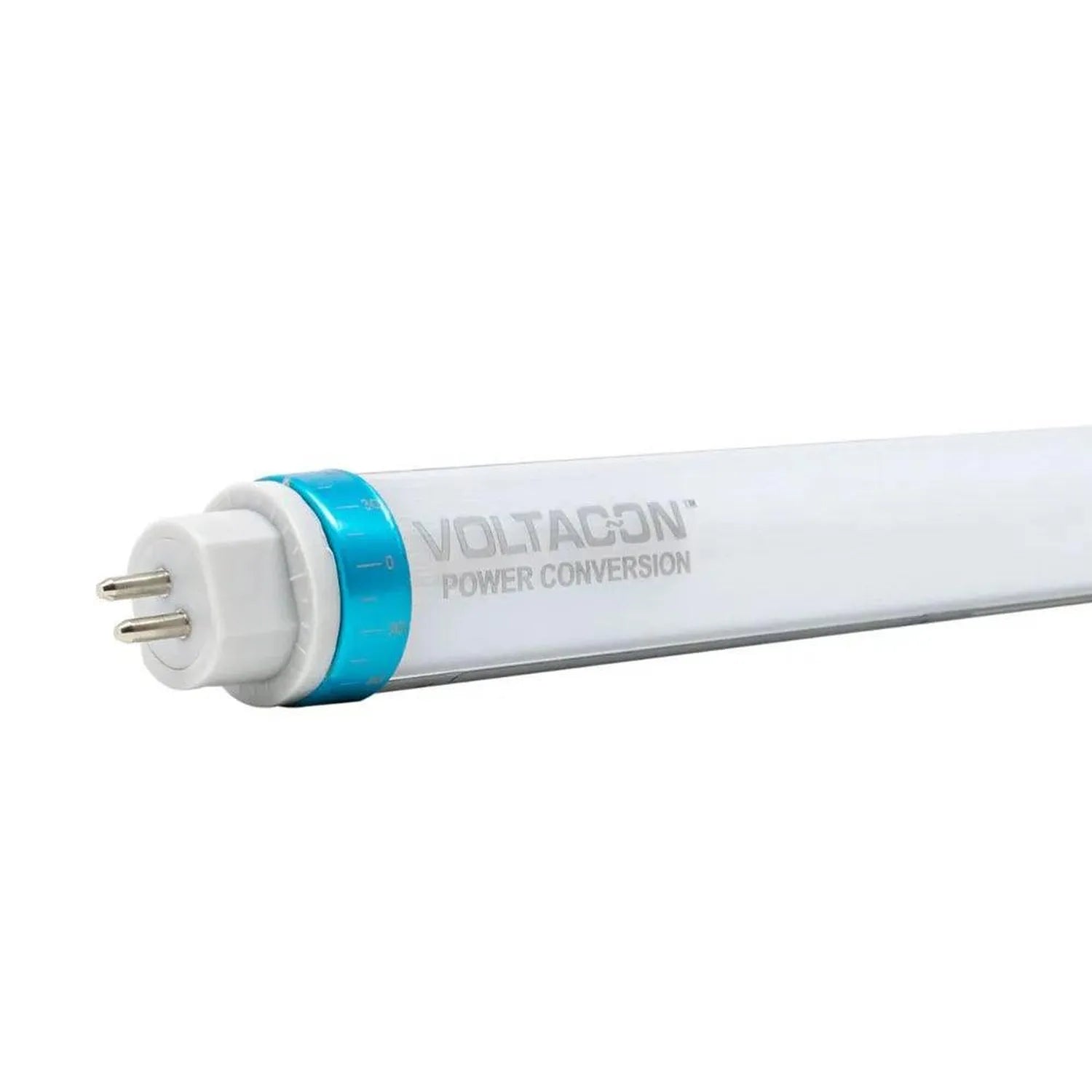

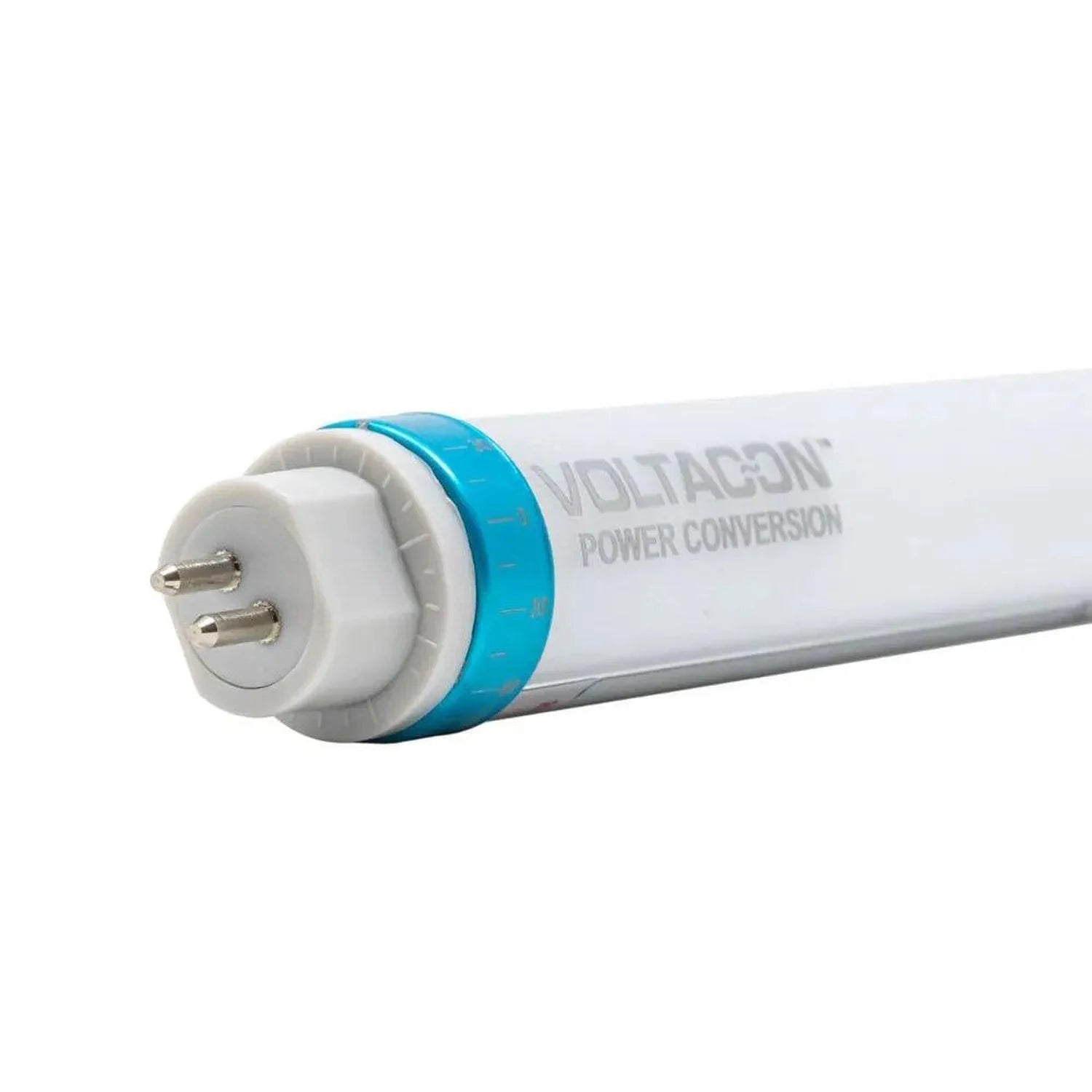

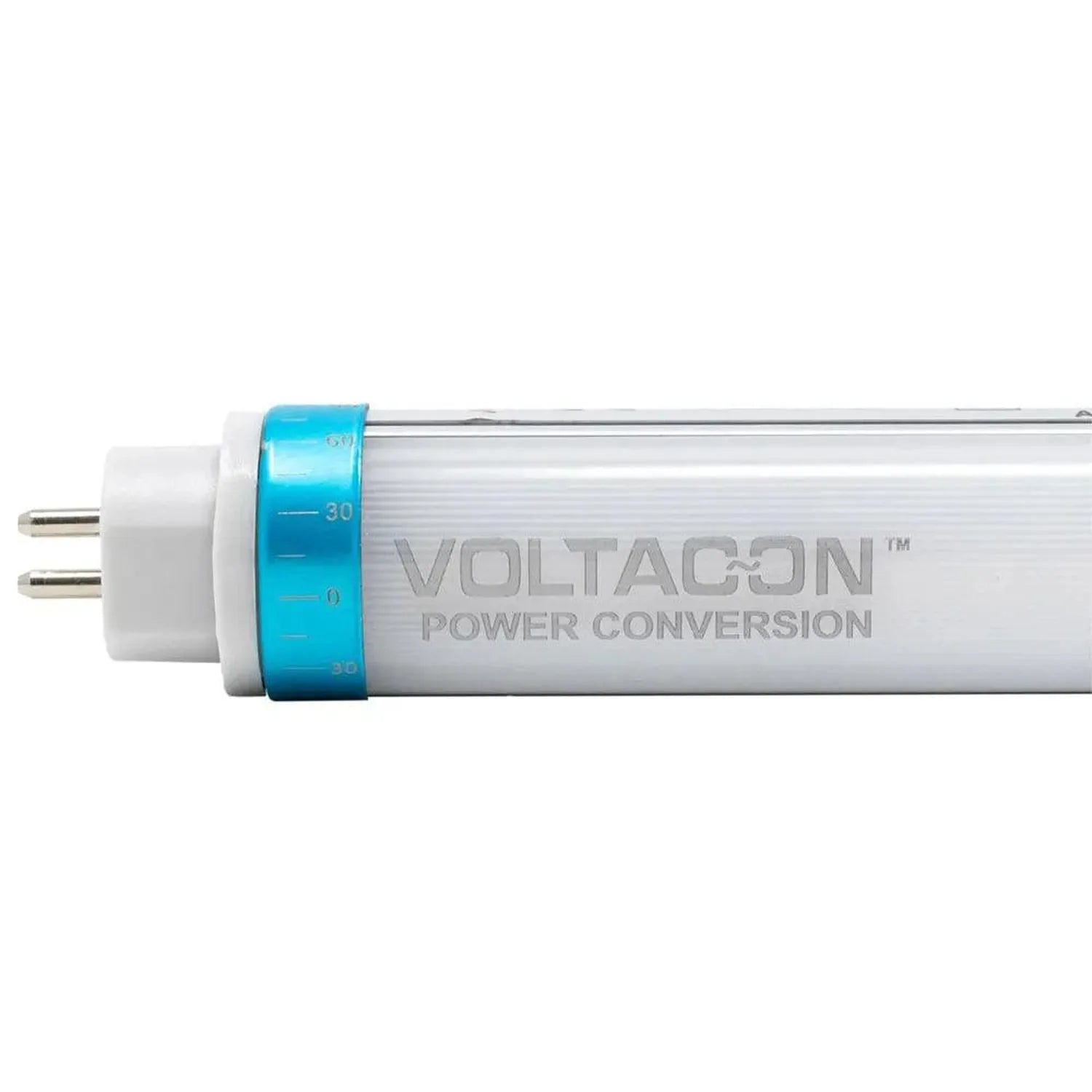

The Ledison T5 LED Dimmable Tube is a 150cm (1463mm) fitting rated at 25W, delivering 3000lm from a slim aluminium body. It is built with rotatable end caps and offers a choice of two beam angles, 120 and 140 degrees, so the light spread can be matched to the fitting it replaces.

T5 LED tube dimmable performance

Ledison rates this tube at up to 125lm/W, and it is backed by a 5-year warranty. Three driver options are available depending on the dimming system already installed.

Key features

• Rotatable end caps, for flexible alignment during installation.
• Two beam angles, 120 and 140 degrees.
• Efficiency, up to 125lm/W.
• Warranty, 5 years.

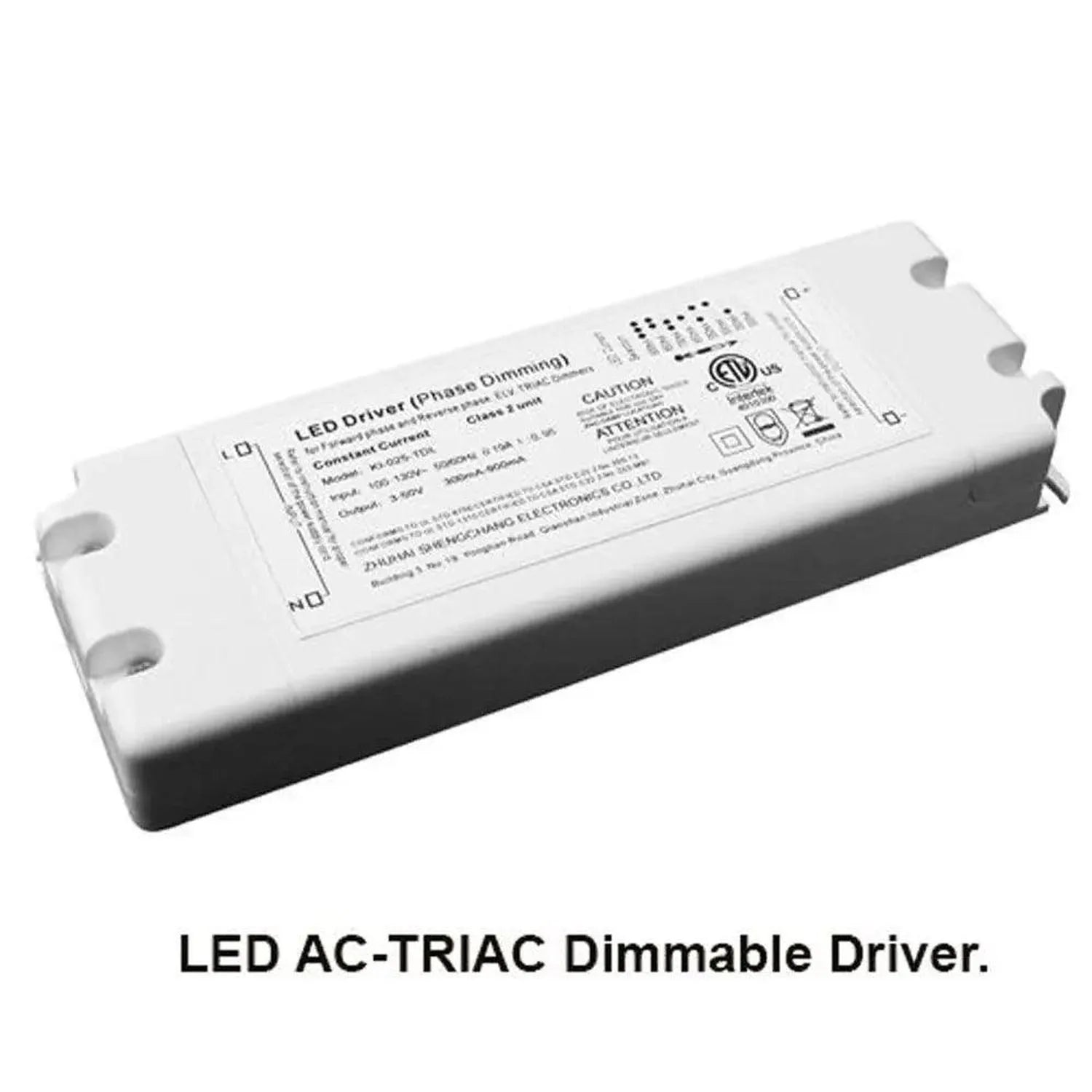

• AC Triac driver, 25W dimmable driver suited to trailing and leading edge dimmer switches, with on-board dip-switches to adjust full power from 18W to 25W.

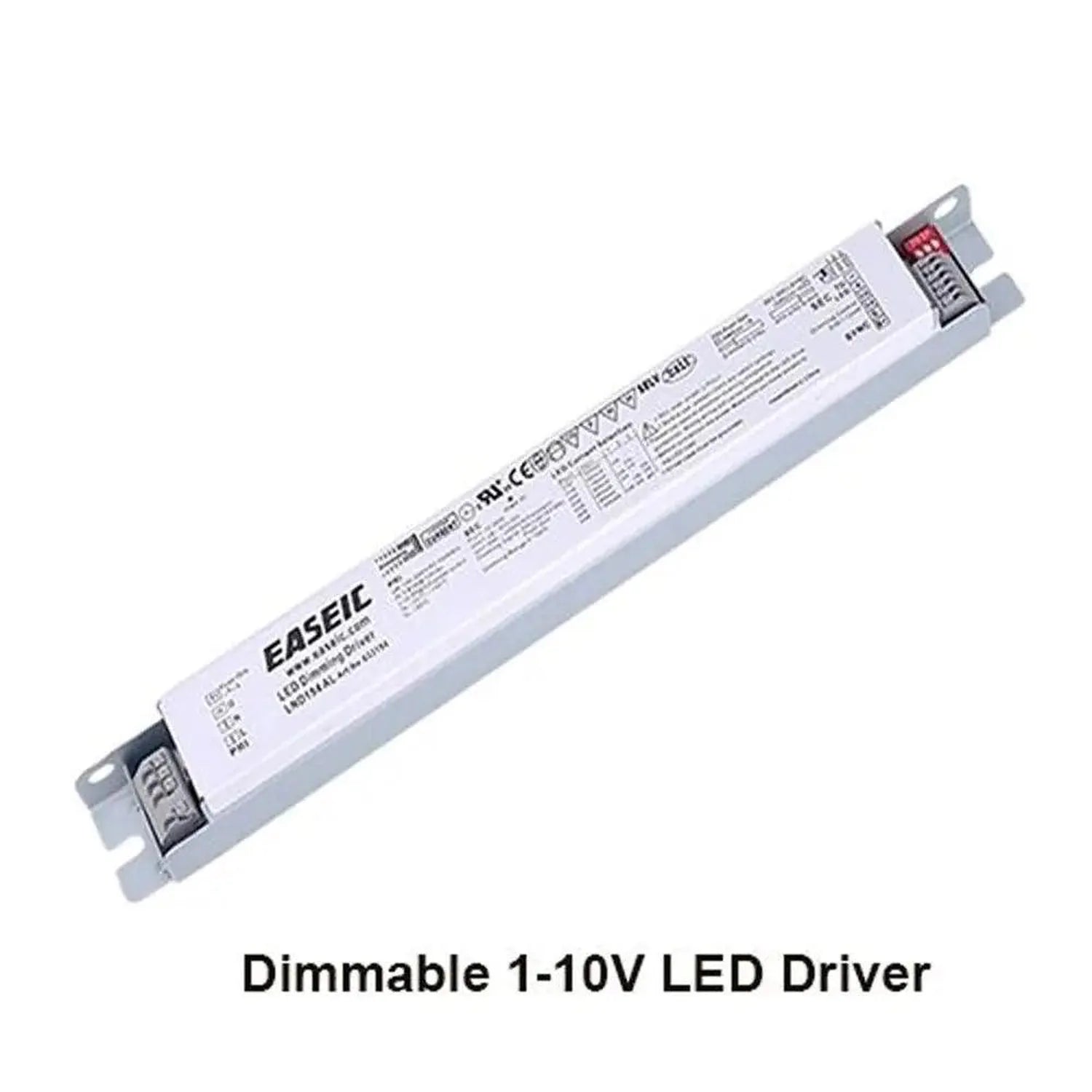

• EASEIC 1-10V driver, slim aluminium power supply compatible with analogue dimmer switches, controlled via an external twisted pair (0.5mm to 1.00mm) in 10% steps up to 100%.

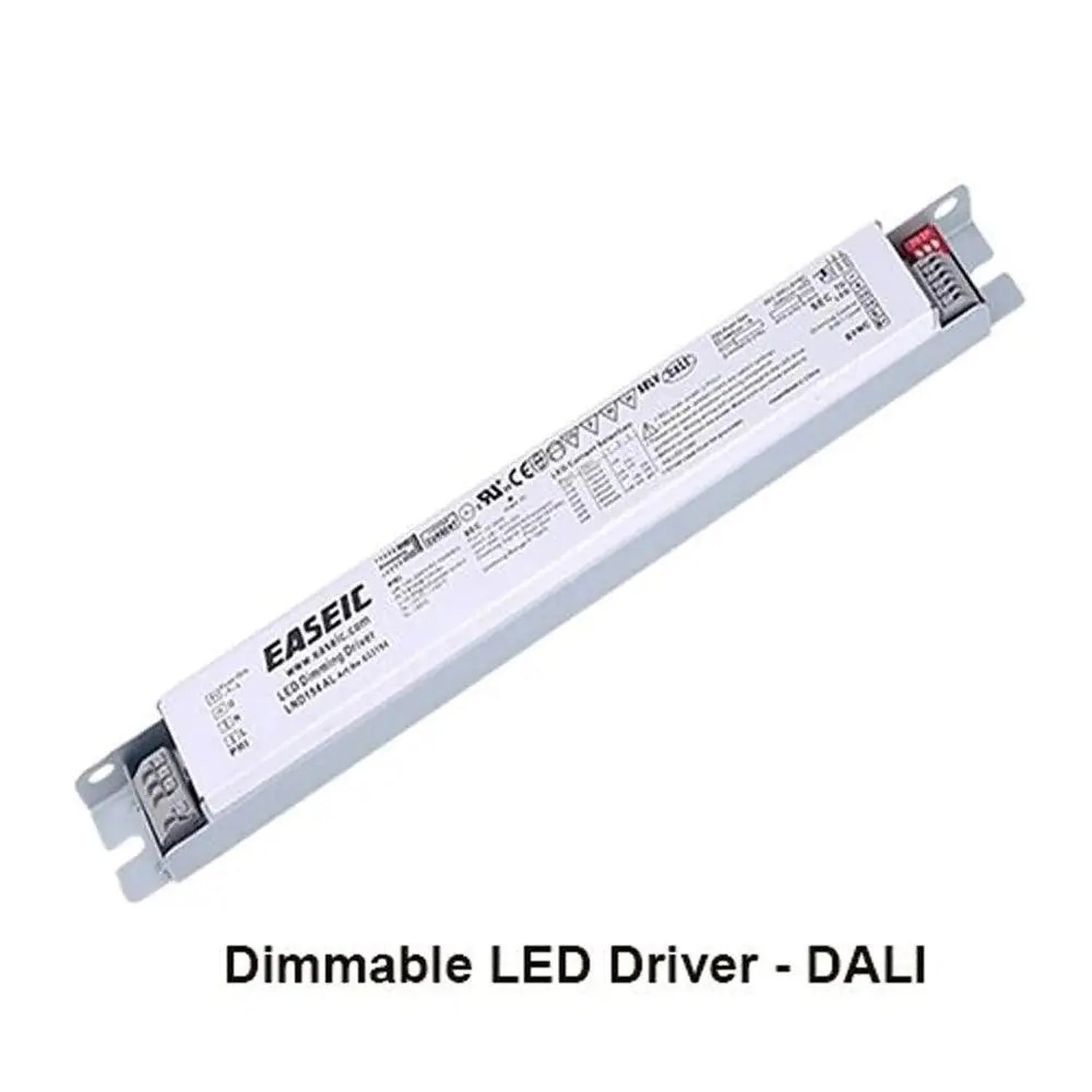

• EASEIC DALI driver, compact driver certified to the DALI protocol and compatible with DALI controllers on the market.

Applications

Suited to retrofit projects replacing existing T5 fittings where dimming control is required, in offices, retail spaces or any setting already wired for trailing/leading edge, 1-10V or DALI dimming.

Choosing a driver

Pick the AC Triac version for standard dimmer switches, the EASEIC 1-10V for analogue control systems, or the EASEIC DALI version where a DALI controller is already in place.
