T5 LED Tube Dimmable 60cm (563mm) 10W 1200lm | Ledison

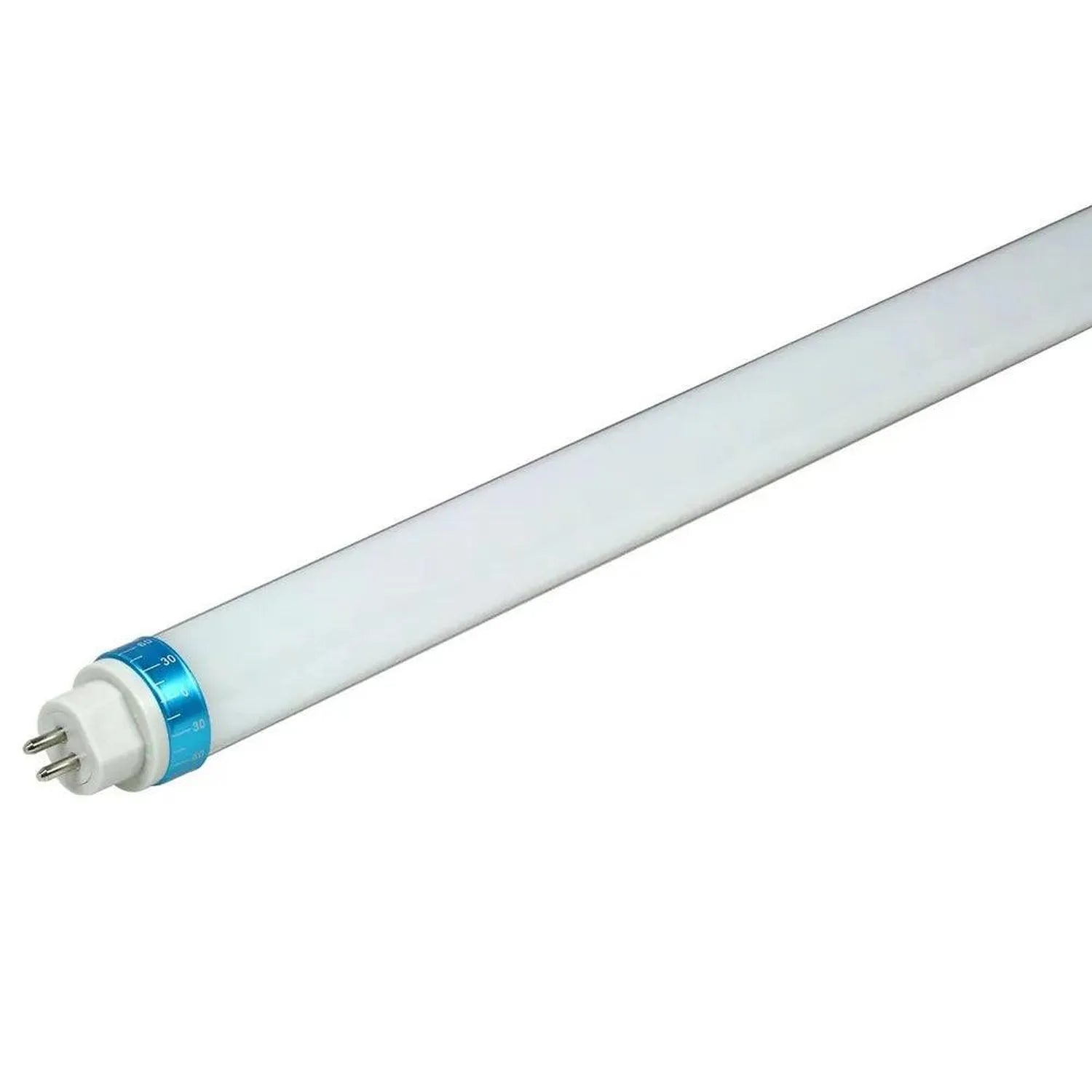

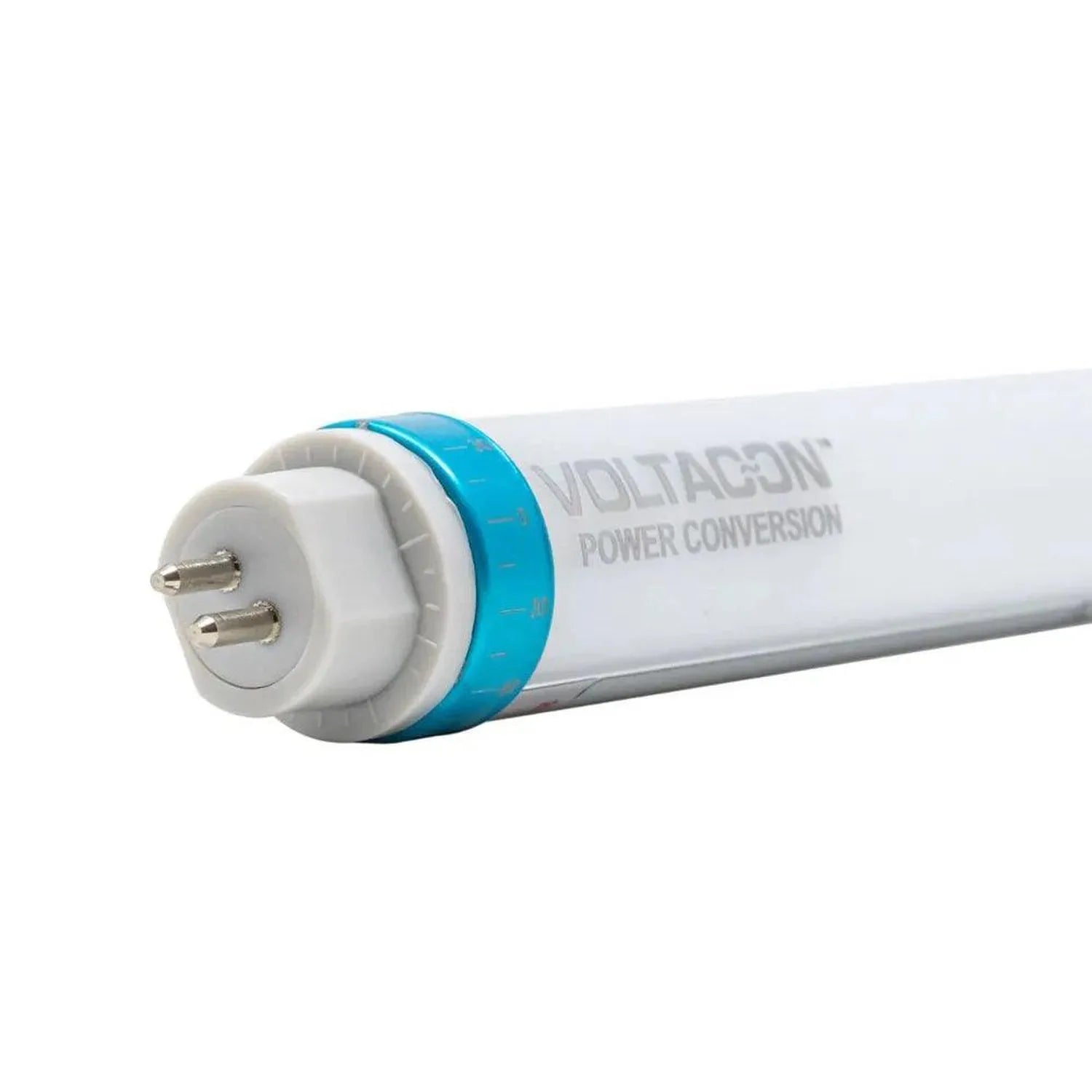

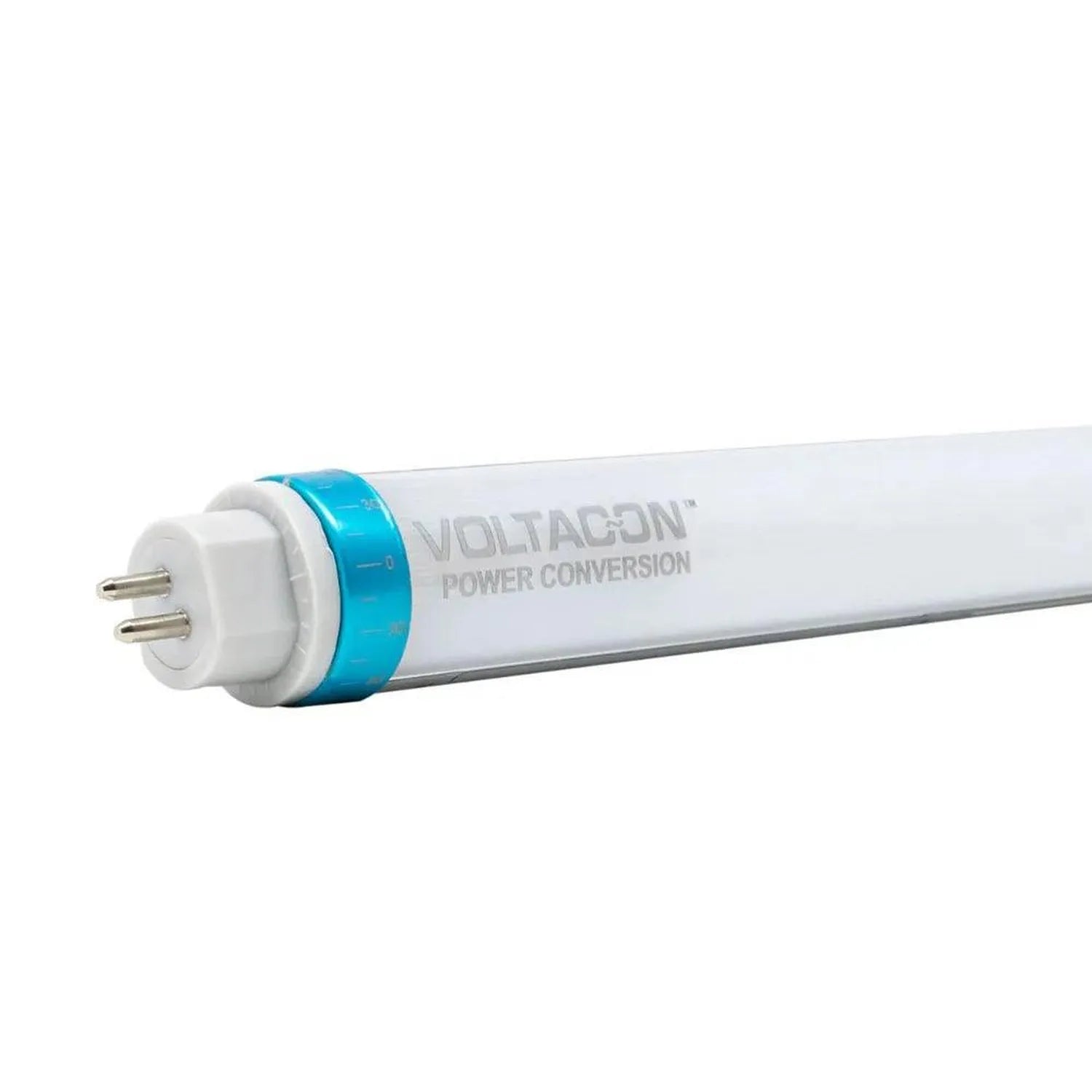

This T5 LED Dimmable Tube measures 60cm (563mm) pin to pin and runs at 10W, giving 1200lm of light output. It's built with rotatable end caps and is available with either a 120 or 140 degree beam angle, making it a straightforward swap for fluorescent T5 fittings that need dimming control.

Key features

• Efficiency, the tube operates at 125lm/W.

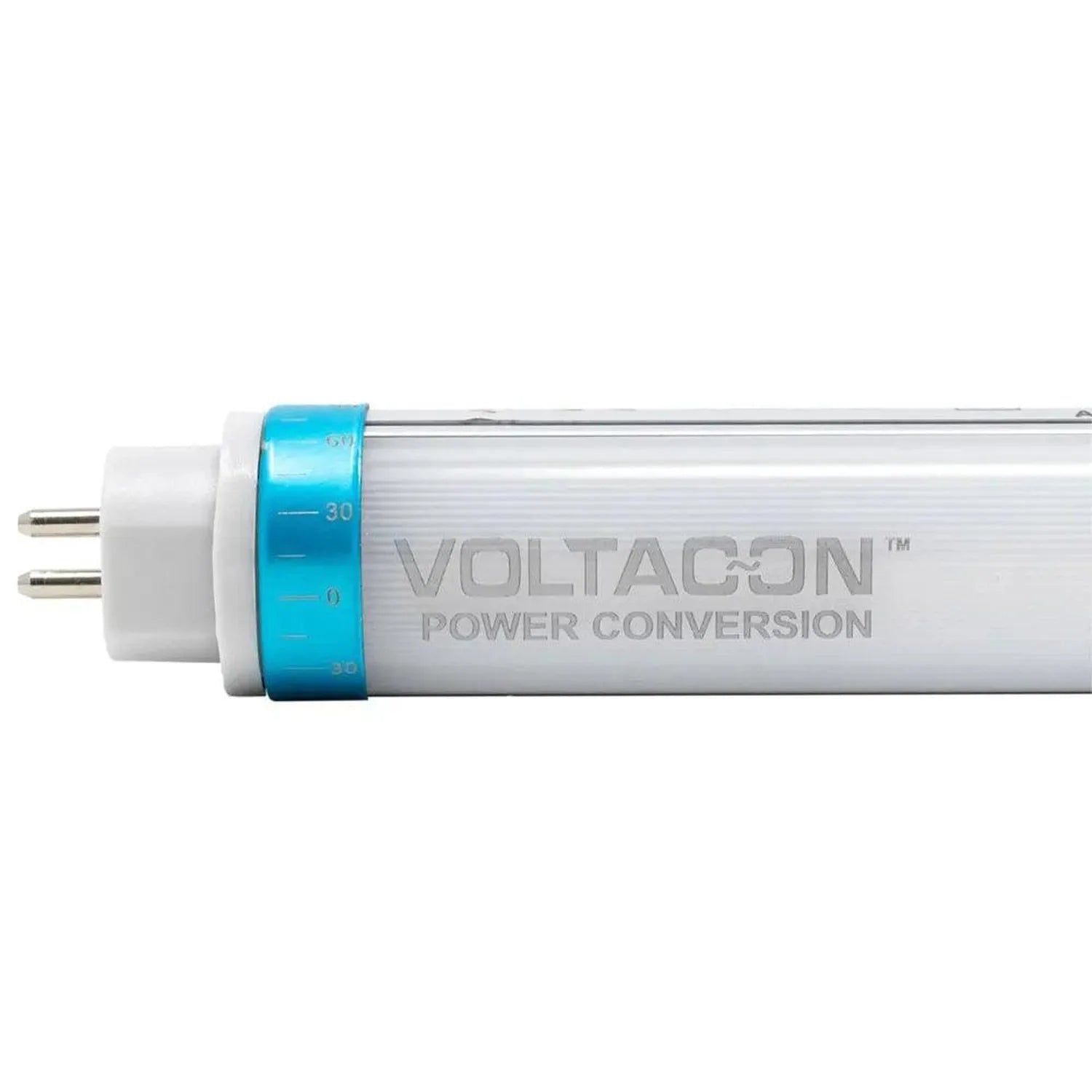

• End caps, rotatable, allowing the beam to be angled during installation.
• Beam angle, choice of 120 or 140 degrees.
• Lifespan, rated for 50,000 hours of continuous operation with consistent lumen output.
• Warranty, covered for 5 years.

Dimming options

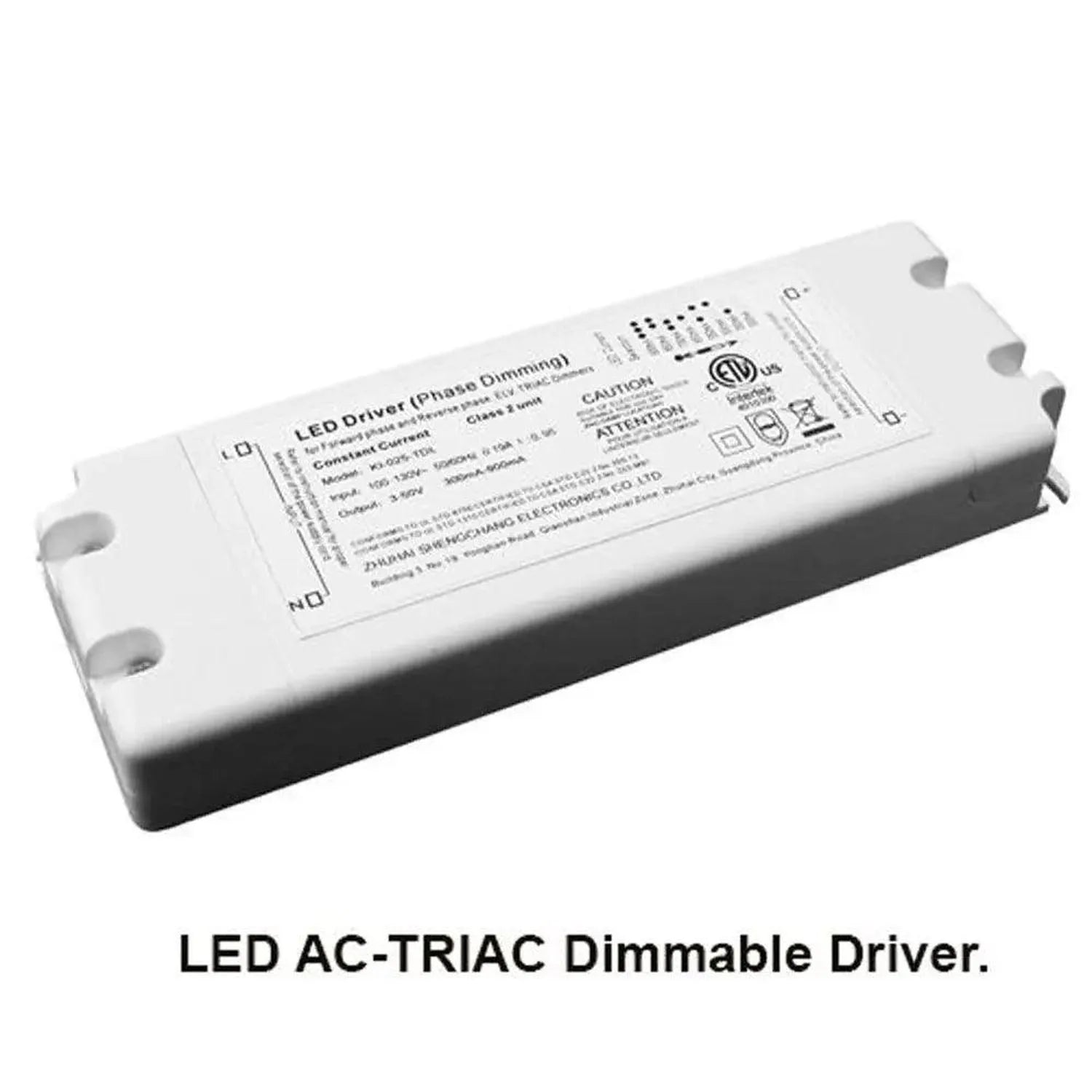

Three driver types are available for this tube. The AC Triac version is a 25W dimmable driver suited to trailing and leading edge dimmer switches, with on-board dip-switches letting the full power be set anywhere from 18W to 25W.

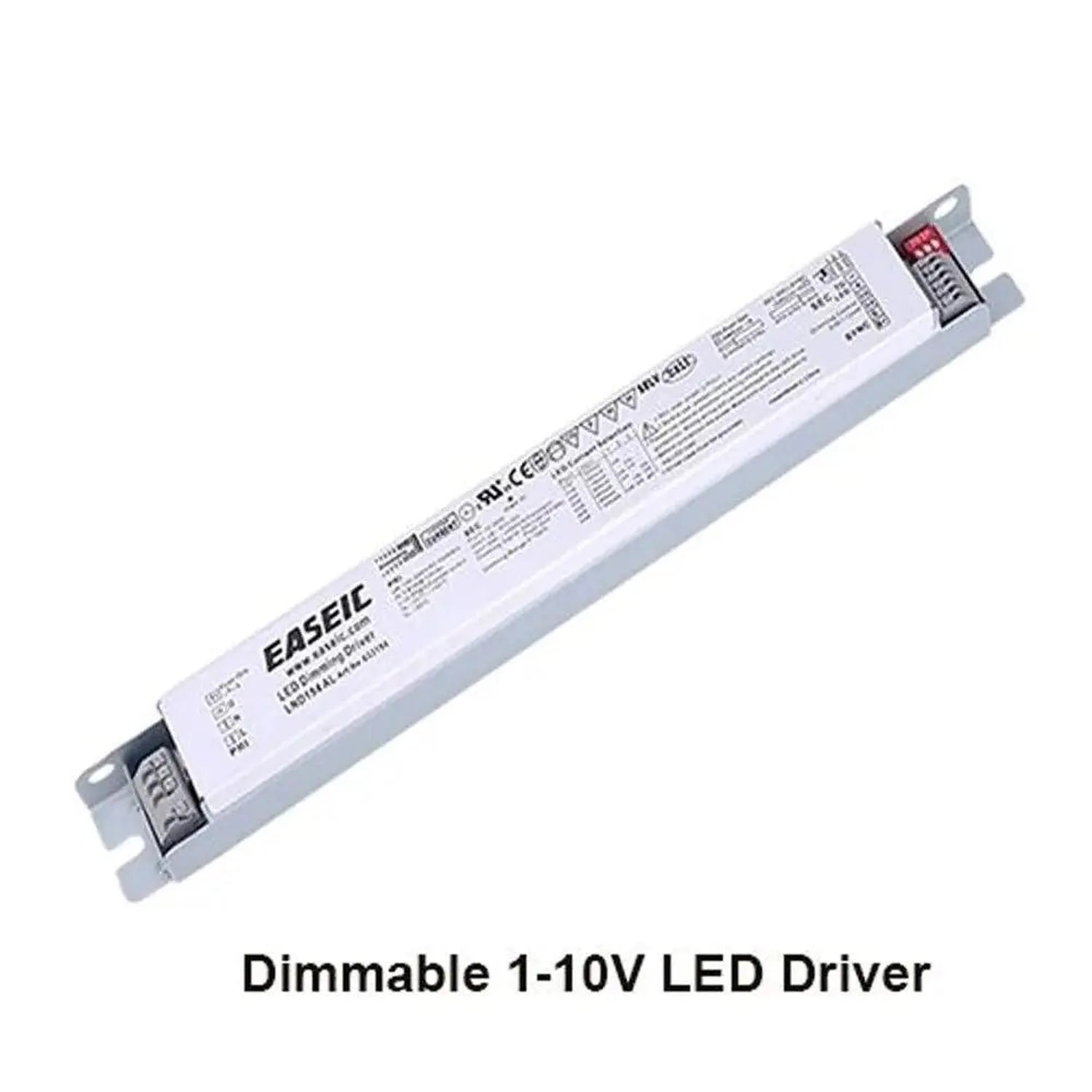

The EASEIC 1-10V driver is a slim aluminium unit compatible with analogue dimmer switches. It needs an external pair of cables, typically a twisted 0.5mm to 1.00mm pair, which adjusts luminosity in steps of 10% up to full brightness.

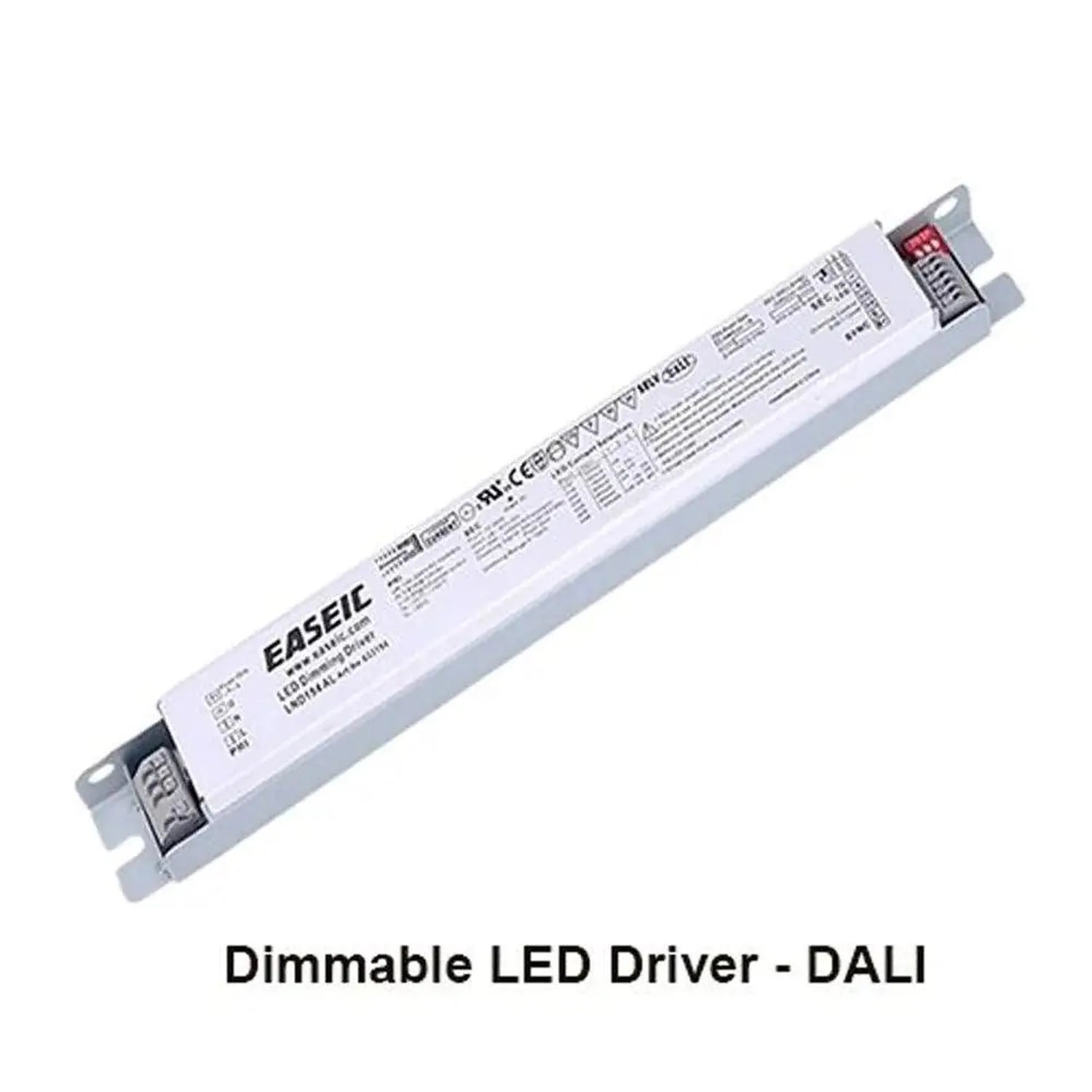

The EASEIC DALI driver is a slim, compact unit built to the DALI protocol and works with DALI controllers from any manufacturer.

Applications

Suited to offices, retail spaces and any T5 fitting where dimmable lighting is needed rather than fixed output. It replaces existing T5 fluorescent tubes without changing the fitting.
