T5 LED Tube Dimmable 120cm 1163mm 20W 2400lm | Ledison

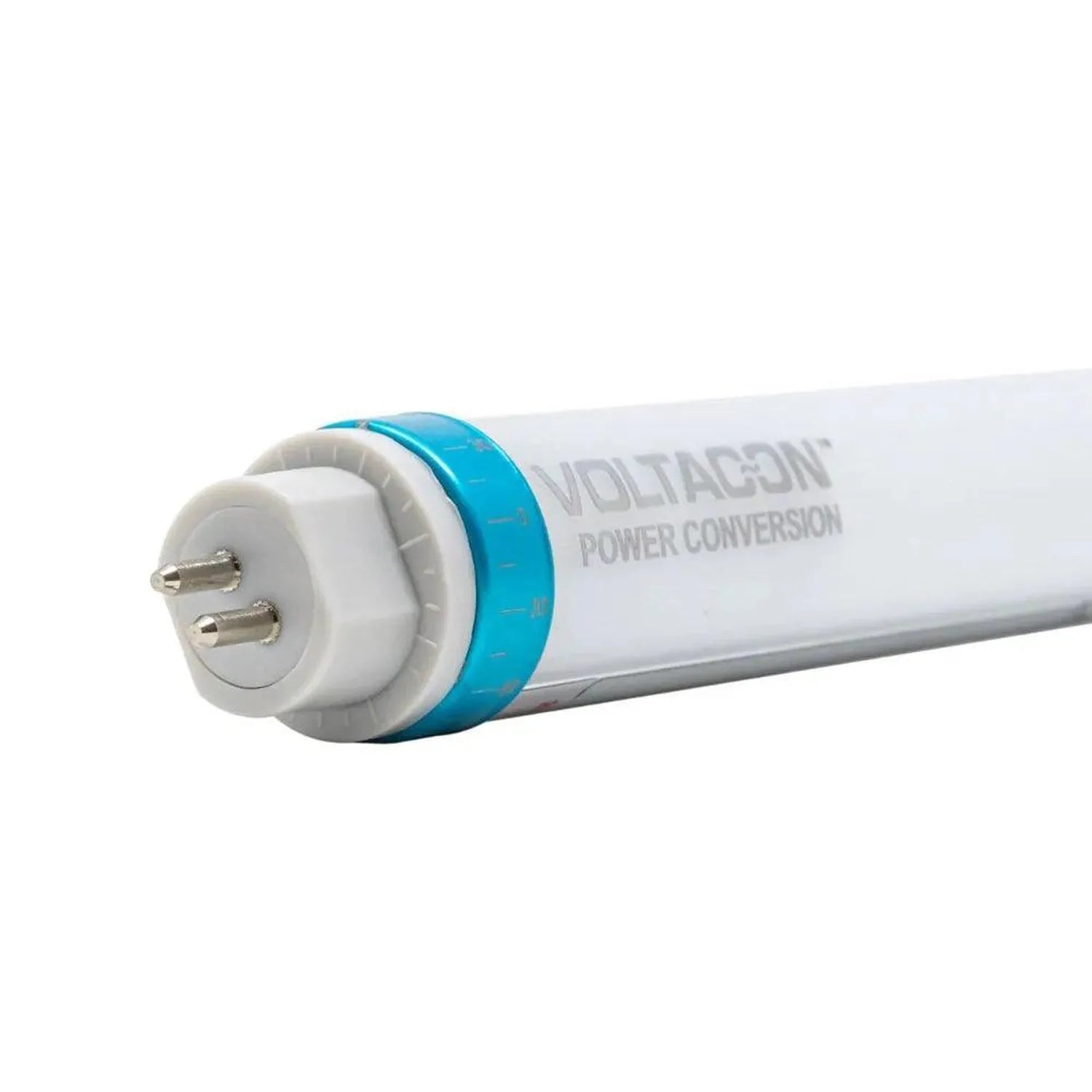

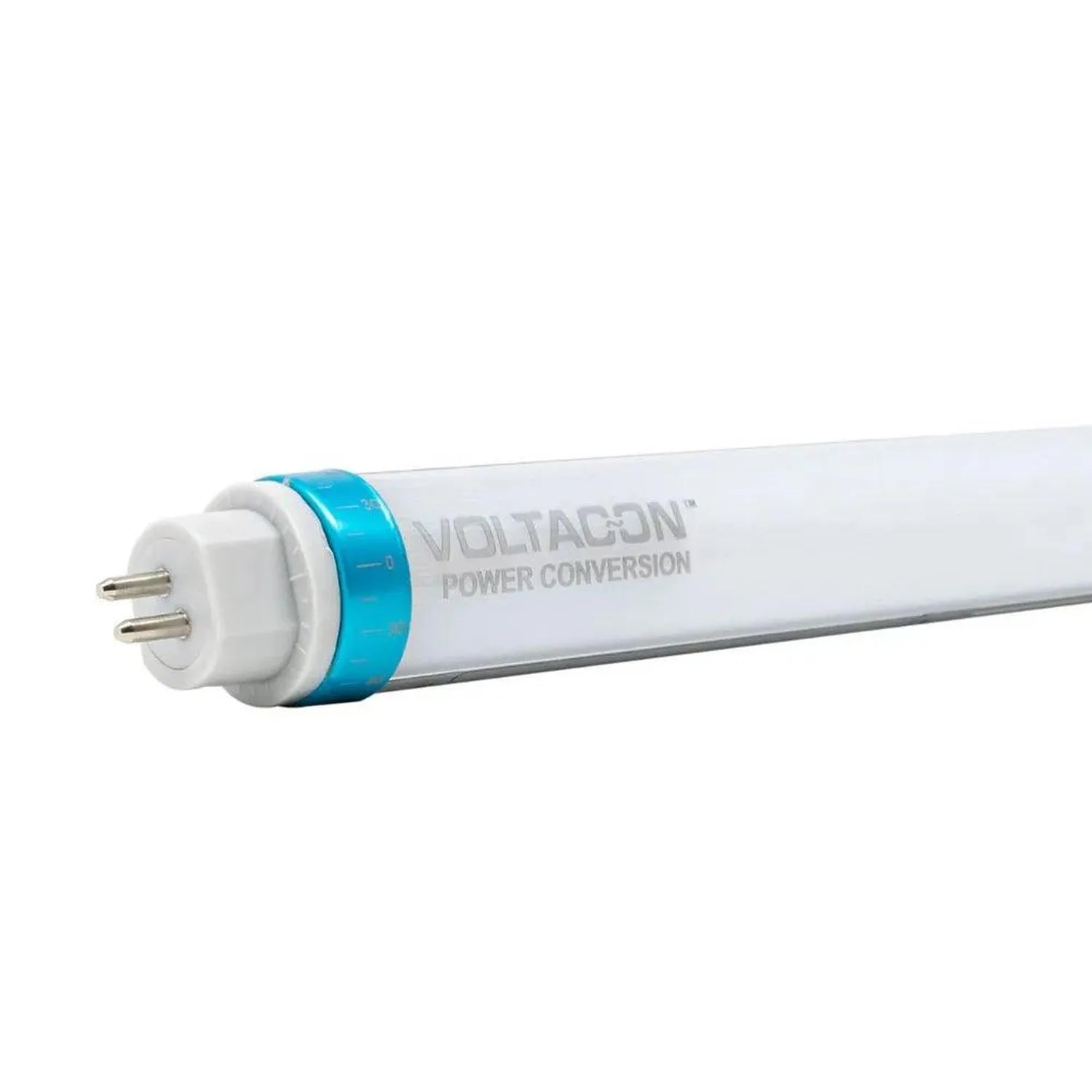

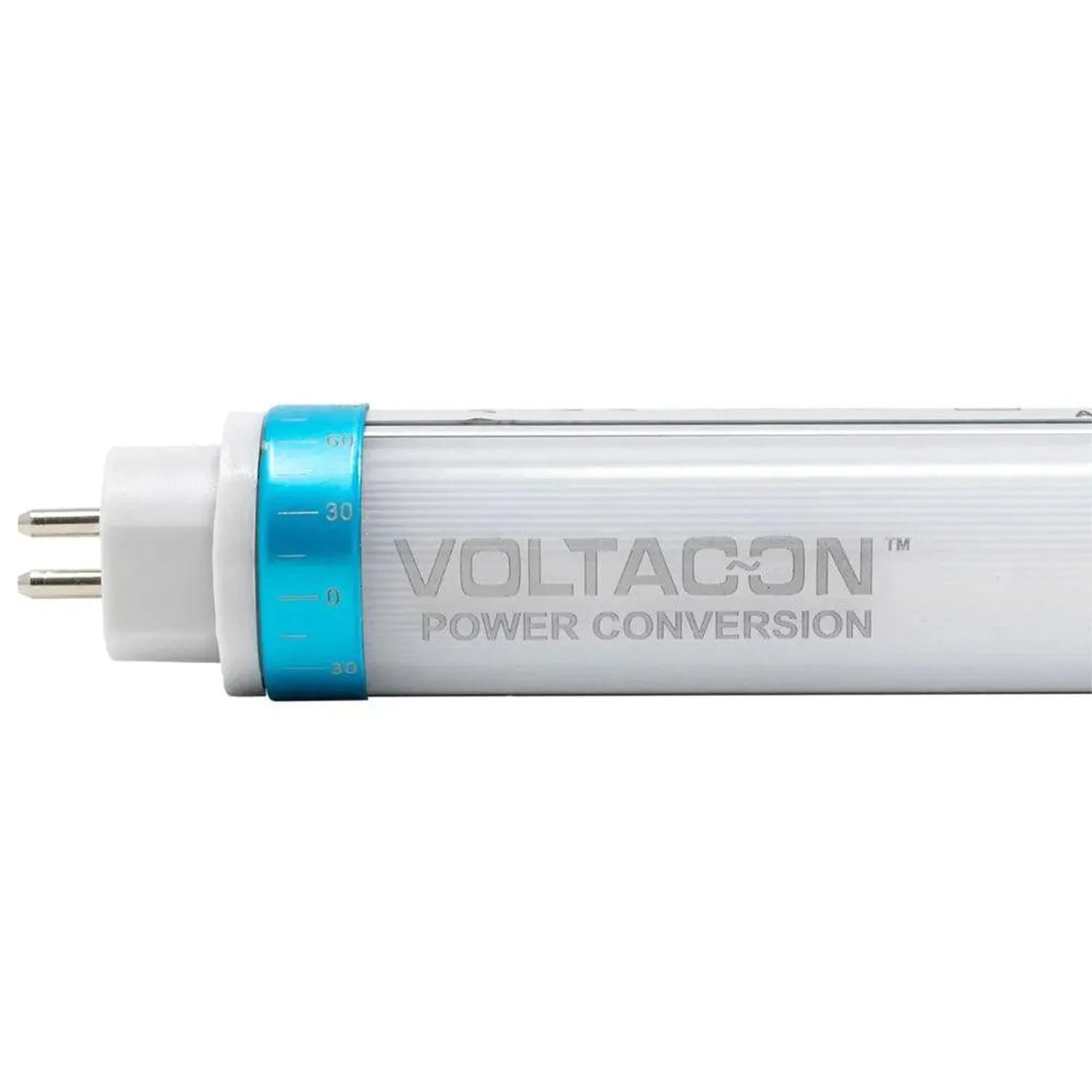

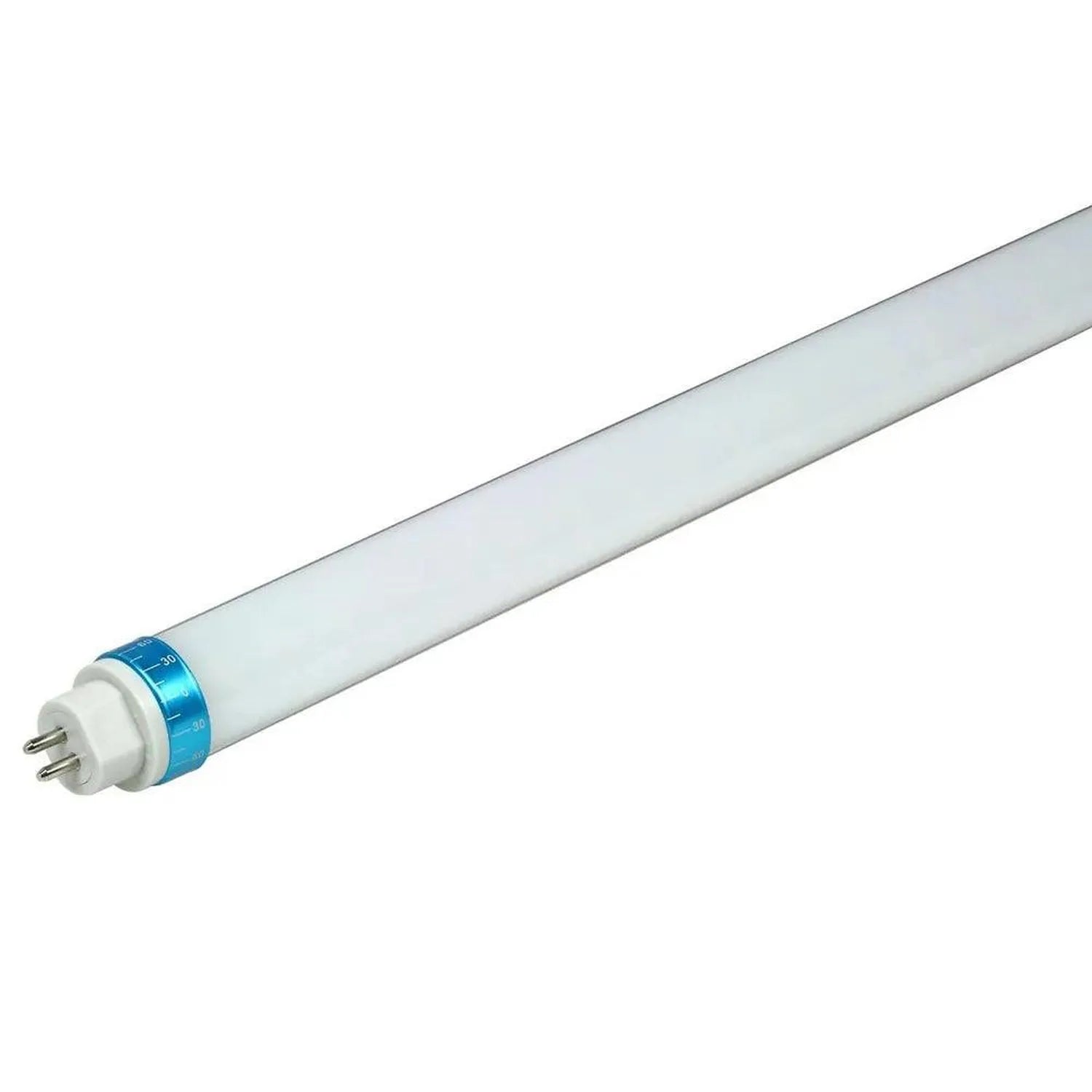

The Ledison T5 LED Tube is a dimmable 120cm (1163mm) tube rated at 20W, producing 2400lm. It is fitted with rotatable end caps and offers a choice of two beam angles, 120 and 140 degrees, so the light spread can be matched to the fitting.

Key features of this dimmable T5 LED tube

• Fitting, T5, 120cm (1163mm) length.
• Output, 2400lm at 20 Watt rated power.
• Beam angles, 120 or 140 degrees via rotatable end caps.
• Colour rendering, CRI >76.
• Warranty, 5-year warranty policy.

Dimming options

Three driver options are available depending on the control system in place.

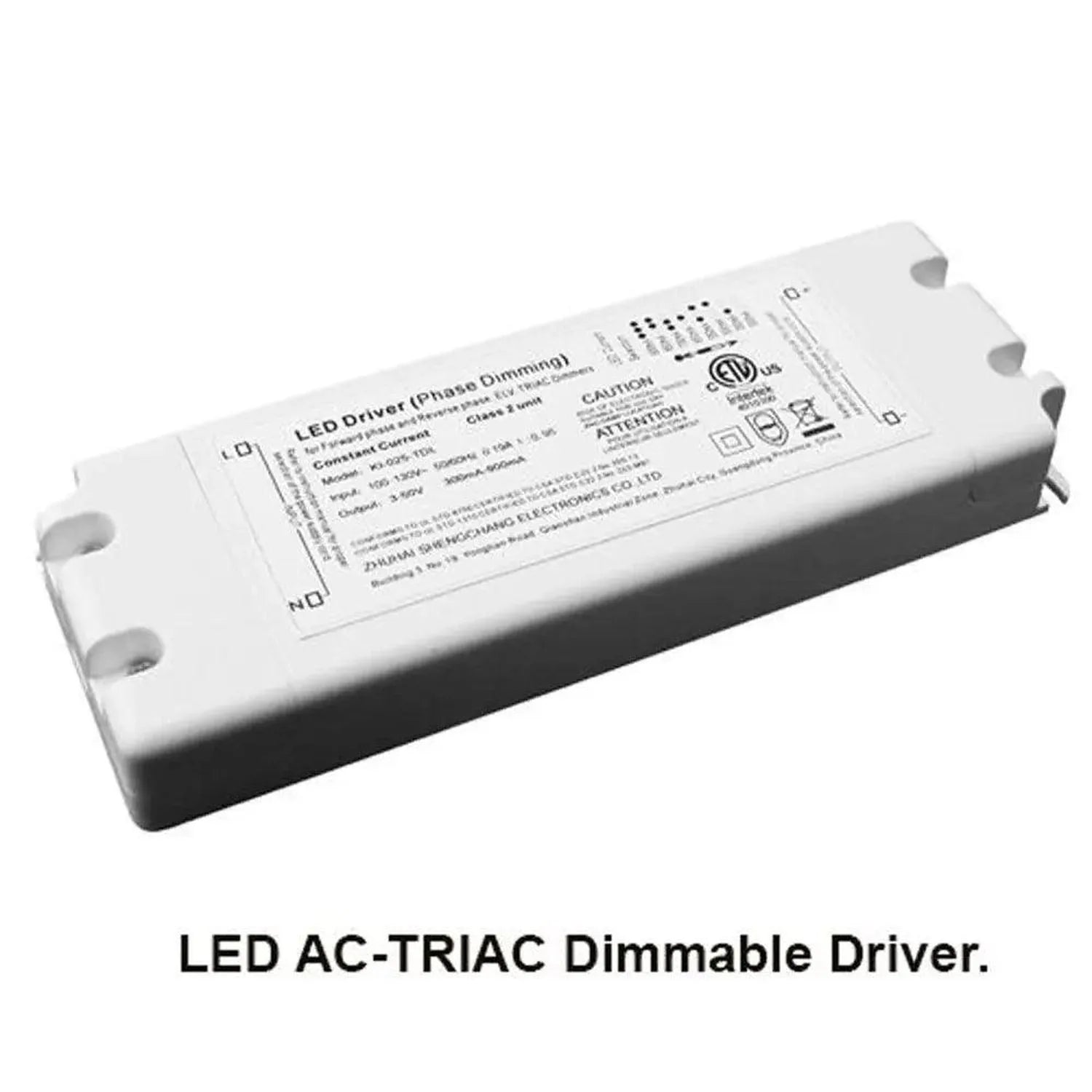

• AC Triac, 25W dimmable driver, suitable for trailing and leading edge dimmer switches. On-board dip-switches allow the full power to be set anywhere from 18W to 25W.

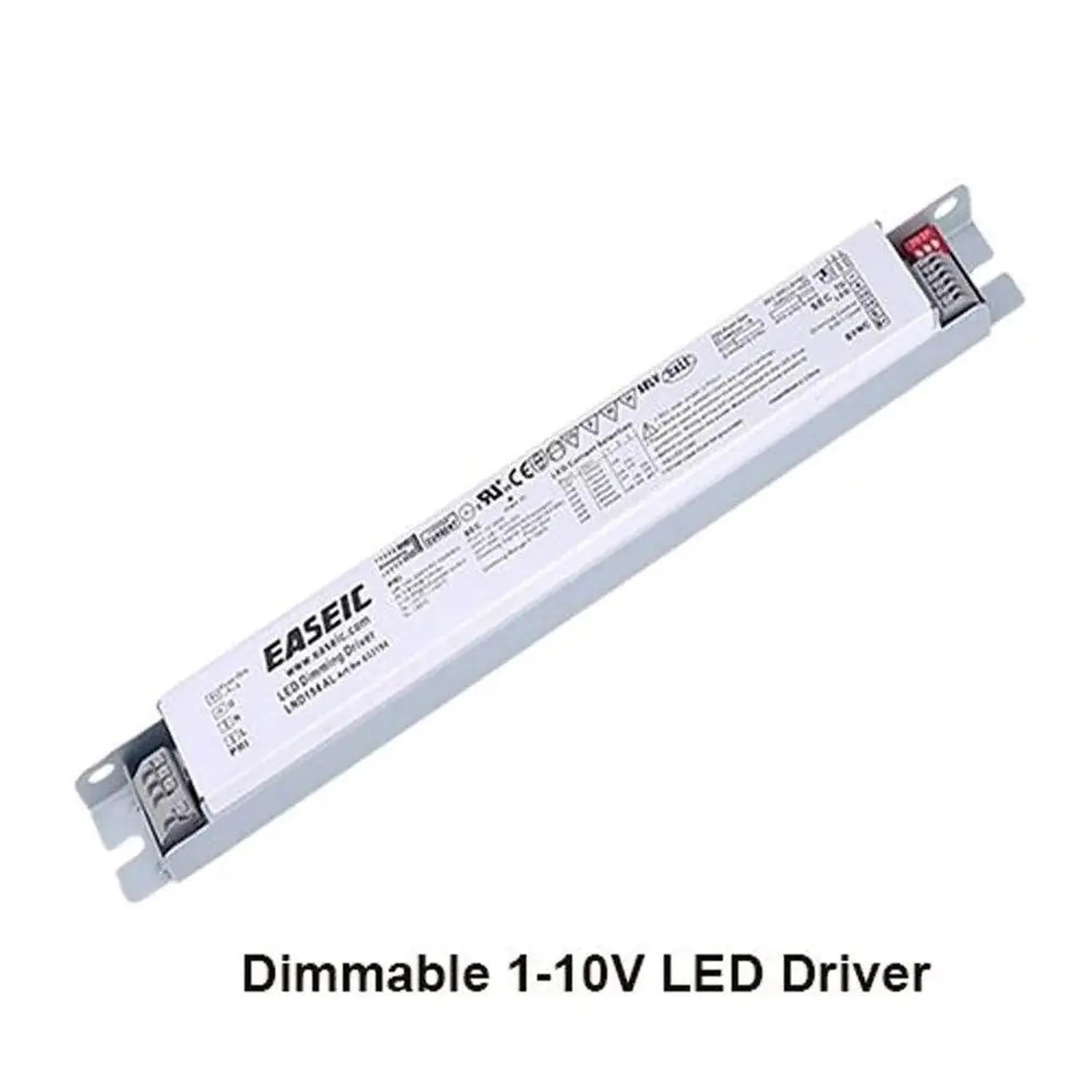

• EASEIC 1-10V, slim aluminium power supply compatible with analogue dimmer switches. It needs an external pair of cables, normally a twisted 0.5mm to 1.00mm pair, which controls luminosity in 10% steps up to 100%.

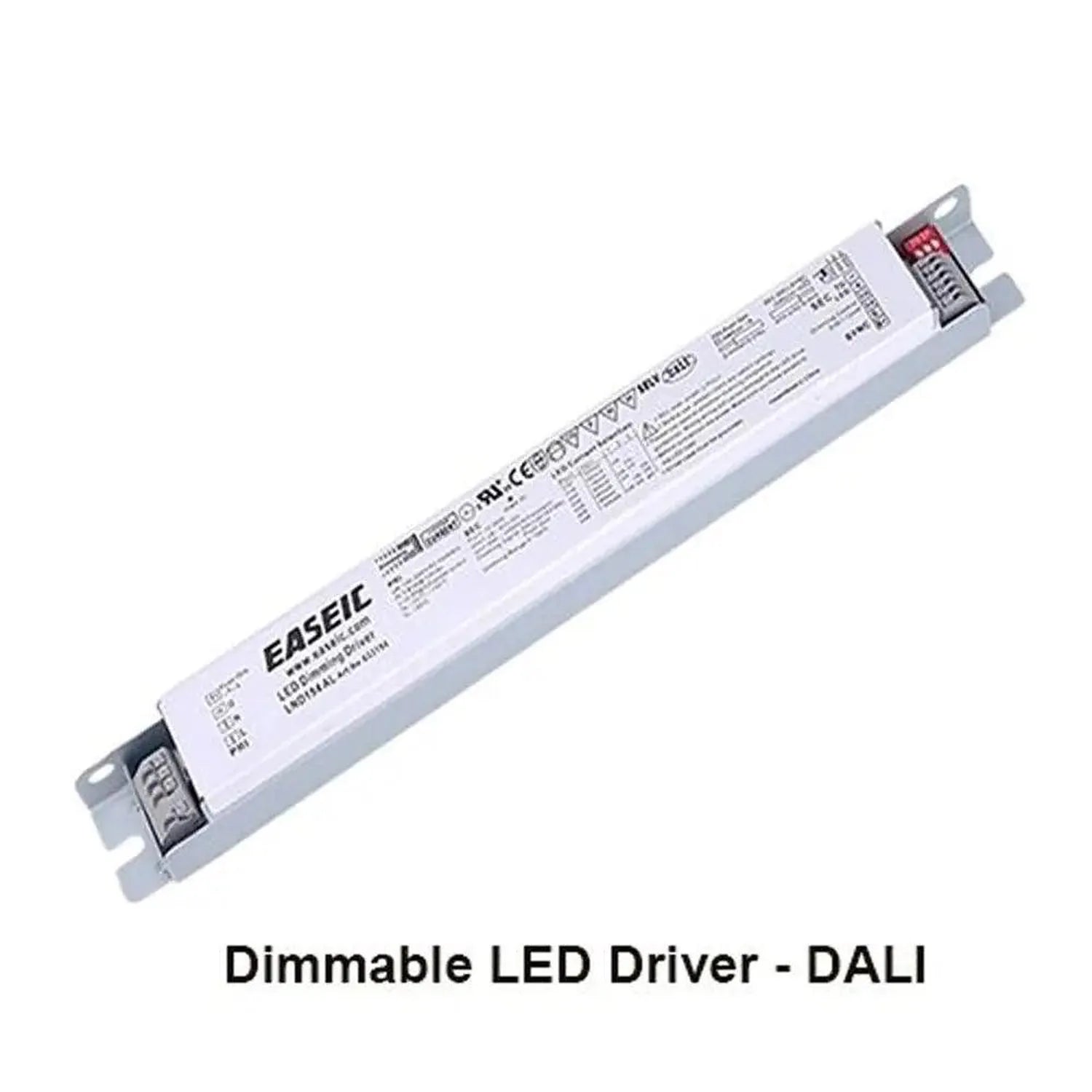

• EASEIC DALI, a slim, compact driver certified to the DALI protocol, compatible with DALI controllers already on the market.

Applications

Suited to retrofitting existing T5 fittings where dimming control is required, such as offices, retail spaces and areas with DALI or analogue dimming systems already installed.
