USB Plug Socket 13A 1 Gang Switched White Glass USB-A USB-C | Ledison
- Vendor
- Ledison
- SKU
- 102232
- Availability
- In stock
- Weight
- 0.05 kg
£12.55inc VAT £10.46exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

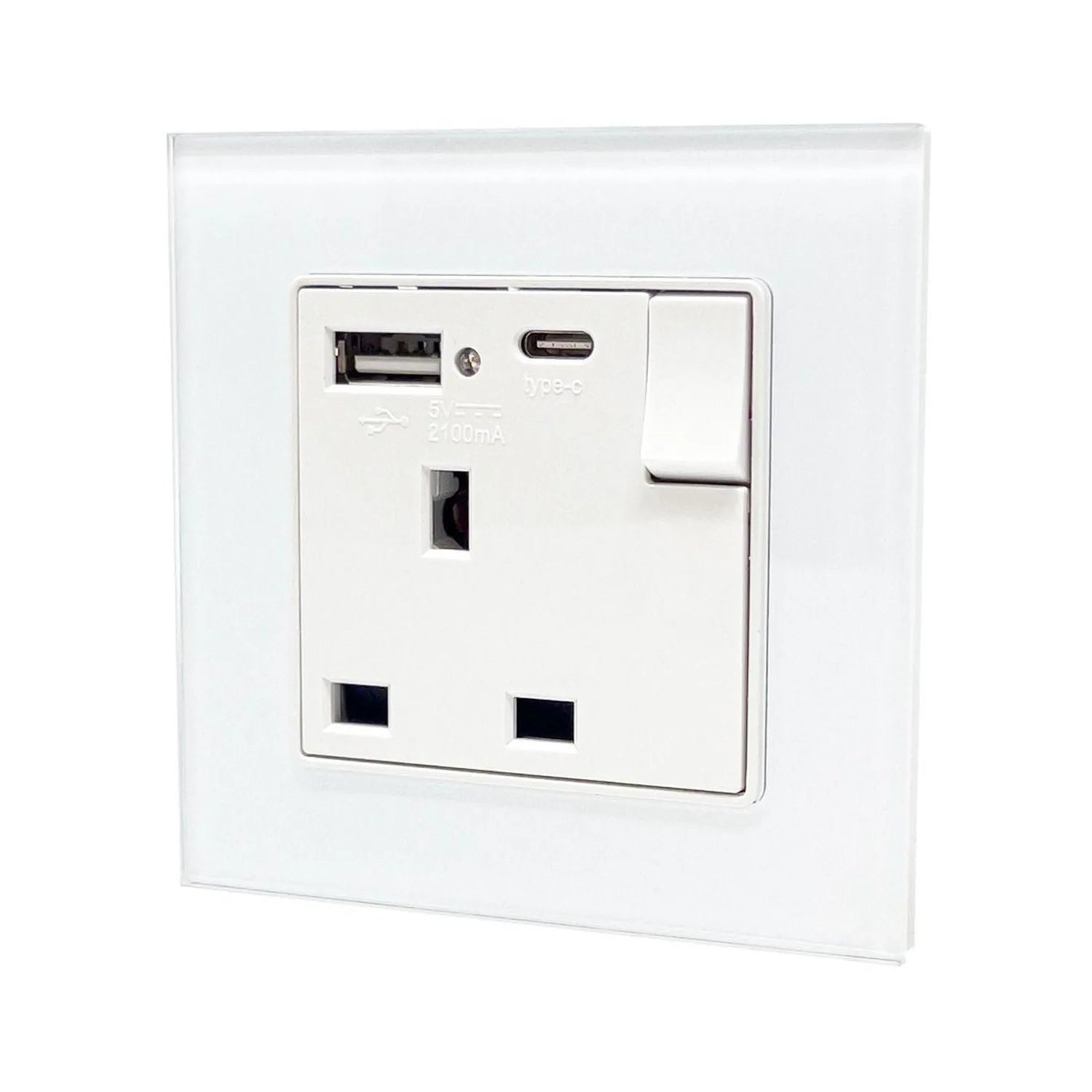

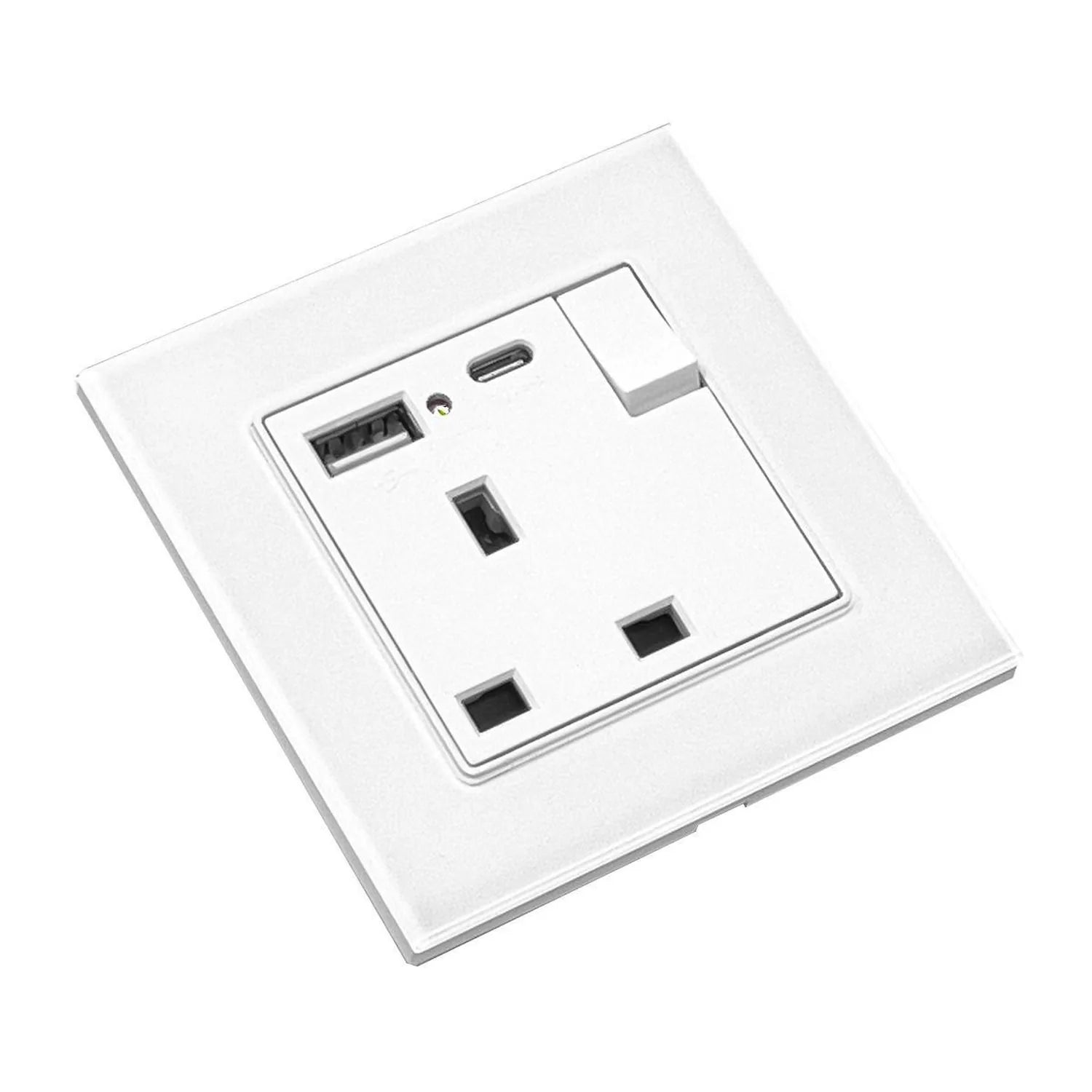

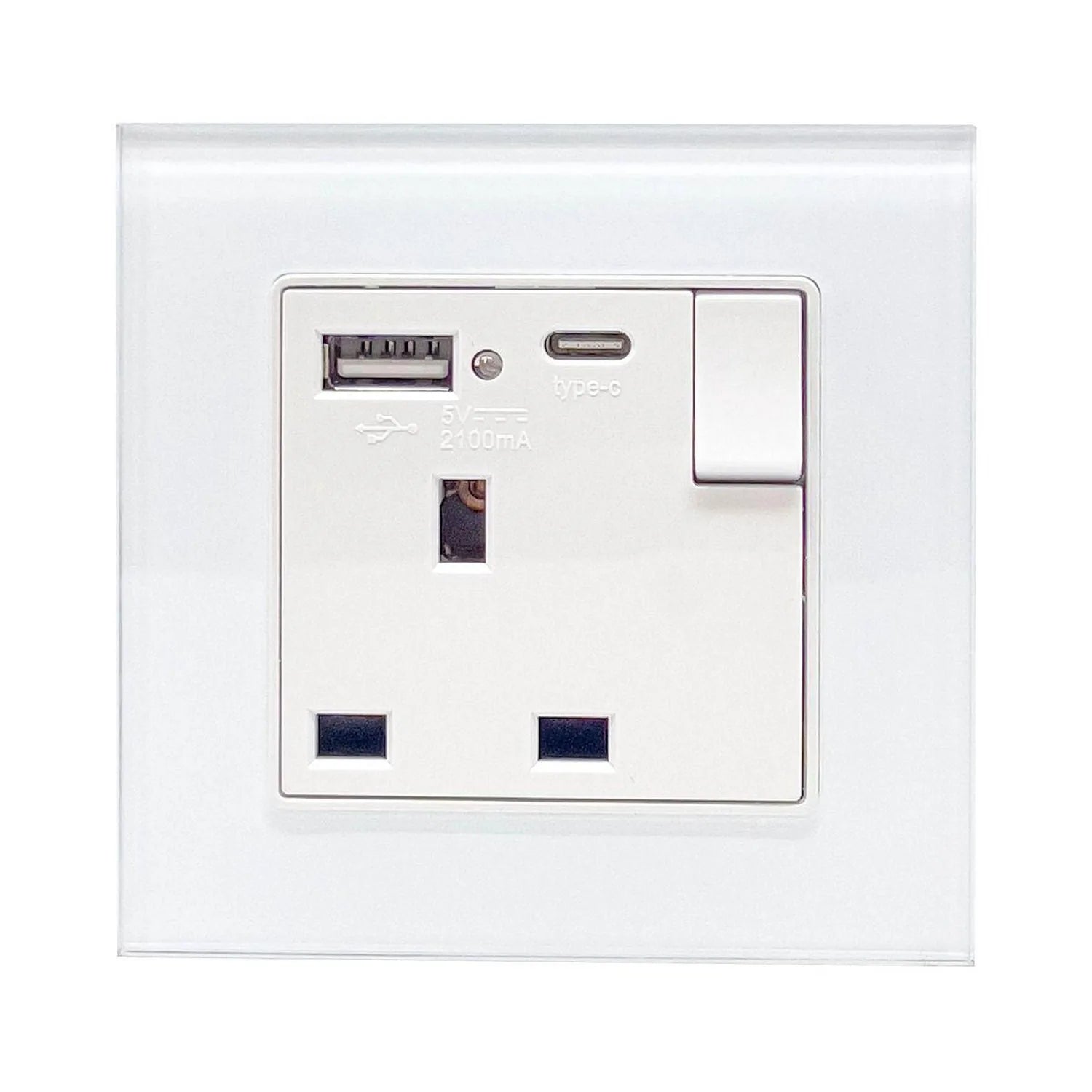

This Ledison USB plug socket is a 13A single switched socket with a white tempered glass front and two charging ports built in, one USB Type A and one USB Type C. Phones, tablets and cameras charge directly from the wall plate. The plug socket stays free for a lamp, a kettle or anything else that needs it.
USB plug socket features
- USB ports: 1 x USB Type A and 1 x USB Type C.
- USB compatibility: works with USB 2.0 and USB 3.0.
- Port protection: each USB port has its own internal protection against overload and short circuit.
- Safety shutter: opened by the earth pin of the plug.
- Switching contact gap: minimum 3mm.
- Plate size: 86x86mm, white tempered glass finish.
Fitting the socket

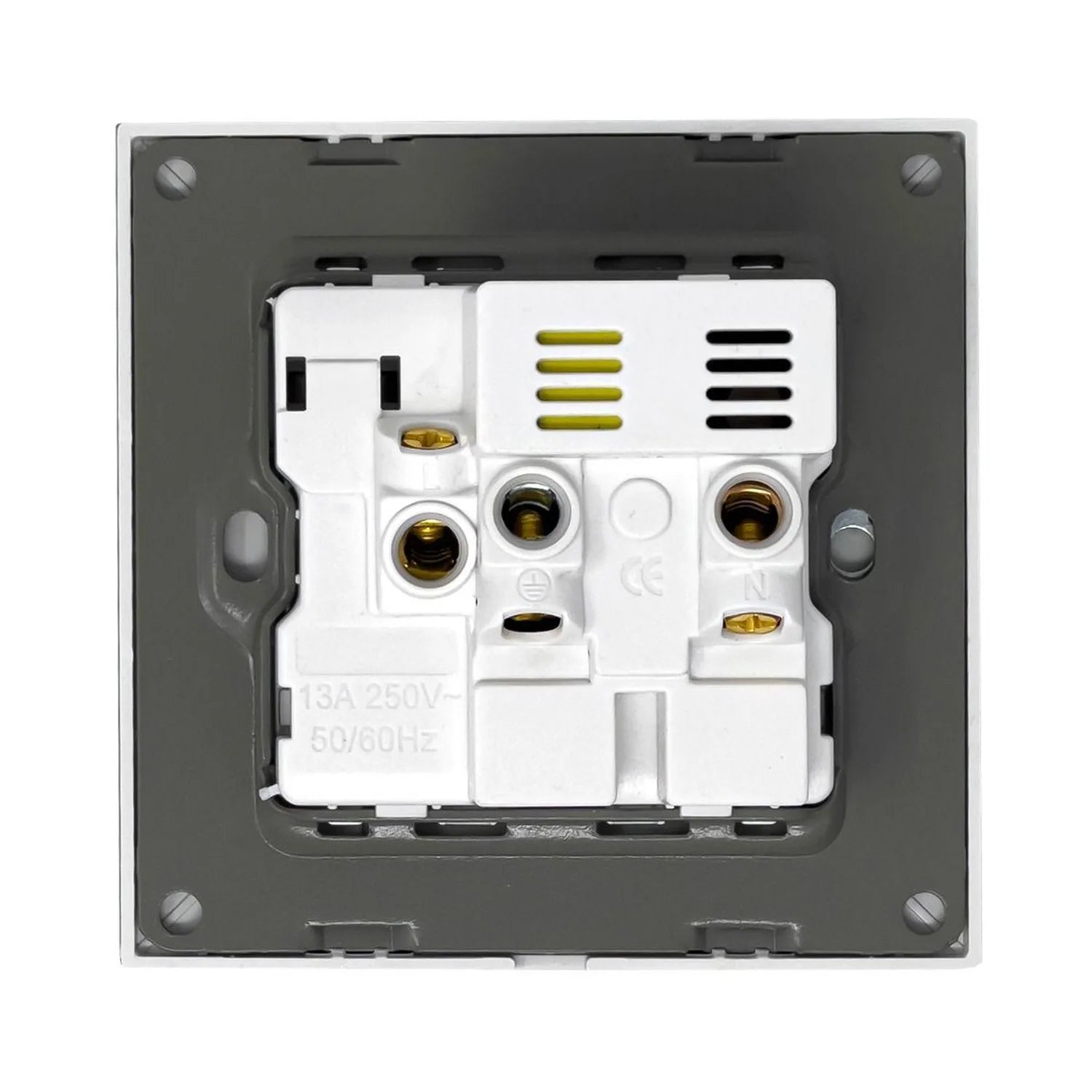

The terminals are angled and in-line, and the captive screws come backed out, so wiring goes in without first having to unscrew each terminal. Plan for depth. This socket needs a 40mm back box, so check what is already in the wall before swapping out an existing faceplate.
Where it suits
A single gang socket with USB-A and USB-C makes sense wherever people charge devices regularly: beside a bed, on a kitchen worktop, at a desk or in a hallway. The white glass front sits well in a room with a clean, modern finish. Because charging happens through the plate itself, there is no separate adaptor to lose and no plug pin taken up by a charger brick.
Why a switched socket with USB
Older handsets still use USB-A cables. Newer phones and laptops increasingly ship with USB-C. Having one of each on the same plate covers both, and the 13A switched outlet handles ordinary mains appliances as normal.
Technical Specifications 9 rows Show
| Type | 13A 1-Gang Switched Socket |
| Finish | Tempered Glass - White |
| USB ports | 1x Type A; 1x Type C |
| USB compatibility | USB 2.0 and USB 3.0 compatible |
| USB protection | Each individual USB port has an internal safety feature to protect against overload or short circuit |
| Shutter | Safety shutter operated by earth pin of plug |
| Switching contact gap | Minimum 3mm |
| Dimensions | 86x86mm |
| Back box | Requires 40mm Back Box |
Manufacturer datasheet. Figures as published by the manufacturer.
