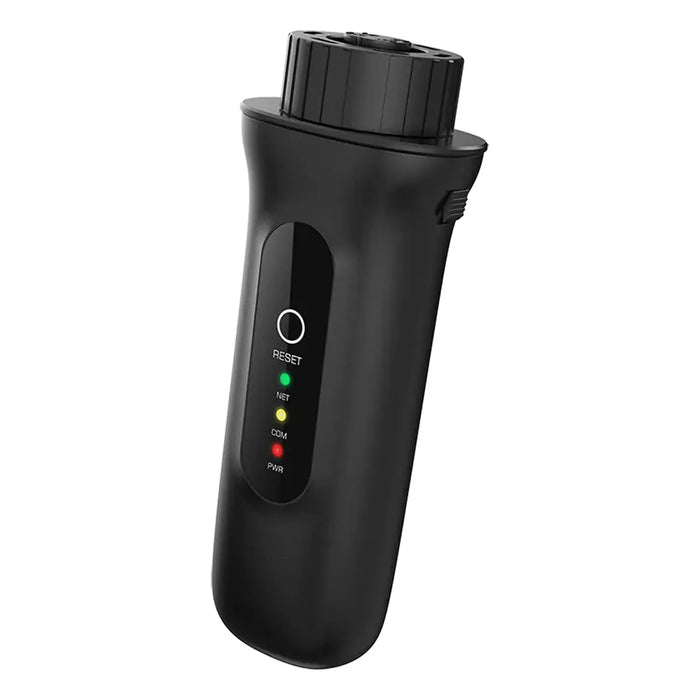

Solis S5-WiFi-ST WiFi Data Logger 4-Pin for up to 10 Inverters

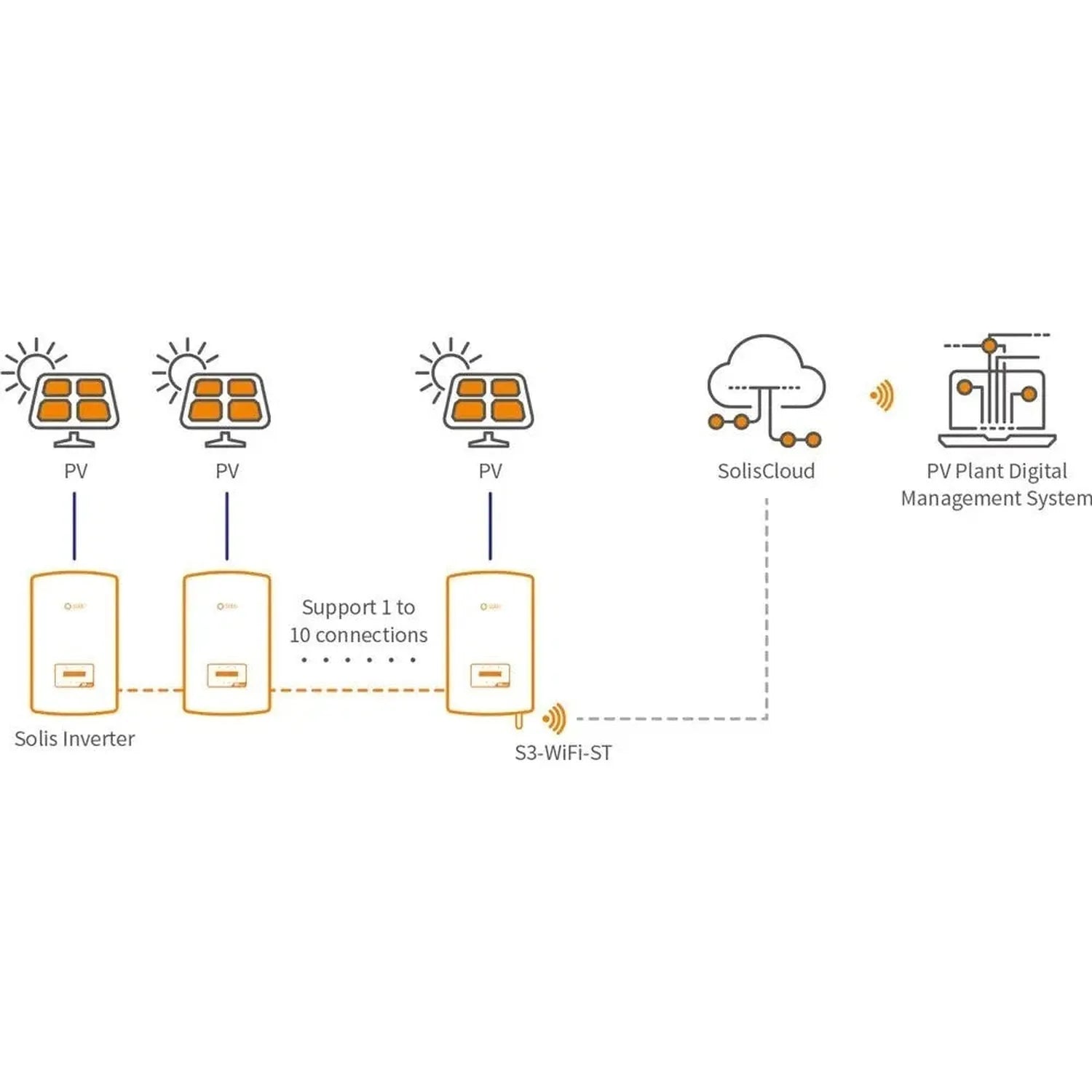

The Solis S5-WiFi-ST is a WiFi data logger that links your Solis inverter system to SolisCloud over your local wireless network. It plugs into the inverter's external 4-pin port and lets you check performance, view real-time data and troubleshoot remotely. One logger handles up to 10 inverters through RS485 daisy-chaining.

Key features

• Inverter capacity, connects up to 10 Solis inverters via RS485
• WiFi connection, dual-band 2.4GHz and 5GHz to your router
• Bluetooth setup, nearby Bluetooth connection for configuration and debugging
• Status LEDs, indicator lights for a quick visual check
• RESET button, for troubleshooting and resending data
• Port type, external 4-pin port connection

How it works

1. Plug the S5-WiFi-ST into the inverter's external 4-pin port
2. Connect the logger to your local WiFi using the App or Web setup
3. Data is sent to SolisCloud for live and historical reporting

Applications

Fitted to Solis inverter installations where remote monitoring through SolisCloud is needed, whether for a single inverter or a chain of up to 10 units on one RS485 network.

Compatibility note

This is the S5-WiFi-ST 4-pin model, designed for inverters with an external 4-pin port. Inverters with a USB logger port need the USB version instead.
