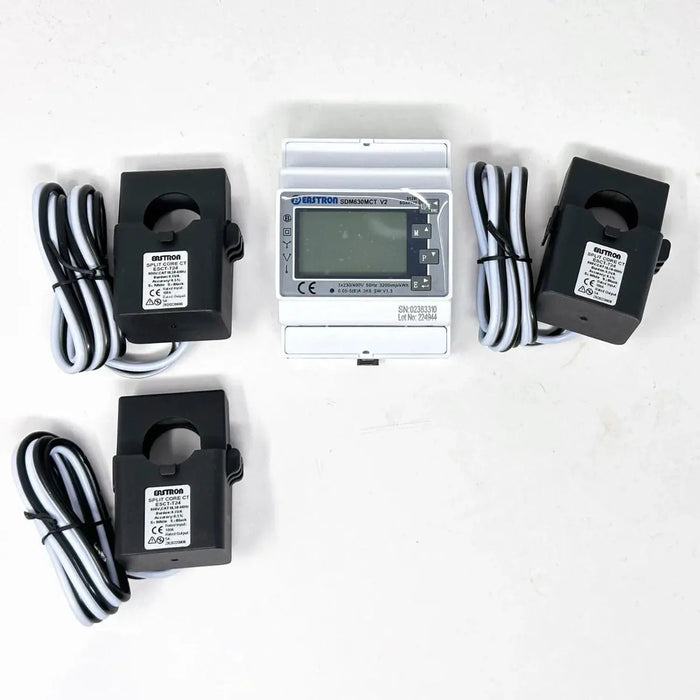

Eastron SDM630MCT Three Phase Energy Meter with CT Clamps

The Eastron SDM630MCT Modbus V2 is a MID certified three phase energy meter supplied with CT current transformer clamps. It can be configured for single or three phase systems using the dropdown selector, and it works with all hybrid solar inverters for self-consumption and export control via RS485 Modbus.

Key features

• Meter type, three phase Modbus energy meter with CT clamps included
• Certification, MID certified (SDM630MCT-MOD-MID)
• Configuration, can be set for single or three phase operation
• Sensors, option to add 1 or 3 current sensors at checkout
• Communication, RS485 Modbus
• Measurement, bi-directional, records import and export energy
• Mounting, 35mm DIN rail
• Compatibility, works with hybrid solar inverters using RS485 Modbus

Applications

Used for self-consumption and export monitoring on single and three phase hybrid solar systems, and for zero export configuration on grid-tied and hybrid inverters.

Installation notes

CT clamps are fitted to the incoming supply conductors, and the meter connects to the inverter's RS485 port. Wiring should be carried out by a qualified electrician.
