Product Description

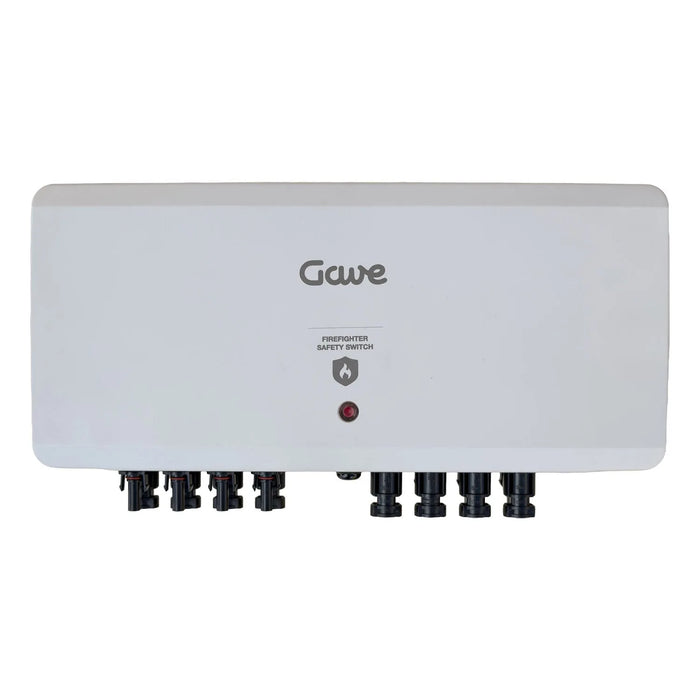

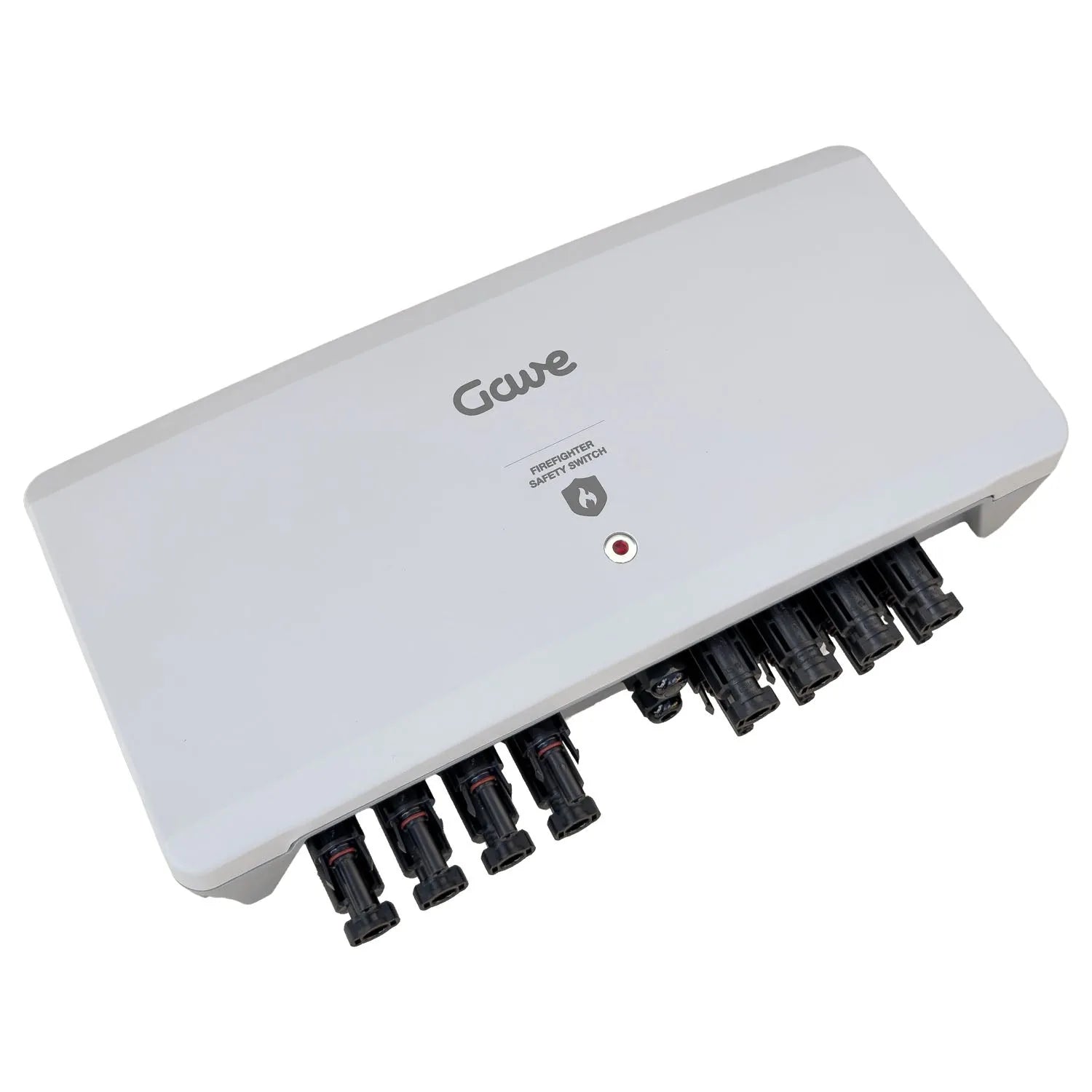

The GAVE SFF140/4 is a string-level DC load break disconnect switch built for emergency rapid shutdown of solar PV arrays. It supports 4 PV strings and is designed to stop DC current flow quickly, helping protect firefighters and emergency crews working near a rooftop array. It is made in Spain by GAVE.

Key features of this solar panel rapid shutdown device

  • String count, supports 4 PV strings
  • Maximum voltage, up to 1500VDC
  • Maximum current, up to 50A per string
  • Disconnection type, string-level load break disconnection

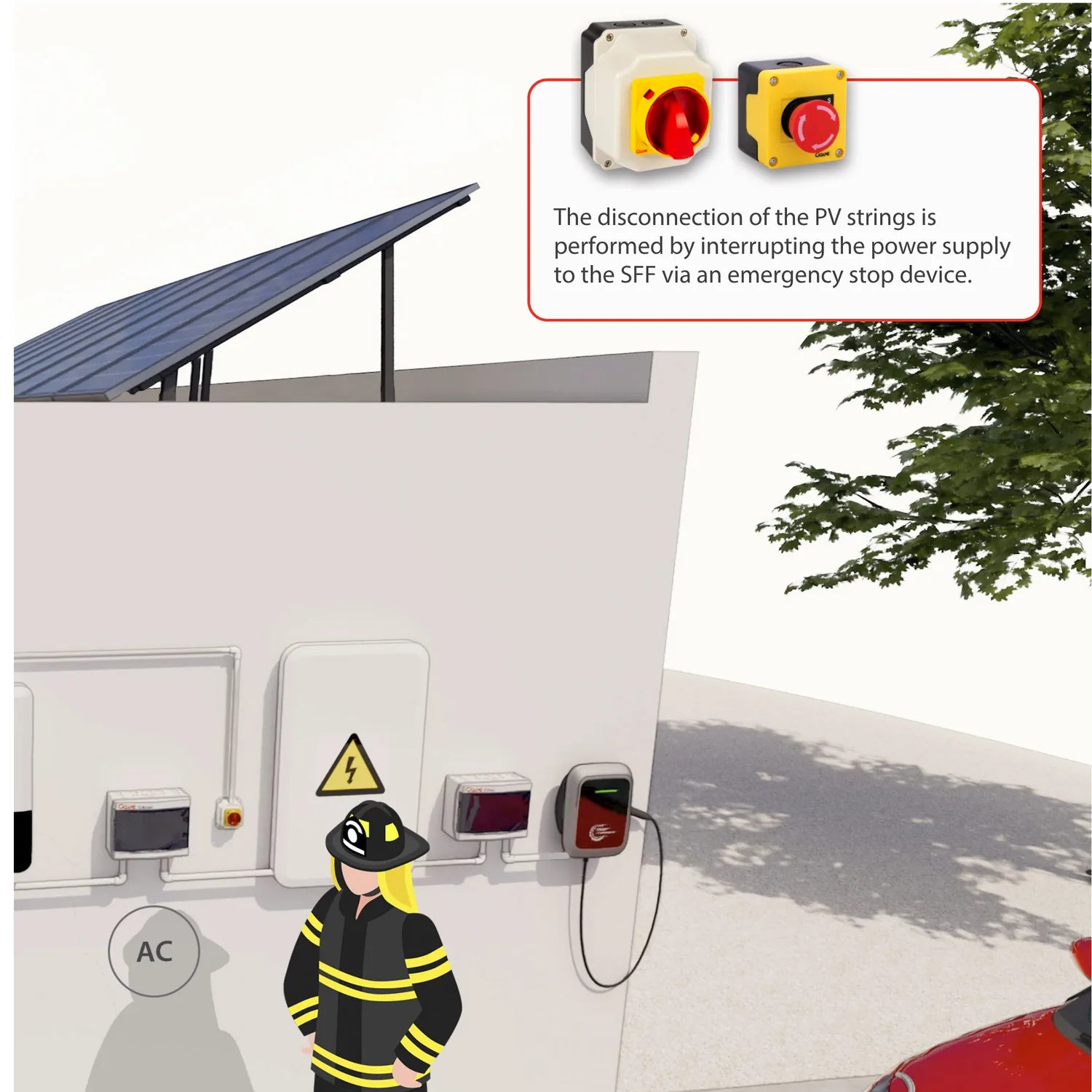

  • Purpose, rapid shutdown for firefighter safety in emergency situations
  • Origin, made in Spain by GAVE

Applications

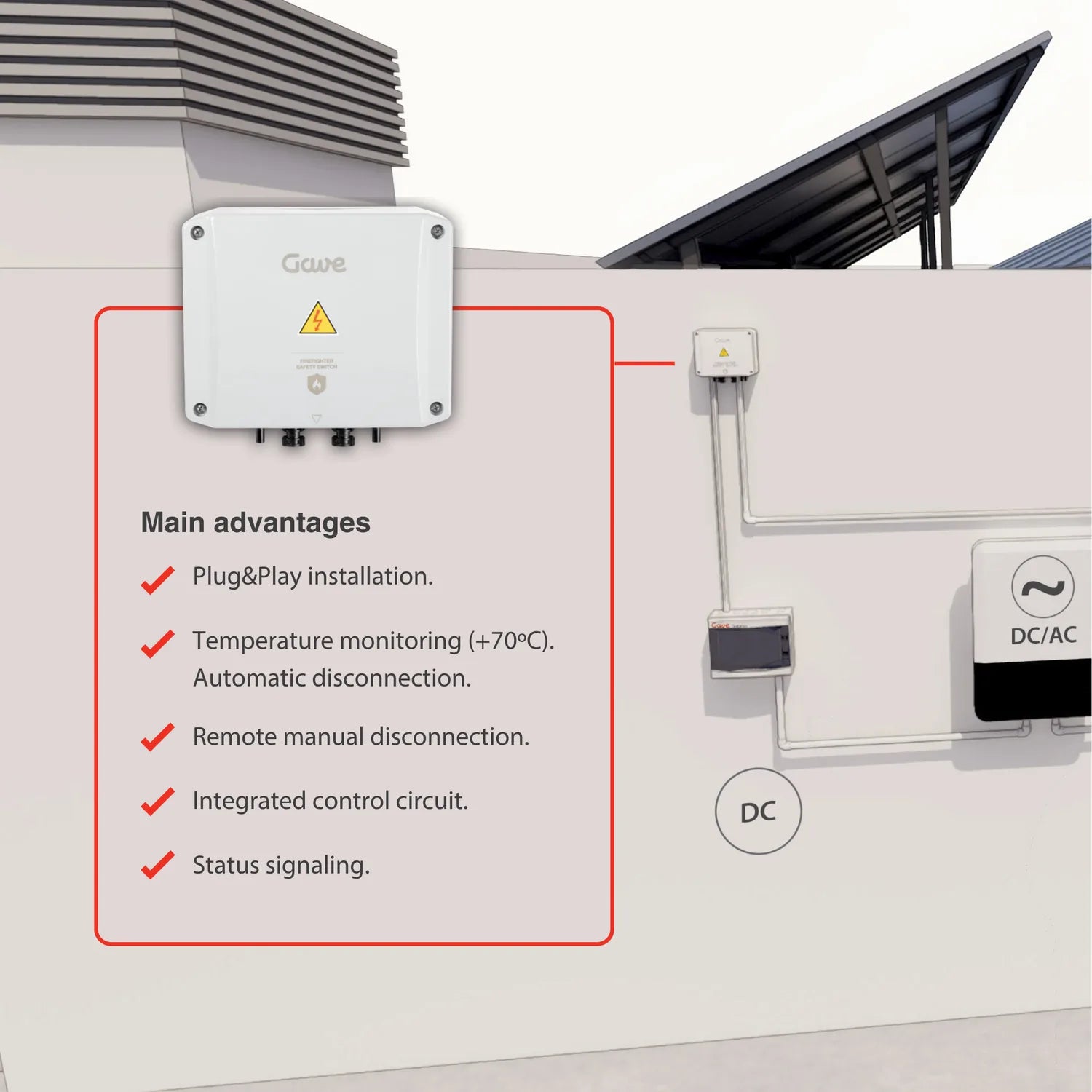

This switch is fitted to commercial and residential solar PV installations with 4 strings, where a rapid DC shutdown is needed for firefighter access or emergency response on rooftop arrays.

Installation and safety notes

Installation must be carried out by a qualified electrician or MCS-accredited solar installer. Positioning and wiring should follow relevant fire safety and PV installation standards. DC solar circuits remain dangerous even after activation, so safe working procedures must always be followed by anyone accessing the system, including emergency services.

Technical Specifications 5 rows Show
SpecificationValue
Model CodeSFF140/4
PV Strings Supported4
Max DC Voltage1500V
Max Current per String50A
Made ByGAVE, Spain

Manufacturer datasheet. Figures as published by the manufacturer.
