Set of 4 Hall-effect Current Sensors 30A | Voltacon PV Monitoring

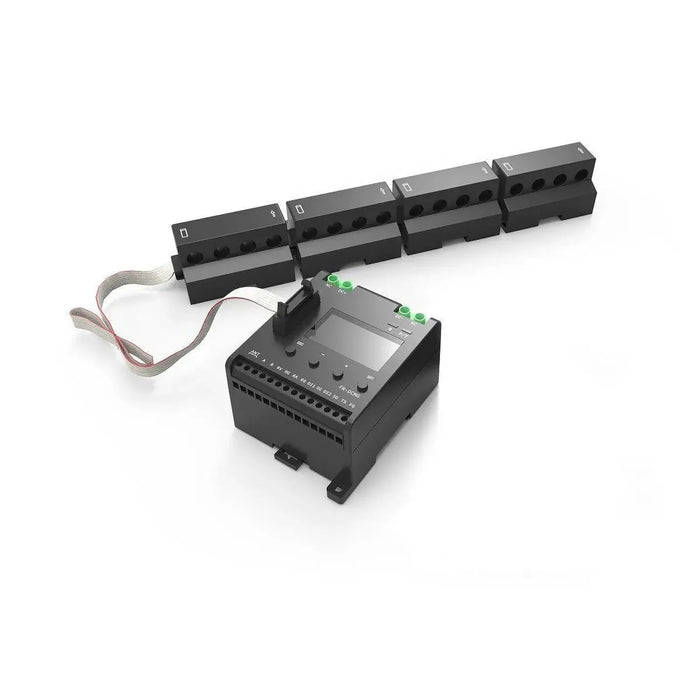

This set of 4 hall-effect current sensors adds digital monitoring to individual solar PV strings. Each sensor is rated at 30A and works with the Voltacon PV string monitoring system, which supports up to 19 independent strings from a single digital controller. One set covers 4 strings at once.

Key features

• Sensors per set, 4x hall-effect current sensors
• Current rating, 30A per sensor
• Compatibility, works with the Voltacon PV string digital monitoring system
• String capacity, up to 19 individual strings monitored using one controller
• Measurement type, non-intrusive, hall-effect current sensing
• Use case, suited to residential and commercial solar PV string monitoring

Applications

These sensors act as expansion units for the Voltacon PV string monitoring system, adding coverage for additional strings in multi-string solar arrays. They are used wherever individual string current needs to be tracked separately from the rest of the array.

Installation notes

Each sensor clips around the DC conductor of a single string. They pair with the Voltacon PV string monitoring controller, and installation should be carried out by a qualified solar engineer.
