Solar PV Rapid Shutdown Combiner Box 5 String 1500V | Voltacon BFS-S4
£262.50
Skip to product information
Solar PV Rapid Shutdown Combiner Box 5 String 1500V | Voltacon BFS-S4
- Vendor
- Voltacon
- SKU
- BHT-5-5
- Availability
- Pre-order
- Weight
- 2.0 kg
Not in stock right now. We will confirm the lead time before dispatch.
£262.50inc VAT £218.75exc VAT
Delivery from £10.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description

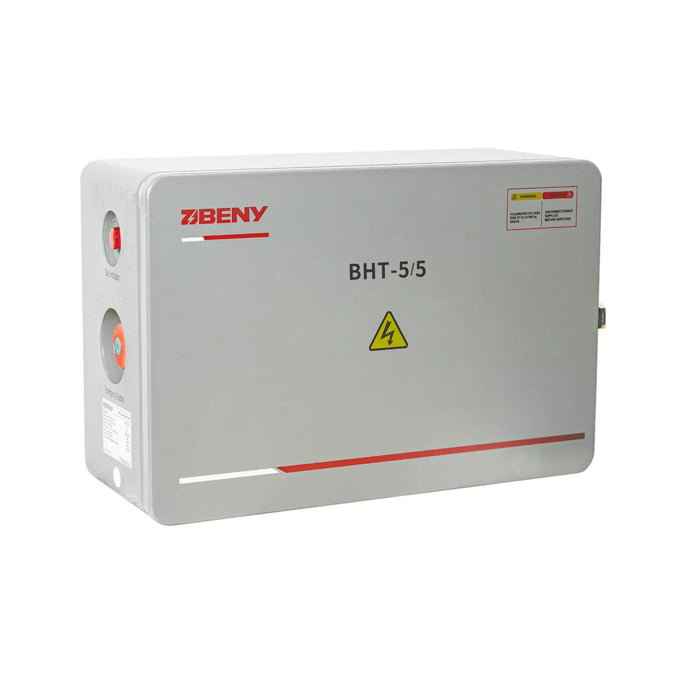

The BHT-5/5 Series combiner box brings string-level rapid shutdown to rooftop solar arrays, giving firefighters a safe way to isolate DC power in an emergency. It takes 5 solar PV string inputs and outputs, rated at 50A per string at 1500V DC, and cuts DC power across all strings the moment AC supply is removed from the property.
This DC isolation function reduces the risk of electric shock on the roof during a fire or fault and helps installations meet rapid shutdown requirements for rooftop fire safety.
Key features of this solar panel rapid shutdown device
- String inputs, 5 solar PV strings, 50A per string
- Voltage rating, 1500V DC
- Automatic shutdown, disconnects all DC strings simultaneously when AC power is removed
- Thermal protection, automatic shutdown on over-temperature inside the BFS-S enclosure
- Installation, plug and play, does not interfere with inverter operation or Wi-Fi
- Compatibility, works with most string inverters and solar panels
Applications
Fitted on residential and commercial rooftop solar PV systems where fire safety rapid shutdown compliance is needed, and wherever firefighters require DC isolation access at roof level.
Installation notes
Install according to the manufacturer's wiring guide and current electrical regulations. Position the rapid shutdown device so it is accessible to firefighters. DC connections should only be made by a qualified solar installer.
Technical Specifications 16 rows Show
| Parameter | Value |
| Model | BFS-S4 |
| Number of Strings | 5 strings (4 per box) |
| Max DC Voltage (IEC/EN 60947-3) | 1500 V |
| Max DC Current (IEC/EN 60947-3) | 50 A |
| Operating Voltage (AC) | 90 - 260 VAC |
| Nominal Voltage (AC) | 230 VAC |
| Nominal Current (AC) | 30 mA |
| Start-up Current (Average) | 100 mA |
| Switch-on Action Current (Max) | 300 mA |
| Ingress Protection | IP66 |
| Storage Temperature | -40°C to +85°C |
| Max Operating Temperature (auto off) | +85°C |
| Protection Level | Class II |
| Mechanical Operations (no current) | 9,700 |
| Operations Under Load | 300 |
Manufacturer datasheet. Figures as published by the manufacturer.
