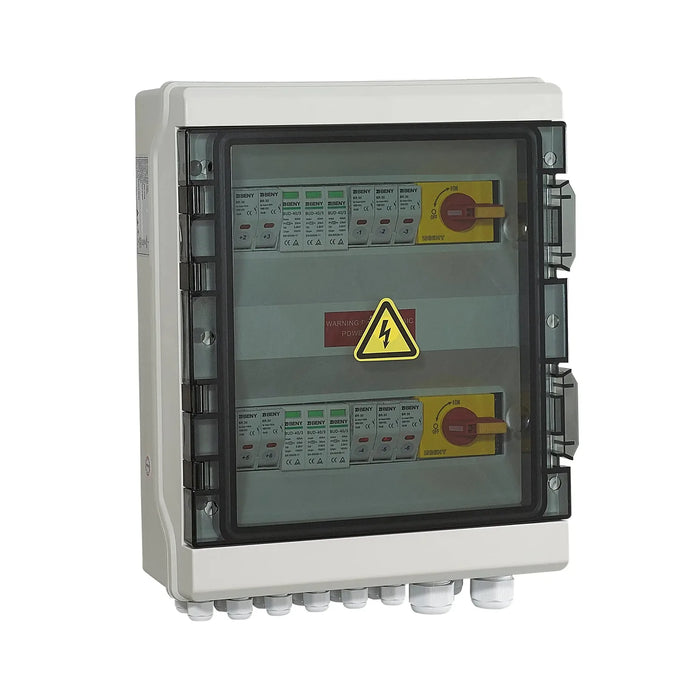

Solar PV combiner box with six input and two output terminals, yellow and black high-voltage warning symbol, two rotary disco

Solar PV Combiner Box 6-In 2-Out 1000VDC IP65 | Voltacon

12A / 150V
£275.63
Skip to product information
Solar PV combiner box with six input and two output terminals, yellow and black high-voltage warning symbol, two rotary disco
Solar PV Combiner Box 6-In 2-Out 1000VDC IP65 | Voltacon

Solar PV Combiner Box 6-In 2-Out 1000VDC IP65 | Voltacon

Vendor
Voltacon
SKU
738658-1
Availability
In stock
Weight
4.0 kg

£275.63inc VAT £229.69exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

This pre-wired solar PV DC combiner box takes 6 fused string inputs and splits them into 2 independent protected outputs, suited to dual MPPT inverters with up to 3 strings per MPPT. It is rated to 1000VDC and housed in an IP65 enclosure, with fused string terminals, surge protection and isolators built in.

Key features

  • Configuration, 6 fused string inputs, 2 independent outputs
  • Maximum voltage, 1000VDC
  • String protection, fused terminals with LED fault indicators
  • Surge protection, DC SPD fitted per output
  • Isolation, 2x DC isolators included
  • Enclosure, IP65 weatherproof, with cable glands included

Applications

Use this solar pv combiner box for DC string protection ahead of dual MPPT solar inverters accepting up to 6 string inputs, combining and protecting each string before it reaches the inverter.

Installation and safety notes

DC solar circuits carry dangerous voltages. This box must be installed by a qualified electrician, with all PV strings isolated before working on internal connections.

What's in the box

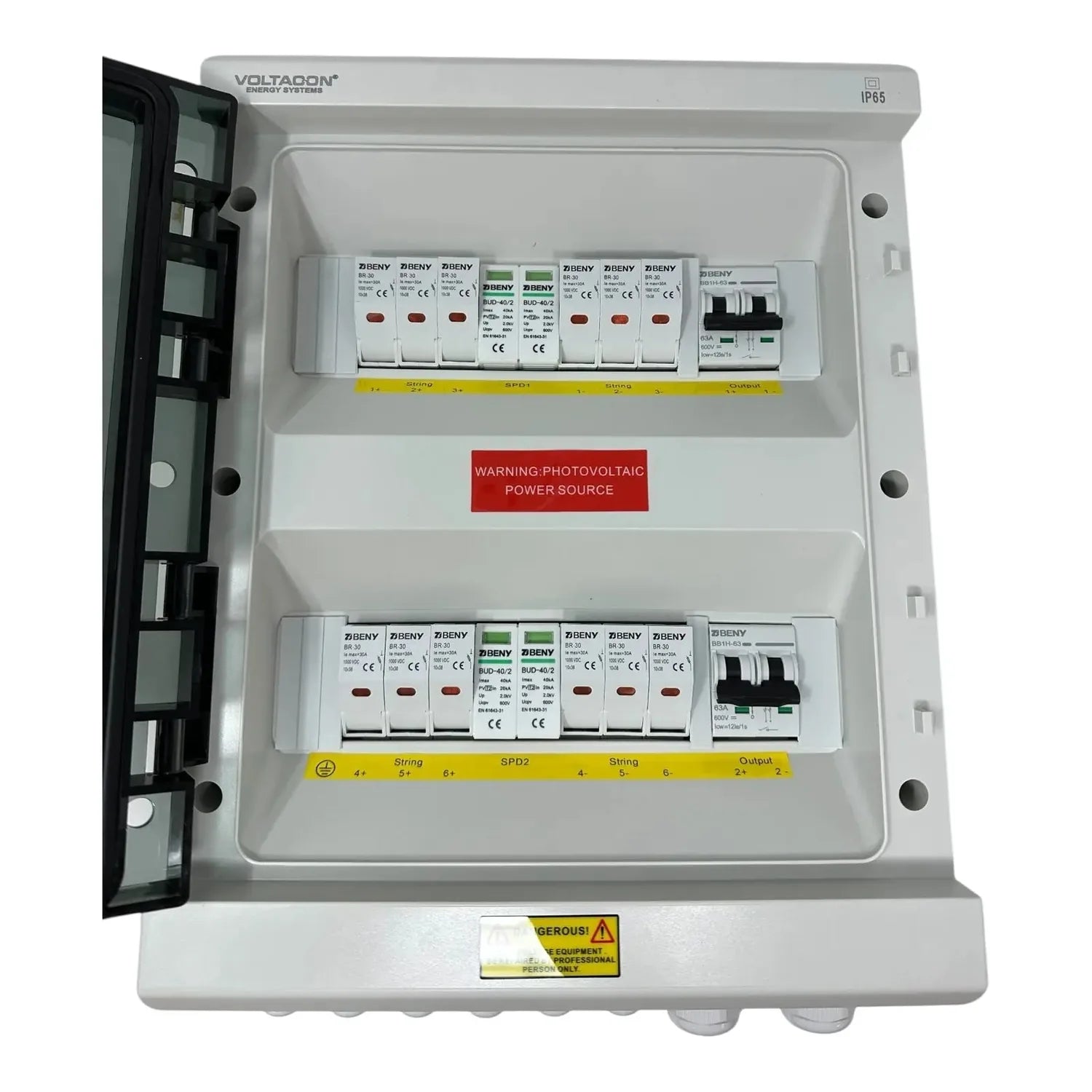

  • Combiner box with fused terminals, SPDs and DC isolators pre-wired
  • Cable glands
Technical Specifications 3 rows Show
SpecificationValue
Configuration6 inputs, 2 outputs
Maximum voltage1000VDC
Enclosure ratingIP65

Manufacturer datasheet. Figures as published by the manufacturer.
