Tile Roof Solar Panel Mounting Kit Hooks and Rails Landscape | Voltacon

A coplanar mounting kit for fitting solar panels on tiled roofs in landscape orientation. Adjustable stainless steel hooks lock under the tile and onto the batten without drilling, and the kit includes 1.2m aluminium rails with mid and end clamps and all fixing hardware per module. Order for anywhere from 1 to 10 modules.

Roof rails for solar panels without drilling

• Hook type, adjustable stainless steel, coplanar fit
• Rail material, AL6005-T5 anodised aluminium, natural finish
• Rail length, 1200mm per module, joined end-to-end with included connectors for longer rows
• Drilling, not required; hooks slide under the tile and engage on the batten
• Order size, 1 to 10 modules, landscape orientation

How it fits together

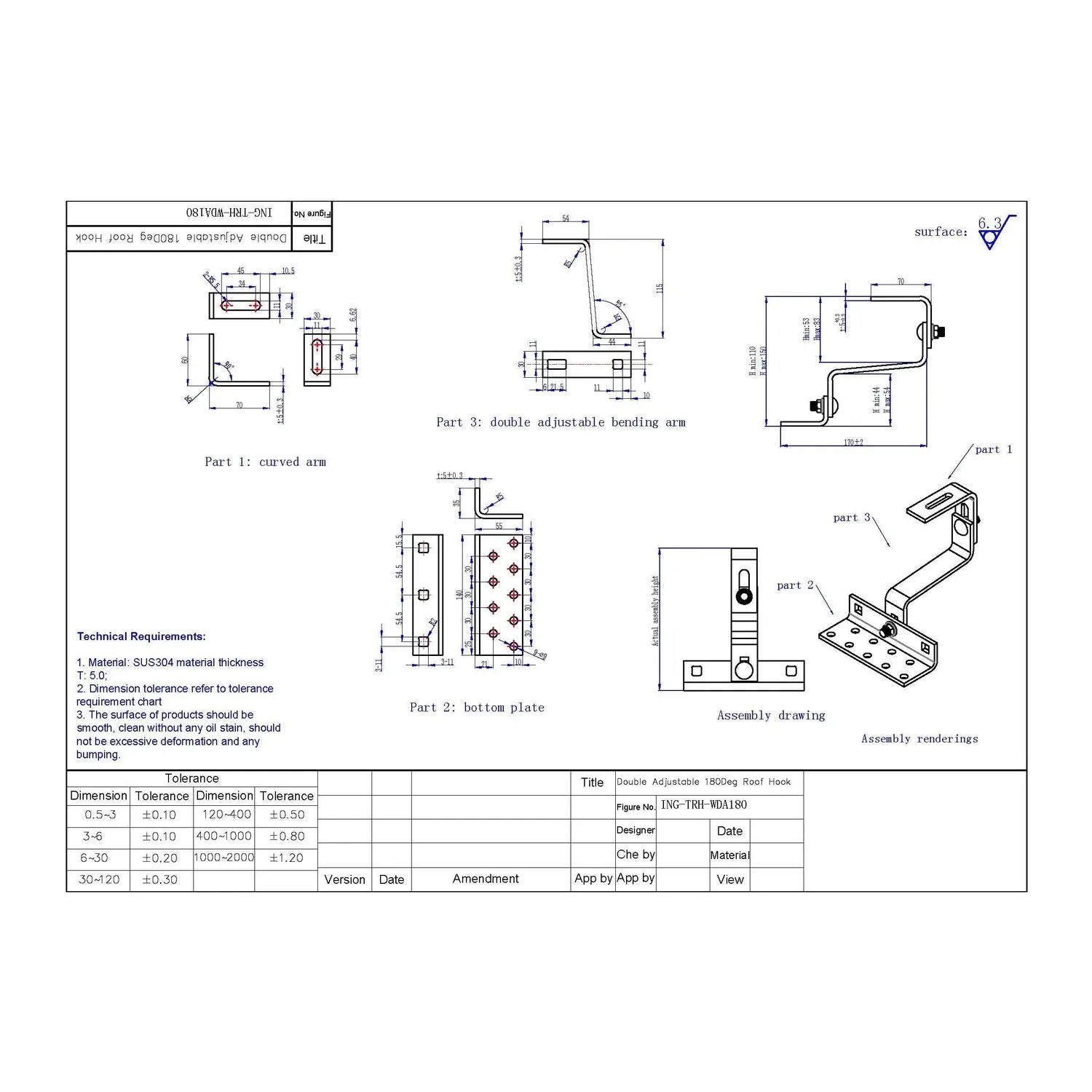

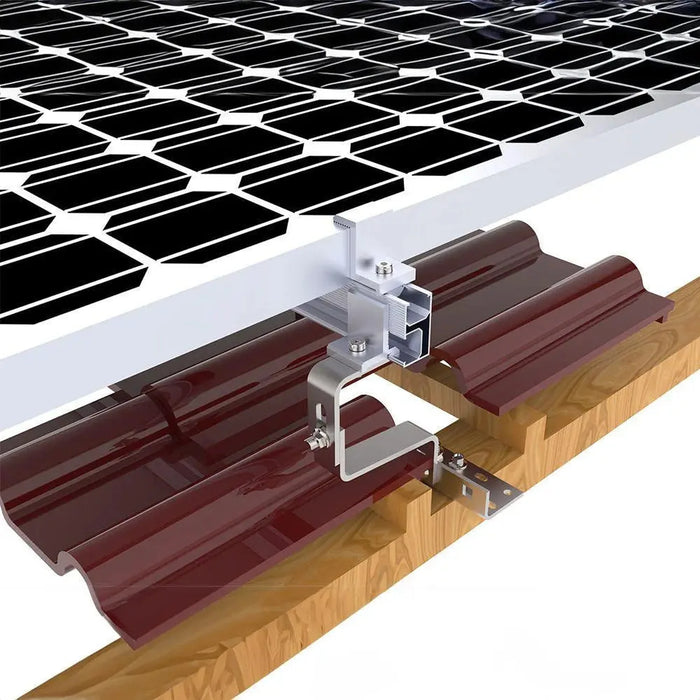

The installer lifts the tile, positions the hook over the batten, and lowers the tile back into place. The hook protrudes through the gap between tiles, and the rail clips onto it with a rail clamp. Because the rails come in 1.2m sections with connectors, rows of any length can be built up on site without cutting.

What's included per module

• 1x Easy Roof aluminium rail, 1200mm
• Middle and end clamps (aluminium)
• Adjustable stainless steel hooks
• M8 nut with plastic clip (stainless steel)
• Allen bolt DIN 912 (stainless steel)
• Rail connectors

Applications

Suited to coplanar PV installations on standard interlocking tiled roofs, in landscape orientation from 1 to 10 modules. Useful where a flush, low-profile mounting is wanted on a residential roof.

Installation notes

Fitting should be carried out by a qualified solar installer. Hooks must be fixed to sound, load-bearing battens, and the hook profile should be checked against the specific tile type before starting. Do not use where battens are undersized or deteriorated.
