Solar Panel Mounting Kit for Tile & Slate Roofs | Portrait

A complete per-module mounting kit for fitting solar panels onto rosemary-style and concrete tile roofs in portrait orientation. The stainless steel hooks are specially angled to locate under the tile edge, so there's no need to drill into the tile itself. Rails and clamps are AL6005-T5 anodised aluminium, and the kit is available for 1 to 20 modules.

Key features of this solar panel tile roof mounting kit

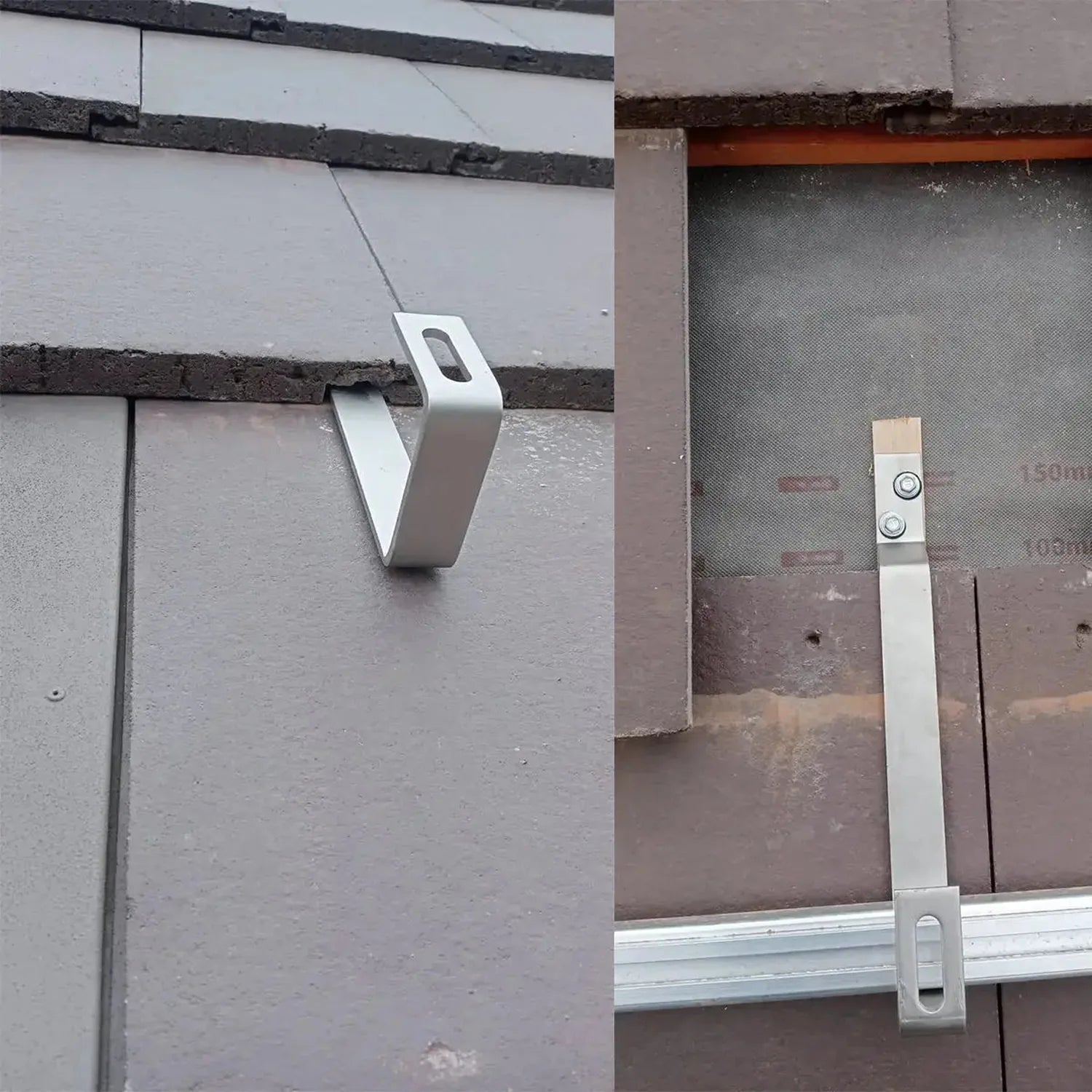

• No tile drilling, hooks sit under the tile edge without penetrating the surface
• Hook types, 90-degree and 180-degree bend stainless steel hooks included
• Materials, AL6005-T5 anodised aluminium rails and clamps
• Rail, 1.2m Easy Roof rail with connector for extending the array to any length
• Compatibility, works with all standard aluminium-framed solar panels
• Order size, portrait orientation, 1 to 20 modules per order

Product overview

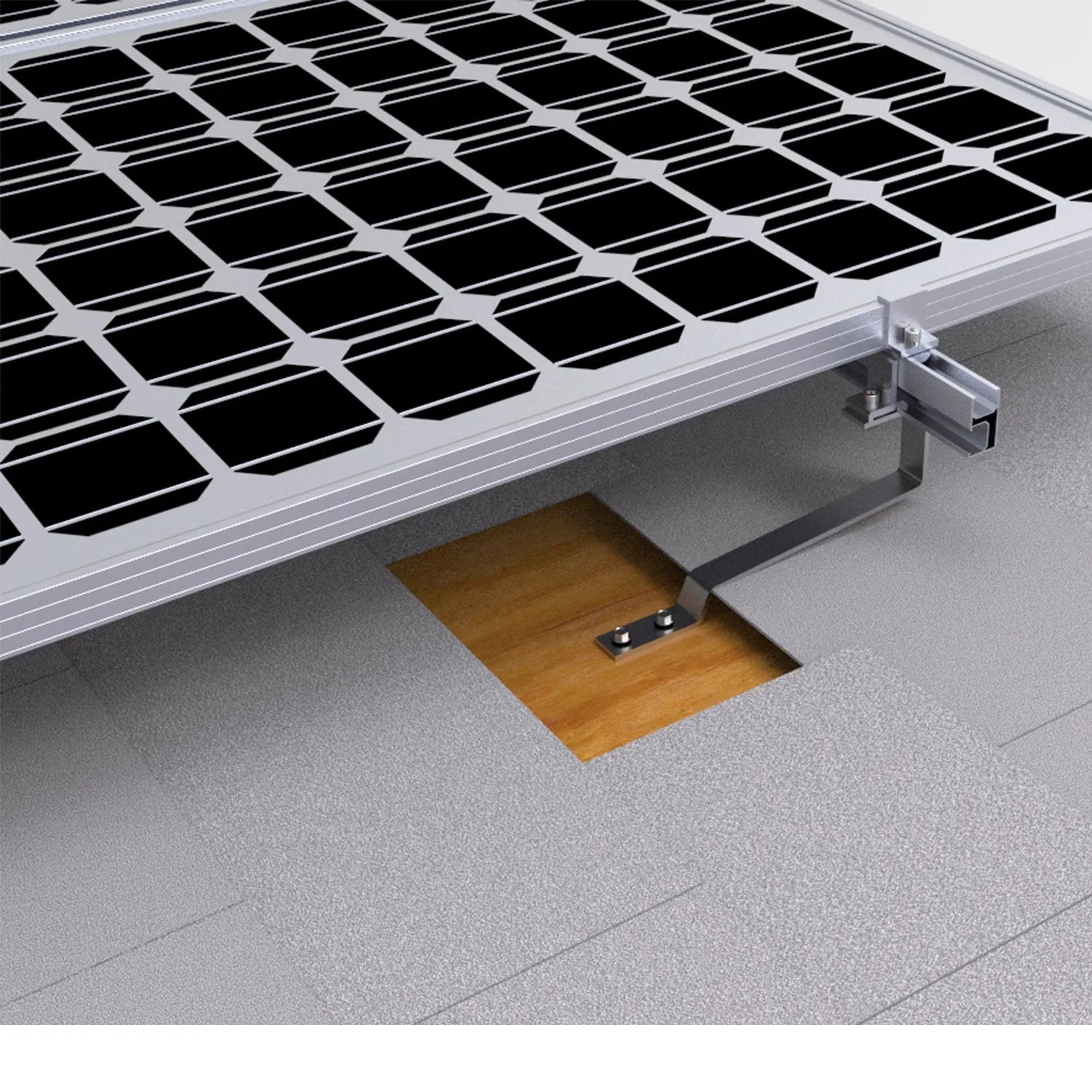

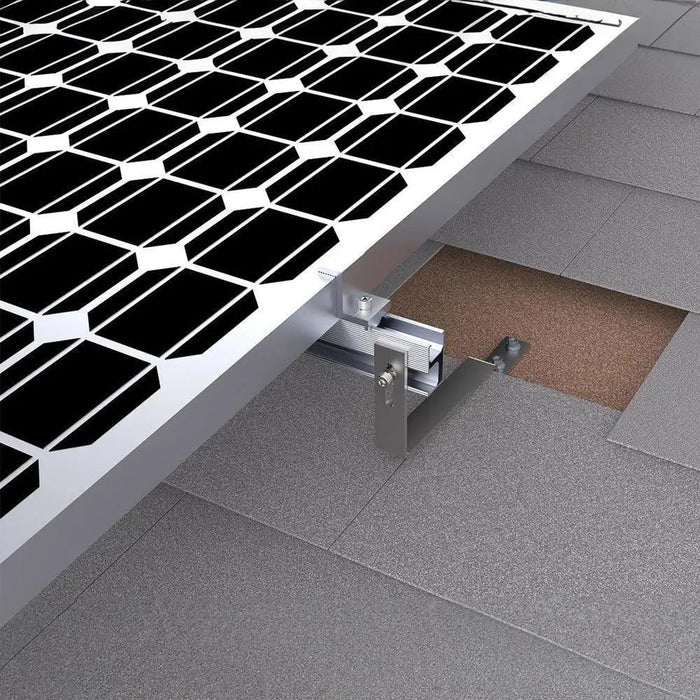

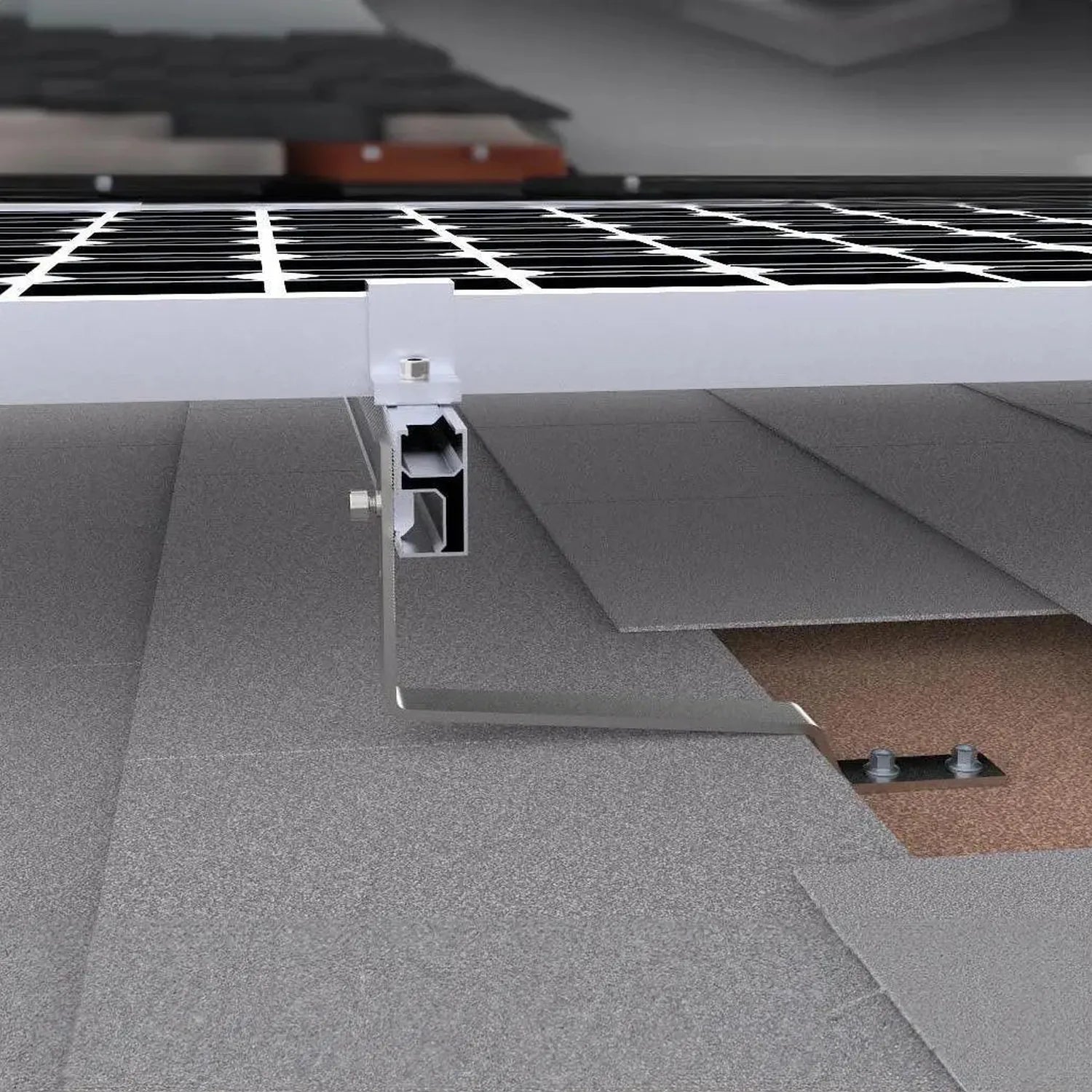

Rosemary and concrete tile roofs need hooks with a specific profile and bend angle to engage under the tile without cracking or drilling it. This kit supplies everything needed per module in portrait orientation: rail, clamps, hooks, screws and connectors.

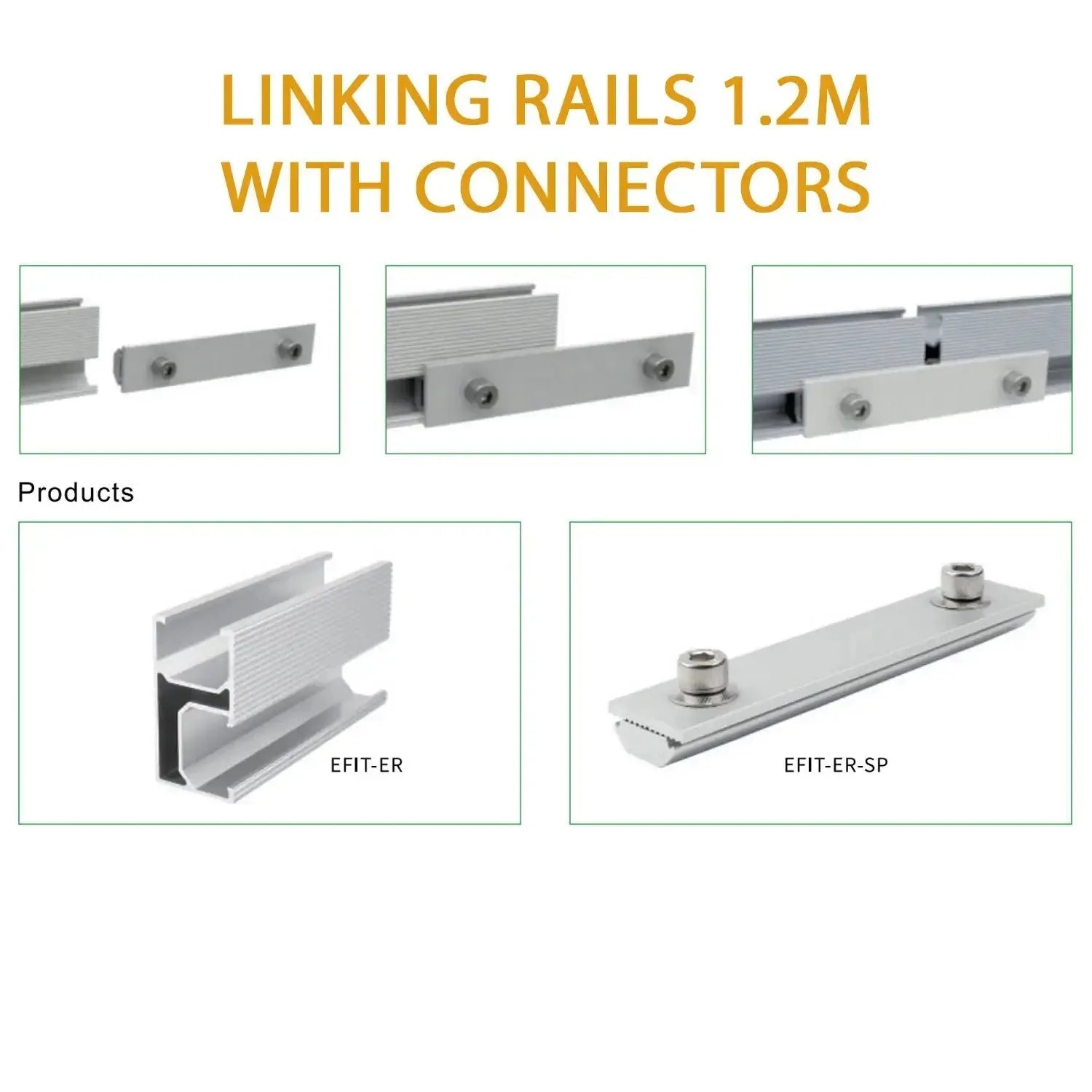

Rails join end-to-end with the included connectors, so an array can be extended without specialist cutting tools. All metalwork is AL6005-T5 aluminium with a natural anodised finish for corrosion resistance.

Applications

Suited to residential rooftop solar PV on rosemary-style and concrete tiles, and to slate roofs, in portrait orientation arrays from 1 to 20 modules. A good fit where drilling into tiles isn't permitted or desired.

What's in the box (per module)

• 1x Easy Roof aluminium rail 1200mm
• Middle and end clamps (aluminium)
• 90° and 180° stainless steel hooks
• Mounting screws with washers (wood-compatible)
• Rail connectors
• Rail clamps

Installation notes

Fit by a qualified solar installer, in line with local building regulations. Check hook compatibility with the specific tile profile before starting, torque wood screws correctly into sound roof battens, and don't exceed the maximum rail span without extra support.
