Waterproof RGBWW LED Strip 5m IP65 24V 18W per Metre | Ledison
- Vendor
- Ledison
- SKU
- 601026
- Availability
- In stock
- Weight
- 0.5 kg
£64.04inc VAT £53.37exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

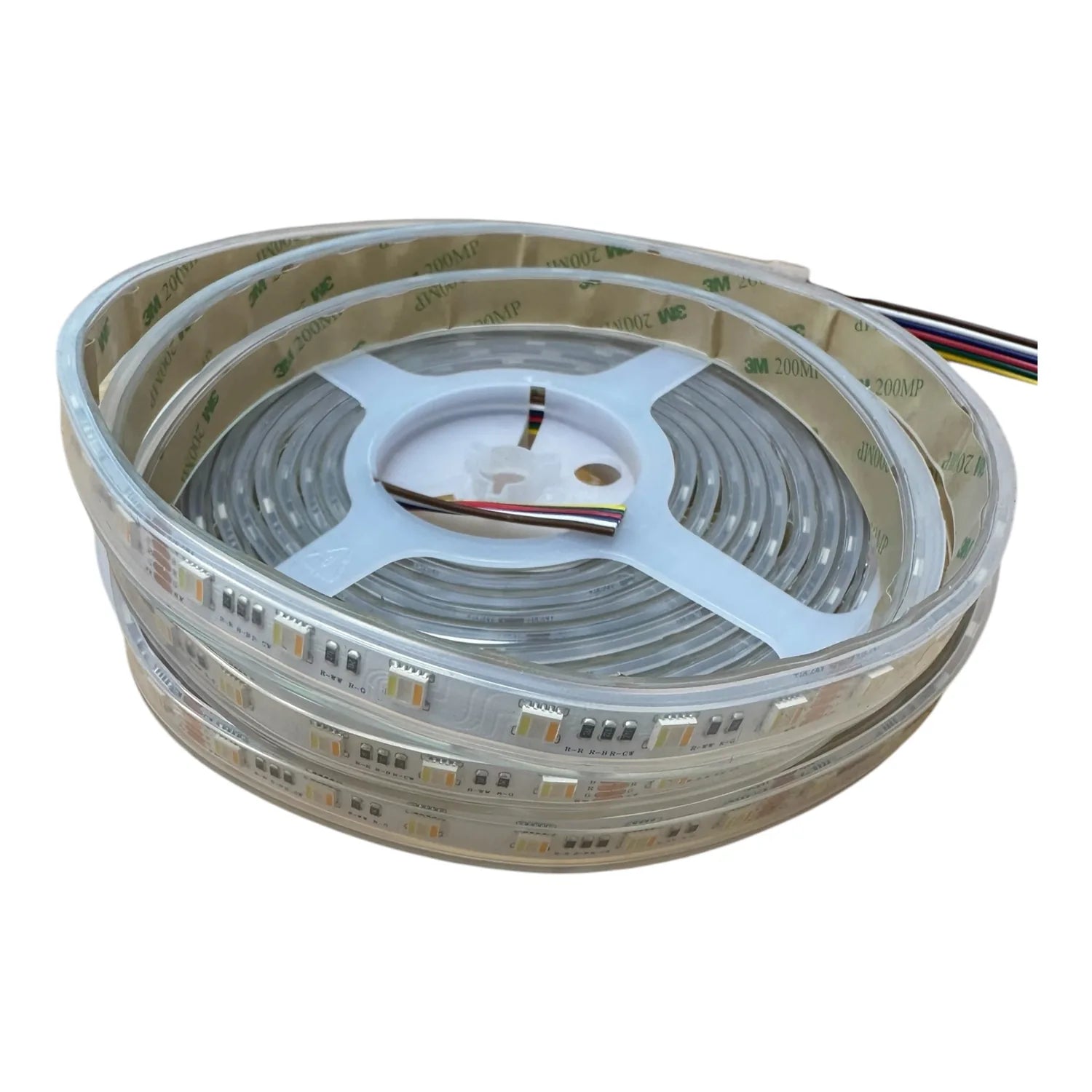

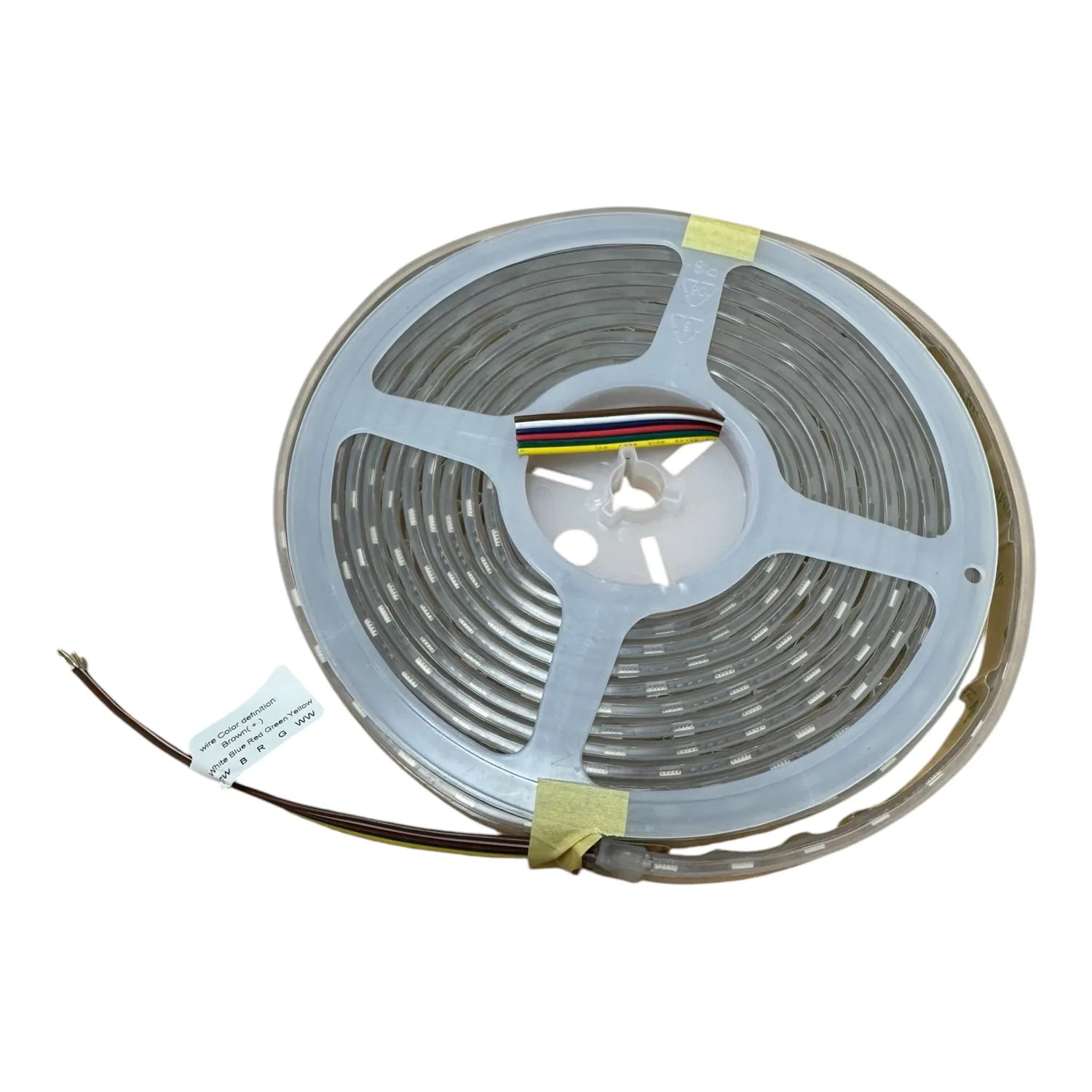

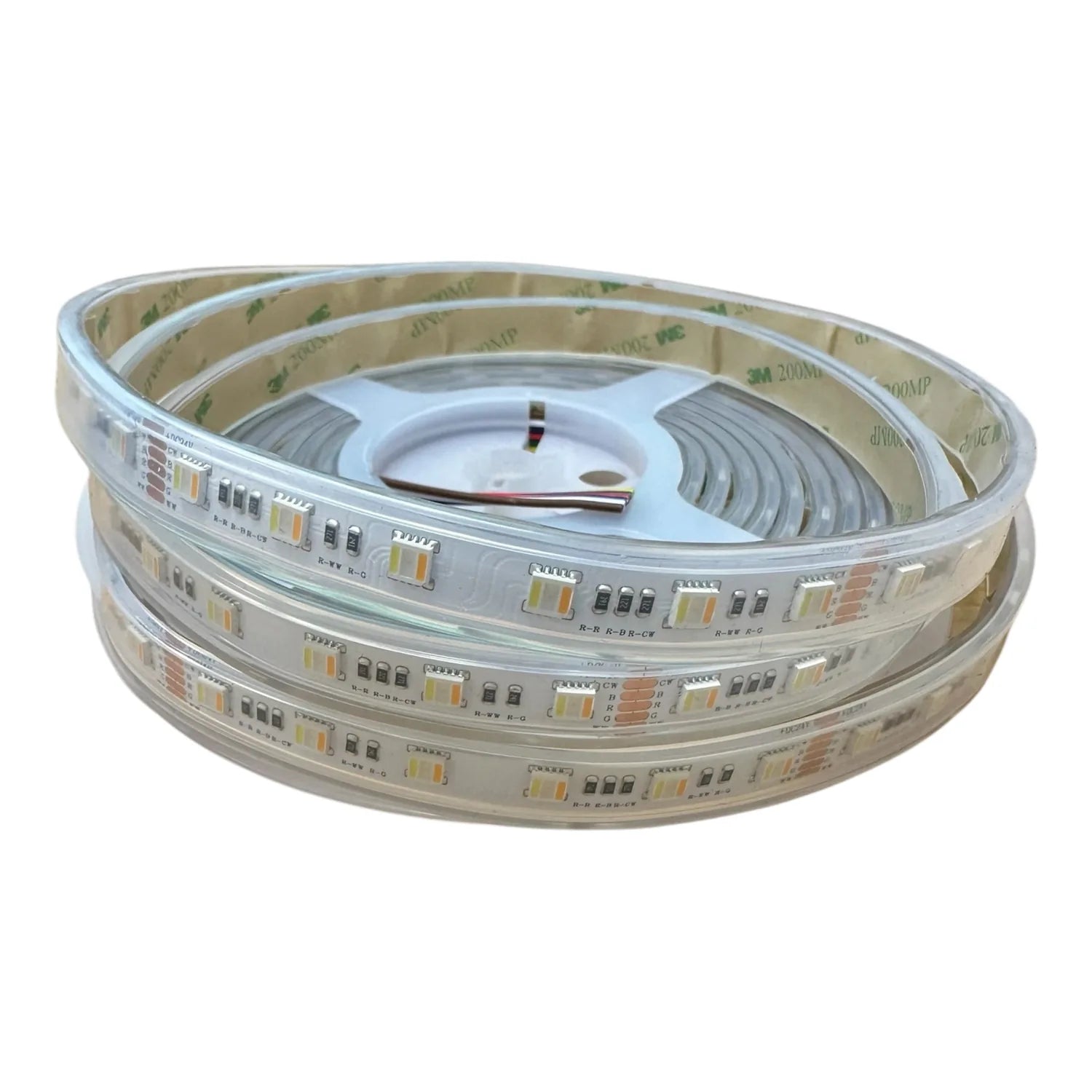

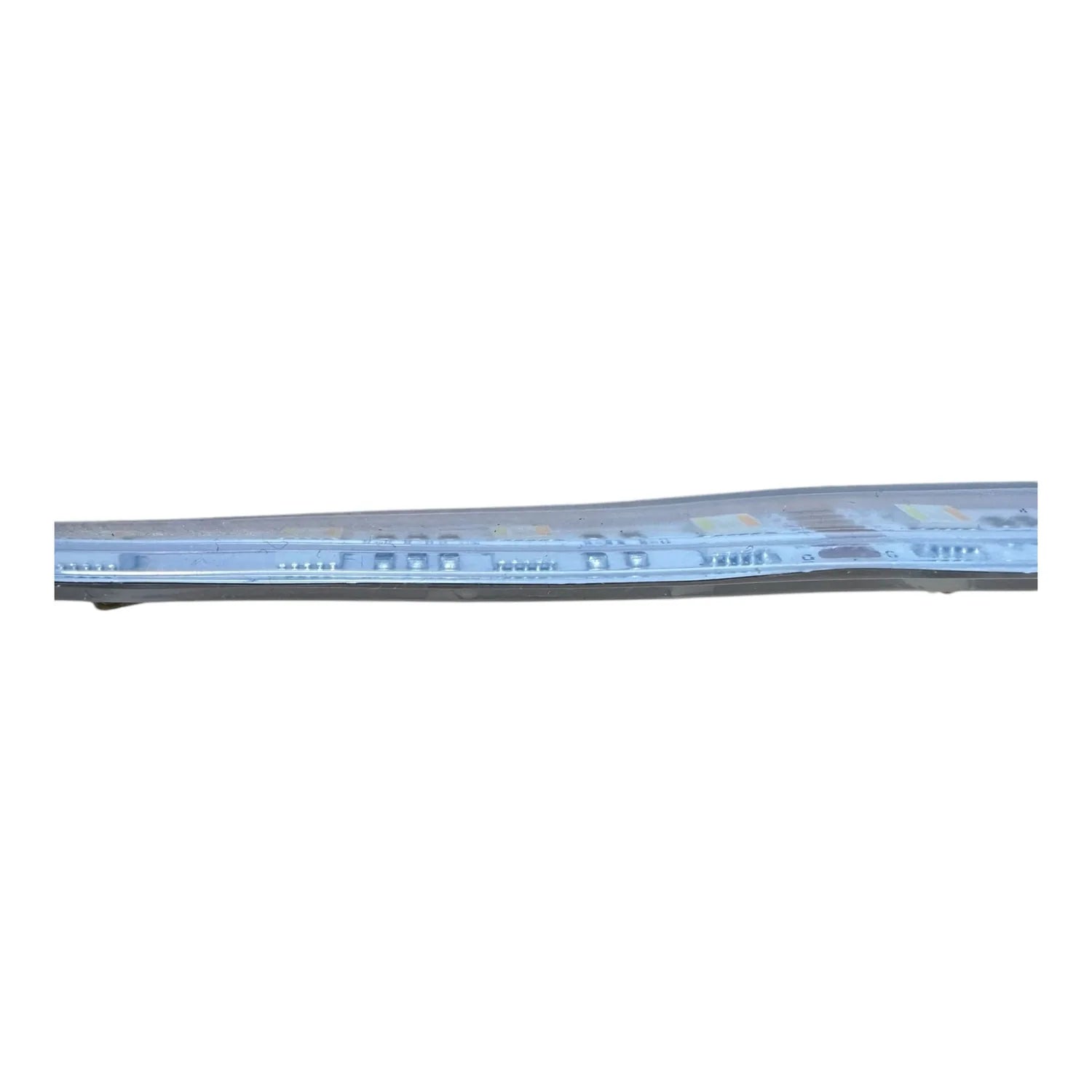

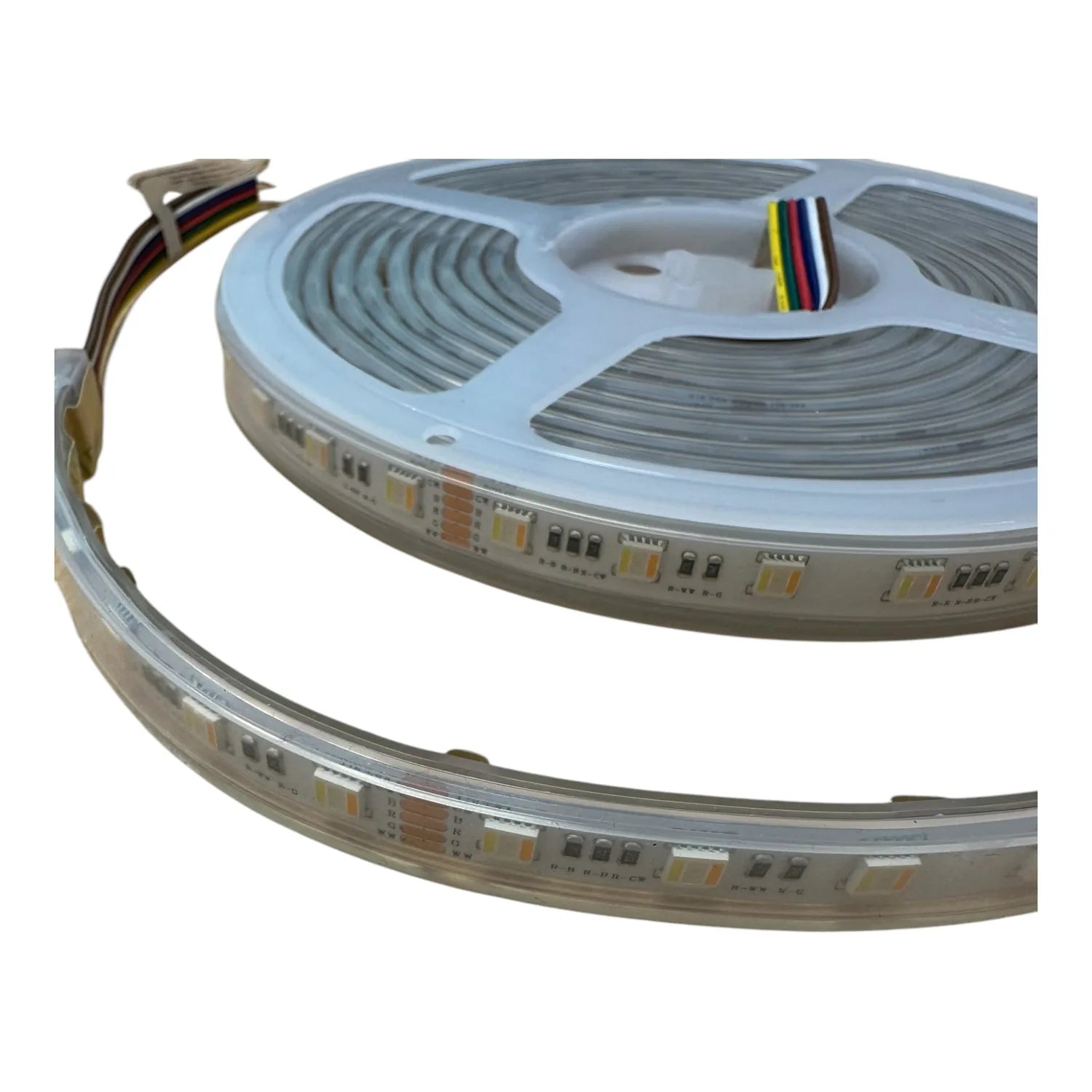

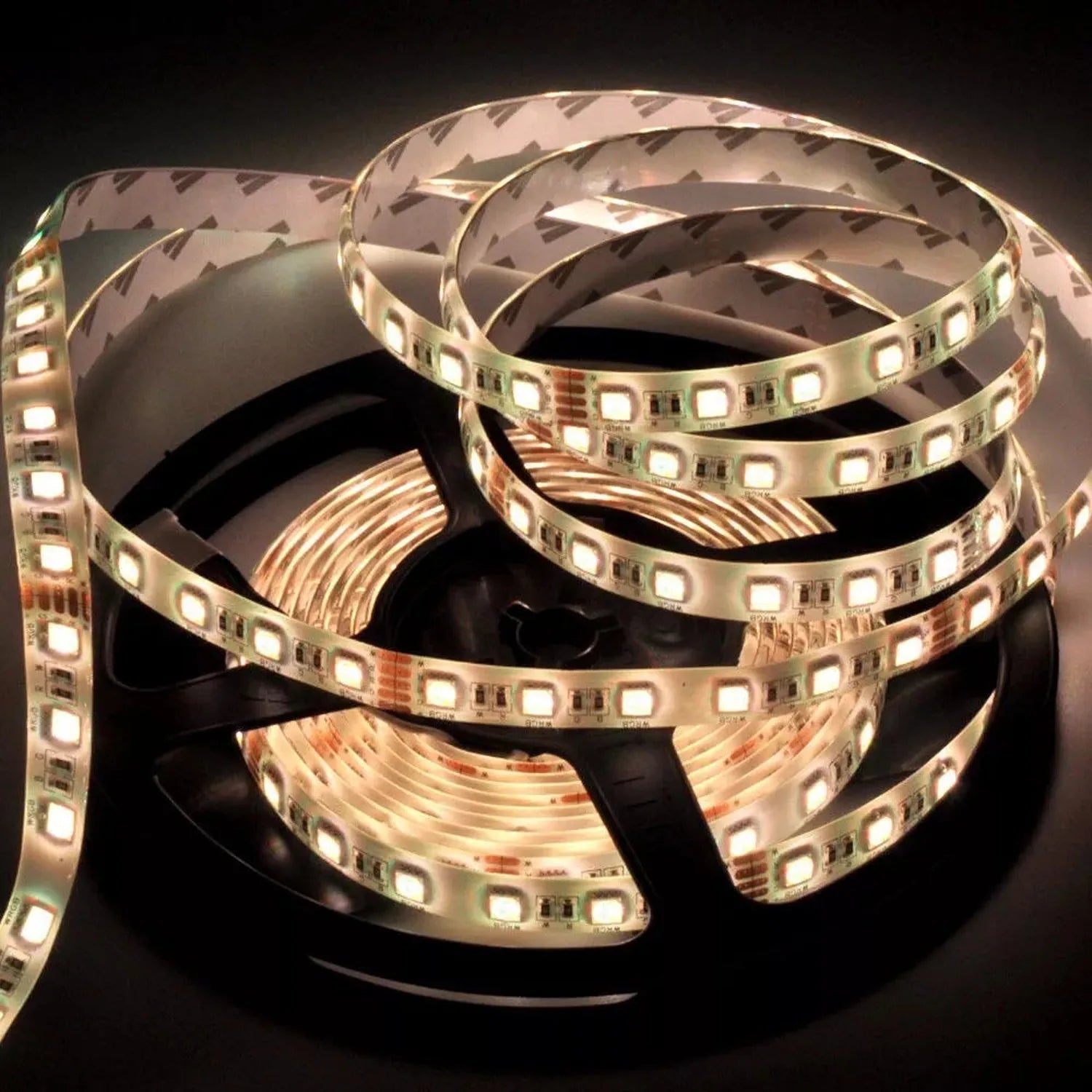

This RGBWW LED strip from Ledison packs red, green, blue, warm white and cool white into every chip. It comes as a 5 metre roll sealed in silicone, so it suits indoor and outdoor projects alike. Each SMD5050 chip carries all five channels. One strip gives you full colour and white light.
RGBWW LED strip key features
- 5 in 1 chips: RGB, warm white 2400K and cool white 6000K
- Protection: IP65, silicone cased
- Supply: 24V DC constant voltage, 18W per metre

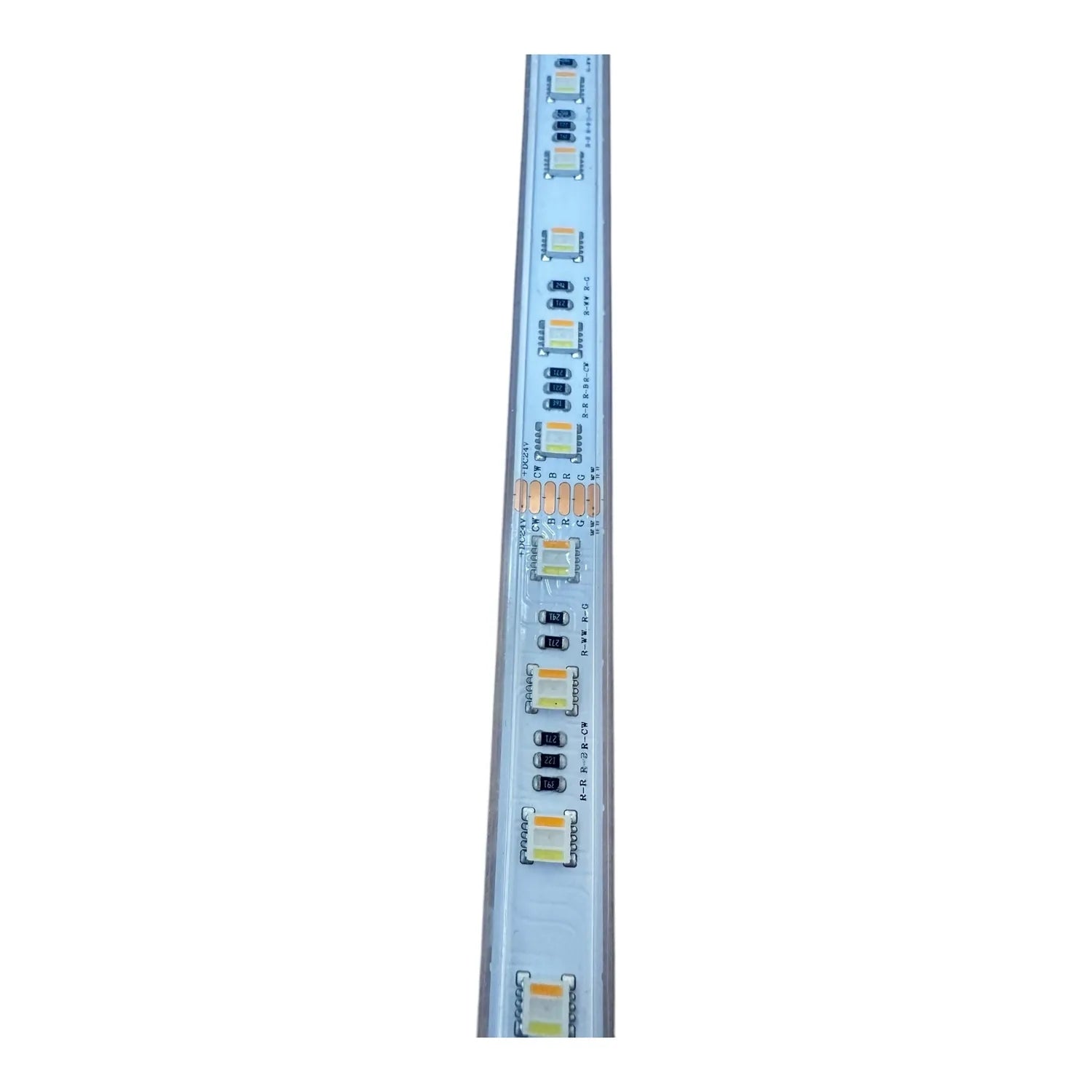

- LED density: 60 SMD5050 LEDs per metre
- Profile: 12mm PCB, 14mm wide in the silicone
- Dimming: dimmable with a suitable controller
Control and compatibility
A 5-pin input connects the strip to RGBWW/CW controllers such as Mi-Light and Skydance. From there you can mix colours, set the white balance anywhere between the warm and cool channels, and dim the output.
Fitting the strip

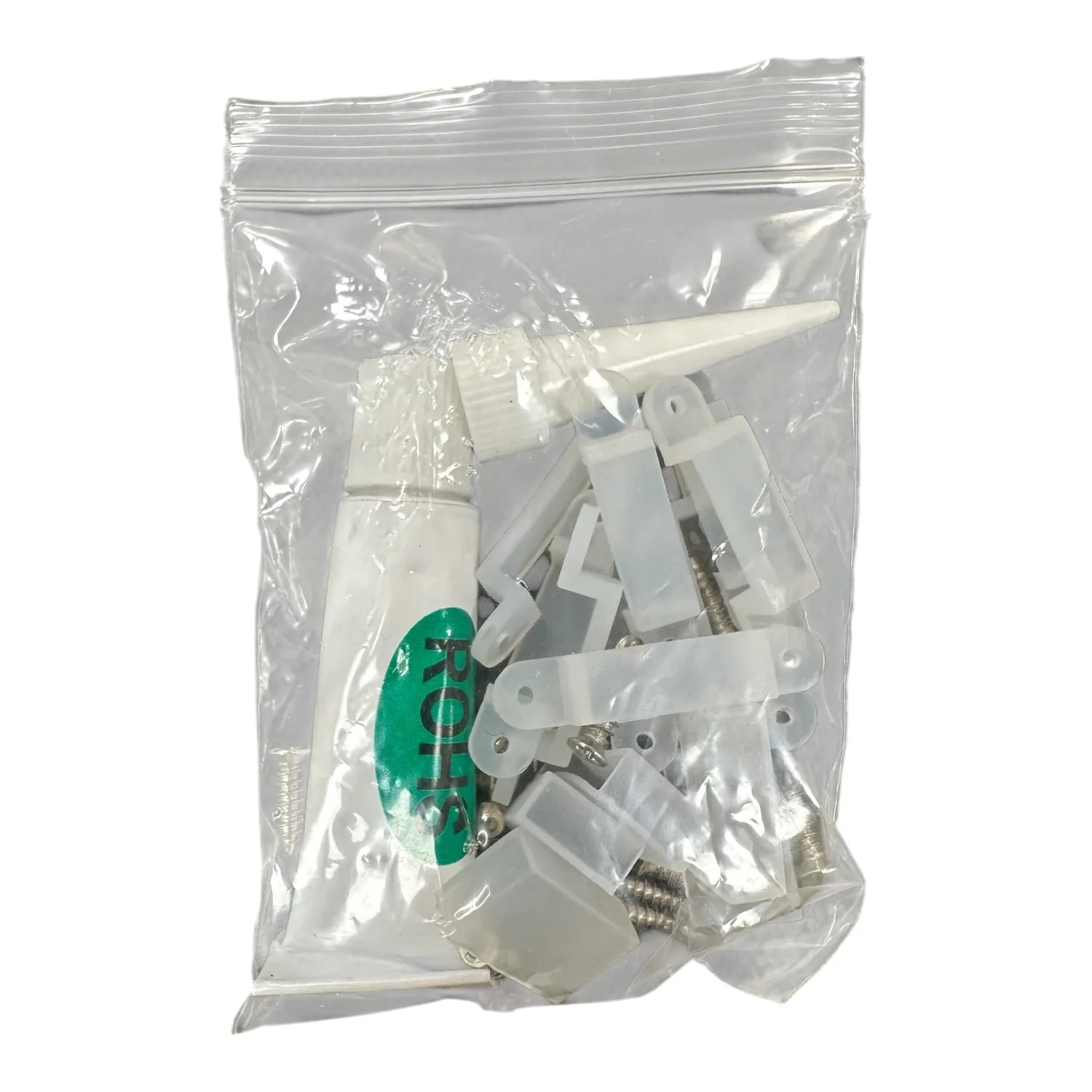

Power the full 5m roll from a 100-120W supply. Before fixing, clean the mounting surface, then peel away the 3M tape backing and press the strip into position. Use 3 clips per metre to hold it securely.

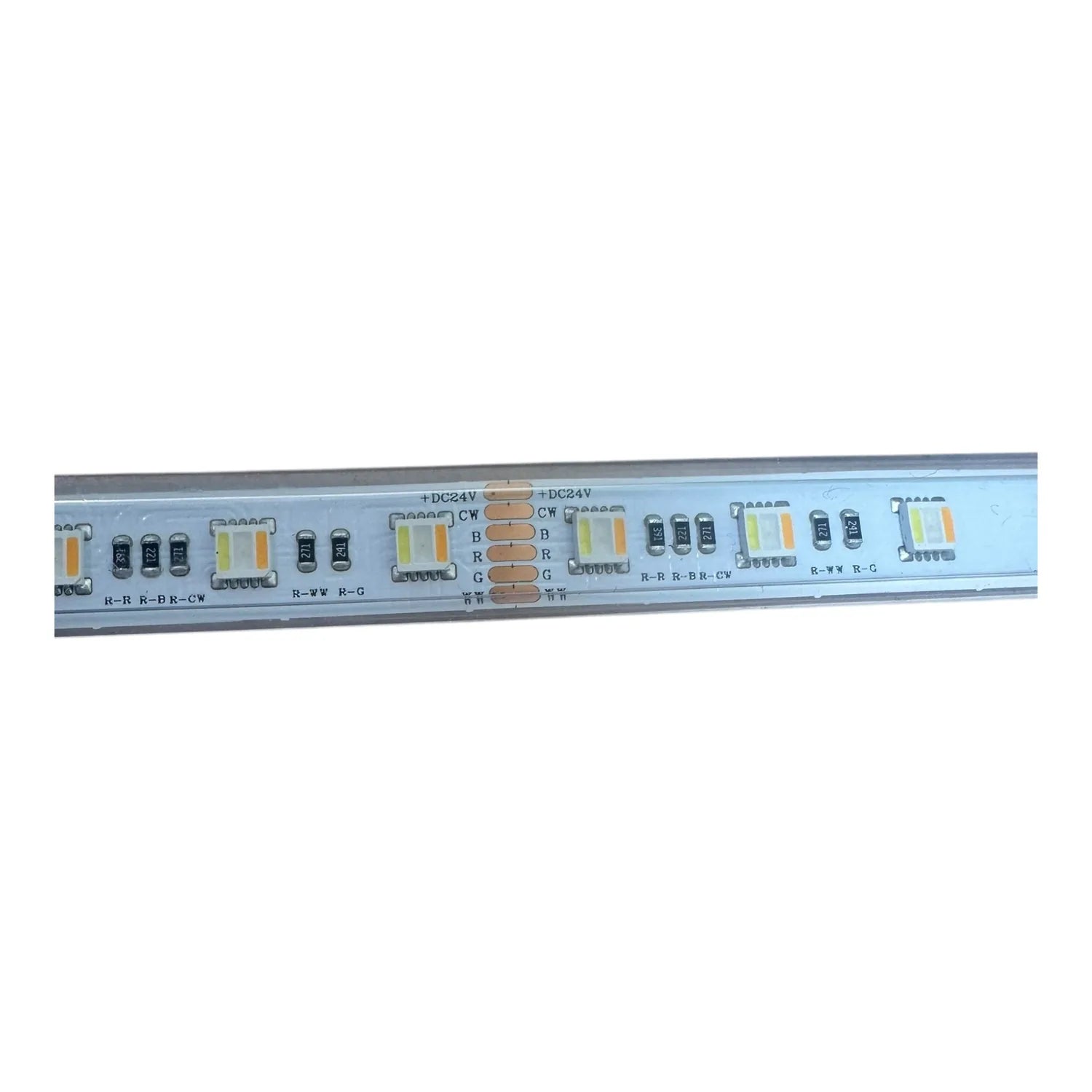

Cutting and wiring

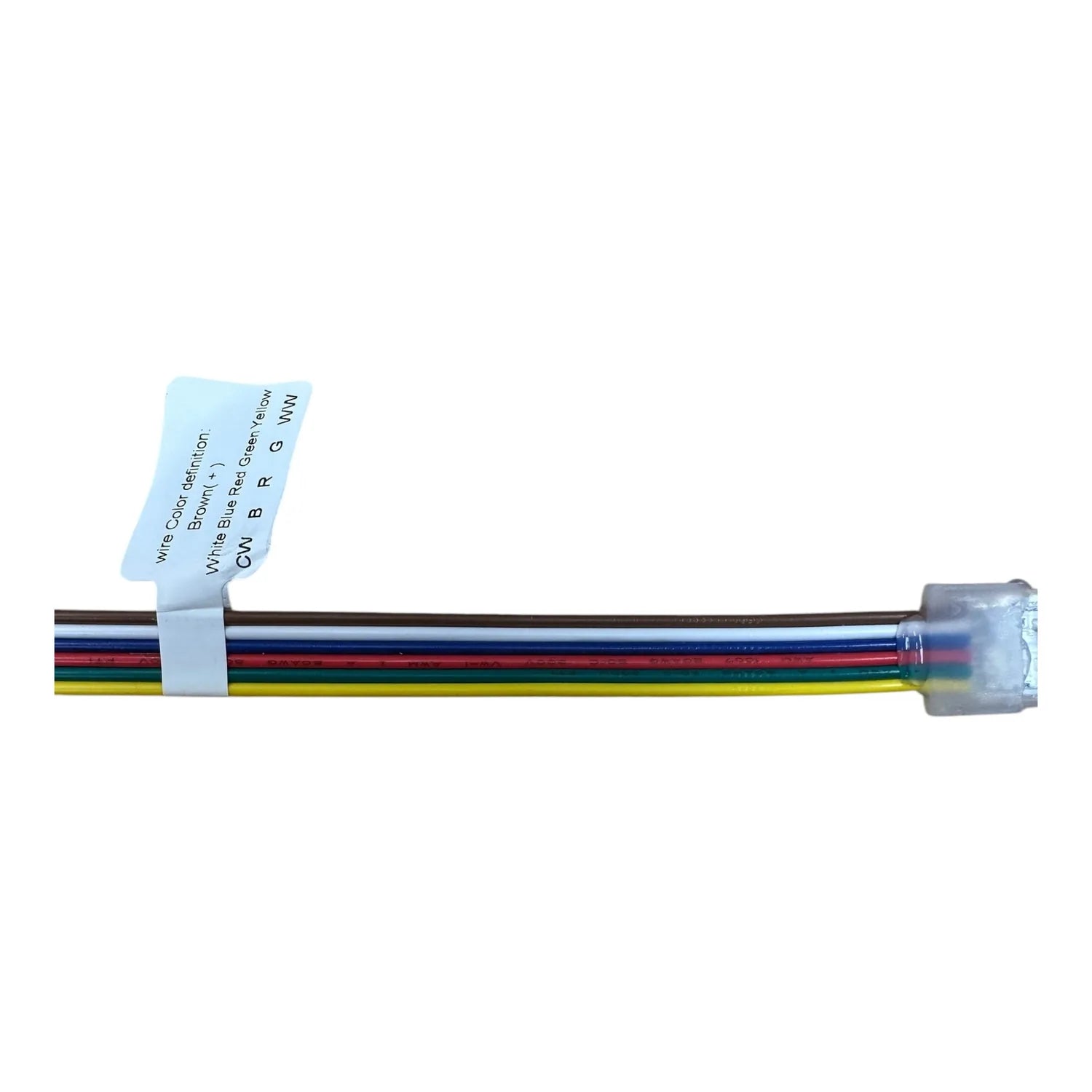

Cut only on the marked line. When wiring up, the red wire goes to V+.
Where to use it

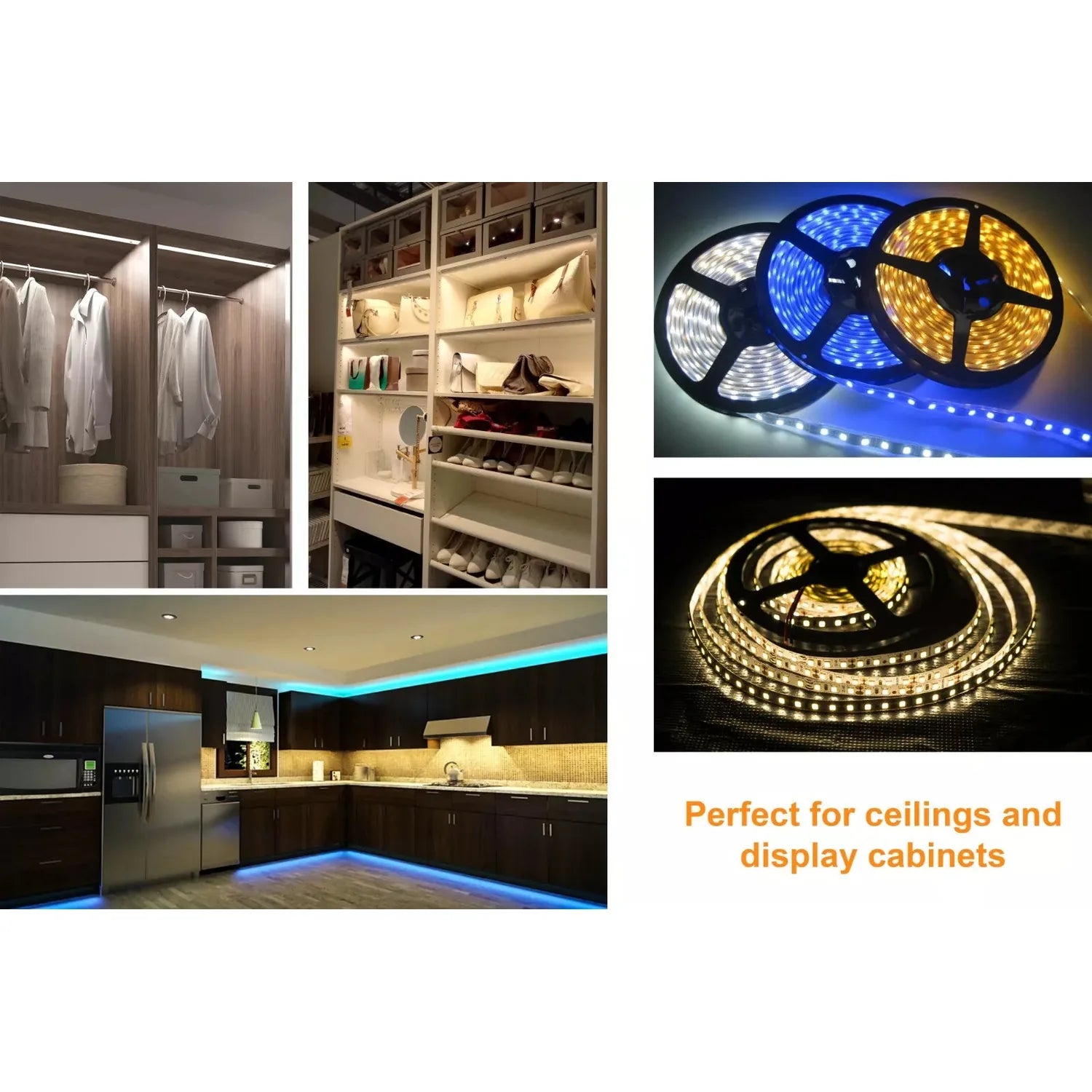

The silicone casing and IP65 rating let this RGB CCT strip work in places a bare strip would not, such as outdoor features and areas exposed to splashes. Indoors it works for cove lighting, shelving, under-cabinet runs and accent lighting, where switching between coloured scenes and plain white light is useful. Keep the whole roll to its 5m length on a single feed.
Technical Specifications 23 rows Show
| Product number | BK-5050-60 5 IN 1 |
| LED type | SMD5050 |
| LEDs per metre | 60 LEDs per metre |
| LED spacing | 16.67mm |
| Cutting length | 100mm |
| Voltage | 24V DC (constant voltage required) |
| Voltage range | 23 ~25V dc |
| Input | 5-pin |
| Power | 18W per metre |
| White colour temperature | Warm white 2400K, cool white 6000K |
| IP rating | IP65 |
| Length | 5M |
| Max run | 5004mm(197.00") |
| PCB width | 12mm |
| Width in silicone | 14mm Wide |
| Casing | Silicone extrusion |
| Height | 4.5mm |
| Recommended power supply | 100-120W (for full 5m roll) |
| Compatible controllers | RGBWW/CW controllers such as Mi-Light and Skydance |
| Mounting | 3 clips per metre |
| Beam angle | 114.7 |
| Working temperature | -20~50C |
| Storage temperature | -30~80C |
Manufacturer datasheet. Figures as published by the manufacturer.
