LED Strip Light 24V SMD2835 12W/m 128 LEDs/m | Diamanti

The Diamanti LED Strip is a 24V flexible tape light built for indoor accent and feature lighting. It suits kitchens, bedrooms, living rooms, cabinets, shelves, offices and display areas where a smooth, continuous run of light is wanted rather than visible dots.

With 128 SMD2835 LEDs per metre, the strip gives a dense, even light output with fewer visible gaps than lower density strips. It is sold as a 5m roll.

Key features of this 24v led strip

• Voltage, 24V, which reduces voltage drop compared with 12V systems on longer runs.
• LED density, 128 LEDs per metre using SMD2835 technology.
• Power draw, 12W per metre.
• Light output, up to 1870 lumens.

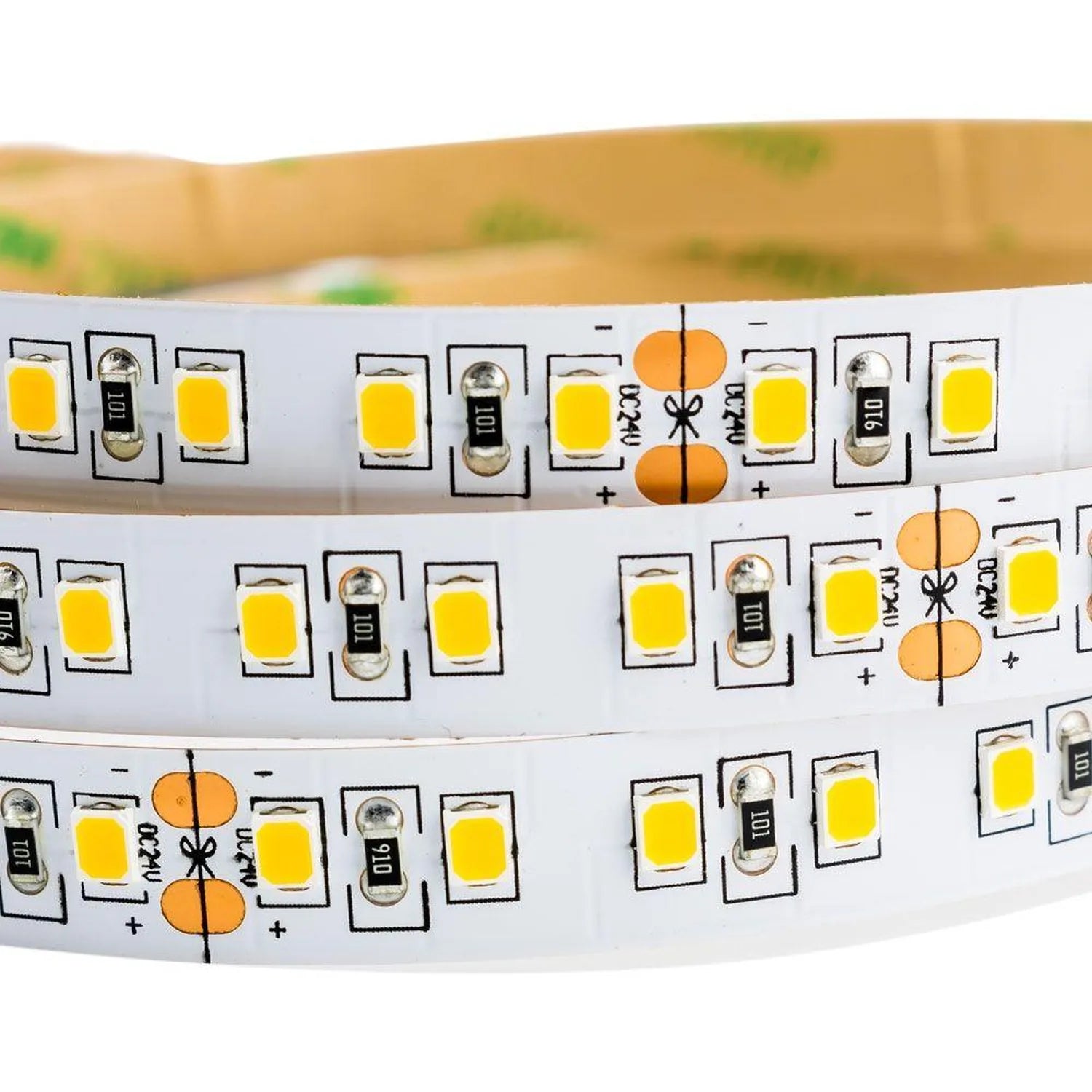

• Construction, pure copper double layer PCB with a white paint finish for conductivity and heat distribution.
• Installation, strong 3M self adhesive backing, cuttable at marked points, with solderless connectors supplied.
• Warranty, 5 years as standard.

Applications

Designed for indoor use only. It works well for continuous feature lighting where consistent brightness matters along the full run, such as under cabinets, along shelving or behind display panels.

Power supply

The right power supply depends on the length fitted and the layout. For a full 5m roll a 60W supply is recommended. For shorter lengths or custom layouts, the supply should be rated for the total wattage of the strip installed.

Fitting notes

Fit onto a clean, dry, smooth and non porous surface. Dust, grease, moisture or uneven surfaces will weaken the adhesive bond.

What's in the box

• LED strip in the selected length
• Strip connectors
• Cable connectors
• 3M self adhesive backing on the strip
• Power supply, where included with the selected option
