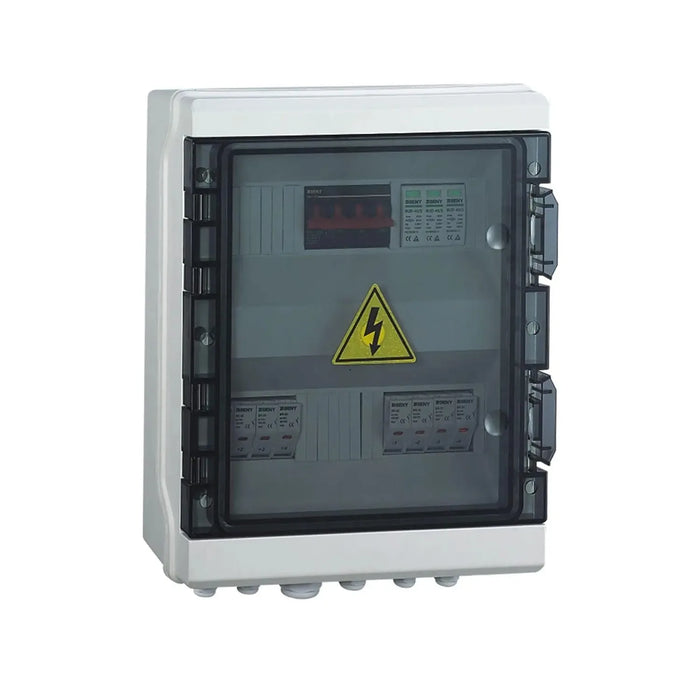

DC combiner box with white exterior casing, black interior panel, digital display, and yellow electrical hazard warning symbo
PV DC Combiner Box 4-In 1-Out 1000V IP65 | Voltacon

PV DC Combiner Box 4-In 1-Out 1000V IP65 | Voltacon

Vendor
Voltacon
SKU
738650-1
Availability
In stock
Weight
4.0 kg

£261.45inc VAT £217.88exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

This Voltacon PV DC combiner box brings four solar string inputs down to a single protected output, with fuses, a surge protection device and a DC isolator built into one IP65 enclosure. It's designed for the DC side of a single MPPT solar installation, whether off-grid, hybrid or grid-tied.

Key features of this pv dc combiner box

  • Configuration, 4 fused string inputs, 1 protected output
  • Maximum voltage, 1000VDC
  • String protection, fused PV string terminals with LED fault indicators
  • Surge protection, DC surge protection device fitted internally
  • Isolation, DC isolator included
  • Enclosure, IP65 weatherproof, with cable glands included

Applications

Fit this box on the DC string side of a single MPPT array to protect and isolate the strings before they reach the inverter. It suits off-grid, hybrid and grid-tied PV systems.

Installation and safety

DC solar circuits carry dangerous voltages. This unit must be installed by a qualified electrician, and all PV strings should be isolated before anyone works on the internal connections.

What's in the box

  • 4-in 1-out PV combiner box with fuses, SPD and DC isolator fitted
  • Cable glands
Technical Specifications 3 rows Show
SpecificationValue
Configuration4 inputs, 1 output
Maximum voltage1000VDC
Enclosure ratingIP65

Manufacturer datasheet. Figures as published by the manufacturer.
