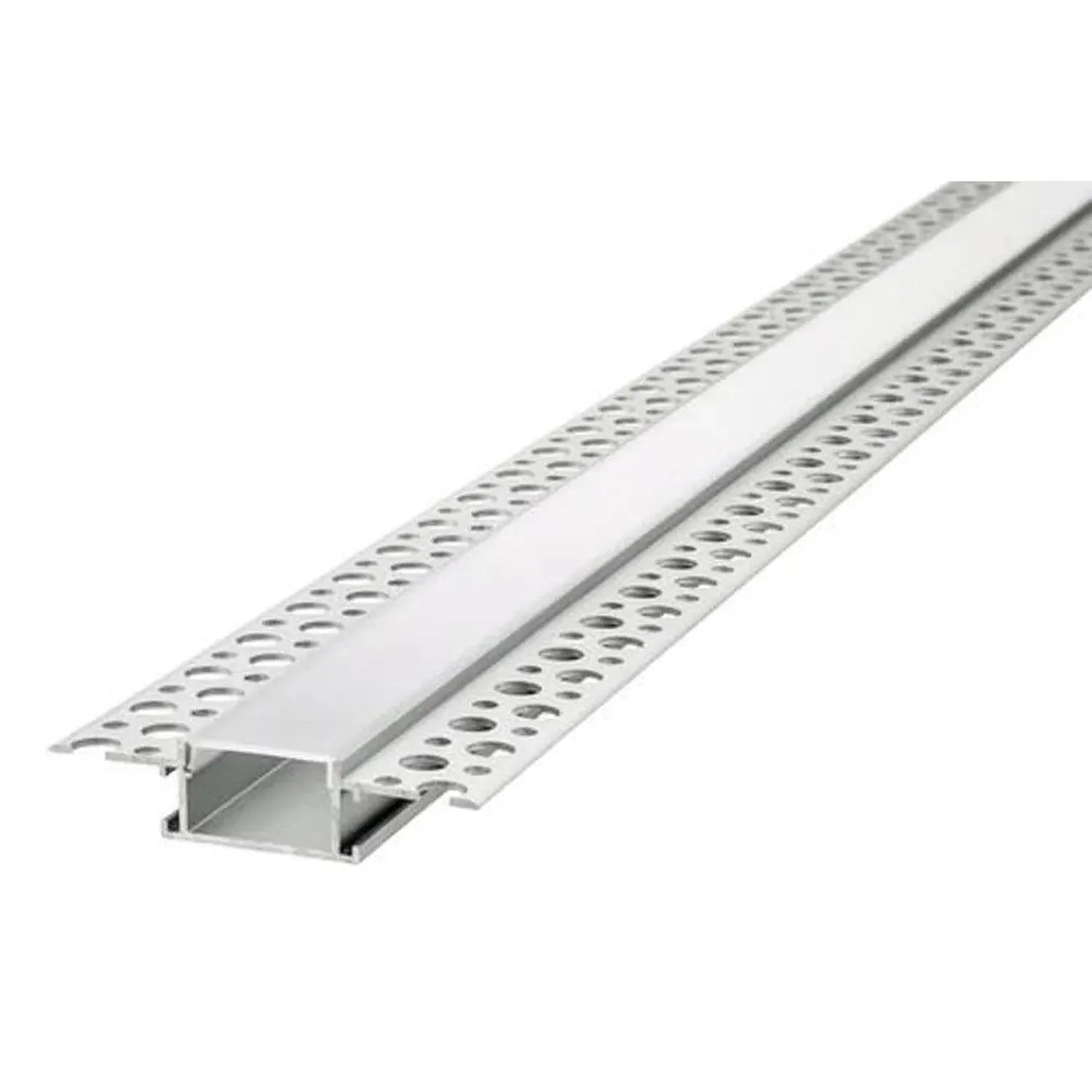

Aluminum recessed LED profile with perforated flanges and white diffuser cover, shown as isolated product view.

Recessed LED Profile 1m Plaster-In for Plasterboard 20mm Strip | Ledison

£10.49
Skip to product information
Aluminum recessed LED profile with perforated flanges and white diffuser cover, shown as isolated product view.

Recessed LED Profile 1m Plaster-In for Plasterboard 20mm Strip | Ledison

Vendor
Ledison
SKU
770040
Availability
In stock
Weight
0.15 kg

£10.49inc VAT £8.74exc VAT

Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 1 metre aluminium profile is plastered straight into drywall or plasterboard. Once finished, your LED strip sits flush with the surface, giving a trimless line of light in walls and ceilings with no visible frame. A frosted polycarbonate cover spreads the output into an even, spot-free glow.

Recessed LED profile features

  • Strip width: takes LED strips up to 20mm wide, or two 10mm strips side by side
  • Strip types: works with SMD5050, SMD3528 and SMD2835
  • Diffuser: frosted polycarbonate
  • Body: aluminium, which helps draw heat away from the strip
  • Length: 1 metre
  • Finish: plastered in, trimless

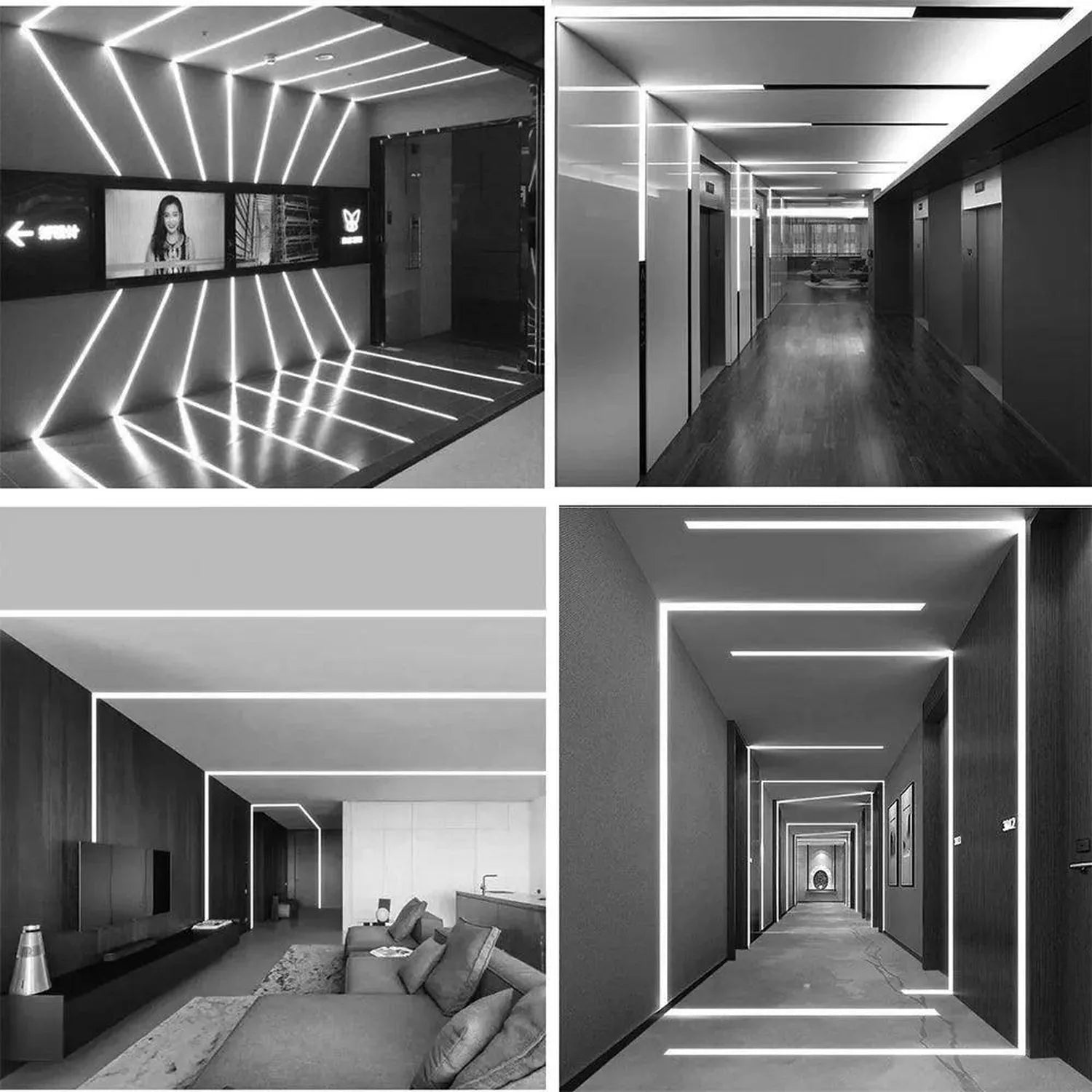

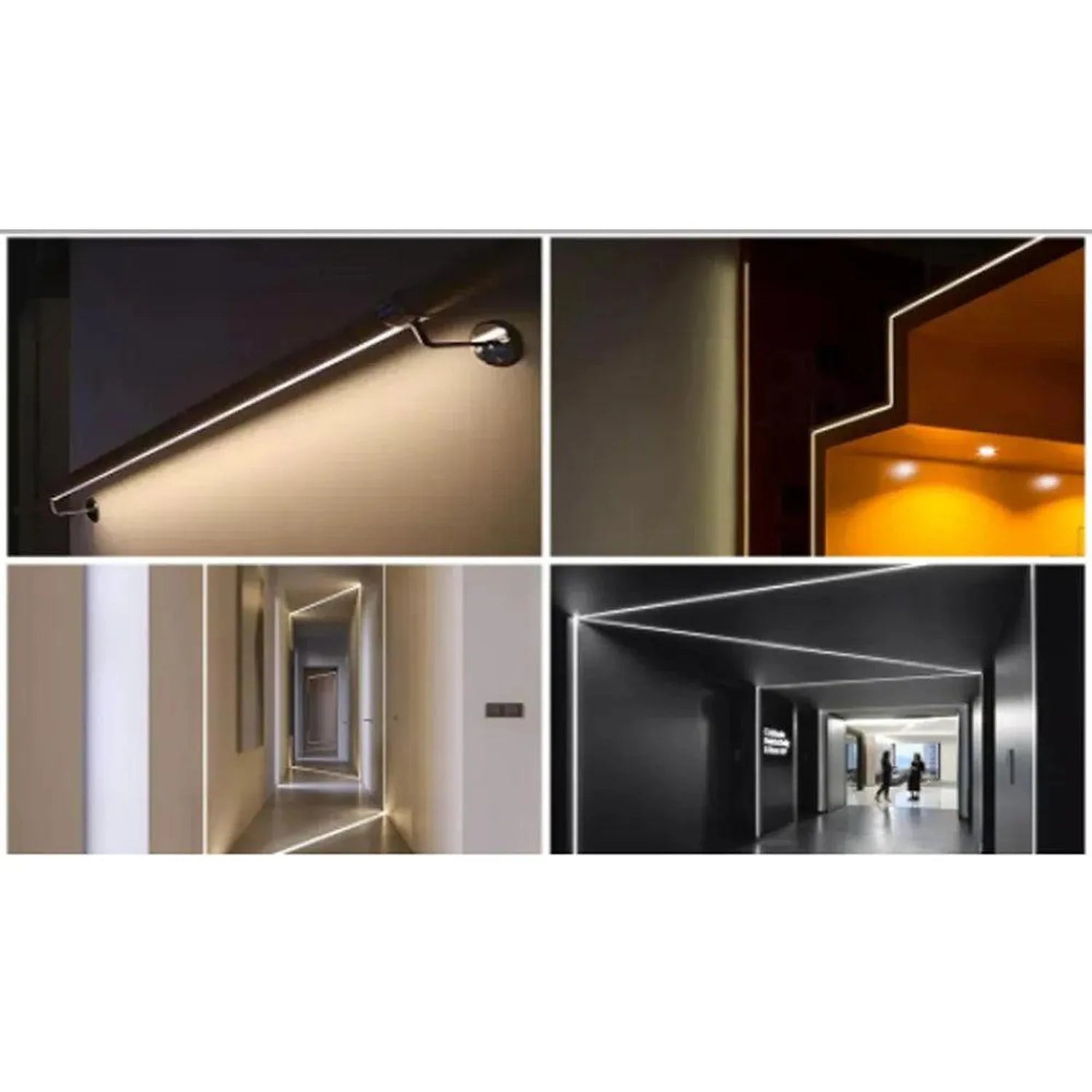

Where it works

Use it for recessed feature lighting in ceilings and walls, or to run a continuous line of light along a corridor. It suits homes, hotels, offices and shops. Because the profile is set into the plasterboard before finishing, plan its position at the board fixing stage rather than after decorating.

Running two strips

The 20mm channel is wide enough for a pair of 10mm strips. That gives you room to fit two strips in one profile within the same recessed line.

Included with the profile

  • 1 metre aluminium profile
  • Frosted diffuser
  • End caps, clips and mounting brackets

Before you order

LED strip is not supplied. Choose a strip of 20mm width or less, or two at 10mm, in one of the listed SMD types. Other lengths may be available for larger projects.

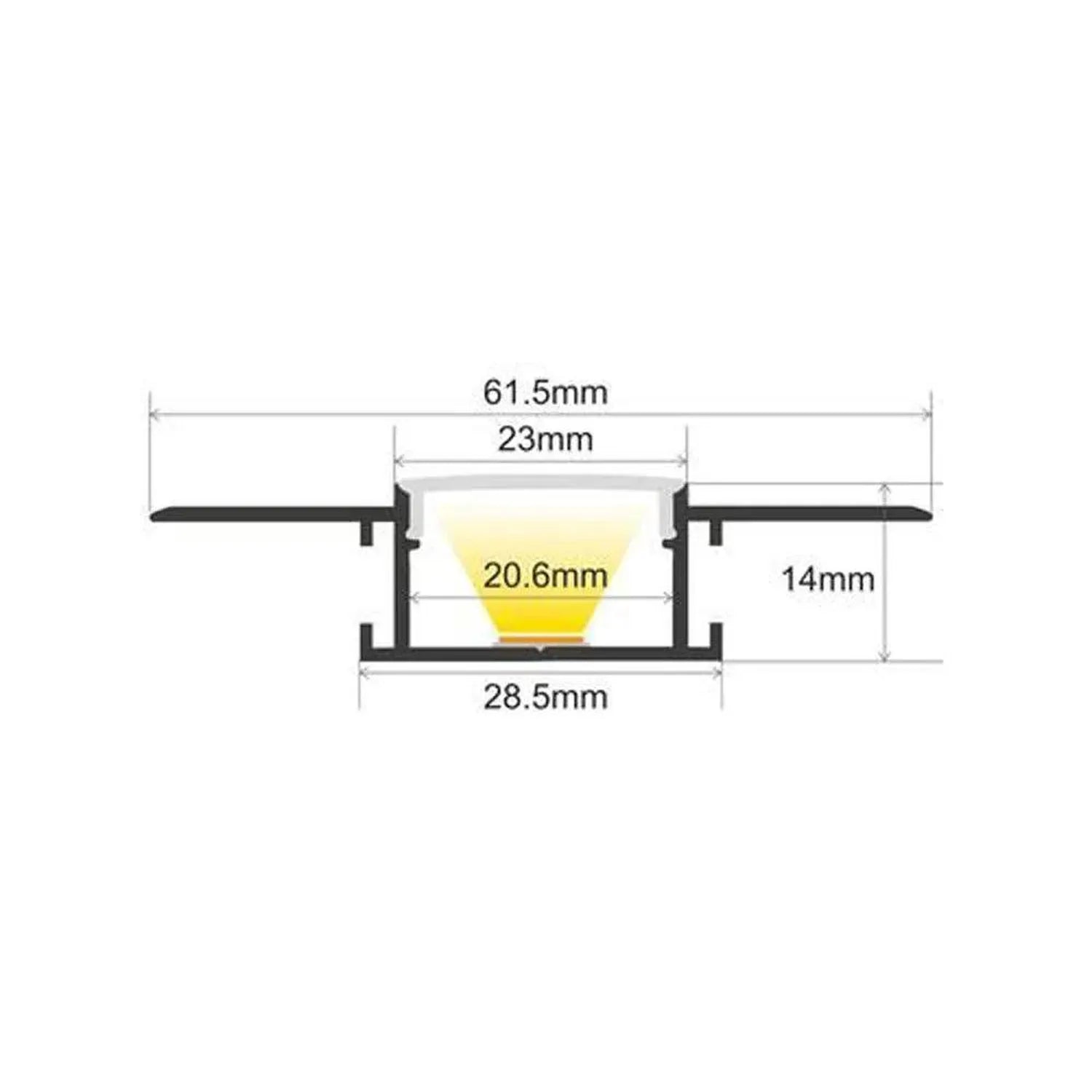

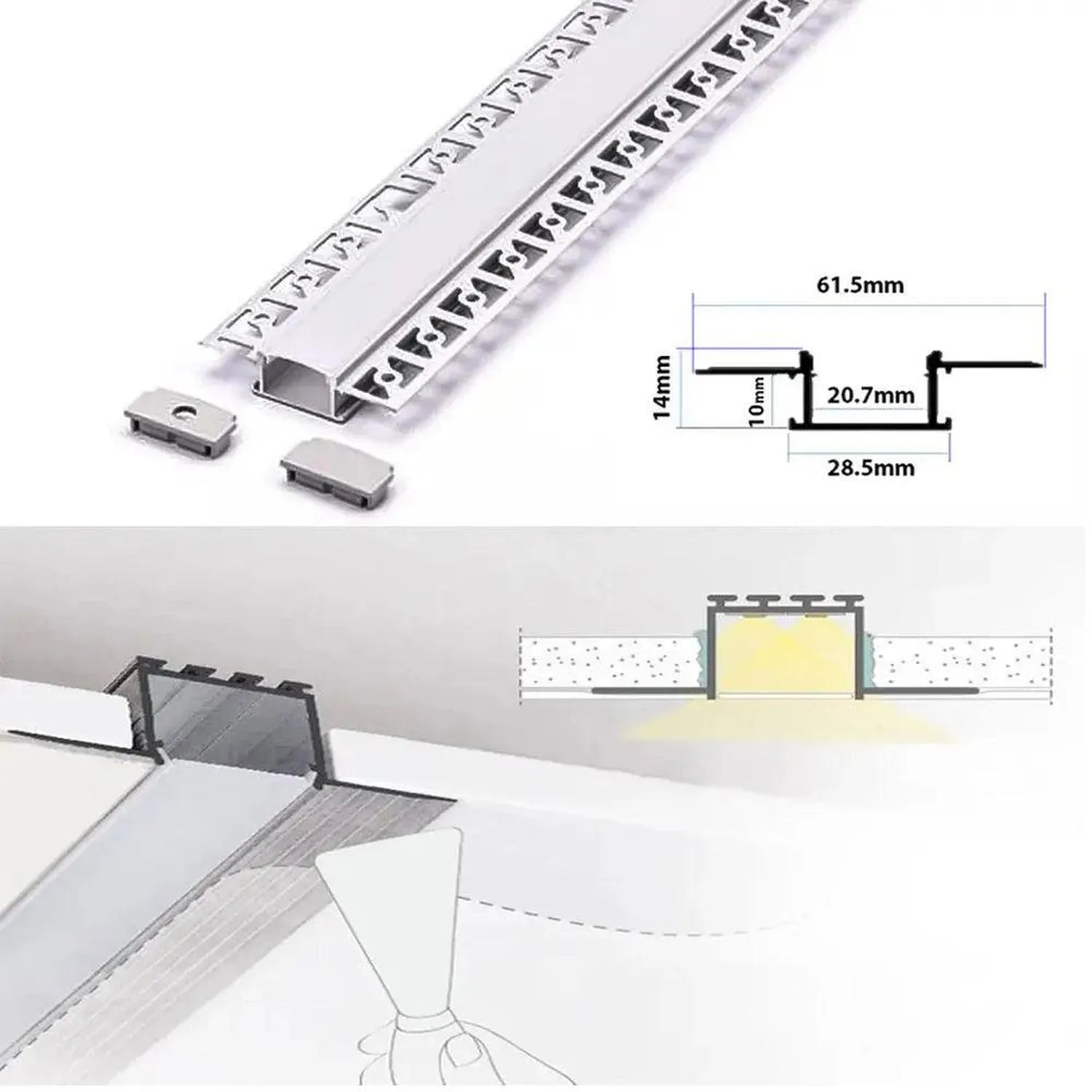

Technical Specifications 10 rows Show
TypePlaster in recessed LED profile
MaterialAluminium
Length1 metre
Strip compatibilityLED strips up to 20mm wide; up to 2 x 10mm wide LED strips
Strip typesSMD5050, SMD3528 and SMD2835
Diffuserfrosted polycarbonate
FinishPlastered in, trimless
HeatAluminium body with good heat dissipation
Accessoriesend caps, clips and mounting brackets
Supplier codeSJ-ALP6114

Manufacturer datasheet. Figures as published by the manufacturer.
