Tile LED Profile L-Shape Corner 1m Plaster-In 23mm Frosted | Ledison
- Vendor
- Ledison
- SKU
- 770056
- Availability
- In stock
- Weight
- 0.15 kg
£11.12inc VAT £9.27exc VAT
Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

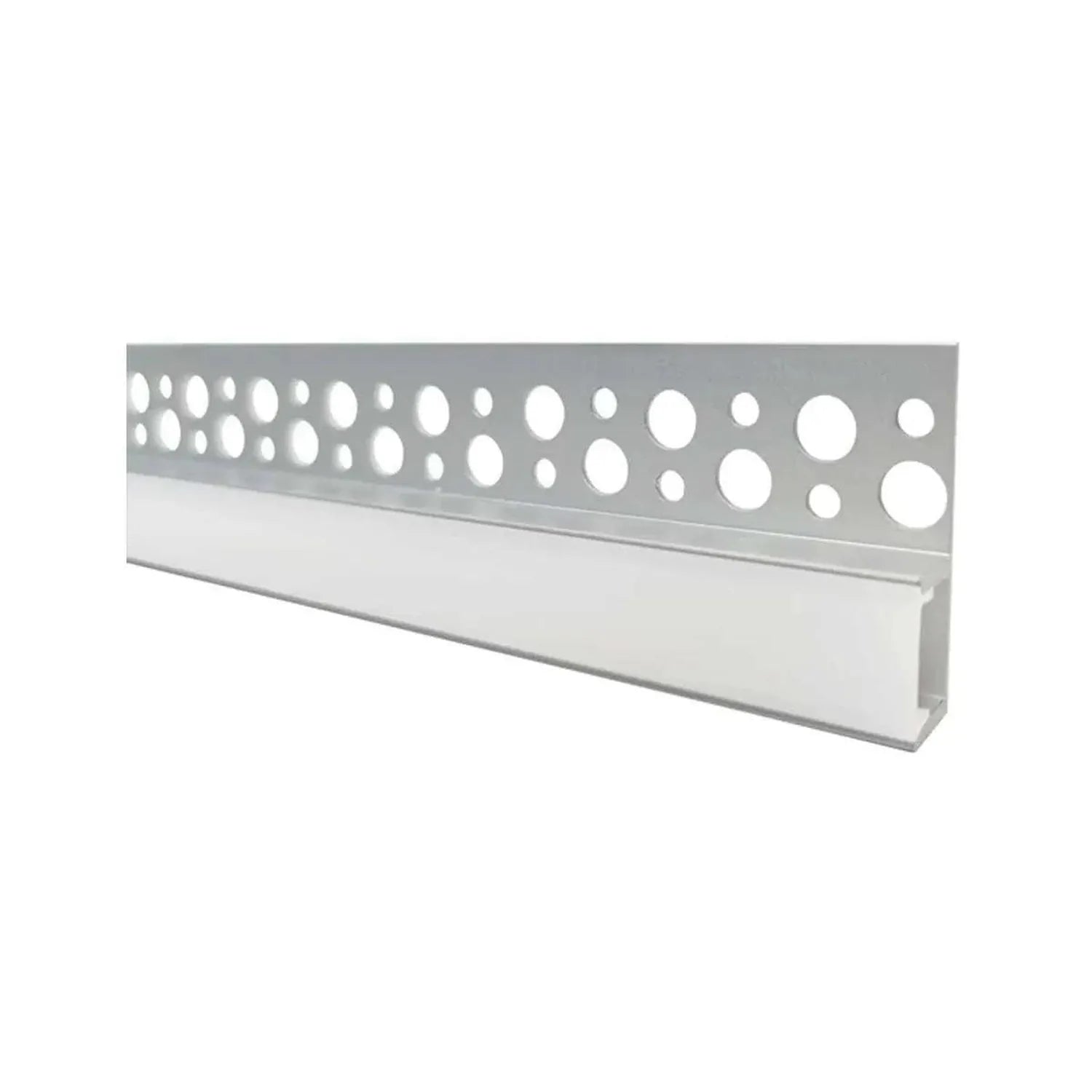

This 1m aluminium tile LED profile from Ledison is L-shaped, made for the inside corners of walls and ceilings. You can plaster it in, set it beneath tiles or marble, or fit it under plasterboard. The flange sits at the bottom. A frosted polycarbonate cover diffuses the strip so the light comes out even rather than as a row of dots.
Tile LED profile details
- Width: 23mm
- Depth: 11.3mm
- Strip size: takes IP65-rated LED strips up to 12mm wide
- Materials: 6063-T5 aluminium body, PC cover and polypropylene end caps
- Light transmittance: the frosted cover passes 70-90% of the light
- Length: 1m, and it can be cut to any size
Where it fits

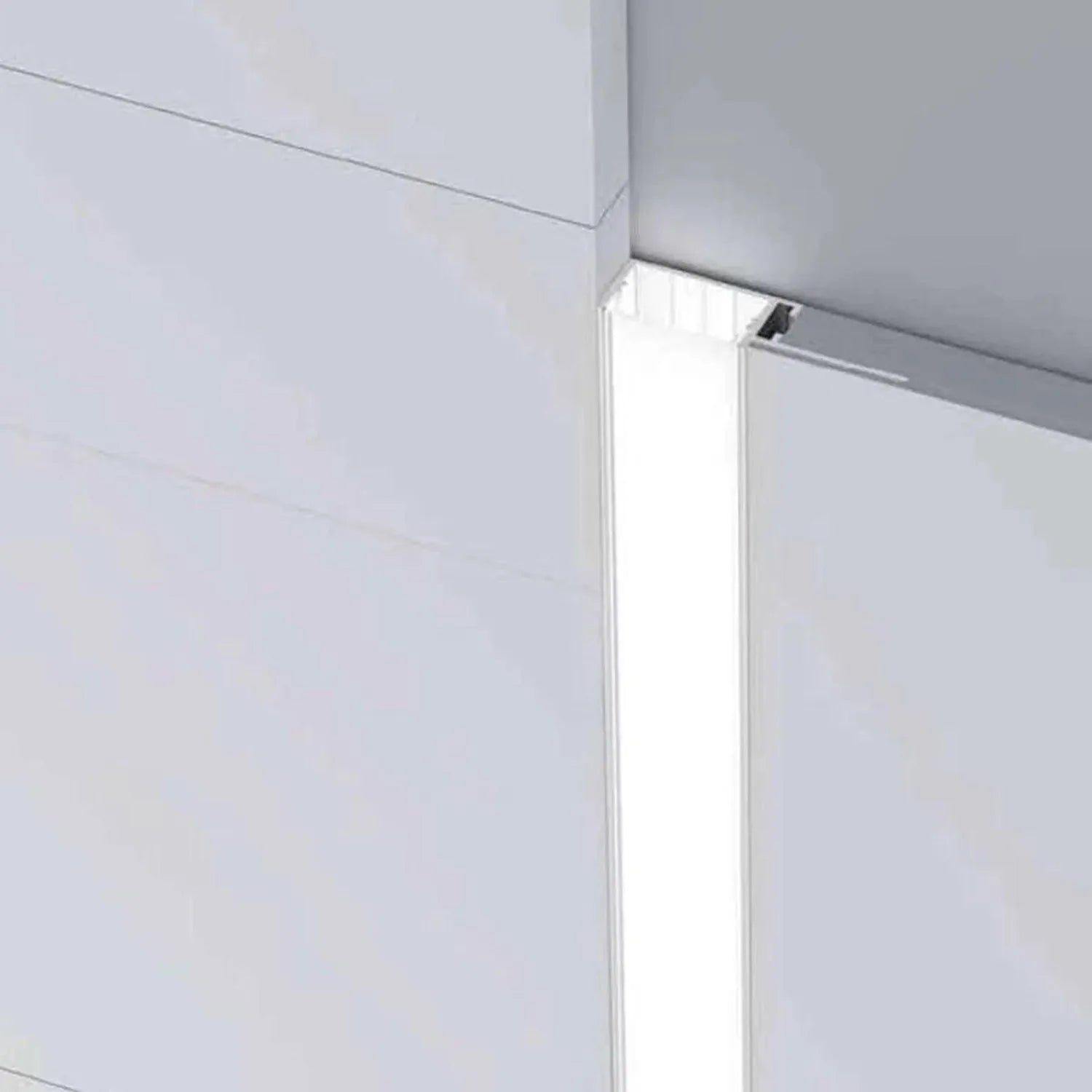

The profile is built for corner closing. It suits internal corners where a wall meets another wall or a ceiling, in kitchens, bathrooms, hallways and feature walls. Because the flange is at the bottom, it goes in before the finishing layer, whether that is plaster, tiles, marble or plasterboard. Cut it on site to suit the run.
Before you fit it
The profile itself carries an IP20 rating as standard. It is paired with IP65-rated strips, but check the rating needed for your location before installing. Plan your cable route early: one end cap has a cable entry and the other is closed.
In the box
- Aluminium profile
- Frosted cover

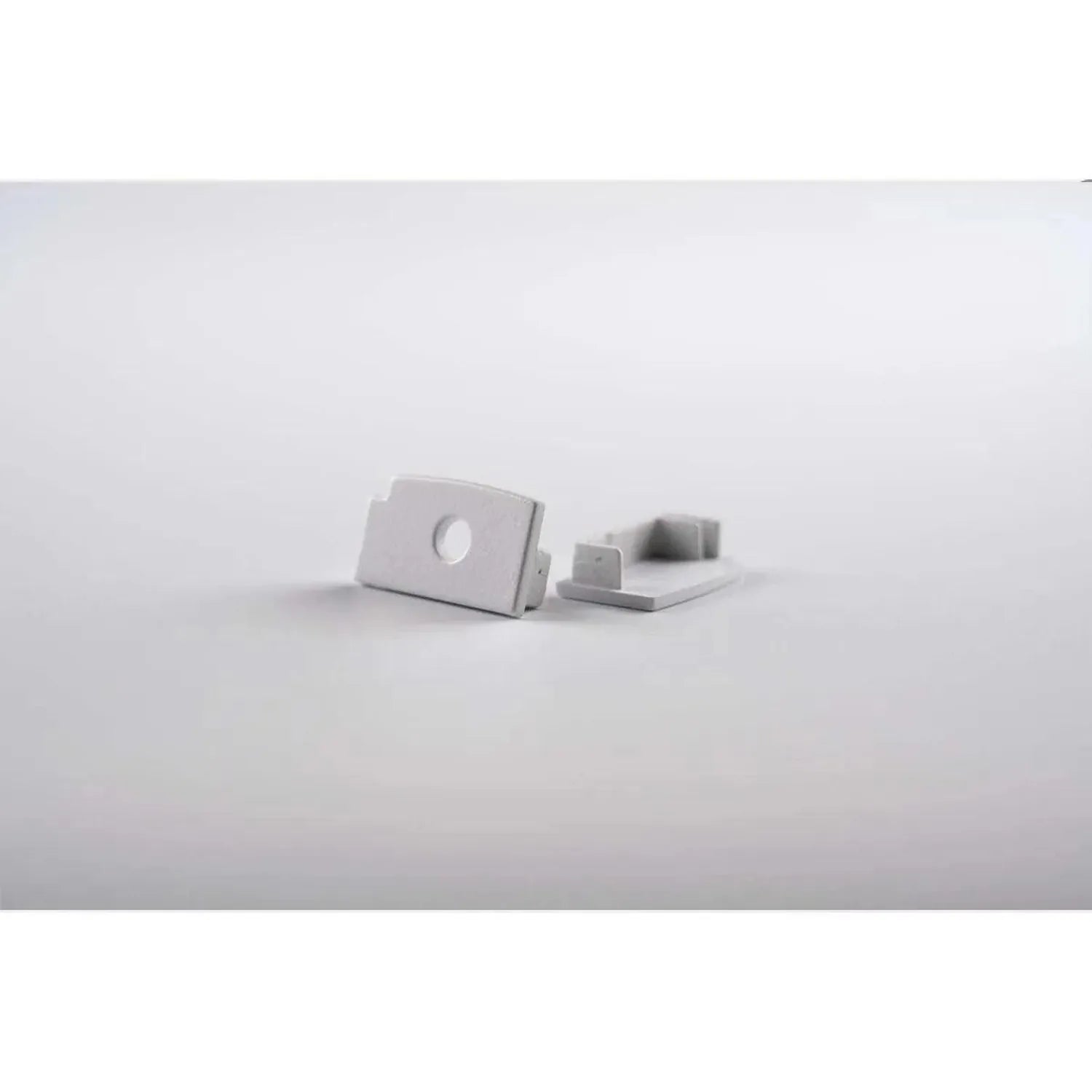

- 2 end caps, one with a cable entry and one without
Technical Specifications 19 rows Show
| Type | Plaster-in LED profile for corner closing |
| Shape | L-shaped recessed |
| Width | 23mm |
| Depth | 11.3mm |
| Strip compatibility | IP65-rated LED strips with a width of up to 12mm |
| Flange | At the bottom (tiles/ plasterboard) |
| Ingress protection rating | IP20 (standard) |
| Available lengths | 1m / 2m/ 3m (can be cut to any size) |
| Material | Body, aluminum, cover, polycarbonate (PC), end cap, polypropylene |
| Grade of aluminium | 6063-T5 |
| Anodizing | Ecru oxidation and Grind arenaceous oxidation |
| Lighting transmittance | Frosted Cover, 70-90% |
| Operating temperature range | -30~+100℃ |
| Heat stability | Under 100℃. |
| Flammability | V2 Fire Rating for PC Cover. |
| UL94 rating | UL94V2 |
| UV stability | Ageing resistance more than 3 years |
| Manufacturing tolerances | ±0.5mm. |
| Supplier code | SJ-ALP4714A |
Manufacturer datasheet. Figures as published by the manufacturer.
