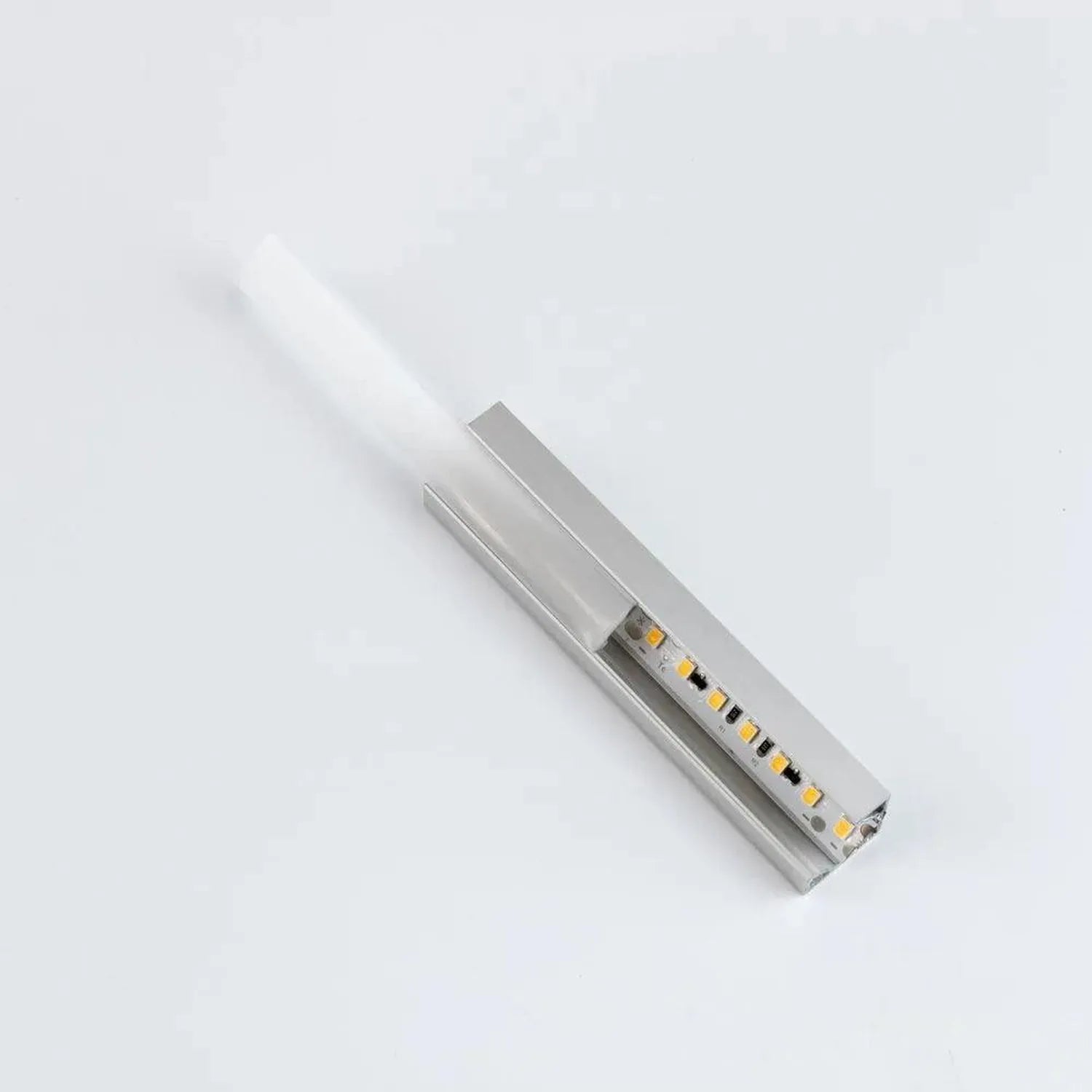

Silver aluminum LED profile with integrated warm white LEDs and opal diffuser cover, shown at an angle on white background.

Corner LED Strip Profile 1m Aluminium 18.4 x 18.4mm Opal Cover | Ledison

£8.14
Skip to product information
Silver aluminum LED profile with integrated warm white LEDs and opal diffuser cover, shown at an angle on white background.

Corner LED Strip Profile 1m Aluminium 18.4 x 18.4mm Opal Cover | Ledison

Vendor
Ledison
SKU
770042
Availability
Pre-order
Weight
0.15 kg

Not in stock right now. We will confirm the lead time before dispatch.

£8.14inc VAT £6.78exc VAT

Delivery from £18.50 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This corner LED strip profile from Ledison is a 1 metre length of silver anodised aluminium with an opal cover, shaped to sit into an internal or external corner. It measures 18.4 x 18.4 x 12mm and takes LED strip of either 8mm or 10mm width. Fixing is simple. The strip's own 3M self-adhesive backing sticks straight onto the smooth aluminium base, and the milky PC cover clips over the top to soften the light.

Aluminium corner LED strip profile details

  • Length: 1 metre
  • Dimensions: 18.4 x 18.4 x 12mm
  • Strip width: suits 8mm and 10mm LED strips
  • Body: silver anodised aluminium with a smooth base for 3M self-adhesive strip
  • Diffuser: milky (opal) PC cover
  • Supplier code: SJ-ALP1919F

Where it fits

The angled shape is made for corners, so the profile can run along the join between two surfaces rather than sitting flat on one of them. Two metal clips hold the profile in position, and the end caps close off each end for a tidy finish. One cap has a hole, which gives a route for the strip's cable to exit, while the other is solid.

Installers fitting strip lighting into corners will find the opal cover hides the individual LEDs better than a bare strip would. The profile itself carries no light source, so pair it with an 8mm or 10mm strip of your choice.

What you get

  • 1 metre aluminium profile with opal cover
  • 2 end caps (one with a hole, one without)
  • 2 metal clips

LED strip is not included.

Technical Specifications 12 rows Show
TypeCorner LED strip profile
ShapeCorner
MaterialAluminium
FinishSilver Anodized
Length1-meter
Dimensions18.4 x 18.4 x 12mm
Strip compatibility8mm and 10mm wide LED tapes
Coveropal
End caps2pcs end caps - 1 with hole, 1 without
Clips2 metal clip
Strip fixingLED strips with 3M self-adhesive
Supplier codeSJ-ALP1919F

Manufacturer datasheet. Figures as published by the manufacturer.
